DJI Agras T100 Tank (2)

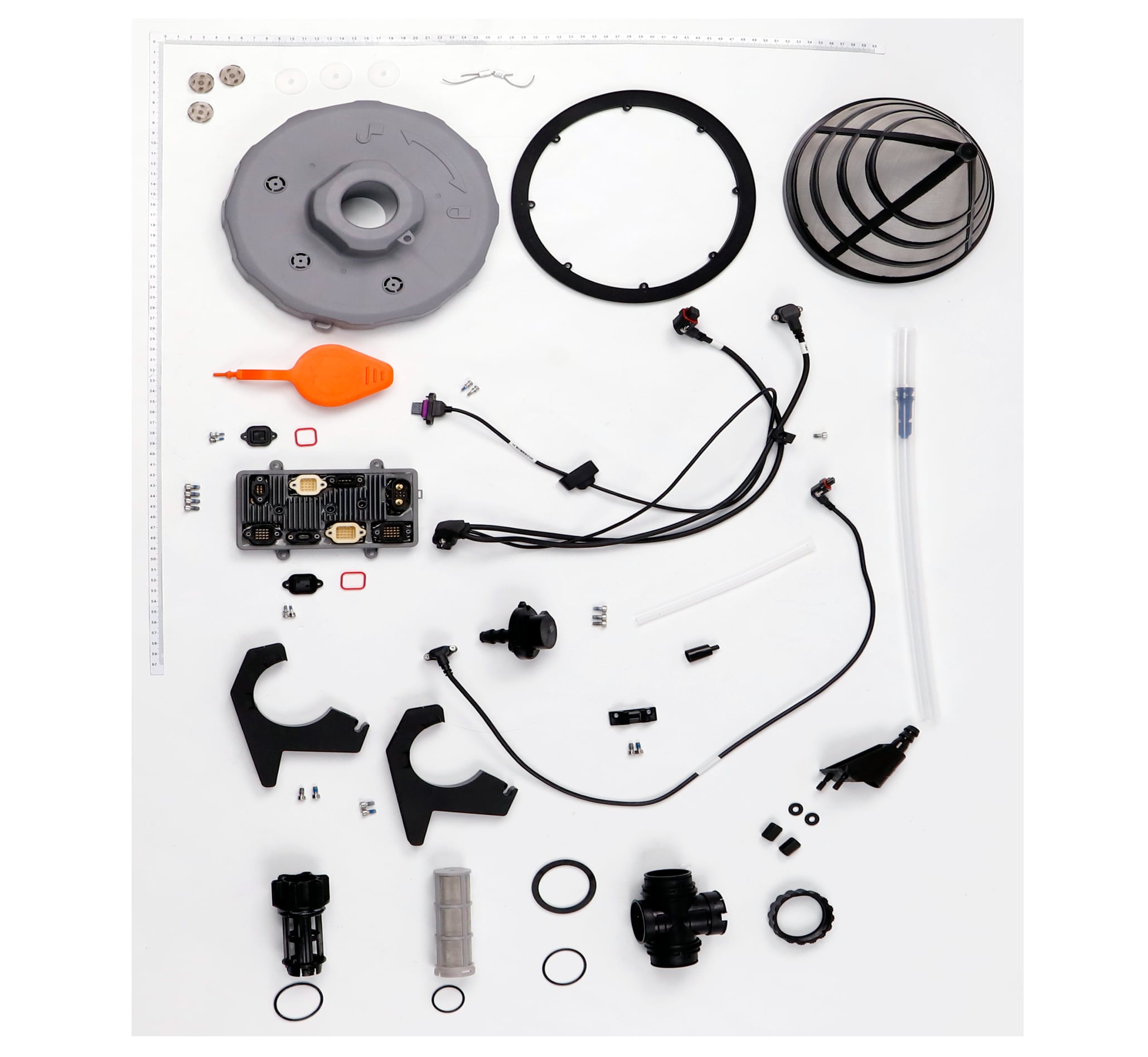

Official DJI parts diagram and material list.

Pricing is per single item unless the part description says otherwise.

All T100 assemblies (31)

Parts Diagram

Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.

Open photo full size ↗

No.	Part	$ Each (inc. GST)
1	Aluminum Clip YC.ST.AS000053 $6.65	$6.65
2	Spray Tank Lanyard YC.ST.AS000043 $6.65	$6.65
3	Spray Tank Cover Waterproof Permeability Cover YC.JG.ZS002250 $0.95	$0.95
4	Spray Tank Cover Waterproof Permeability Film YC.JG.MY000678 $2.85	$2.85
5	Spray Tank Cover YC.JG.ZS006110 $28.60	$28.60
6	Dosing Part Rubber Cover YC.JG.MY001721 $28.00	$28.00
7	Screw (M25-HCW00960040-055020-5103-Y) YC.ST.LL000698 $0.65	$0.65
8	16-pin Connector Sealing Ring YC.JG.MY001811 $1.35	$1.35
9	Screw (M25-HCW00960040-055020-5103-Y) YC.ST.LL000698 $0.65	$0.65
10	16-pin Connector Plastic Cover YC.JG.ZS006291 $1.35	$1.35
11	Screw M40-HC080080-68-85 YC.WJ.L01234 $3.60	$3.60
12	Payload Control Board BC.AG.SS001068 $552.70	$552.70
13	20-pin Connector Plastic Cover YC.JG.ZS006858 $1.35	$1.35
14	Screw (M25-HCW00960040-055020-5103-Y) YC.ST.LL000698 $0.65	$0.65
15	20-pin Connector Sealing Ring YC.JG.MY001989 $1.35	$1.35
16	Impeller Pump Bracket YC.JG.ZS006360 $13.55	$13.55
17	Screw M40-HC080080-68-85 YC.WJ.L01234 $3.60	$3.60
18	Filter With 50 Holes YC.JG.ZS005454 $35.15	$35.15
19	Spray Tank Y-tee Part Nut YC.JG.ZS005453 $5.75	$5.75
20	Spray Tank Y-tee Part Sealing Ring YC.JG.MY000687 $3.80	$3.80
21	Spray Tank_Filter Rubber Ring YC.SJ.J01186 $5.85	$5.85
22	Spray Tank Y-tee Part Sealing Ring YC.JG.MY000687 $3.80	$3.80
23	Damping Rubber Pad YC.JG.MY000845 $0.95	$0.95
24	Spray Tank Y-tee Part YC.JG.ZS002232 $21.90	$21.90
25	Water Outlet Rotation Cover YC.JG.ZS002233 $9.50	$9.50
26	Liquid Level Gauge Nut YC.JG.ZS004726 $14.00	$14.00
27	Liquid Level Gauge Base Sealing Ring YC.JG.MY001801 $1.55	$1.55
28	Liquid Level Gauge Base YC.JG.ZS006114 $28.60	$28.60
29	Screw M40-HC080080-68-85 YC.WJ.L01234 $3.60	$3.60
30	Flow Meter Bracket YC.JG.ZS004712 $1.65	$1.65
31	Liquid Level Gauge Module BC.AG.SS001122 $153.90	$153.90
32	Liquid Level Gauge External Hose Rubber Stopper YC.JG.ZS006843 $7.55	$7.55
33	Screw M40-HC080080-68-85 YC.WJ.L01234 $3.60	$3.60
34	Liquid Level Gauge Signal Cable YC.XC.XX001398 $30.60	$30.60
35	Liquid Level Gauge External Hose YC.JG.JS000085 $3.10	$3.10
36	Liquid Level Gauge Hose Module BC.AG.SS001121 $34.60	$34.60
37	Screw M40-HC080080-68-85 YC.WJ.L01234 $3.60	$3.60
38	Delivery Pump Flow Meter Cable YC.XC.XX001396 $58.00	$58.00
39	Spray Tank Inlet Filter YC.JG.ZS006111 $41.80	$41.80
40	Spray Tank Cover Sealing Ring YC.JG.MY001720 $22.55	$22.55

Can't spot your part? Search by part number on the search page or call 1300 916 075.
