DJI Agras T100 Flow Meter

Official DJI parts diagram and material list.

Pricing is per single item unless the part description says otherwise.

All T100 assemblies (31)

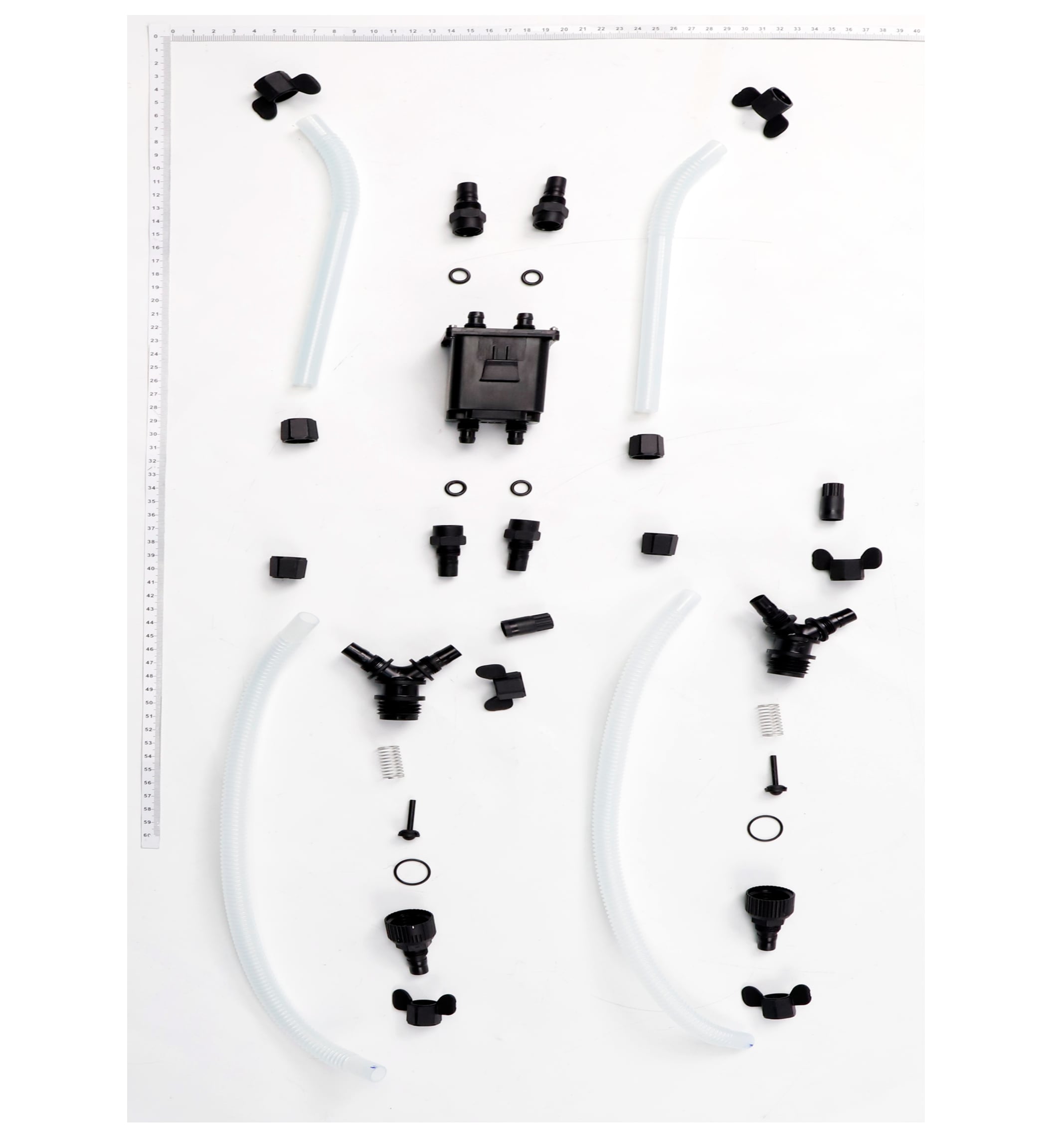

Parts Diagram

Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.

No.	Part	$ Each (inc. GST)
1	Thumb Nut YC.JG.ZS006171 $2.30	$2.30
2	Flow Meter Adapter YC.JG.ZS006199 $3.10	$3.10
3	Flow Meter Adapter Sealing Ring YC.JG.MY001790 $4.55	$4.55
4	Flow Meter Module BC.AG.SS001031 $634.50	$634.50
5	Hose Nut YC.JG.ZS006165 $1.55	$1.55
6	Flow Meter Water Outlet Hose YC.JG.JS000080 $12.00	$12.00
7	Thumb Nut YC.JG.ZS006171 $2.30	$2.30
8	One-Way Valve YC.JG.ZS006170 $7.55	$7.55
9	One-Way Valve Sealing Ring YC.JG.MY001774 $1.55	$1.55
10	Valve Core Sealing Ring YC.JG.MY001775 $9.00	$9.00
11	One-Way Valve Spring YC.JG.TT000285 $1.55	$1.55
12	Hose Y-tee Part YC.JG.ZS006644 $6.65	$6.65
13	Single Connector Rubber Stopper YC.JG.ZS006115 $3.10	$3.10
14	Flow Meter Water Inlet Hose YC.JG.JS000088 $10.85	$10.85
