DJI Agras T100 Mist Kit Internal Spray Boom
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T100 assemblies (31)
- Tank (1) (1)
- Tank (2) (40)
- Impeller Pump (15)
- Flow Meter (14)
- Landing Gear (1) (10)
- Spray Lance (33)
- Landing Gear (2) (23)
- Cable Distribution Board (17)
- Aircraft Frame connector (16)
- Front Frame (1) (31)
- Front Frame (2) (31)
- Middle Frame & Rear Frame (1) (19)
- Large Aircraft Arm (10)
- M1M3 Small Aircraft Arm (29)
- M2M4 Small Aircraft Arm (29)
- Motor (8)
- Propeller (5)
- Spreading Spread Tank (12)
- Spreading Landing Gear (7)
- Spreading Landing Gear (2) (12)
- Spreading Weight Sensor (13)
- Spreading Frame (14)
- Spreading Spinner Disk (20)
- Spreading Auger (39)
- Lift System Winch (15)
- Lift System Frame Connector (10)
- Lift System Landing Gear (1) (12)
- Lift System Landing Gear (2) (6)
- Mist Kit Mist Spray Boom (23)
- Mist Kit External Spray Boom (16)
- Mist Kit Internal Spray Boom (17)

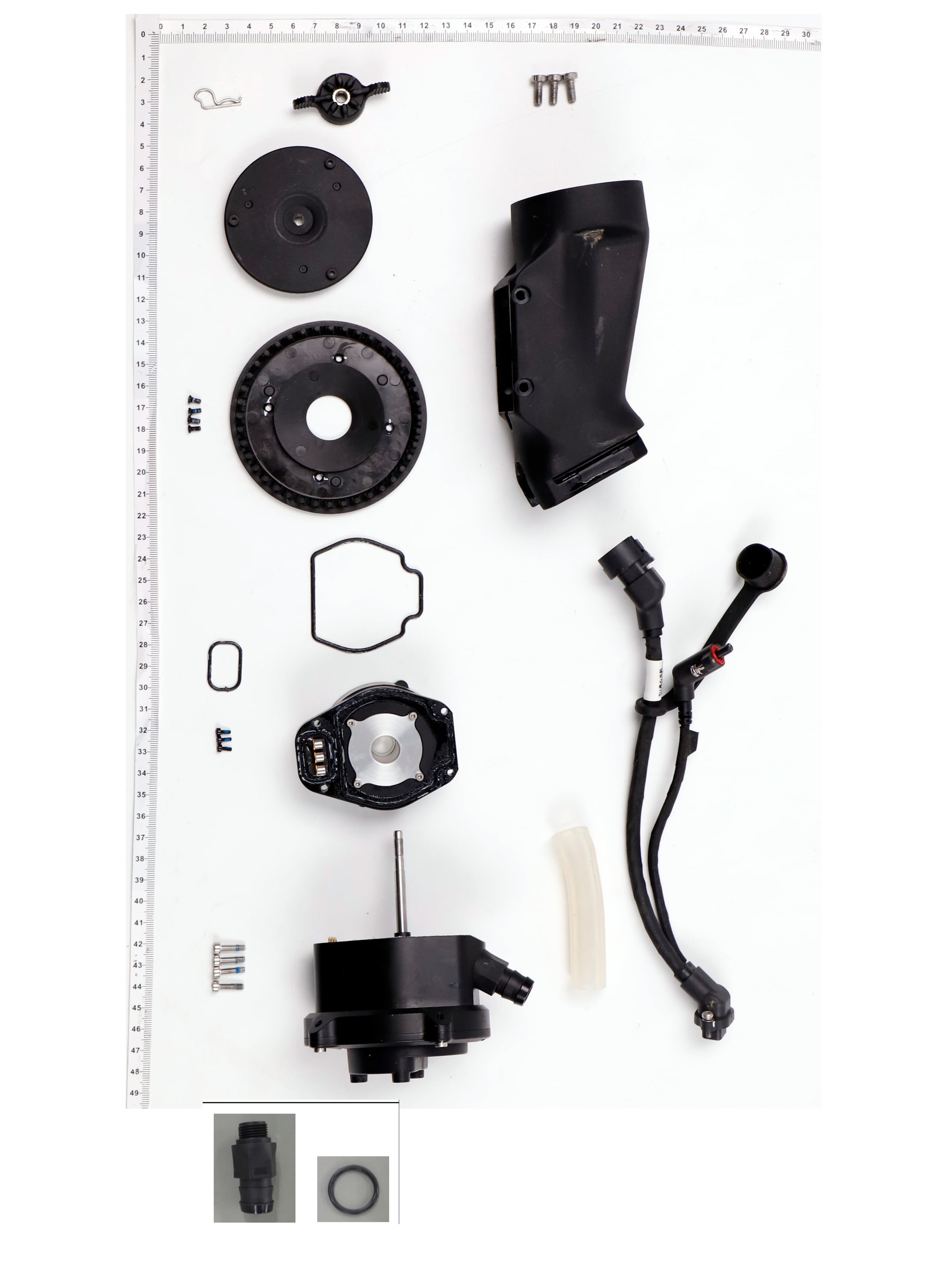

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Centrifugal Sprinkler Nut YC.JG.ZS004510 $1.80 | $1.80 | |
| 2 | R-Type Pin YC.JG.TT000203 $0.90 | $0.90 | |
| 3 | Mist Sprinkler Lower Disk YC.JG.ZS006907 $23.00 | $23.00 | |
| 4 | Mist Sprinkler Upper Disk YC.JG.ZS006906 $9.50 | $9.50 | |
| 5 | Screw (M25-HF00550038-040016-3126-Y) YC.ST.LL000381 $8.00 | $8.00 | |
| 6 | Sealing Ring L YC.JG.MY002093 $10.50 | $10.50 | |
| 7 | Sealing Ring S YC.JG.MY002094 $8.00 | $8.00 | |
| 8 | M20-HC00500050-040020-3123-Y YC.ST.LL000159 $1.00 | $1.00 | |
| 9 | 4810 Mist Sprinkler Lower Motor BC.AG.SS001175 $259.00 | $259.00 | |
| 10 | Screw M30-HC01200120-055030-5104-Y YC.ST.LL000363 $8.00 | $8.00 | |
| 11 | 4212 Mist Sprinkler Upper Motor BC.AG.SS001174 $622.00 | $622.00 | |
| 12 | Mist Sprinkler Funnel YC.JG.ZS006905 $23.00 | $23.00 | |
| 13 | Inlet Sealing Ring YC.JG.MY002043 $9.00 | $9.00 | |
| 14 | Sprinkler Soft Hose YC.JG.JS000067 $1.55 | $1.55 | |
| 15 | Centrifugal Sprinkler Adapter Cable YC.XC.XX001394 $36.00 | $36.00 | |
| 16 | Mist Spray Lance Outer Shell YC.JG.ZS007185 $36.00 | $36.00 | |
| 17 | M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 $2.05 | $2.05 |
