DJI Agras T100 Aircraft Frame connector

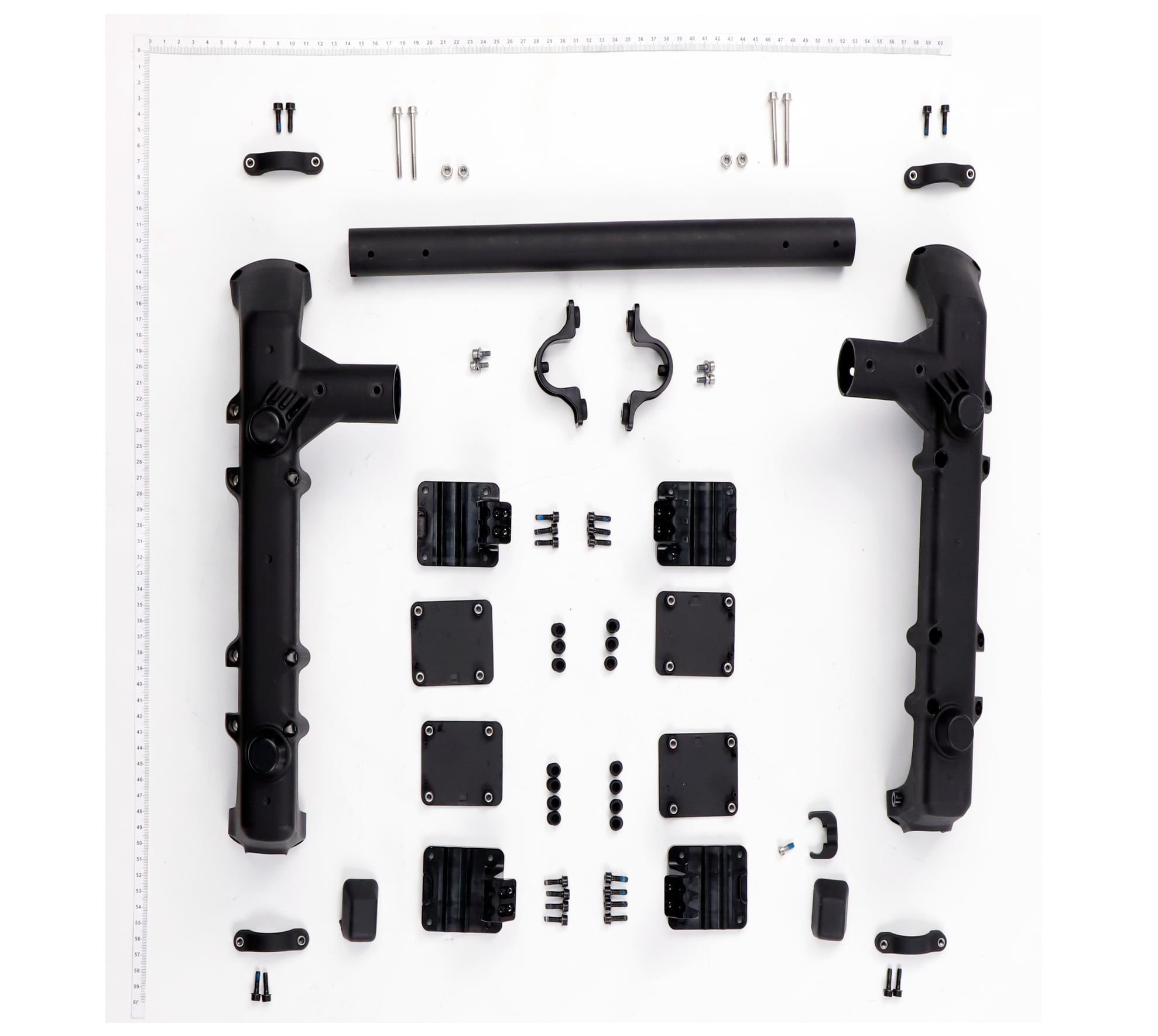

Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T100 assemblies (31)
- Tank (1) (1)
- Tank (2) (40)
- Impeller Pump (15)
- Flow Meter (14)
- Landing Gear (1) (10)
- Spray Lance (33)
- Landing Gear (2) (23)
- Cable Distribution Board (17)
- Aircraft Frame connector (16)
- Front Frame (1) (31)
- Front Frame (2) (31)
- Middle Frame & Rear Frame (1) (19)
- Large Aircraft Arm (10)
- M1M3 Small Aircraft Arm (29)
- M2M4 Small Aircraft Arm (29)
- Motor (8)
- Propeller (5)
- Spreading Spread Tank (12)
- Spreading Landing Gear (7)
- Spreading Landing Gear (2) (12)
- Spreading Weight Sensor (13)
- Spreading Frame (14)
- Spreading Spinner Disk (20)
- Spreading Auger (39)
- Lift System Winch (15)
- Lift System Frame Connector (10)
- Lift System Landing Gear (1) (12)
- Lift System Landing Gear (2) (6)
- Mist Kit Mist Spray Boom (23)
- Mist Kit External Spray Boom (16)
- Mist Kit Internal Spray Boom (17)
Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | M40-HX088065-5103 YC.ST.LM000107 $0.70 | $0.70 | |
| 2 | Screw M40-HC04000140-070040-5103-Y YC.ST.LL000607 $1.00 | $1.00 | |
| 3 | Screw (M40-HC01400115-085047-4203-Y) YC.ST.LL000730 $0.70 | $0.70 | |
| 4 | Landing Gear C-Type Connector YC.JG.ZS006654 $5.15 | $5.15 | |
| 5 | Landing Gear Top Crossbar YC.JG.XW000215 $30.00 | $30.00 | |
| 6 | Screw (M40-HCW01000070-070040-5104-N) YC.ST.LL000341 $0.90 | $0.90 | |
| 7 | Spray Tank Top Mounting Piece YC.JG.ZS007112 $6.05 | $6.05 | |
| 8 | Frame Connector (Right) YC.JG.ZS005949 $39.70 | $39.70 | |
| 9 | Anti-Collision Pad YC.JG.MY001953 $3.15 | $3.15 | |
| 10 | Payload Cable Clamp YC.JG.ZS006800 $1.10 | $1.10 | |
| 11 | M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 $2.05 | $2.05 | |
| 12 | Landing Gear Hole Plug Rubber YC.JG.MY002073 $1.10 | $1.10 | |
| 13 | Buckle Hook Cover YC.JG.ZS006707 $6.65 | $6.65 | |
| 14 | Screw (M40-HC01400115-085047-4203-Y) YC.ST.LL000730 $0.70 | $0.70 | |
| 15 | Buckle Hook YC.JG.QX004626 $31.60 | $31.60 | |
| 16 | Frame Connector (Left) YC.JG.ZS005948 $39.70 | $39.70 |
