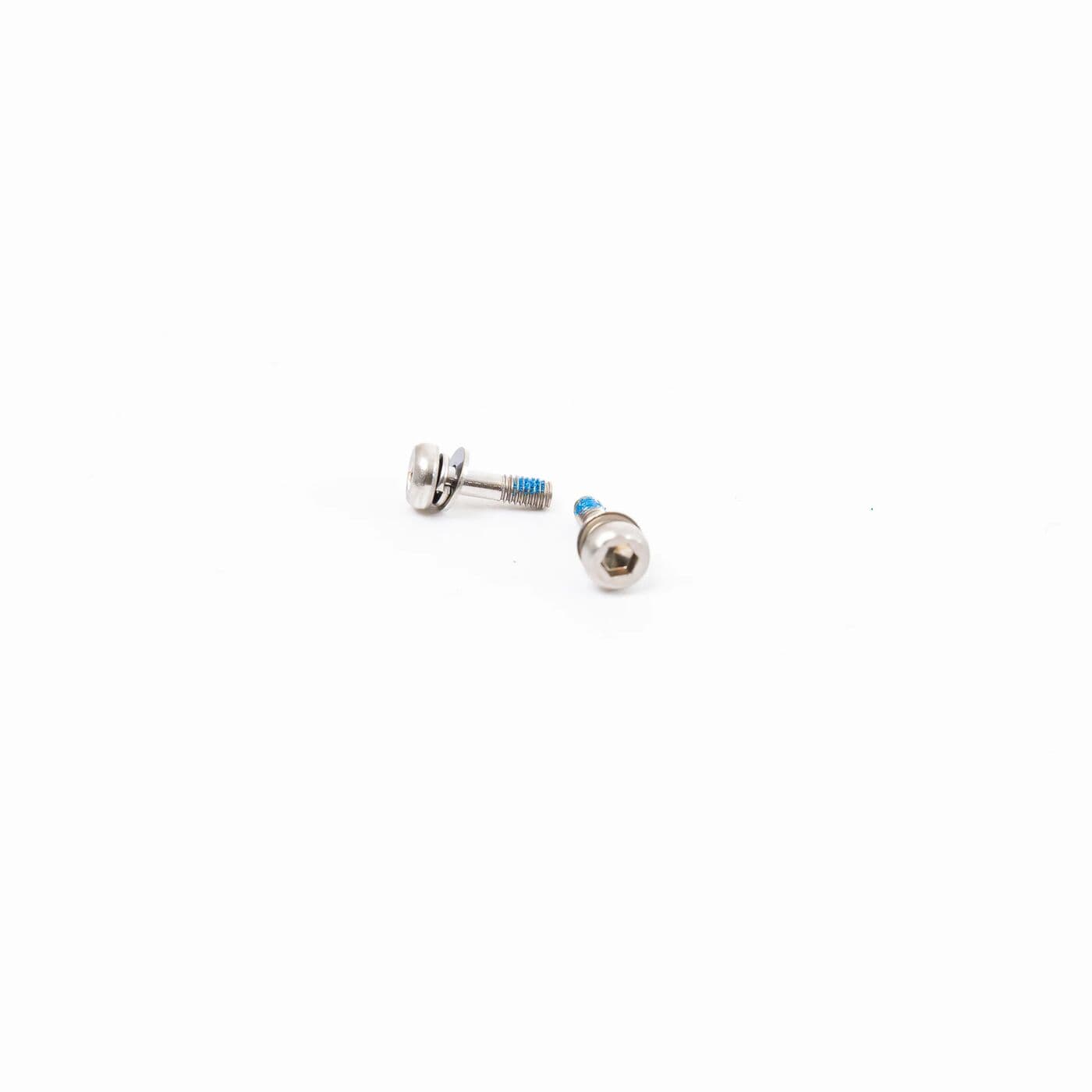

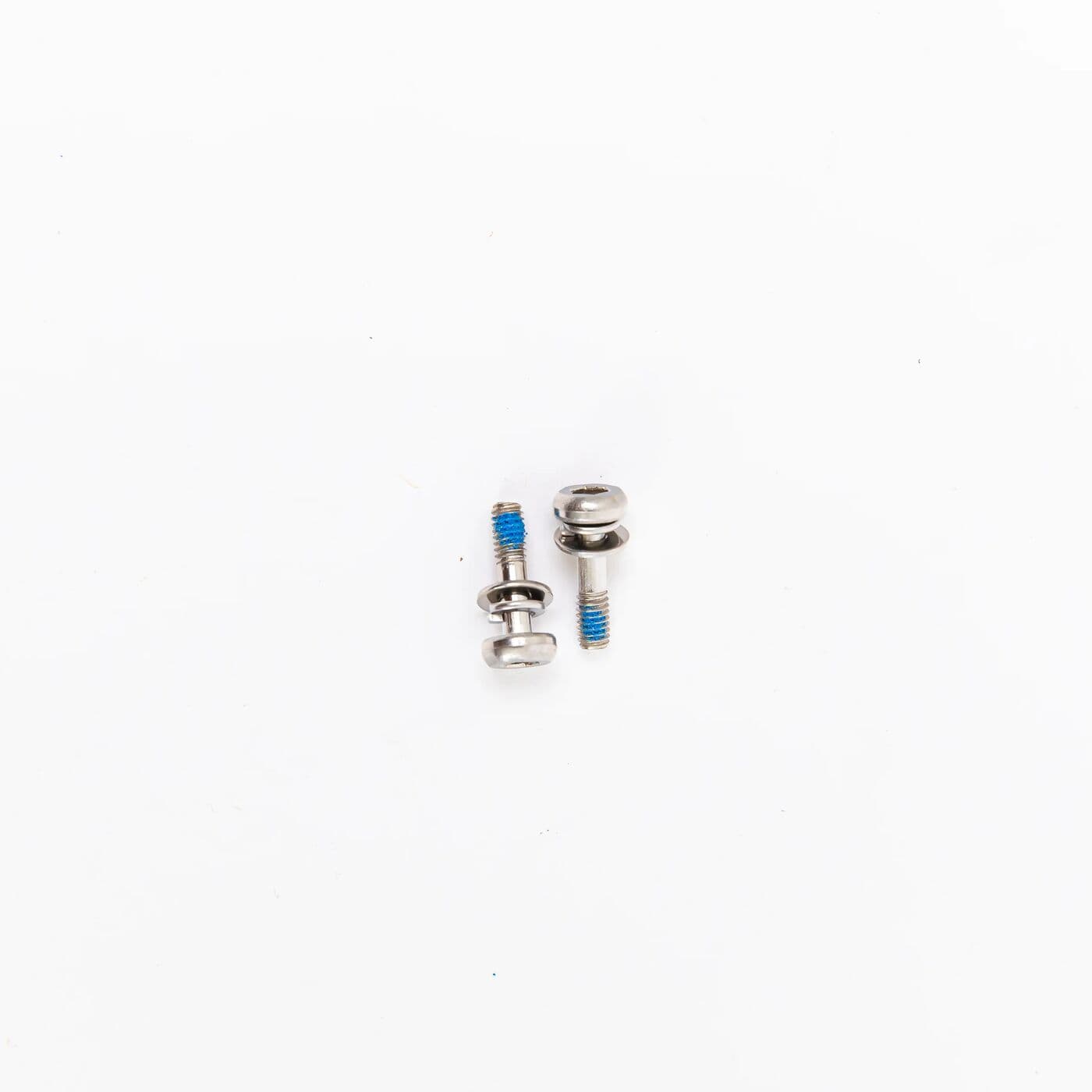

Screw - M25-HCW00960040-055020-5103-Y (T100/T70P) YC.ST.LL000698
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Screw YC.ST.LL000698 fastens parts of the spray tank, spread tank, spinner disc and auger on the DJI Agras T100 and T70P, and appears on eight DJI parts diagrams.
| Part number | YC.ST.LL000698 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 spray tank (sheet 2), callout 7; T100 spread tank, callout 10; T100 spinner disc, callout 5; T100 auger, callout 4; T70P spray tank (sheet 1), callout 31; T70P spreading tank, callout 1; T70P spinner disc, callout 5; T70P auger, callout 4 |
In the spreading system these screws see steady vibration and abrasive fertiliser dust, while those on the spray tank get washed down with chemical, so heads can round off and threads can corrode. Replace any screw a driver slips in or that no longer pulls up tight.
Several similar screws are used in these assemblies, so pick by callout and code rather than by eye, and do not over-tighten. On some sheets it is used at more than one callout, so count every position before ordering.
