DJI

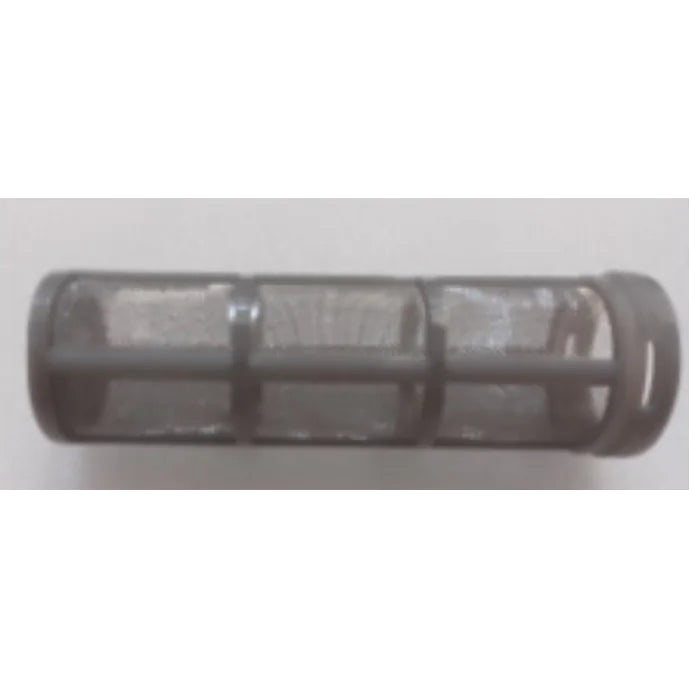

Filter With 50 Holes (T100/T70P/T25P) YC.JG.ZS005454
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
This 50-hole filter screens spray liquid in the tank outlet group of the DJI Agras T100, T70P and T25P, holding back grit and undissolved product before it moves further into the spraying system.
| Part number | YC.JG.ZS005454 |
| Fits | DJI Agras T100, T70P, T25P |
| Parts diagram | T100 spray tank (sheet 2), callout 18; T70P spray tank (sheet 1), callout 29; T25P spray tank (sheet 2), callout 22 |
The T100 and T25P sheets draw it with the Y-tee part nut and the filter rubber ring. On the T70P sheet, callout 29 carries a hose module name but this filter's code, so order by YC.JG.ZS005454. A partly blocked filter can starve the pumps and leave the flow rate unsteady. Pull it and rinse it at the end of each spraying day, and replace it if the mesh is torn or stretched, the body is cracked, or dried residue will not wash out.
Check the Y-tee part sealing ring and Y-tee part nut while the filter is out.
