DJI Agras T100 Motor
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T100 assemblies (31)
- Tank (1) (1)
- Tank (2) (40)
- Impeller Pump (15)
- Flow Meter (14)
- Landing Gear (1) (10)
- Spray Lance (33)
- Landing Gear (2) (23)
- Cable Distribution Board (17)
- Aircraft Frame connector (16)
- Front Frame (1) (31)
- Front Frame (2) (31)
- Middle Frame & Rear Frame (1) (19)
- Large Aircraft Arm (10)
- M1M3 Small Aircraft Arm (29)
- M2M4 Small Aircraft Arm (29)
- Motor (8)
- Propeller (5)
- Spreading Spread Tank (12)
- Spreading Landing Gear (7)
- Spreading Landing Gear (2) (12)
- Spreading Weight Sensor (13)
- Spreading Frame (14)
- Spreading Spinner Disk (20)
- Spreading Auger (39)
- Lift System Winch (15)
- Lift System Frame Connector (10)
- Lift System Landing Gear (1) (12)
- Lift System Landing Gear (2) (6)
- Mist Kit Mist Spray Boom (23)
- Mist Kit External Spray Boom (16)
- Mist Kit Internal Spray Boom (17)

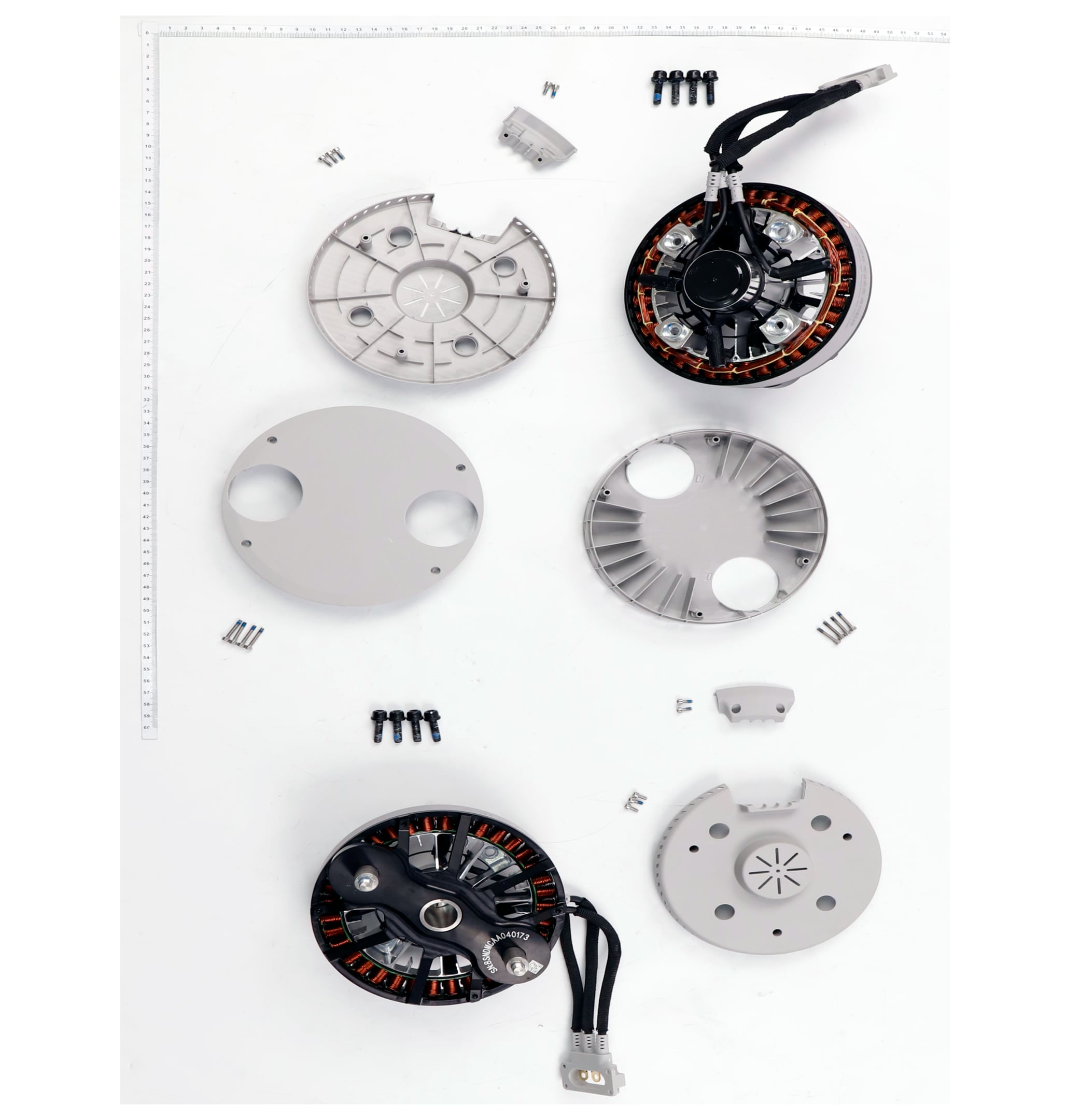

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Screw (M30-HC00800080-055030-5103-Y) YC.ST.LL000612 $0.65 | $0.65 | |
| 2 | Motor Cable Protective Cover YC.JG.ZS006779 $4.00 | $4.00 | |
| 3 | Screw (M30-HC00800080-055030-5103-Y) YC.ST.LL000612 $0.65 | $0.65 | |
| 4 | Motor Lower Cover YC.JG.ZS006778 $12.00 | $12.00 | |
| 5 | Motor Upper Cover YC.JG.ZS007579 (now supplied as YC.JG.ZS008379) $30.60 | $30.60 | |
| 6 | Screw (M30-HC01600100-057030-5103-Y) YC.ST.LL000439 $0.65 | $0.65 | |
| 7 | 15516 Motor BC.AG.SS001102 $721.15 | $721.15 | |
| 9 | Screw (M60-HC02000180-100080-4203-Y) YC.ST.LL000696 $1.00 | $1.00 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
