DJI

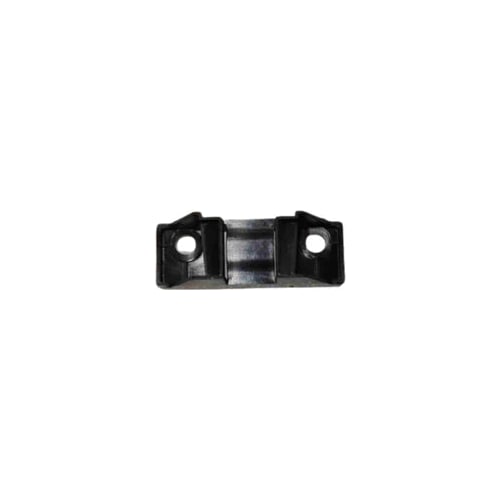

Flow Meter Bracket (T100/T70P/T25P) YC.JG.ZS004712
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
One code covers the flowmeter bracket on three DJI Agras aircraft, the T100, T70P and T25P. The bracket is screw-fixed and holds the flowmeter in position within the spraying system.
| Part number | YC.JG.ZS004712 |
| Fits | DJI Agras T100, T70P, T25P |
| Parts diagram | T100 spray tank (sheet 2), callout 30; T70P flowmeter, callout 14; T25P spray tank (sheet 2), callout 21 |
On the T70P flowmeter sheet it is pictured beside the flowmeter module (callout 13) with its M40 screws (callout 15), and the T100 and T25P tank sheets also draw it just above its screws. If the bracket cracks or a screw hole wears, the flowmeter can shift under vibration and strain the hoses and cable connected to it. Replace it at the first crack, and tighten the screws firmly without stripping the thread.
The screws are separate parts: the T100 and T70P sheets show the M40-HC080080-68-85 screw (YC.WJ.L01234), while the T25P sheet shows YC.WJ.L00876.
