DJI
Spray Tank Filter Rubber Ring (T100/T70P/T50/T25P) YC.SJ.J01186
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

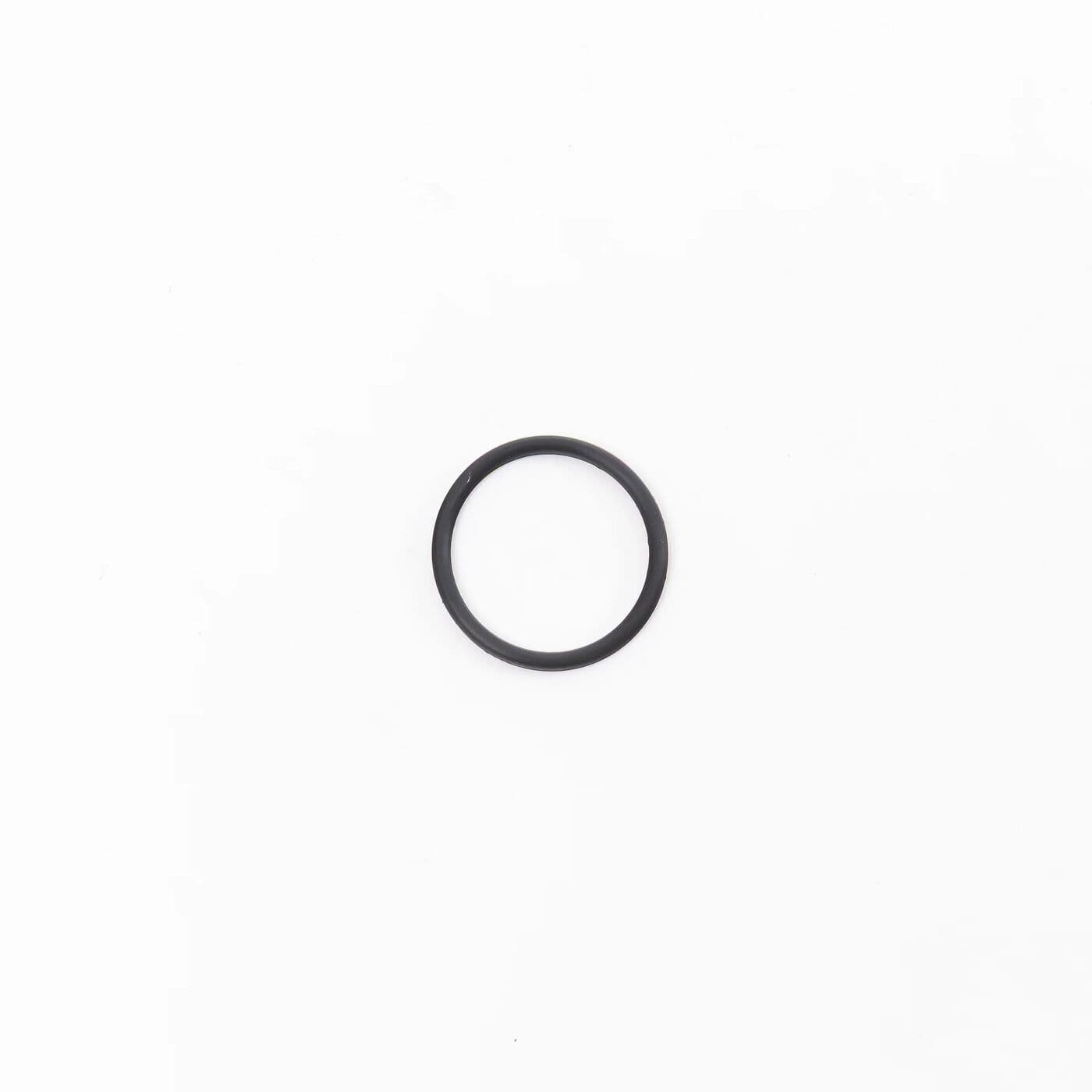

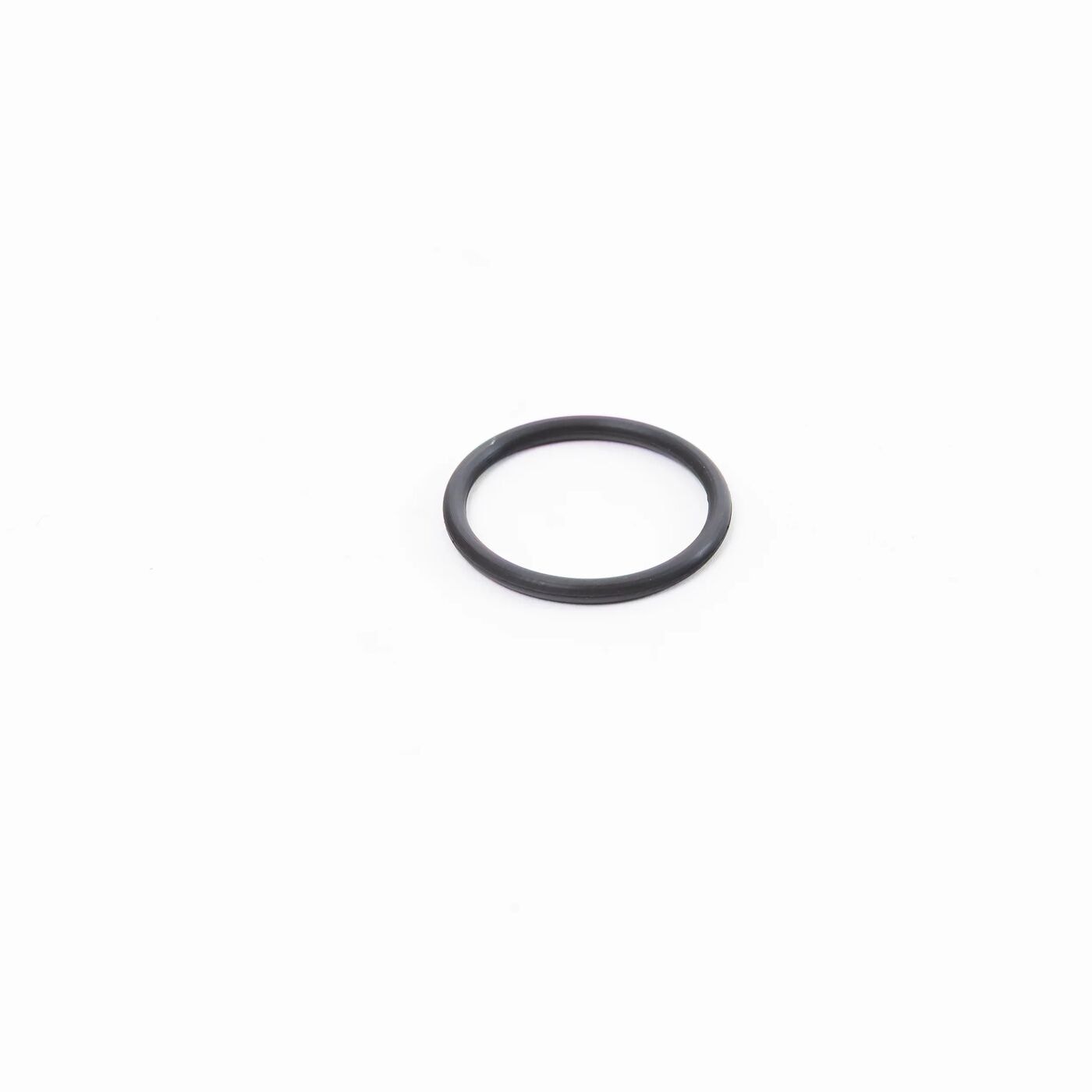

This rubber ring belongs to the spray tank filter on DJI Agras T100, T70P, T50 and T25P drones, and every tank diagram lists it among the Y-tee part, its sealing rings and a filter with 50 holes.
| Part number | YC.SJ.J01186 |
| Fits | DJI Agras T100, T70P, T50, T25P |
| Parts diagram | T100 spray tank (sheet 2), callout 21; T70P spray tank (sheet 1), callout 27; T50 spray tank (sheet 2), callout 22; T25P spray tank (sheet 2), callout 25 |
On the T100 and T50 sheets it is drawn as a plain rubber ring beside the cylindrical filter with 50 holes. Some overseas listings add "with 100 holes" to its name, but DJI's sheets for these four aircraft and Australian dealers call it simply the spray tank filter rubber ring. Several similar rings sit in this area, so order by the code rather than by the look of the old one.
Rubber that sits in spray mix all season can harden, swell or take a set. Replace the ring if it is split, stretched or flattened, and check it whenever the filter with 50 holes is removed on the T100, T70P or T25P.
