DJI
Delivery Pump Flow Meter Cable (T100) YC.XC.XX001396
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Wiring in the DJI Agras T100 spray tank assembly includes this delivery pump flowmeter cable, the lead DJI lists for the flowmeter on the delivery pump side of the spraying system.
| Part number | YC.XC.XX001396 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 spray tank (sheet 2), callout 38 |
Cables on a spray drone take vibration, flexing and regular washdowns, so check this one for chafed or split sheathing where it passes the frame or tank, bent or corroded pins, and a plug that no longer seats firmly. An intermittent flow reading can come from a damaged cable rather than a failed flowmeter, so the cable is worth checking first.

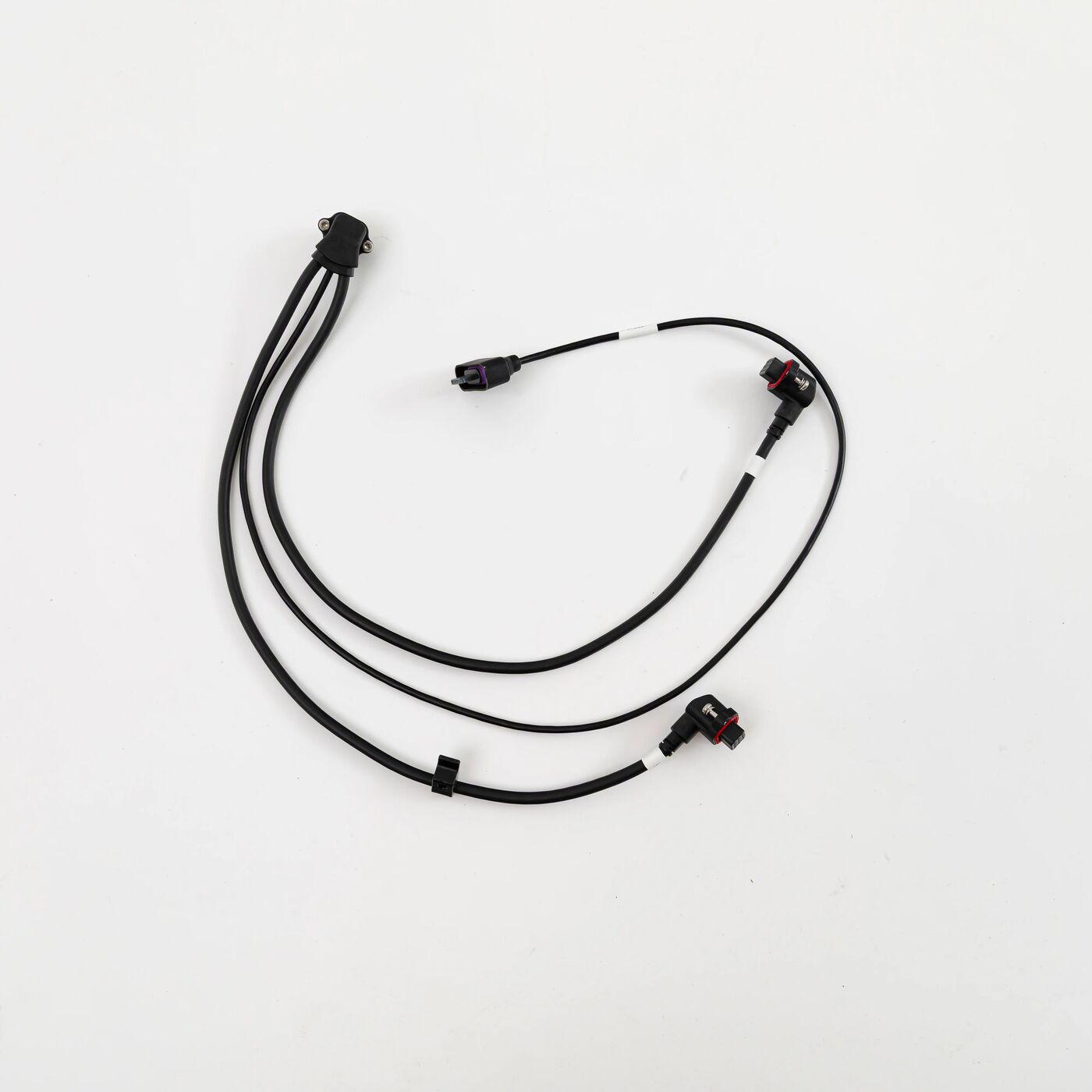

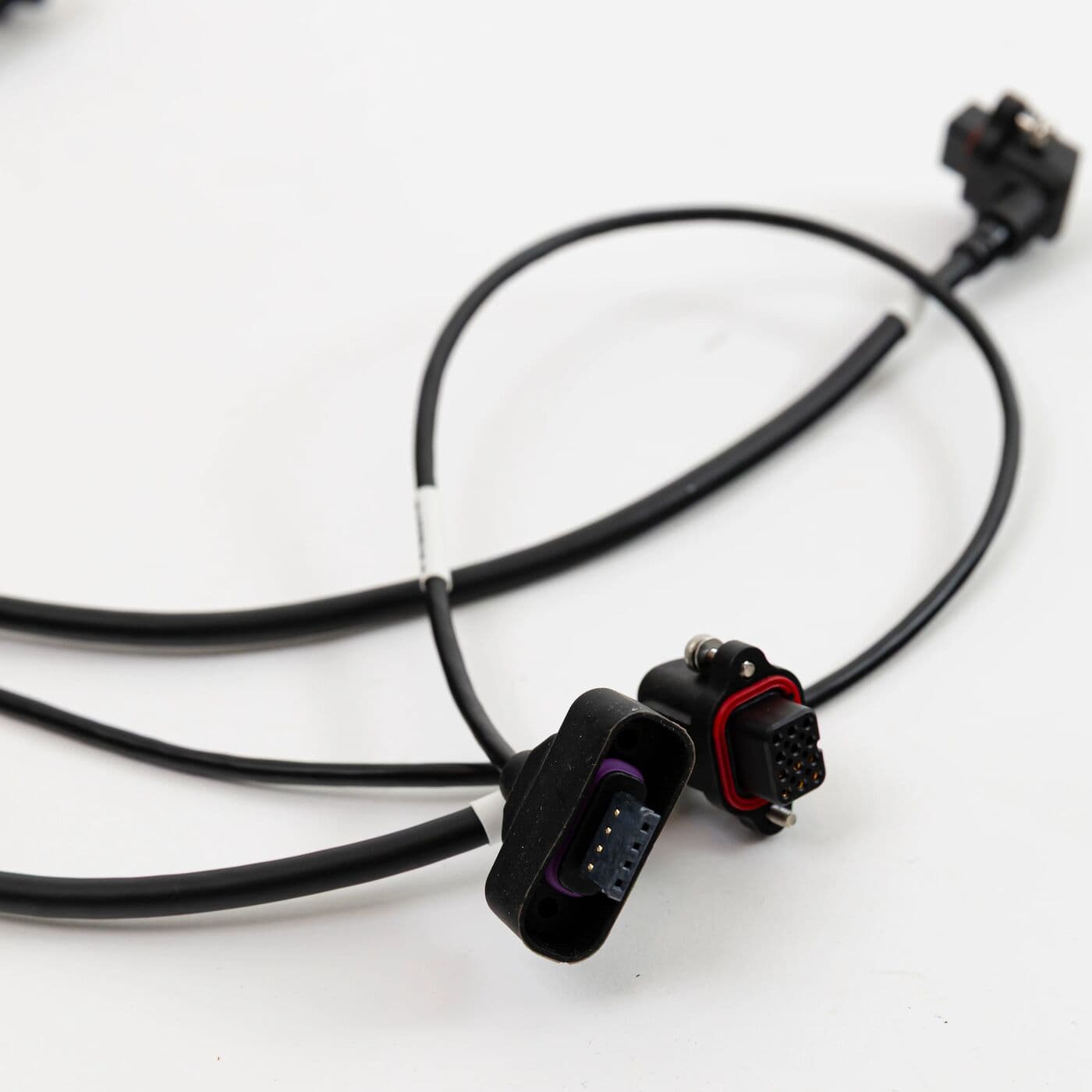

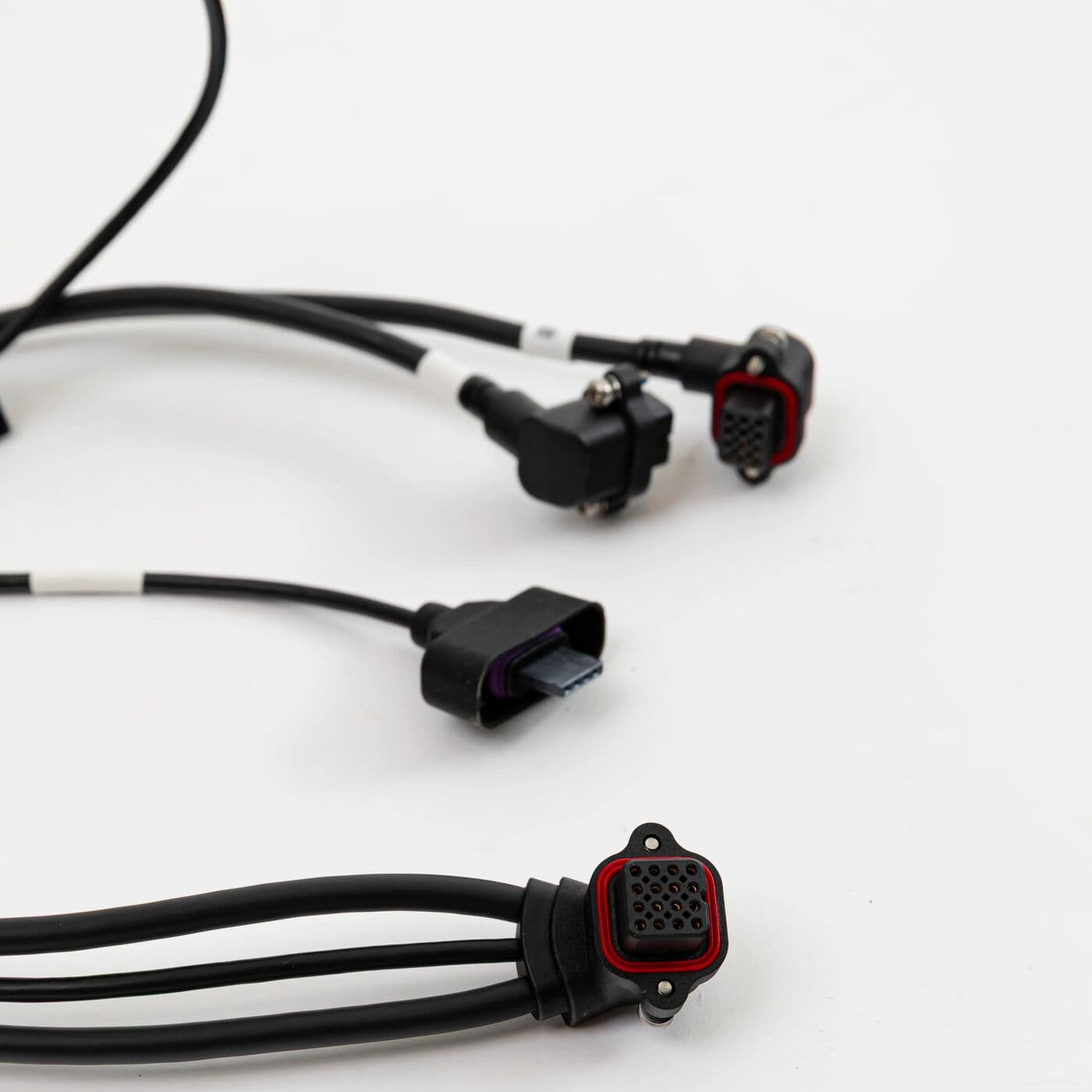

DJI's photo shows this code as one branched harness, with a multi-way plug at one end and several smaller plugs on its branches, so compare the plug ends on your old harness with callout 38 before ordering. Run the new one along the original route and fix it at the same points so it cannot rub through. The T70P uses a different cable, YC.XC.XX001395.
