DJI Agras T100 Mist Kit Mist Spray Boom

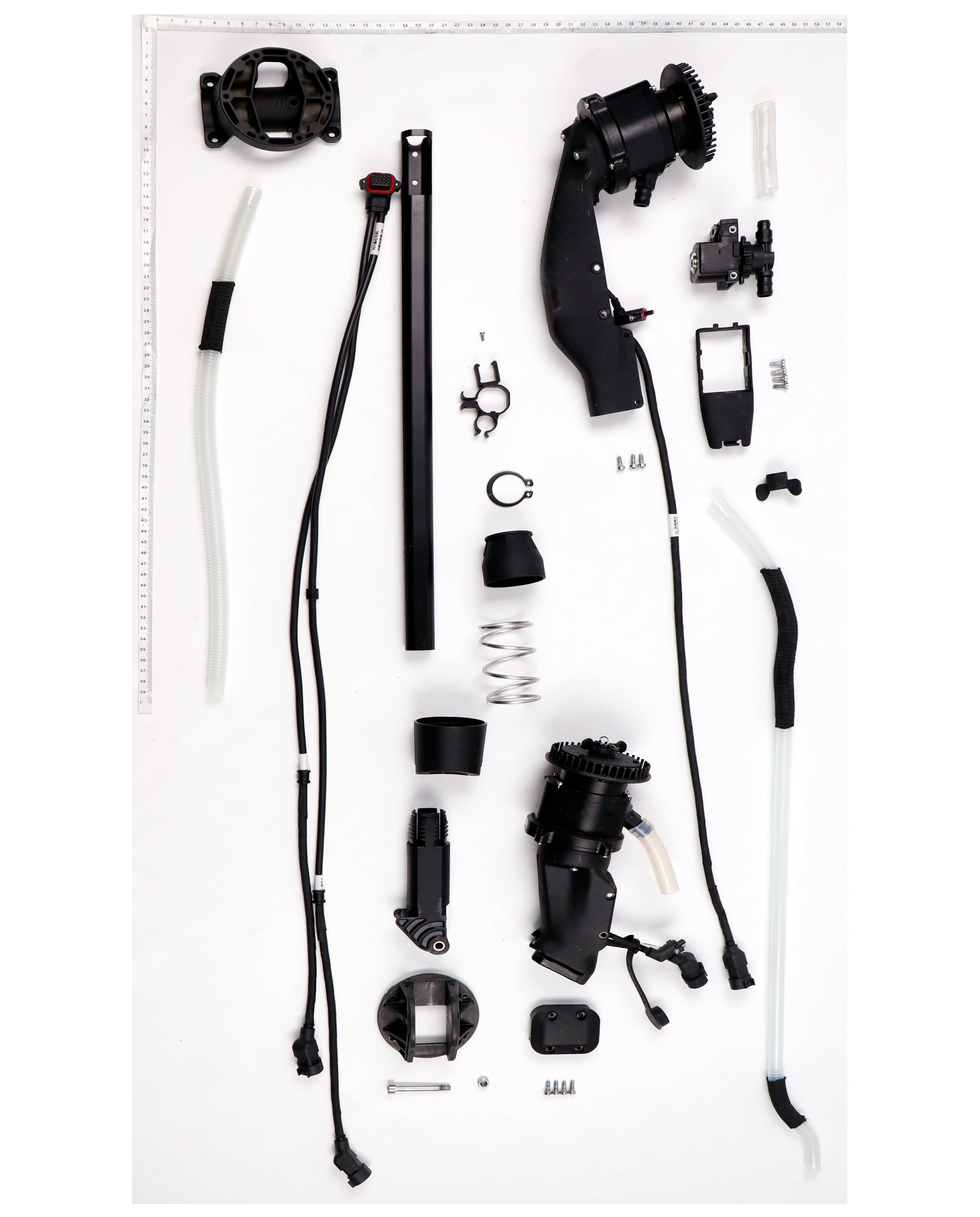

Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T100 assemblies (31)
- Tank (1) (1)
- Tank (2) (40)
- Impeller Pump (15)
- Flow Meter (14)
- Landing Gear (1) (10)
- Spray Lance (33)
- Landing Gear (2) (23)
- Cable Distribution Board (17)
- Aircraft Frame connector (16)
- Front Frame (1) (31)
- Front Frame (2) (31)
- Middle Frame & Rear Frame (1) (19)
- Large Aircraft Arm (10)
- M1M3 Small Aircraft Arm (29)
- M2M4 Small Aircraft Arm (29)
- Motor (8)
- Propeller (5)
- Spreading Spread Tank (12)
- Spreading Landing Gear (7)
- Spreading Landing Gear (2) (12)
- Spreading Weight Sensor (13)
- Spreading Frame (14)
- Spreading Spinner Disk (20)
- Spreading Auger (39)
- Lift System Winch (15)
- Lift System Frame Connector (10)
- Lift System Landing Gear (1) (12)
- Lift System Landing Gear (2) (6)
- Mist Kit Mist Spray Boom (23)
- Mist Kit External Spray Boom (16)
- Mist Kit Internal Spray Boom (17)
Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Mist Sprinkler Support Rod YC.JG.QX004849 $101.00 | $101.00 | |
| 2 | Mist Spray Lance Connector YC.JG.YZ001151 $36.00 | $36.00 | |
| 3 | Centrifugal Sprinkler Adapter Cable (Optional) YC.XC.XX001410 $68.00 | $68.00 | |
| 4 | Mist Hose (Optional) YC.JG.JS000078 $15.00 | $15.00 | |
| 5 | M25-HC060060-45-85 YC.WJ.L01549 $4.80 | $4.80 | |
| 6 | Hose Clip YC.JG.ZS007186 $10.50 | $10.50 | |
| 7 | Circlip YC.JG.BJ003348 $1.00 | $1.00 | |
| 8 | Spring Fixing Piece YC.JG.ZS006592 $4.85 | $4.85 | |
| 9 | Compression Spring YC.JG.TT000275 $4.85 | $4.85 | |
| 10 | Spray Lance Slider YC.JG.ZS006593 $4.85 | $4.85 | |
| 11 | Spray Lance Shaft Sleeve YC.JG.ZS006357 $18.40 | $18.40 | |
| 12 | Spray Lance Shaft Connector YC.JG.ZS006594 $28.05 | $28.05 | |
| 13 | Spray Lance Shaft YC.JG.QX004533 $4.85 | $4.85 | |
| 14 | M60-HX100060-5103_01 YC.WJ.LM000044 $3.60 | $3.60 | |
| 15 | M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 $2.05 | $2.05 | |
| 16 | Mist Spray Lance Fixing Base YC.JG.ZS007187 $10.50 | $10.50 | |
| 18 | Aircraft Arm Hose YC.JG.JS000077 $18.40 | $18.40 | |
| 19 | Thumb Nut YC.JG.ZS006171 $2.30 | $2.30 | |
| 20 | M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 $2.05 | $2.05 | |
| 21 | M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 $2.05 | $2.05 | |
| 22 | Spray Lance Bottom Shell YC.JG.ZS006807 $28.50 | $28.50 | |
| 23 | Solenoid Valve Module BC.AG.SS001073 $61.00 | $61.00 | |
| 24 | Sprinkler Soft Hose YC.JG.JS000067 $1.55 | $1.55 |
