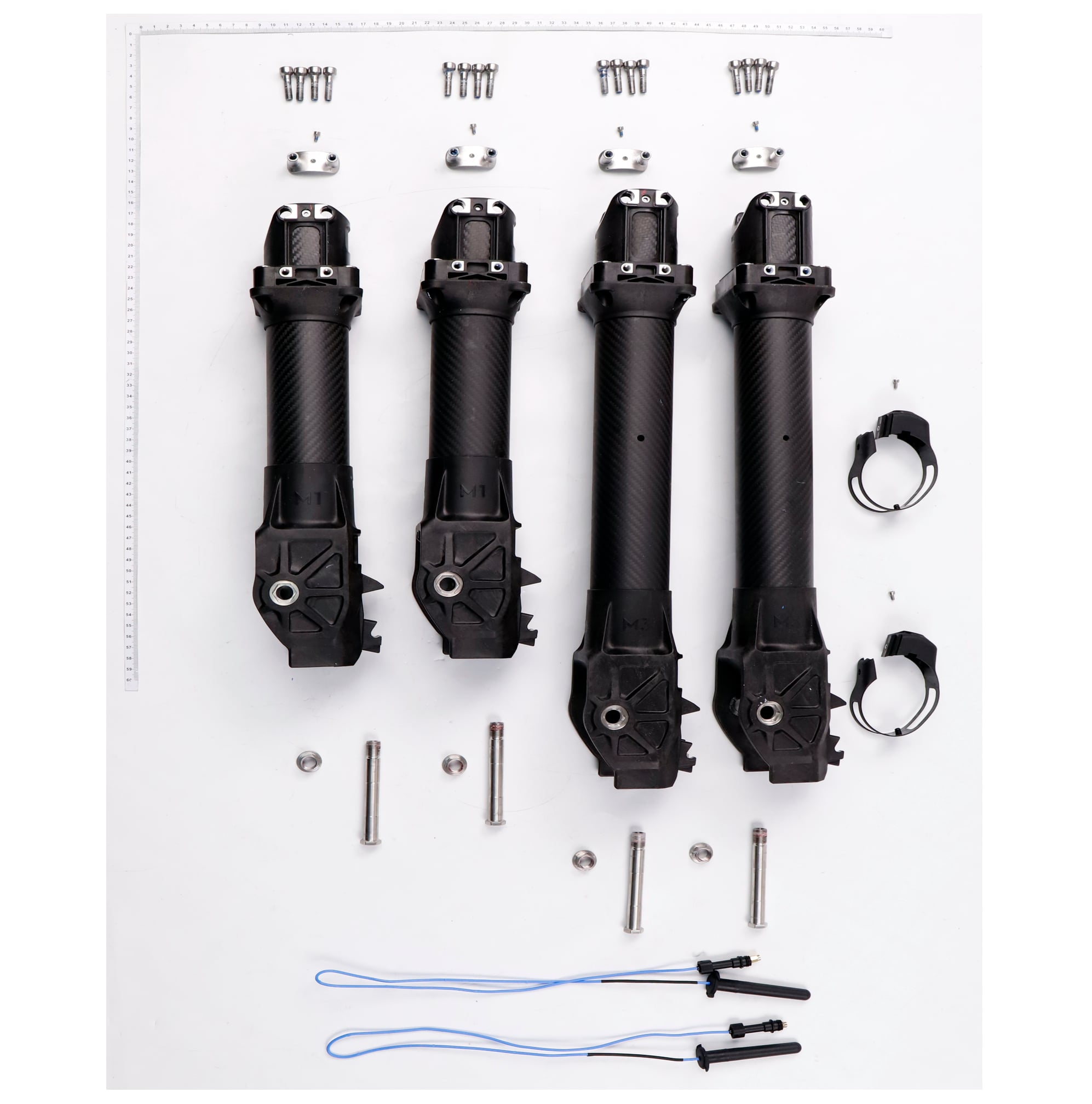

DJI Agras T100 Large Aircraft Arm
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T100 assemblies (31)
- Tank (1) (1)
- Tank (2) (40)
- Impeller Pump (15)
- Flow Meter (14)
- Landing Gear (1) (10)
- Spray Lance (33)
- Landing Gear (2) (23)
- Cable Distribution Board (17)
- Aircraft Frame connector (16)
- Front Frame (1) (31)
- Front Frame (2) (31)
- Middle Frame & Rear Frame (1) (19)
- Large Aircraft Arm (10)
- M1M3 Small Aircraft Arm (29)
- M2M4 Small Aircraft Arm (29)
- Motor (8)
- Propeller (5)
- Spreading Spread Tank (12)
- Spreading Landing Gear (7)
- Spreading Landing Gear (2) (12)
- Spreading Weight Sensor (13)
- Spreading Frame (14)
- Spreading Spinner Disk (20)
- Spreading Auger (39)
- Lift System Winch (15)
- Lift System Frame Connector (10)
- Lift System Landing Gear (1) (12)
- Lift System Landing Gear (2) (6)
- Mist Kit Mist Spray Boom (23)
- Mist Kit External Spray Boom (16)
- Mist Kit Internal Spray Boom (17)
Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Large Aircraft Arm (Front) BC.AG.SS001097 $199.75 | $199.75 | |
| 2 | Aircraft Arm Fixing Nut YC.JG.QX004654 $6.65 | $6.65 | |
| 3 | Aircraft Arm Fixing Screw Bolt YC.JG.QX004581 $19.95 | $19.95 | |
| 4 | SDR Antenna (Rear) YC.DZ.AA000573 $41.15 | $41.15 | |
| 5 | SDR Bracket YC.JG.ZS006676 $12.00 | $12.00 | |
| 6 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 7 | Large Aircraft Arm (Rear) BC.AG.SS001098 $199.75 | $199.75 | |
| 8 | Aircraft Arm Insert YC.JG.FM000215 $19.95 | $19.95 | |
| 9 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 10 | Screw (M60-HC02170160-110078-5103-Y) YC.ST.LL000721 $1.35 | $1.35 |
