DJI Agras T100 M2M4 Small Aircraft Arm

Official DJI parts diagram and material list.

Pricing is per single item unless the part description says otherwise.

All T100 assemblies (31)

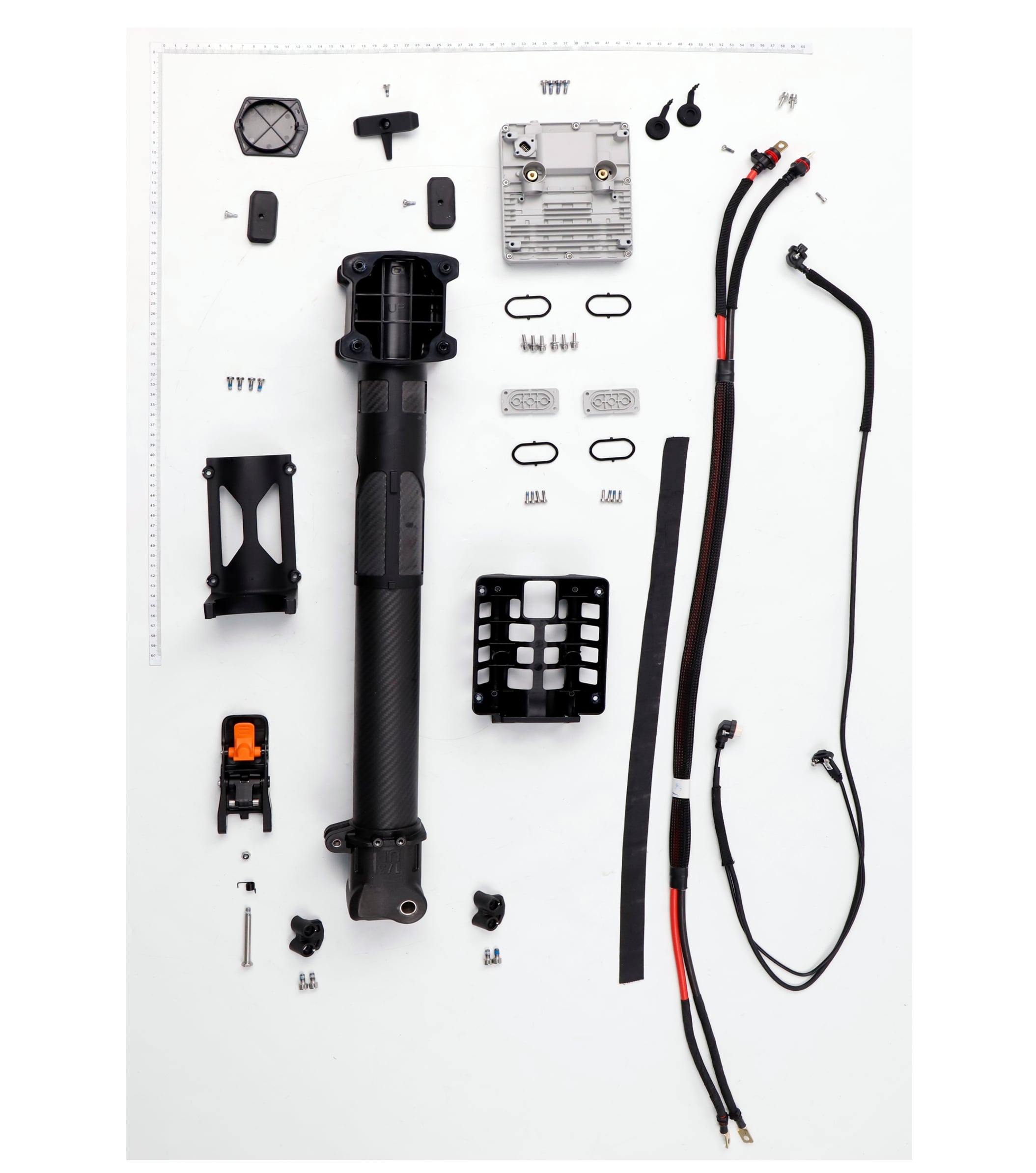

Parts Diagram

Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.

Open photo full size ↗

No.	Part	$ Each (inc. GST)
1	ESC Module BC.AG.SS001189 $753.25	$753.25
2	Screw (M30-HC00930058-060030-5103-Y) YC.ST.LL000732 $0.65	$0.65
3	Motor Cable Clamp YC.JG.ZS006704 $6.65	$6.65
4	Aircraft Arm End Cap YC.JG.ZS006705 $6.65	$6.65
5	Aircraft Arm Anti-Collision Pad YC.JG.MY001951 $6.65	$6.65
6	Screw (M30-HC00930058-060030-5103-Y) YC.ST.LL000732 $0.65	$0.65
7	M2 & M4 Small Aircraft Arm BC.AG.SS001101 $198.00	$198.00
8	M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 $2.05	$2.05
9	Aircraft Arm ESC Base Fixing Piece YC.JG.ZS006702 $12.00	$12.00
10	Aircraft Arm Buckle Module BC.AG.SS001099 $112.00	$112.00
11	Nut ( M50-HN078050-5103) YC.ST.LM000026 $2.50	$2.50
12	Buckle Torsion Spring YC.JG.TT000278 $1.35	$1.35
13	Pin Shaft (57.1 mm) YC.JG.LD000124 $1.35	$1.35
14	Aircraft Arm Limit Block YC.JG.ZS006673 $6.65	$6.65
15	Screw (M50-HC01000082-087052-5103-Y) YC.ST.LL000771 $1.35	$1.35
16	Aircraft Arm ESC Base YC.JG.ZS006701 $25.25	$25.25
18	Screw M30-HC100100-55-85 YC.WJ.L00871 $2.05	$2.05
19	Aircraft Arm Signal Cable (Front, M1 & M2) YC.XC.XX001468 $58.00	$58.00
19	Aircraft Arm Signal Cable (Rear, M3 & M4) YC.XC.XX001469 $58.00	$58.00
20	ESC Three-Phase Waterproof Cover YC.JG.ZS006620 $6.65	$6.65
21	Aircraft Arm Propulsion Cable (Front, M1 & M2) YC.XC.DD000812 $94.00	$94.00
21	Aircraft Arm Propulsion Cable (Rear, M3 & M4) YC.XC.DD000813 $112.00	$112.00
22	Screw (M40-HCW01150115-070040-5103-N) YC.ST.LL000667 $0.65	$0.65
23	ESC Three-Phase Waterproof Cover Rubber Seal YC.JG.MY001908 $1.35	$1.35
24	Screw M30-HC100100-55-85 YC.WJ.L00871 $2.05	$2.05
25	Screw (M40-HCW01150115-070040-5103-N) YC.ST.LL000667 $0.65	$0.65
26	ESC Waterproof Seal Plug YC.JG.MY001907 $6.65	$6.65
27	M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 $2.05	$2.05
	Duct Tape YC.JG.MQ002156 $29.00	$29.00
