DJI Agras T100 Front Frame (2)
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T100 assemblies (31)
- Tank (1) (1)
- Tank (2) (40)
- Impeller Pump (15)
- Flow Meter (14)
- Landing Gear (1) (10)
- Spray Lance (33)
- Landing Gear (2) (23)
- Cable Distribution Board (17)
- Aircraft Frame connector (16)
- Front Frame (1) (31)
- Front Frame (2) (31)
- Middle Frame & Rear Frame (1) (19)
- Large Aircraft Arm (10)
- M1M3 Small Aircraft Arm (29)
- M2M4 Small Aircraft Arm (29)
- Motor (8)
- Propeller (5)
- Spreading Spread Tank (12)
- Spreading Landing Gear (7)
- Spreading Landing Gear (2) (12)
- Spreading Weight Sensor (13)
- Spreading Frame (14)
- Spreading Spinner Disk (20)
- Spreading Auger (39)
- Lift System Winch (15)
- Lift System Frame Connector (10)
- Lift System Landing Gear (1) (12)
- Lift System Landing Gear (2) (6)
- Mist Kit Mist Spray Boom (23)
- Mist Kit External Spray Boom (16)
- Mist Kit Internal Spray Boom (17)

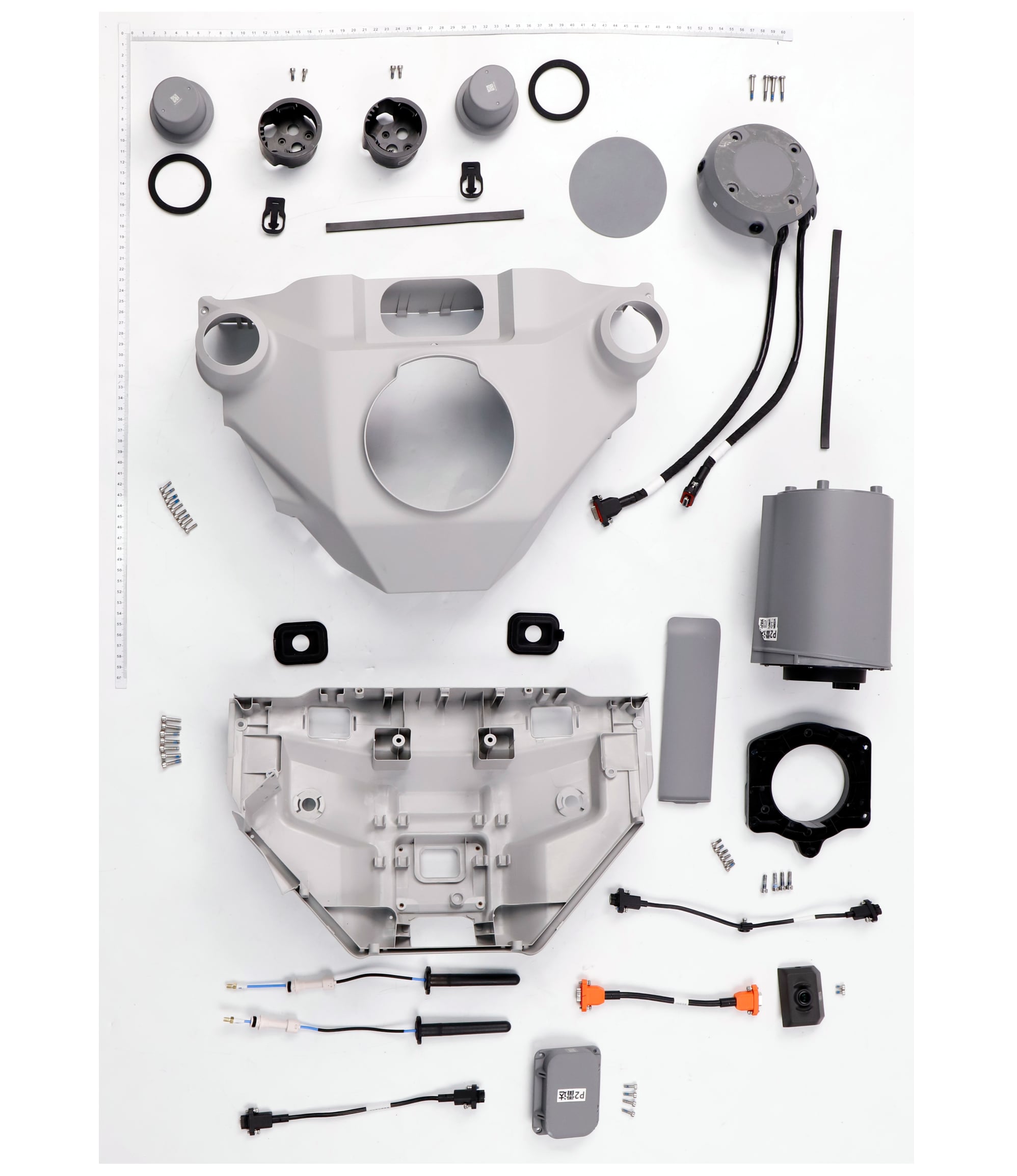

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Screw M30-HC080080-55-85 YC.WJ.L00868 $3.05 | $3.05 | |
| 2 | RTK Bracket YC.JG.ZS006627 $6.65 | $6.65 | |
| 3 | RTK Antenna Module BC.AG.SS001034 $176.00 | $176.00 | |
| 4 | RTK Rubber Ring YC.JG.MY001898 $6.65 | $6.65 | |
| 6 | Front Radar Sealing Foam YC.JG.MQ003696 $6.65 | $6.65 | |
| 7 | Front Top Shell YC.JG.ZS006459 $77.00 | $77.00 | |
| 8 | Screw M30-HC100100-55-85 YC.WJ.L00871 $2.05 | $2.05 | |
| 9 | Cable Rubber Stopper YC.JG.MY001896 $6.65 | $6.65 | |
| 10 | Front Shell Bottom Cover YC.JG.ZS006460 $83.00 | $83.00 | |
| 11 | Screw M40-HC01400140-070039-0003-Y YC.ST.LL000013 $2.05 | $2.05 | |
| 12 | SDR Antenna (Front) YC.DZ.AA000462 $46.55 | $46.55 | |
| 13 | Downward Radar Signal Cable YC.XC.XX001427 $50.00 | $50.00 | |
| 14 | Screw M30-HC100100-55-85 YC.WJ.L00871 $2.05 | $2.05 | |
| 15 | Downward Radar Module BC.AG.SS001087 $368.20 | $368.20 | |
| 16 | FPV Signal Cable YC.XC.XX001419 $63.00 | $63.00 | |
| 17 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 18 | FPV Module BC.AG.SS001021 $634.50 | $634.50 | |
| 19 | Front Radar Signal Cable YC.XC.XX001467 $46.55 | $46.55 | |
| 20 | Screw M40-HC01400140-070039-0003-Y YC.ST.LL000013 $2.05 | $2.05 | |
| 21 | Screw M30-HC080080-55-85 YC.WJ.L00868 $3.05 | $3.05 | |
| 22 | Front Radar Base Bracket YC.JG.ZS006690 $25.25 | $25.25 | |
| 23 | Quad Vision Sensor Cable Decorative Cover YC.JG.ZS006691 $12.00 | $12.00 | |
| 24 | Front Radar Module (Overseas) BC.AG.SS001167 $1,704.50 | $1,704.50 | |
| 25 | Radar Protective Foam YC.JG.MQ003829 $1.35 | $1.35 | |
| 26 | Quad-Fisheye Vision Sensor Module BC.AG.SS001093 $759.55 | $759.55 | |
| 27 | M30-HC02050080-070020-5103-Y_01 YC.WJ.LL000211 $2.05 | $2.05 | |
| 28 | Quad Vision Sensor Cover Plate YC.JG.MQ003804 $6.65 | $6.65 | |
| Screw (T20-PC00400040-040010-5103-N) YC.ST.LL000236 $0.95 | $0.95 | ||
| RTK Lower Cover YC.JG.ZS006626 $7.55 | $7.55 | ||
| RTK Sealing Ring YC.JG.MY001919 $3.10 | $3.10 | ||
| Screw (T20-PC00400040-040010-0323-N) YC.WJ.LL000396 $0.97 | $0.97 |
