DJI Agras T100 Spreading Spread Tank
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T100 assemblies (31)
- Tank (1) (1)
- Tank (2) (40)
- Impeller Pump (15)
- Flow Meter (14)
- Landing Gear (1) (10)
- Spray Lance (33)
- Landing Gear (2) (23)
- Cable Distribution Board (17)
- Aircraft Frame connector (16)
- Front Frame (1) (31)
- Front Frame (2) (31)
- Middle Frame & Rear Frame (1) (19)
- Large Aircraft Arm (10)
- M1M3 Small Aircraft Arm (29)
- M2M4 Small Aircraft Arm (29)
- Motor (8)
- Propeller (5)
- Spreading Spread Tank (12)
- Spreading Landing Gear (7)
- Spreading Landing Gear (2) (12)
- Spreading Weight Sensor (13)
- Spreading Frame (14)
- Spreading Spinner Disk (20)
- Spreading Auger (39)
- Lift System Winch (15)
- Lift System Frame Connector (10)
- Lift System Landing Gear (1) (12)
- Lift System Landing Gear (2) (6)
- Mist Kit Mist Spray Boom (23)
- Mist Kit External Spray Boom (16)
- Mist Kit Internal Spray Boom (17)

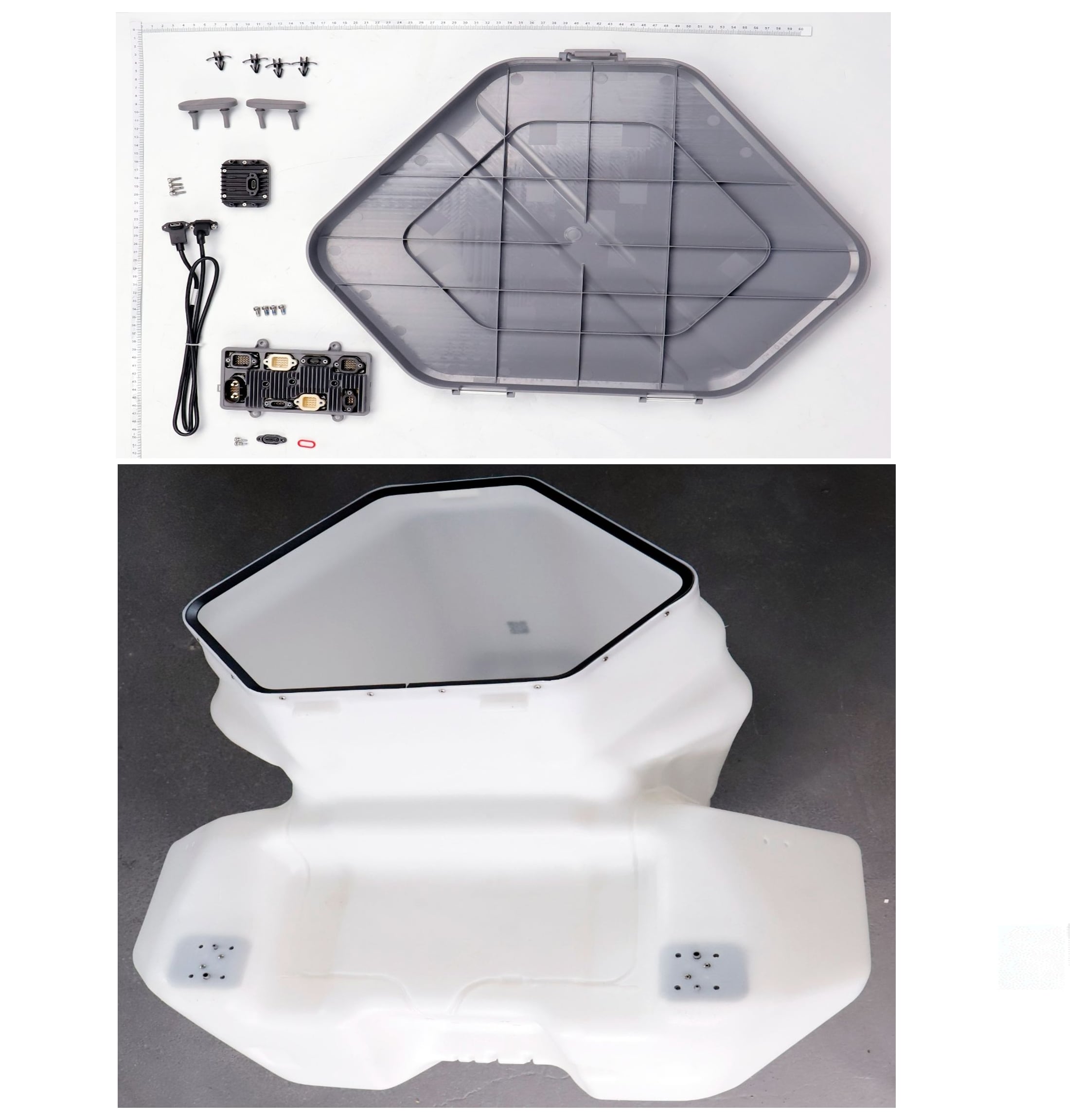

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 2 | Spread Tank Propeller Guard Rubber Pad YC.JG.MY002087 $4.60 | $4.60 | |
| 3 | Spread Tank Cover YC.JG.ZS005975 $35.00 | $35.00 | |
| 4 | Rear Radar Module BC.AG.SS001107 $449.35 | $449.35 | |
| 5 | Screw M30-HC100100-55-85 YC.WJ.L00871 $2.05 | $2.05 | |
| 6 | Screw M40-HC080080-68-85 YC.WJ.L01234 $3.60 | $3.60 | |
| 7 | Rear Radar Signal Cable (Long) YC.XC.XX001522 $31.60 | $31.60 | |
| 8 | Payload Control Board BC.AG.SS001068 $552.70 | $552.70 | |
| 9 | 4-pin Cable Rubber Cover YC.JG.ZS006290 $2.10 | $2.10 | |
| 10 | Screw (M25-HCW00960040-055020-5103-Y) YC.ST.LL000698 $0.65 | $0.65 | |
| 11 | 4-pin Cable Sealing Ring YC.JG.MY001810 $2.00 | $2.00 | |
| 12 | Spread Tank (150L) YC.JG.CS000044 $387.00Get a Quote | $387.00 | Get a Quote |
| Spread Tank Radar Cable Clamp YC.JG.ZS007196 $0.90 | $0.90 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
