DJI Agras T100 Cable Distribution Board
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T100 assemblies (31)
- Tank (1) (1)
- Tank (2) (40)
- Impeller Pump (15)
- Flow Meter (14)
- Landing Gear (1) (10)
- Spray Lance (33)
- Landing Gear (2) (23)
- Cable Distribution Board (17)
- Aircraft Frame connector (16)
- Front Frame (1) (31)
- Front Frame (2) (31)
- Middle Frame & Rear Frame (1) (19)
- Large Aircraft Arm (10)
- M1M3 Small Aircraft Arm (29)
- M2M4 Small Aircraft Arm (29)
- Motor (8)
- Propeller (5)
- Spreading Spread Tank (12)
- Spreading Landing Gear (7)
- Spreading Landing Gear (2) (12)
- Spreading Weight Sensor (13)
- Spreading Frame (14)
- Spreading Spinner Disk (20)
- Spreading Auger (39)
- Lift System Winch (15)
- Lift System Frame Connector (10)
- Lift System Landing Gear (1) (12)
- Lift System Landing Gear (2) (6)
- Mist Kit Mist Spray Boom (23)
- Mist Kit External Spray Boom (16)
- Mist Kit Internal Spray Boom (17)

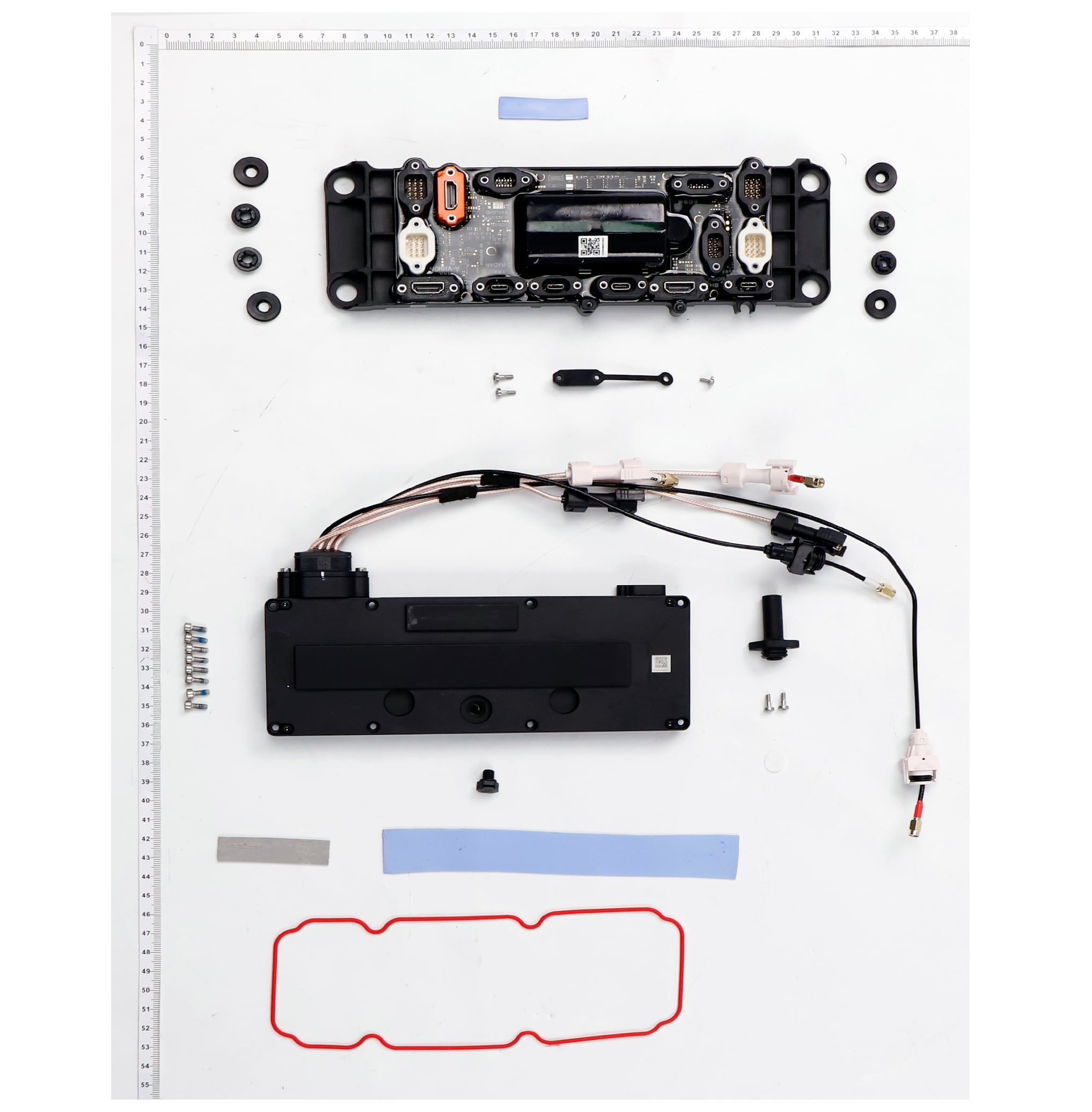

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Thermal Conductive Pad (11×42 mm) YC.JG.MQ003711 $1.35 | $1.35 | |
| 2 | Cable Distribution Board Module BC.AG.SS001091 $560.75 | $560.75 | |
| 3 | Damping Pad B YC.JG.QX002312 $9.50 | $9.50 | |
| 4 | Damping Pad A YC.JG.ZS006682 $4.00 | $4.00 | |
| 5 | Type-C Port Waterproof Cover YC.JG.MY000389 $3.05 | $3.05 | |
| 6 | Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 $2.05 | $2.05 | |
| 7 | Aerial-Electronics Module (Overseas) BC.AG.SS001131 $2,414.95 | $2,414.95 | |
| 8 | Screw M30-HC080080-55-85 YC.WJ.L00868 $3.05 | $3.05 | |
| 9 | Vent Trap YC.SJ.S00717 $37.25 | $37.25 | |
| 10 | Thermal Conductive Pad (162×23.5 mm) YC.JG.MQ003708 $2.80 | $2.80 | |
| 11 | Thermally Conductive Pad (53.1 x 12.9 mm) YC.JG.MQ002623 $1.65 | $1.65 | |
| 12 | Aerial-Electronics Module Sealing Ring YC.JG.MY001920 $6.65 | $6.65 | |
| 13 | Barometer Waterproof Permeability Film YC.QT.QT000167 $3.05 | $3.05 | |
| 14 | Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 $2.05 | $2.05 | |
| 15 | Barometer Tube YC.JG.MY001918 $6.65 | $6.65 | |
| 16 | M20-HPW00600060-065016-5103-Y_02 YC.WJ.LL000235 $0.75 | $0.75 | |
| 17 | Screw (M40-HC01750080-100034-5103-Y) YC.ST.LL000718 $0.65 | $0.65 |
