DJI Agras T100 Spreading Auger
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T100 assemblies (31)
- Tank (1) (1)
- Tank (2) (40)
- Impeller Pump (15)
- Flow Meter (14)
- Landing Gear (1) (10)
- Spray Lance (33)
- Landing Gear (2) (23)
- Cable Distribution Board (17)
- Aircraft Frame connector (16)
- Front Frame (1) (31)
- Front Frame (2) (31)
- Middle Frame & Rear Frame (1) (19)
- Large Aircraft Arm (10)
- M1M3 Small Aircraft Arm (29)
- M2M4 Small Aircraft Arm (29)
- Motor (8)
- Propeller (5)
- Spreading Spread Tank (12)
- Spreading Landing Gear (7)
- Spreading Landing Gear (2) (12)
- Spreading Weight Sensor (13)
- Spreading Frame (14)
- Spreading Spinner Disk (20)
- Spreading Auger (39)
- Lift System Winch (15)
- Lift System Frame Connector (10)
- Lift System Landing Gear (1) (12)
- Lift System Landing Gear (2) (6)
- Mist Kit Mist Spray Boom (23)
- Mist Kit External Spray Boom (16)
- Mist Kit Internal Spray Boom (17)

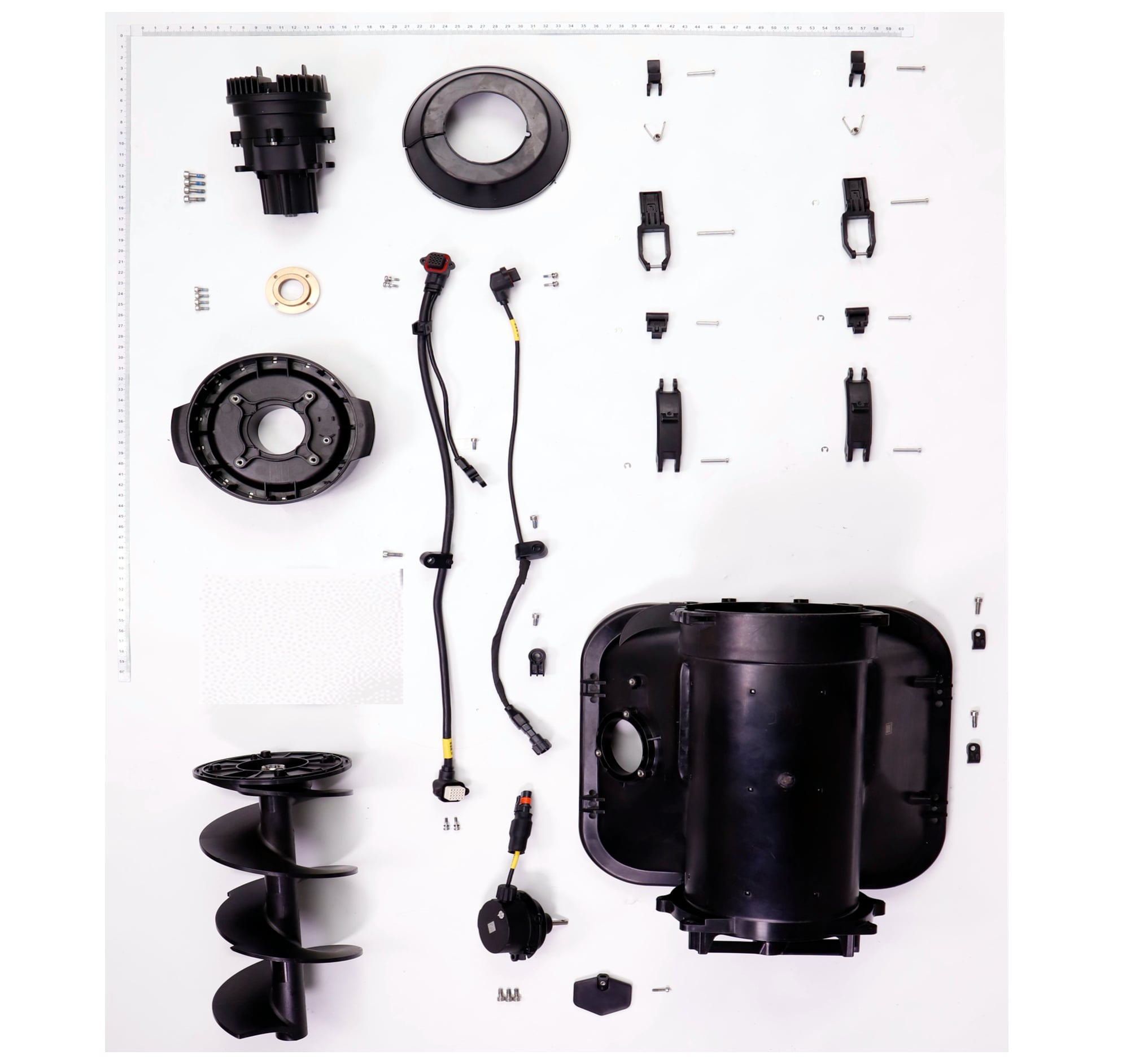

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Auger Motor Cover YC.JG.ZS006137 $9.00 | $9.00 | |
| 2 | Auger Motor BC.AG.SS001062 $621.00 | $621.00 | |
| 3 | Screw (M40-HC01200120-072040-5103-Y) YC.ST.LL000705 $0.65 | $0.65 | |
| 4 | Screw (M25-HCW00960040-055020-5103-Y) YC.ST.LL000698 $0.65 | $0.65 | |
| 5 | Sliding Bearing YC.ST.CG000018 $4.00 | $4.00 | |
| 6 | Screw M30-HC080080-55-85 YC.WJ.L00868 $3.05 | $3.05 | |
| 7 | Auger Sensor BC.AG.SS001061 $78.00 | $78.00 | |
| 8 | Auger Motor Base YC.JG.ZS005954 $38.00 | $38.00 | |
| 9 | Screw M30-HC080080-55-85 YC.WJ.L00868 $3.05 | $3.05 | |
| 10 | Screw M40-HC080080-68-85 YC.WJ.L01234 $3.60 | $3.60 | |
| 11 | 4-pin Cable Sleeve YC.JG.MY001491 $0.90 | $0.90 | |
| 12 | Screw (M25-HCW00960040-055020-5103-Y) YC.ST.LL000698 $0.65 | $0.65 | |
| 13 | Extra Large Auger BC.AG.SS001067 $219.00 | $219.00 | |
| 14 | Drain Hole Waterproof Ring YC.JG.MY000314 $2.50 | $2.50 | |
| 15 | Screw M40-HC00450039-076020-0003-Y YC.ST.LL000112 $2.00 | $2.00 | |
| 16 | Material Detection Motor BC.AG.SS000914 $392.00 | $392.00 | |
| 17 | Reduction Gearbox Motor Dustproof Cover YC.JG.MY000387 $6.60 | $6.60 | |
| 18 | Screw M40-HC080080-68-85 YC.WJ.L01234 $3.60 | $3.60 | |
| 19 | Sensing Part YC.JG.ZS004580 $7.00 | $7.00 | |
| 20 | Hexagonal Socket Head Cap Screws M2.5*12 YC.WJ.L00006 $1.25 | $1.25 | |
| 21 | Auger Shell YC.JG.ZS005952 $213.00 | $213.00 | |
| 22 | Cable Clip YC.JG.ZS004913 $0.90 | $0.90 | |
| 23 | Screw M40-HC080080-68-85 YC.WJ.L01234 $3.60 | $3.60 | |
| 24 | Cable Clamp 04 YC.JG.ZS006306 $1.00 | $1.00 | |
| 25 | Screw M40-HC080080-68-85 YC.WJ.L01234 $3.60 | $3.60 | |
| 26 | Motor Adapter Cable YC.XC.XX001400 $46.00 | $46.00 | |
| 27 | Screw M40-HC080080-68-85 YC.WJ.L01234 $3.60 | $3.60 | |
| 28 | E-Shaped Circlip (6 mm) YC.JG.BJ002409 $2.50 | $2.50 | |
| 30 | Quick-Release Clamp YC.JG.ZS004696 $4.30 | $4.30 | |
| 31 | Quick-Release Rod YC.JG.ZS004557 $6.00 | $6.00 | |
| 32 | Short Pin (17.6 mm) YC.JG.QX003650 $4.30 | $4.30 | |
| 33 | Screw (M25-HCW00960040-055020-5103-Y) YC.ST.LL000698 $0.65 | $0.65 | |
| 34 | Lever 1 YC.JG.ZS004555 $4.30 | $4.30 | |
| 35 | Long Pin (29.4 mm) YC.JG.QX003648 $4.00 | $4.00 | |
| 36 | Torsion Spring YC.JG.TT000204 $0.90 | $0.90 | |
| 37 | Lever 2 YC.JG.ZS004556 $2.60 | $2.60 | |
| 38 | Medium Pin (22.2 mm) YC.JG.QX003649 $4.30 | $4.30 | |
| 39 | Screw (M40-HC01200120-072040-5103-Y) YC.ST.LL000705 $0.65 | $0.65 | |
| Medium Pin (22.2 mm) YC.JG.QX003649 $4.30 | $4.30 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
