DJI Agras T100 Front Frame (1)

Official DJI parts diagram and material list.

Pricing is per single item unless the part description says otherwise.

All T100 assemblies (31)

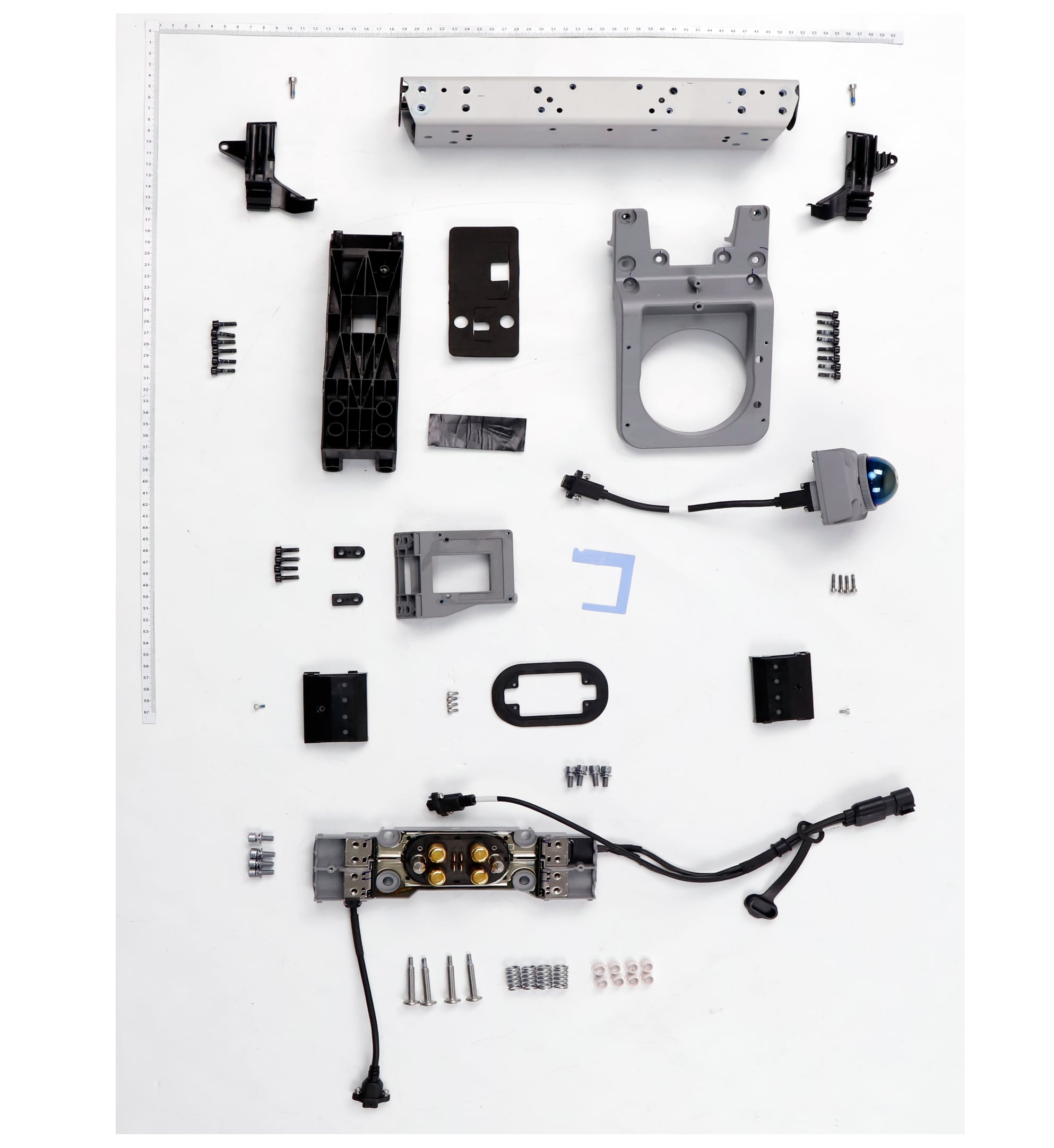

Parts Diagram

Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.

Open photo full size ↗

No.	Part	$ Each (inc. GST)
1	Front Frame Aluminum Tube BC.AG.SS001103 $188.75	$188.75
2	Screw M40-HC01400140-070039-0003-Y YC.ST.LL000013 $2.05	$2.05
3	Power Cable Clamp B0 YC.JG.ZS006714 $9.35	$9.35
4	FPV Sealing Foam YC.JG.MQ003801 $2.80	$2.80
5	FPV Bracket YC.JG.ZS006589 $58.00	$58.00
6	Screw (M40-HC01400115-085047-4203-Y) YC.ST.LL000730 $0.70	$0.70
7	Wear-Resistant Foam (77×30) YC.JG.MQ003860 $2.80	$2.80
8	Laser Radar Insulation Spacer YC.JG.ZS006590 $1.35	$1.35
9	Screw (M40-HC01400115-085047-4203-Y) YC.ST.LL000730 $0.70	$0.70
10	Laser Radar Bracket YC.JG.YZ001068 $50.00	$50.00
11	Screw (M25-HC00580058-050025-5103-Y) YC.ST.LL000726 $0.65	$0.65
12	Power Distribution Board Protective Cover YC.JG.ZS006649 $13.30	$13.30
13	Screw (M25-HC00580058-050025-5103-Y) YC.ST.LL000726 $0.65	$0.65
14	Power Distribution Board Module BC.AG.SS001090 $432.40	$432.40
15	Screw (M50-HC01300107-087050-5103-N) YC.ST.LL000699 $2.80	$2.80
16	Screw (M40-HC03800090-135020-5103-Y) YC.ST.LL000697 $1.35	$1.35
17	Power Distribution Module Spring YC.JG.TT000282 $1.35	$1.35
18	Power Distribution Module Spring Pad YC.JG.ZS006775 $1.35	$1.35
19	Screw (M50-HC01300107-087050-5103-N) YC.ST.LL000699 $2.80	$2.80
20	Power Distribution Board Dustproof Cover YC.JG.ZS004560 $15.05	$15.05
21	Thermal Conductive Pad (49.6×35.6 mm) YC.JG.MQ003697 $1.35	$1.35
22	Screw (M20-PC01200100-040010-0323-Y) YC.ST.LL000551 $0.65	$0.65
23	Laser Radar Signal Cable YC.XC.XX001498 $30.60	$30.60
24	Laser Radar Module (Overseas) BC.AG.SS001166 $1,420.30	$1,420.30
25	Screw (M40-HC01400115-085047-4203-Y) YC.ST.LL000730 $0.70	$0.70
26	Front Radar Bracket YC.JG.YZ001069 $58.00	$58.00
27	Power Cable Clamp B1 YC.JG.ZS006715 $6.65	$6.65
	Laser Radar cover YC.OC.PA000059 $77.00	$77.00
	Optical Window Sealing Ring YC.JG.MY000651 $8.05	$8.05
	Pressing Ring YC.JG.MQ003930 $1.35	$1.35
	Locking Ring YC.JG.QX004623 $13.30	$13.30

Can't spot your part? Search by part number on the search page or call 1300 916 075.
