DJI Agras T100 Lift System Landing Gear (1)
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T100 assemblies (31)
- Tank (1) (1)
- Tank (2) (40)
- Impeller Pump (15)
- Flow Meter (14)
- Landing Gear (1) (10)
- Spray Lance (33)
- Landing Gear (2) (23)
- Cable Distribution Board (17)
- Aircraft Frame connector (16)
- Front Frame (1) (31)
- Front Frame (2) (31)
- Middle Frame & Rear Frame (1) (19)
- Large Aircraft Arm (10)
- M1M3 Small Aircraft Arm (29)
- M2M4 Small Aircraft Arm (29)
- Motor (8)
- Propeller (5)
- Spreading Spread Tank (12)
- Spreading Landing Gear (7)
- Spreading Landing Gear (2) (12)
- Spreading Weight Sensor (13)
- Spreading Frame (14)
- Spreading Spinner Disk (20)
- Spreading Auger (39)
- Lift System Winch (15)
- Lift System Frame Connector (10)
- Lift System Landing Gear (1) (12)
- Lift System Landing Gear (2) (6)
- Mist Kit Mist Spray Boom (23)
- Mist Kit External Spray Boom (16)
- Mist Kit Internal Spray Boom (17)

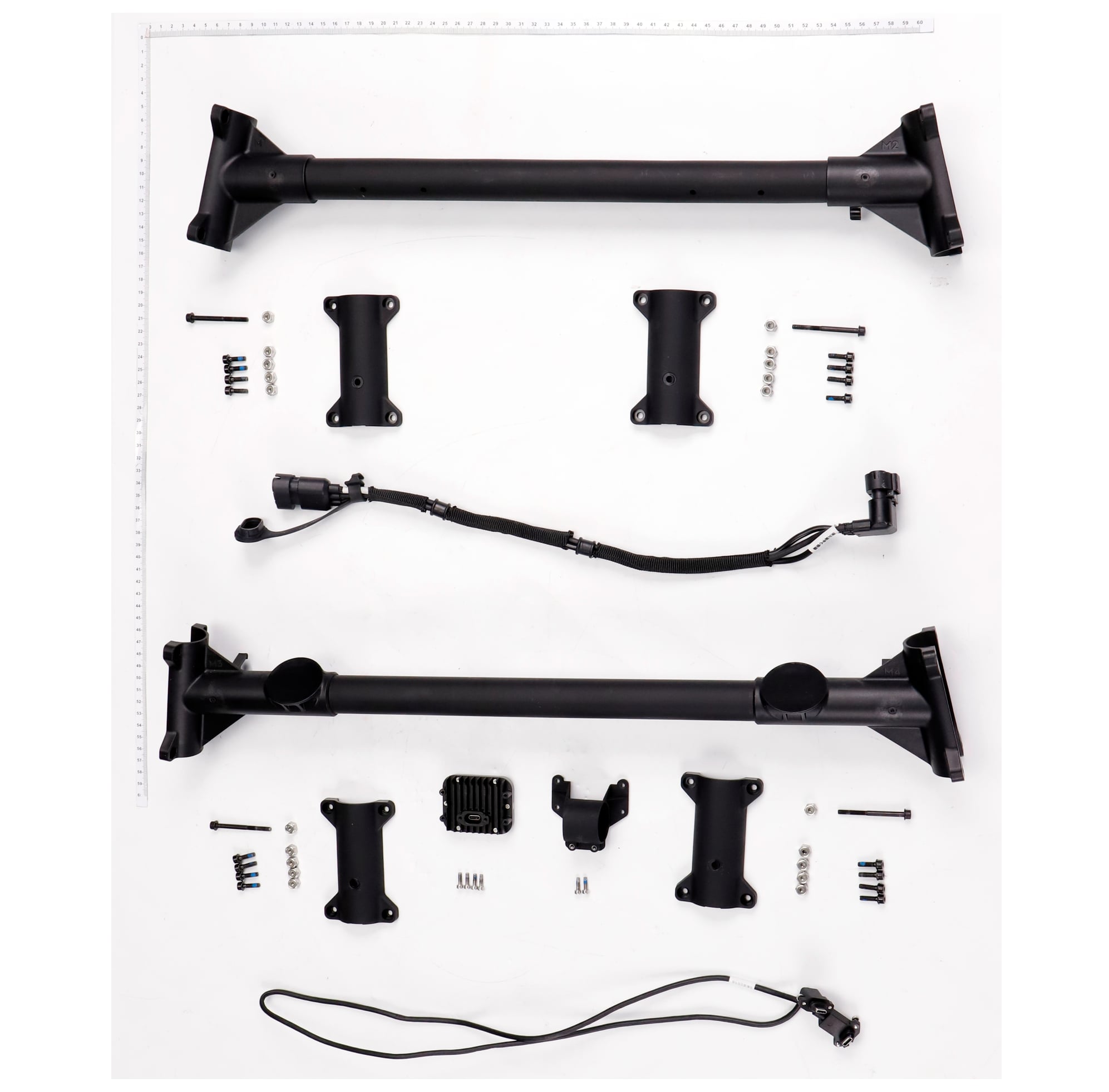

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Landing Gear Crossbeam (Front) YC.JG.ZS006692 $47.80 | $47.80 | |
| 2 | M40-HX088065-5103 YC.ST.LM000107 $0.70 | $0.70 | |
| 3 | Screw (M40-HC04800220-088047-5103-Y) YC.ST.LL000731 $1.10 | $1.10 | |
| 4 | Screw (M40-HC01400115-085047-4203-Y) YC.ST.LL000730 $0.70 | $0.70 | |
| 5 | Landing Gear Y-tee Part Cover YC.JG.ZS006708 $5.15 | $5.15 | |
| 6 | Payload Adapter Cable YC.XC.DD000815 $79.00 | $79.00 | |
| 7 | Landing Gear Crossbeam (Rear) YC.JG.ZS006693 $60.00 | $60.00 | |
| 8 | Rear Radar Module BC.AG.SS001107 $449.35 | $449.35 | |
| 9 | Screw M30-HC100100-55-85) YC.WJ.L00871 $2.05 | $2.05 | |
| 10 | Rear Radar Signal Cable (Long) YC.XC.XX001522 $31.60 | $31.60 | |
| 11 | Screw M30-HC100100-55-85) YC.WJ.L00871 $2.05 | $2.05 | |
| 12 | Rear Radar Bracket YC.JG.ZS007274 $9.20 | $9.20 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
