DJI

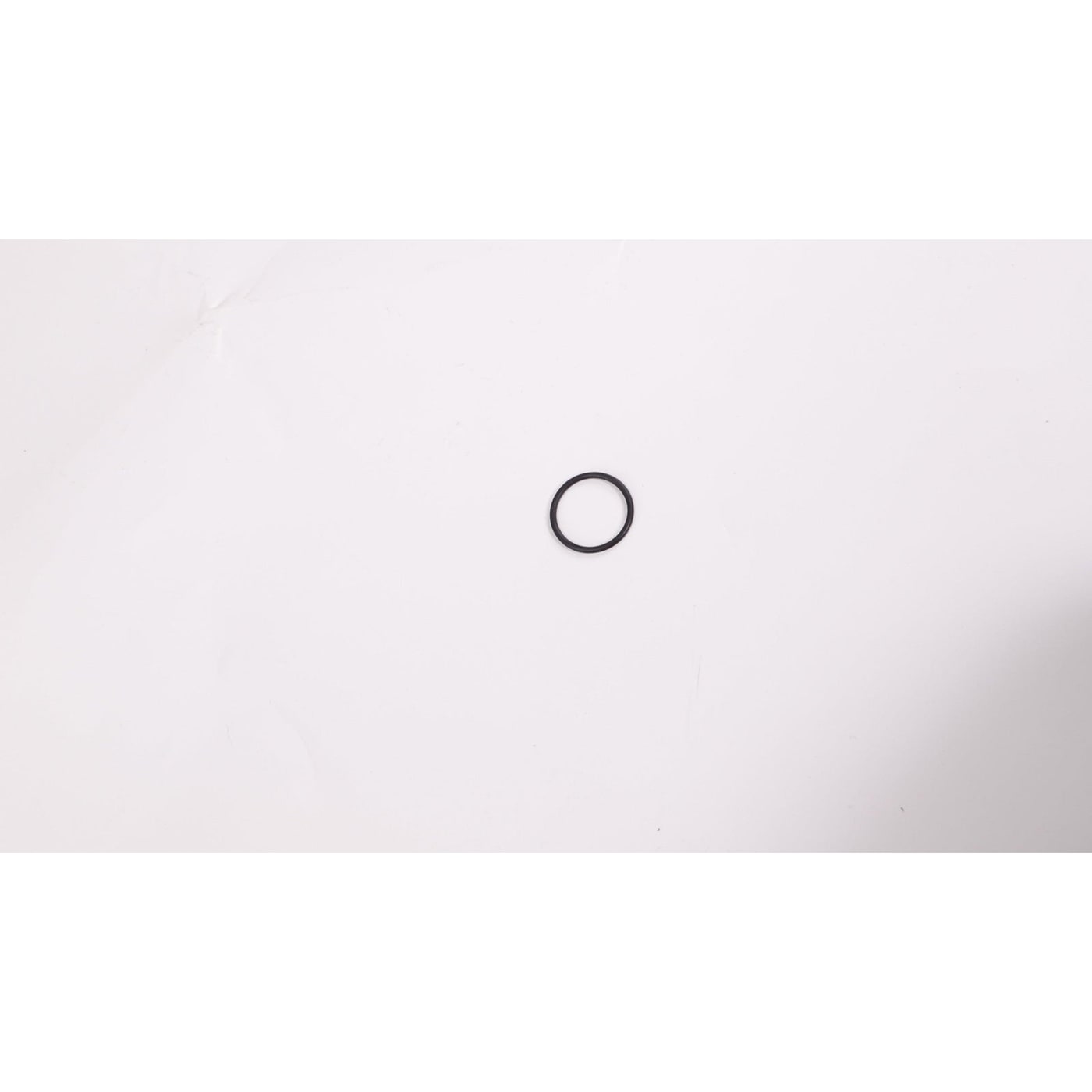

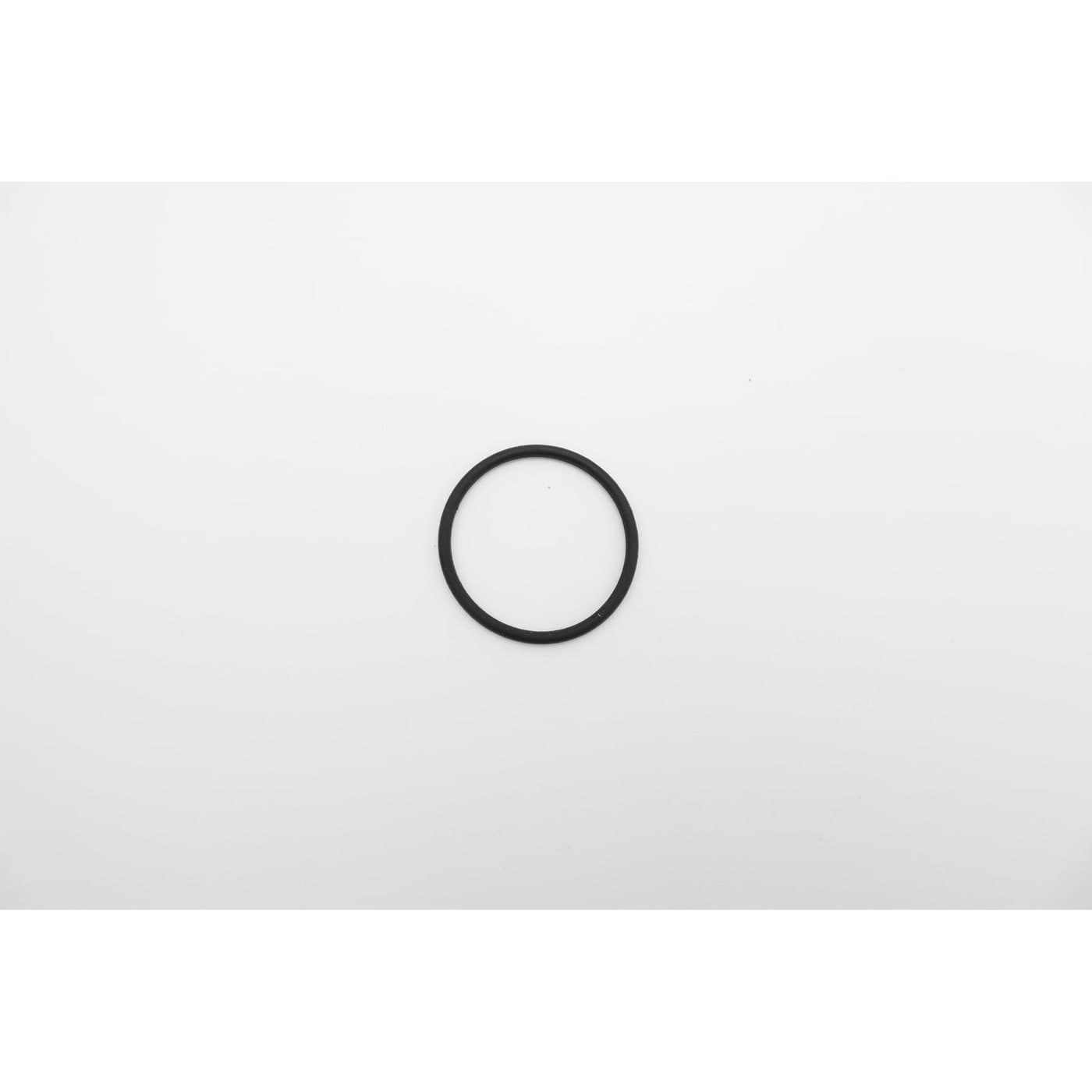

Spray Tank Y-tee Part Sealing Ring (T100/T70P/T50/T25P) YC.JG.MY000687
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Each DJI Agras T100, T70P, T50 and T25P spray tank uses two of these sealing rings at its Y-tee part, and together they keep that outlet fitting liquid-tight. The tank diagrams list the code at both positions.
| Part number | YC.JG.MY000687 |
| Fits | DJI Agras T100, T70P, T50, T25P |
| Parts diagram | T100 spray tank (sheet 2), callout 20; T70P spray tank (sheet 1), callout 28; T50 spray tank (sheet 2), callout 3; T25P spray tank (sheet 2), callout 9 |
The second position is callout 22 on the T100, 35 on the T70P, 18 on the T50 and 19 on the T25P, so order two to reseal the whole fitting. Chemical contact slowly hardens or swells rubber, and a flattened ring is a common cause of a drip at the Y-tee.
Treat these rings as single-use: renew them whenever the Y-tee is opened and seat each one evenly without a twist. A new ring cannot cure a leak from a chipped sealing face, so look over the Y-tee part before closing up.
