DJI
Water Outlet Rotation Cover (T100/T70P/T50/T25P) YC.JG.ZS002233
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Shared by the spray tank and impeller pump diagrams of DJI Agras T100, T70P, T50 and T25P drones, the water outlet rotation cover is part of the connection between the tank outlet and the pump.
| Part number | YC.JG.ZS002233 |
| Fits | DJI Agras T100, T70P, T50, T25P |
| Parts diagram | T100 spray tank (sheet 2), callout 25; T100 impeller pump, callout 10; T70P spray tank (sheet 1), callout 37; T70P impeller pump, callout 5; T50 spray tank (sheet 2), callout 16; T50 impeller pump, callout 7; T25P spray tank (sheet 2), callout 23; T25P impeller pump, callout 16 |

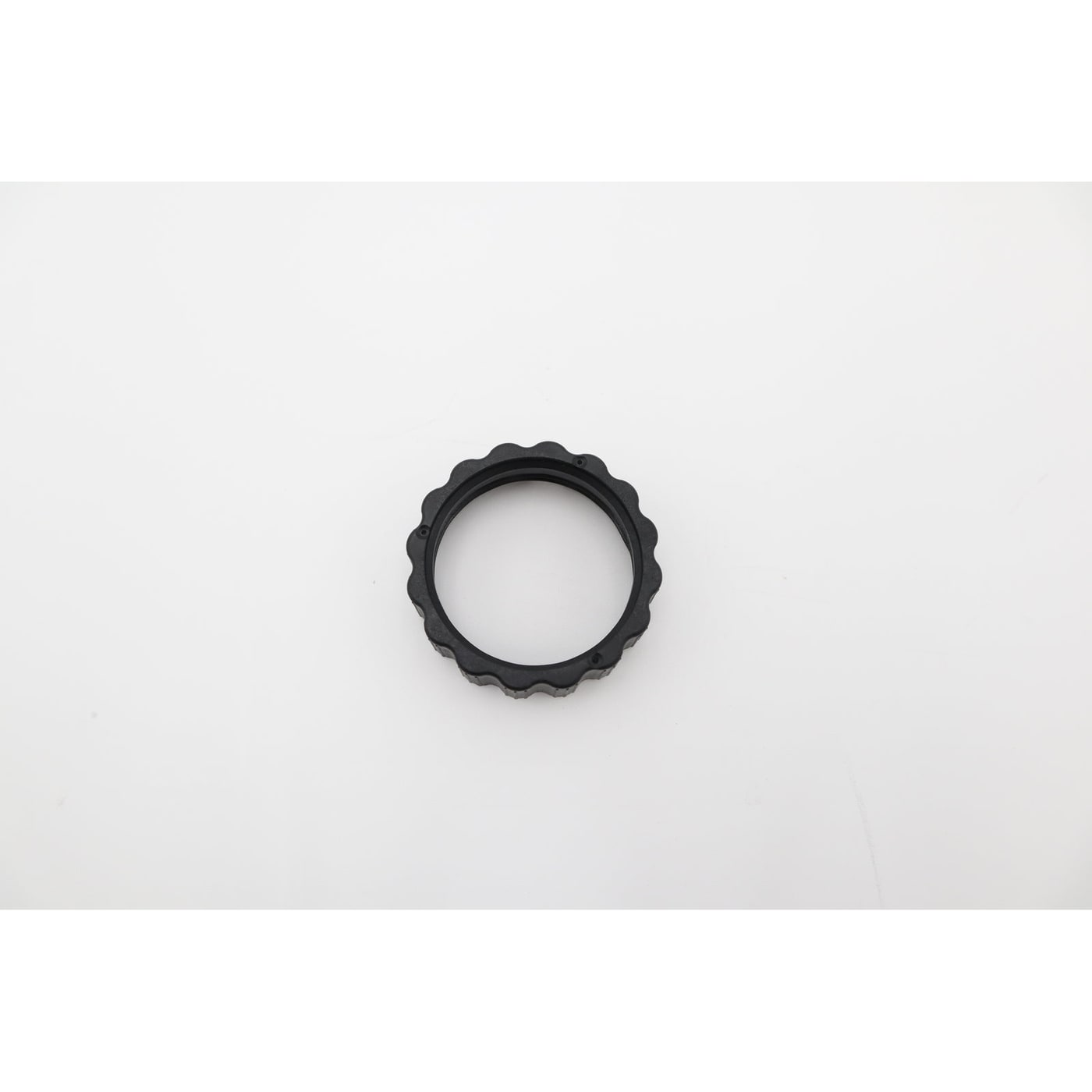

The T100 impeller pump and T25P tank photos show this knurled collar fitted round the end of each assembled pump opposite the motor. How it locks is not shown, so note how the old one comes off.
It belongs to both assemblies, so it can be disturbed whenever a pump or the tank comes off. Check it each time for cracks or distortion, and replace it if mix escapes at that join. Every pump sheet lists it with the Y-tee part sealing pad and the pump sealing ring, so renew those too if they are flat or hard.
