FJD AT2 Max Auto Steer System
The flagship all-in-one kit: bigger screen, more power, smarter turns.
- display, 46% larger than AT2
- 12.1"
- more computing power
- 170%
- shorter runs with Smart U-turn
- 30%
- compatible tractor models
- 2,000+
FJ Dynamics
Gallery, options, and pricing
Talk to a real operator: 1300 916 075
In depth

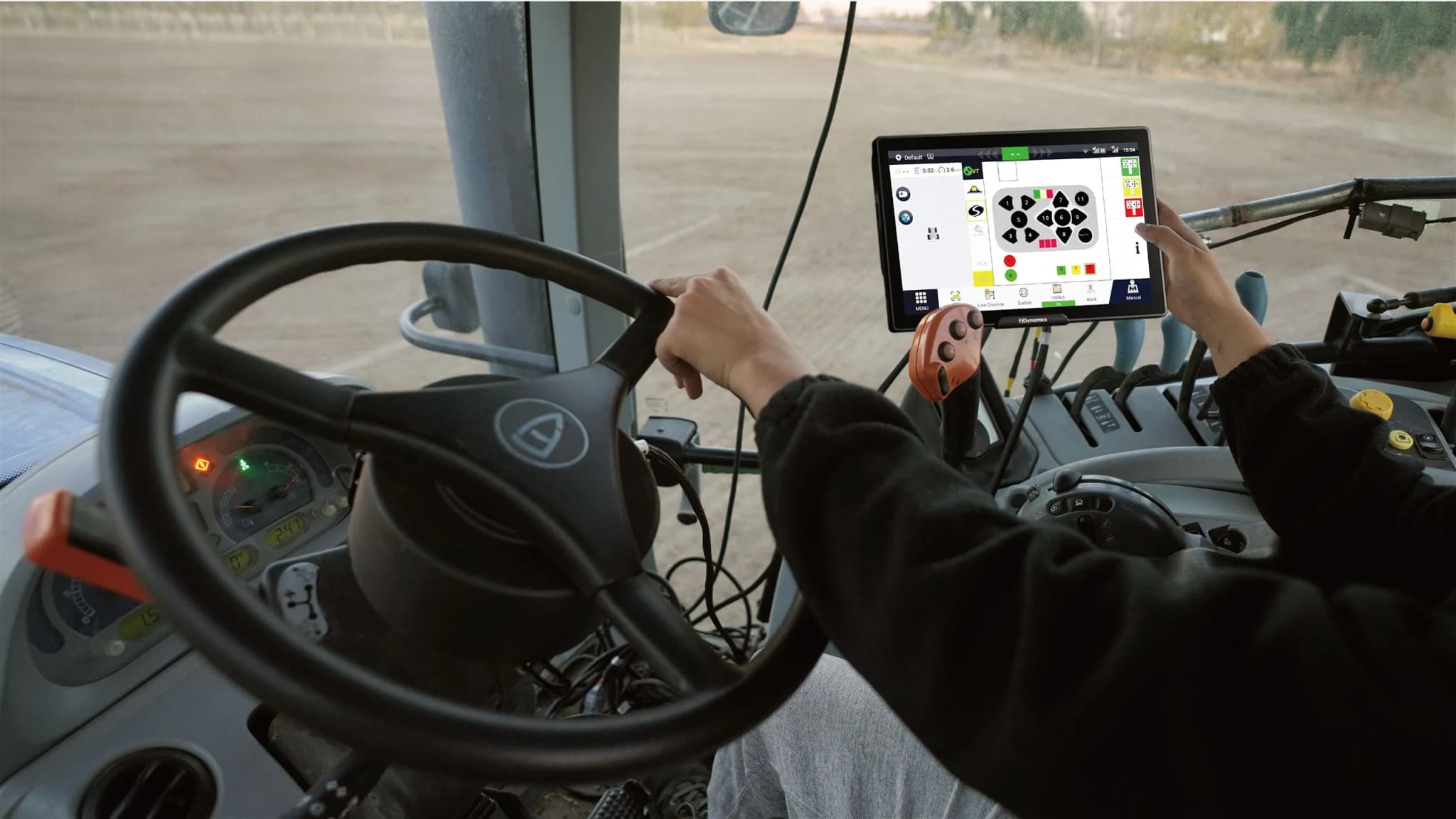

Engineered for the long day

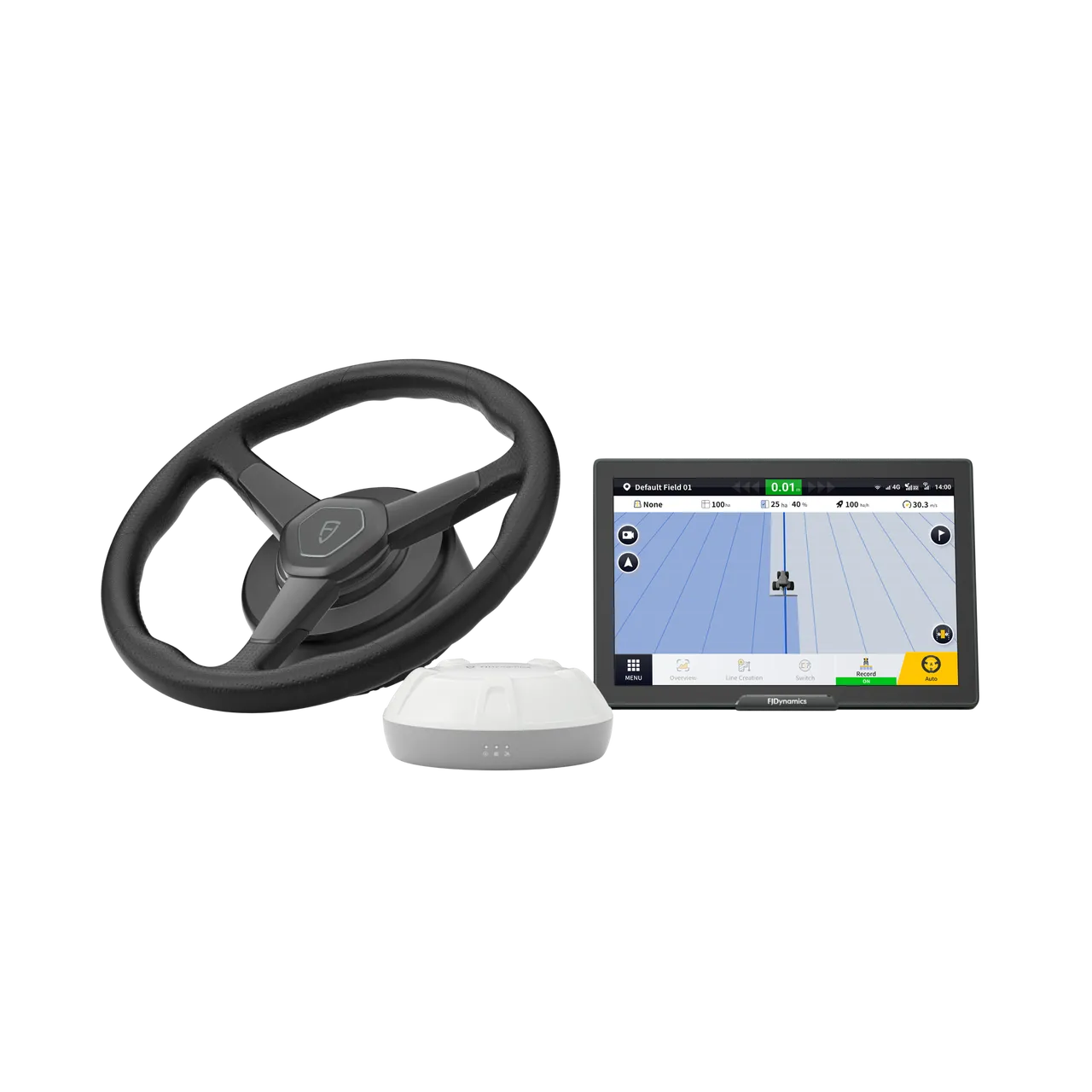

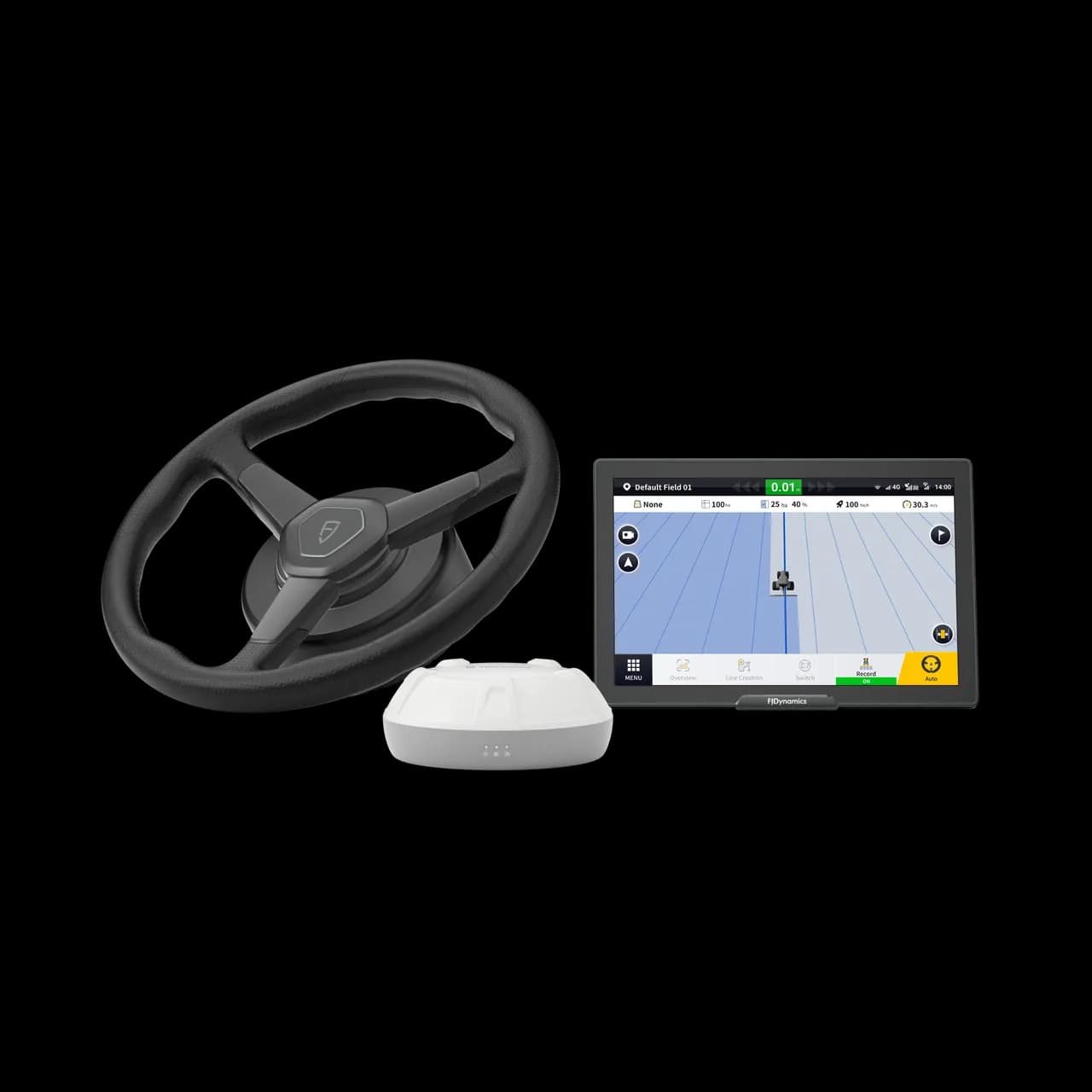

Maximum, even optimum. The FJD AT2 Max is the flagship of FJD's new-generation autosteering systems and the first all-in-one navigation kit in the range: a 12.1-inch monitor, a new electric steering wheel, and serious computing power in one package built for higher productivity and profitability.
Max in functionality

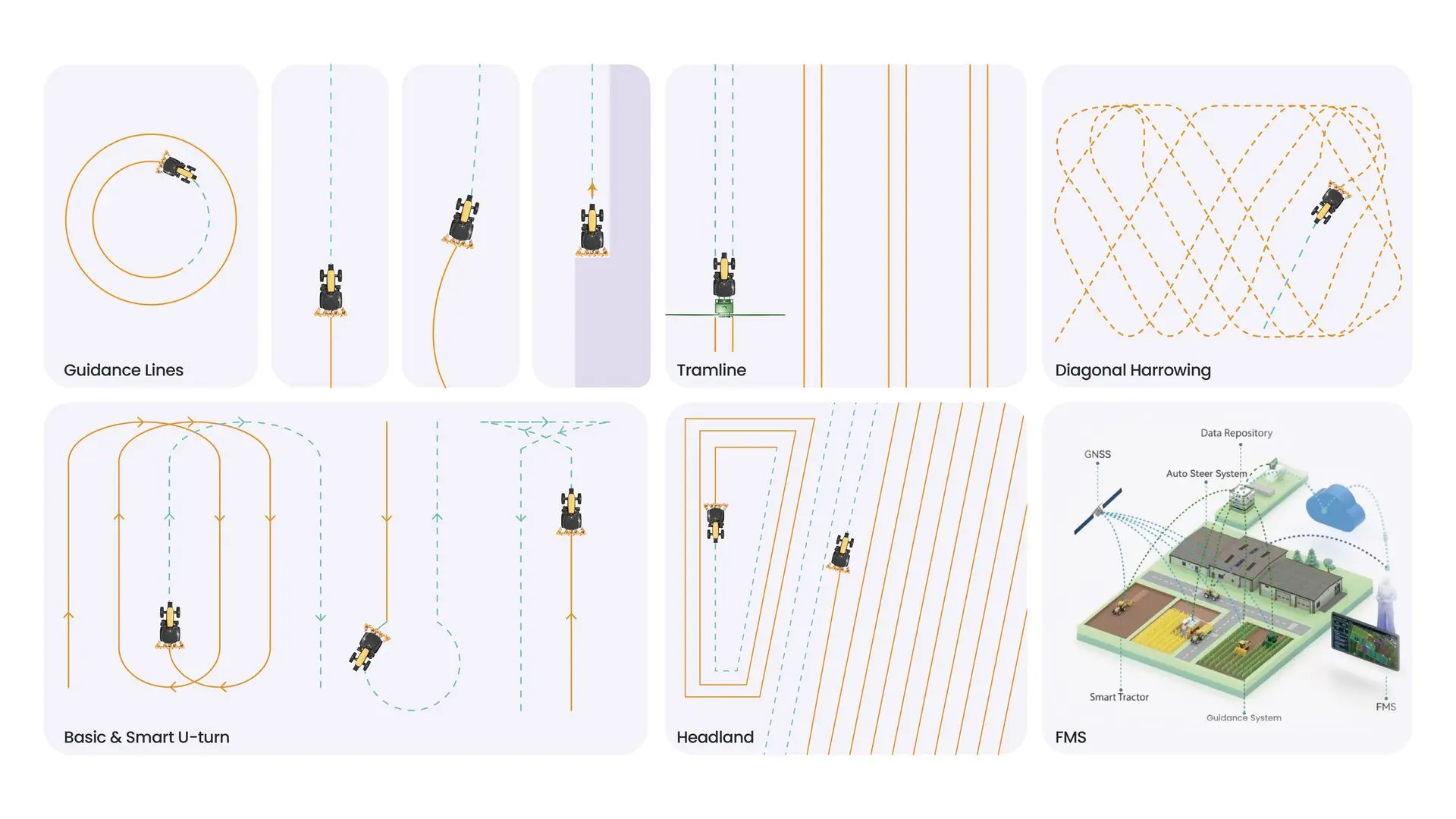

The AT2 Max offers guidance lines and tramlines for straight, curved, pivot, or mixed routes. With Smart U-turn it plans the optimal path across the whole task and cuts operating distance by up to 30% compared with turning manually, saving fuel on every headland.

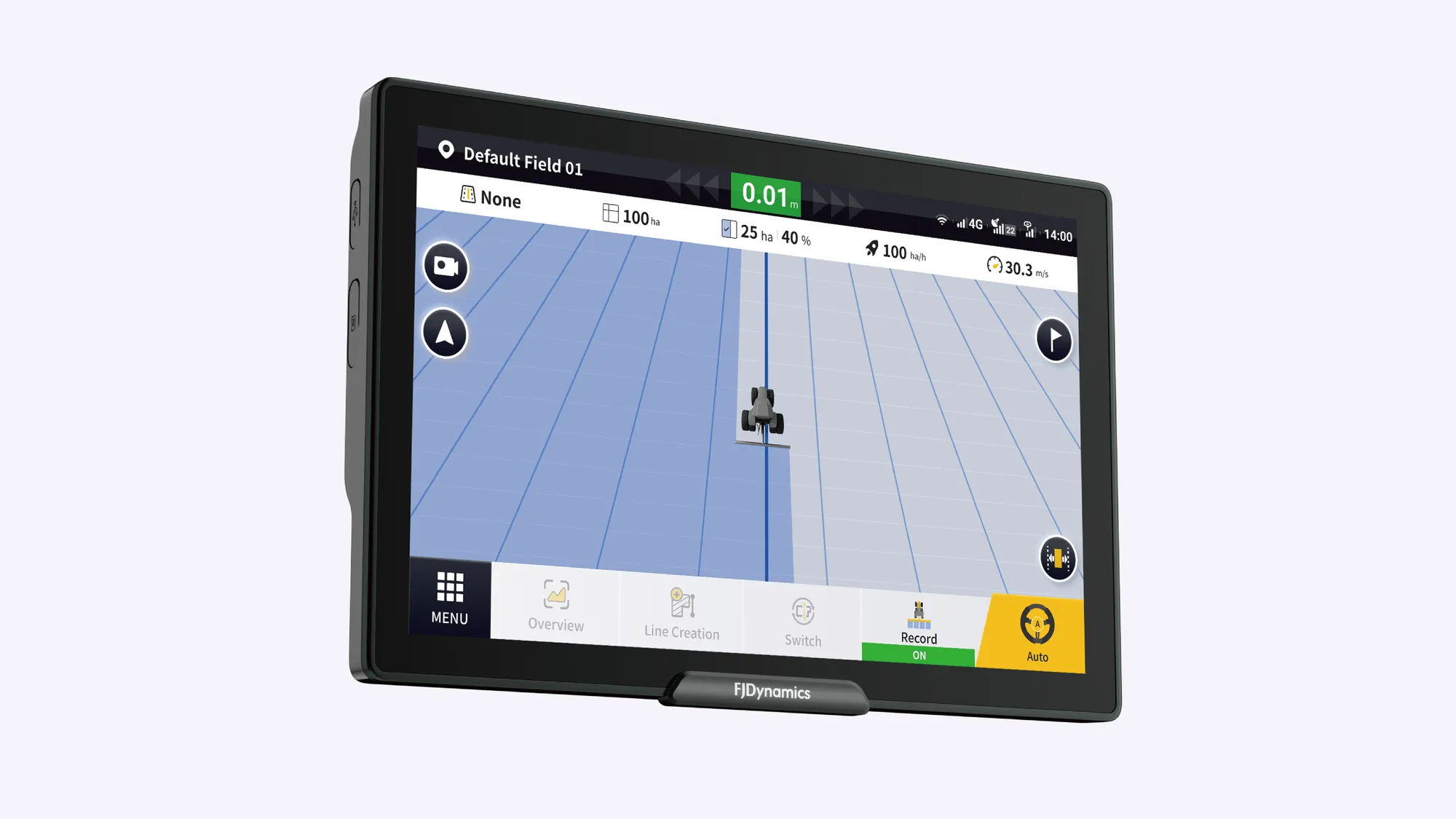

Max in display
The screen stretches to 12.1 inches, a 46% increase in viewing area over the standard AT2, with a split-screen view for multitasking and better visibility at speed.
Max in performance
A 170% increase in computing power and double the RAM keep maps, tasks, and ISOBUS screens responsive no matter how much is on screen.
Quick Setting
Parameter setup is a breeze: the system intelligently initialises settings for your machine, drawing on compatibility with more than 200 tractor brands and 2,000-plus models.

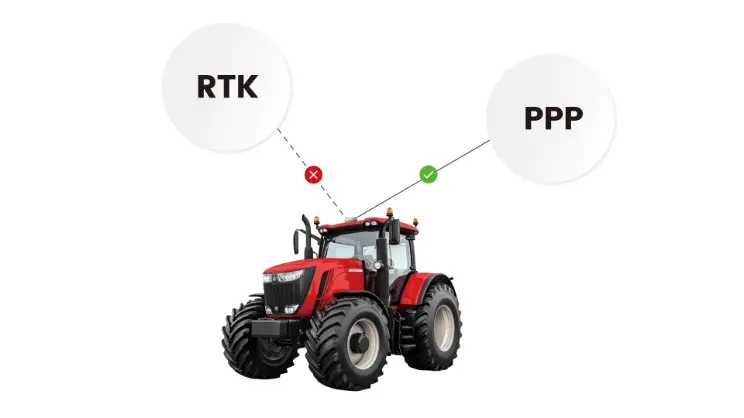

ALS solution
In signal-challenging environments the AT2 Max offers flexible connection solutions, switching automatically to free PPP so work continues when the correction link drops.

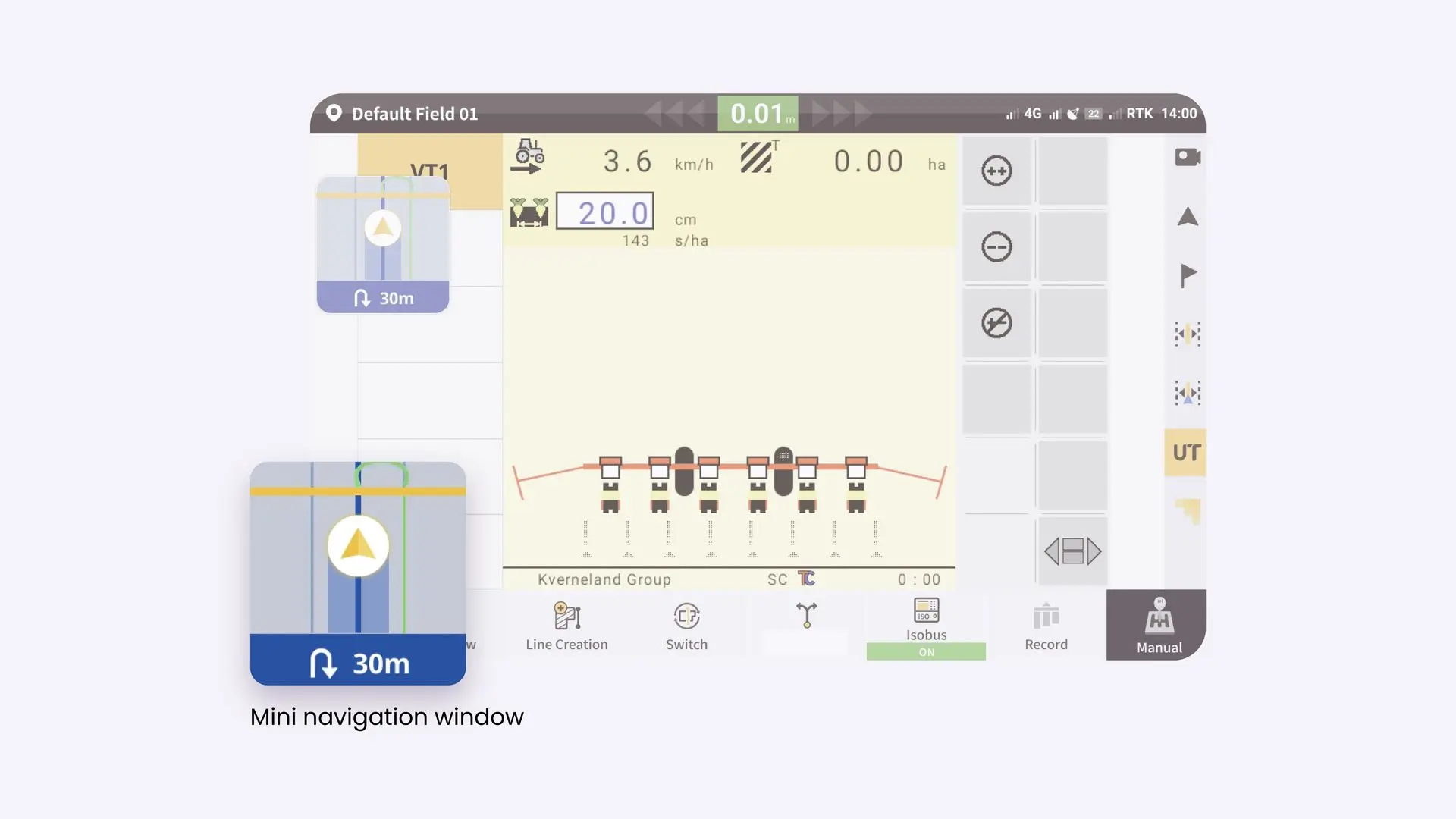

Enhanced interaction

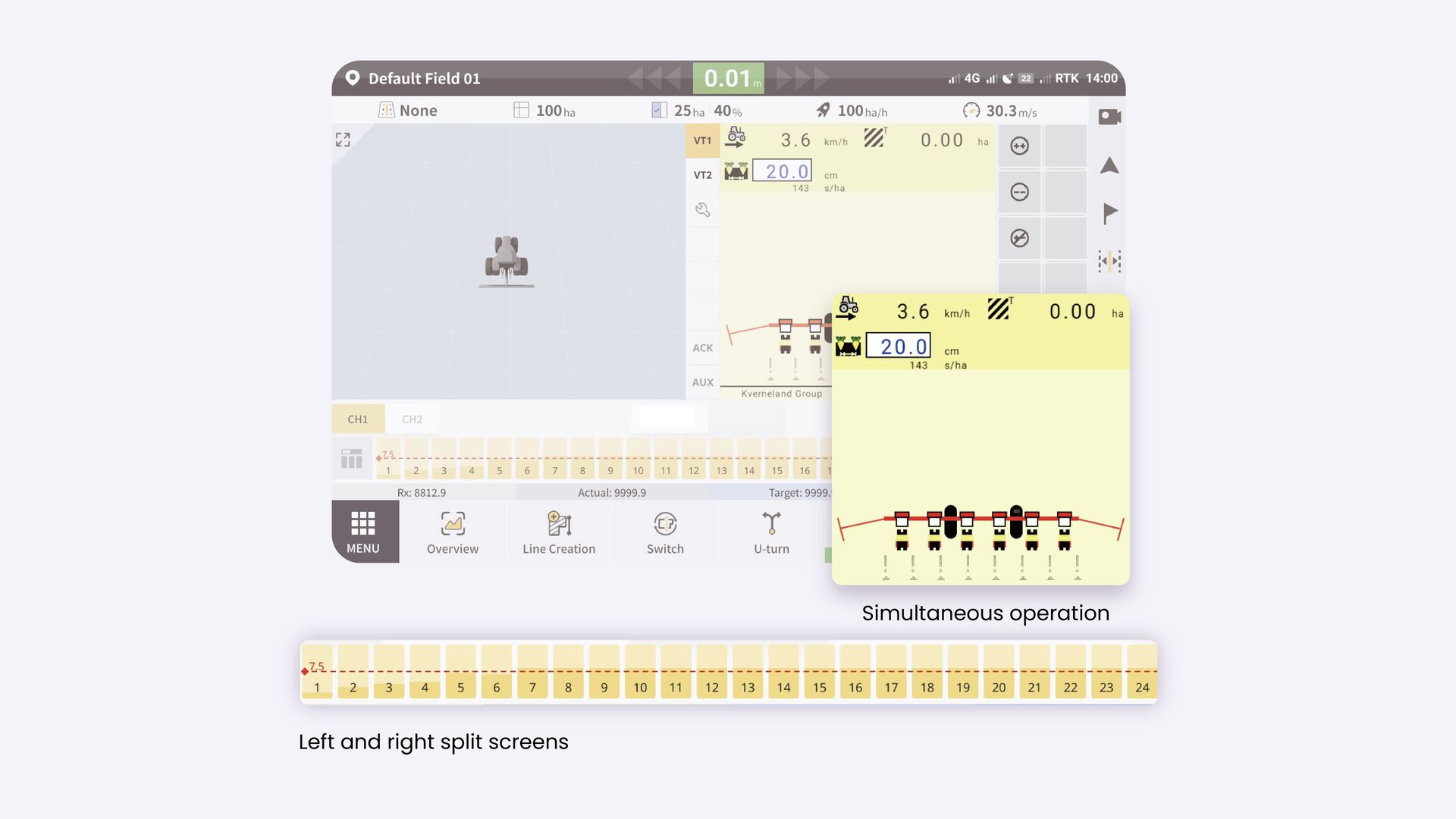

Display the ISOBUS UT in full screen with up to 24 sections visible at once, keep a mini navigation window in view, and run both at the same time.
Extensive versatility
The AT2 Max grows with a family of accessories.

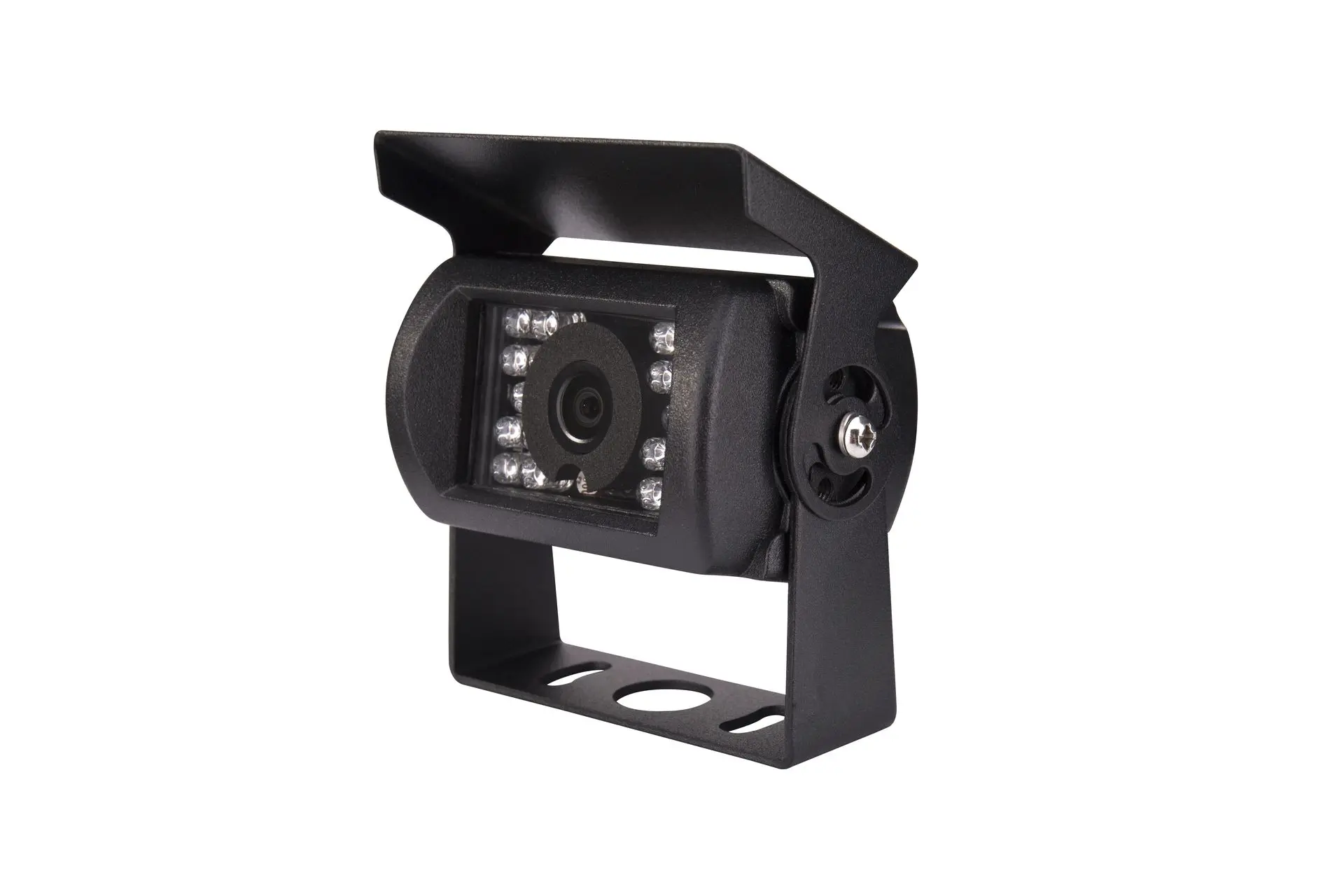

- Wired camera: infrared night vision on the terminal for working after dark
- Easy Control: a wireless remote to turn the autosteer on quickly when the screen is out of reach
- NMEA 0183 output cable and Path Assist: connect the Max into wider precision workflows
Terrain adaptation
The AT2 Max works on all kinds of land: sandy paddocks, wet rice ground, flats, and slopes. Designed with irregular fields in mind, it uses flexible combination lines to handle complex boundaries.

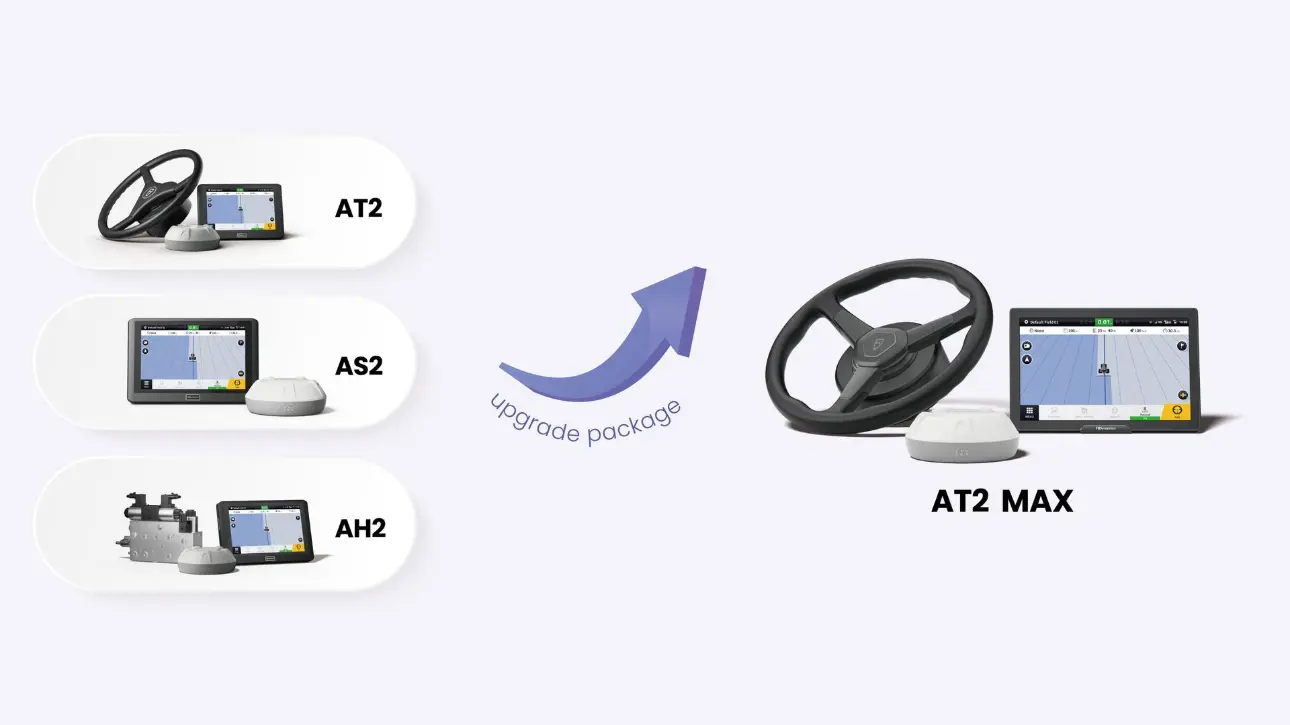

Upgrade package
Farming demands evolve, so readily available upgrade packages let you step an existing AT2, AS2, or AH2 up to the AT2 Max without starting again.

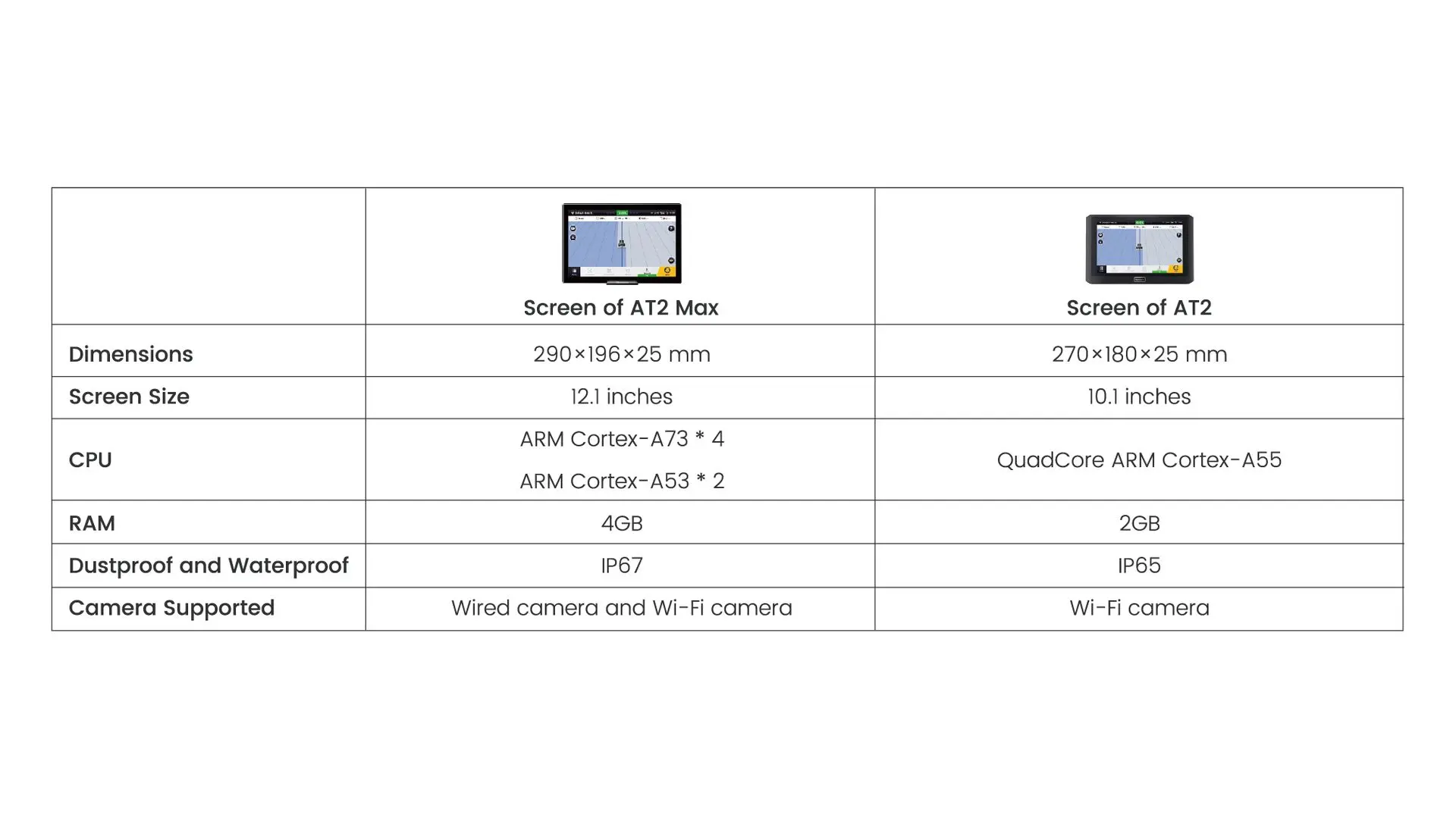

How the AT2 Max compares
Specifications
| Monitor | 12.1-inch, 46% larger viewing area than AT2 |
| Accuracy | Centimetre-level (RTK), free PPP with automatic switching |
| Computing | 170% more CPU, 100% more RAM than AT2 |
| Compatibility | 200+ tractor brands, 2,000+ models |
| ISOBUS | Full-screen UT, up to 24 sections |
| U-turn | Smart U-turn, up to 30% shorter operating distance |
| Updates | Over-the-air (OTA) |
Request a quote and we'll spec the kit for your tractor. See also the AT2 Ultra with its 16-inch screen and AI voice assistant, or the full autosteering range.
