DJI
Impeller Pump Bracket (T100/T70P) YC.JG.ZS006360
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

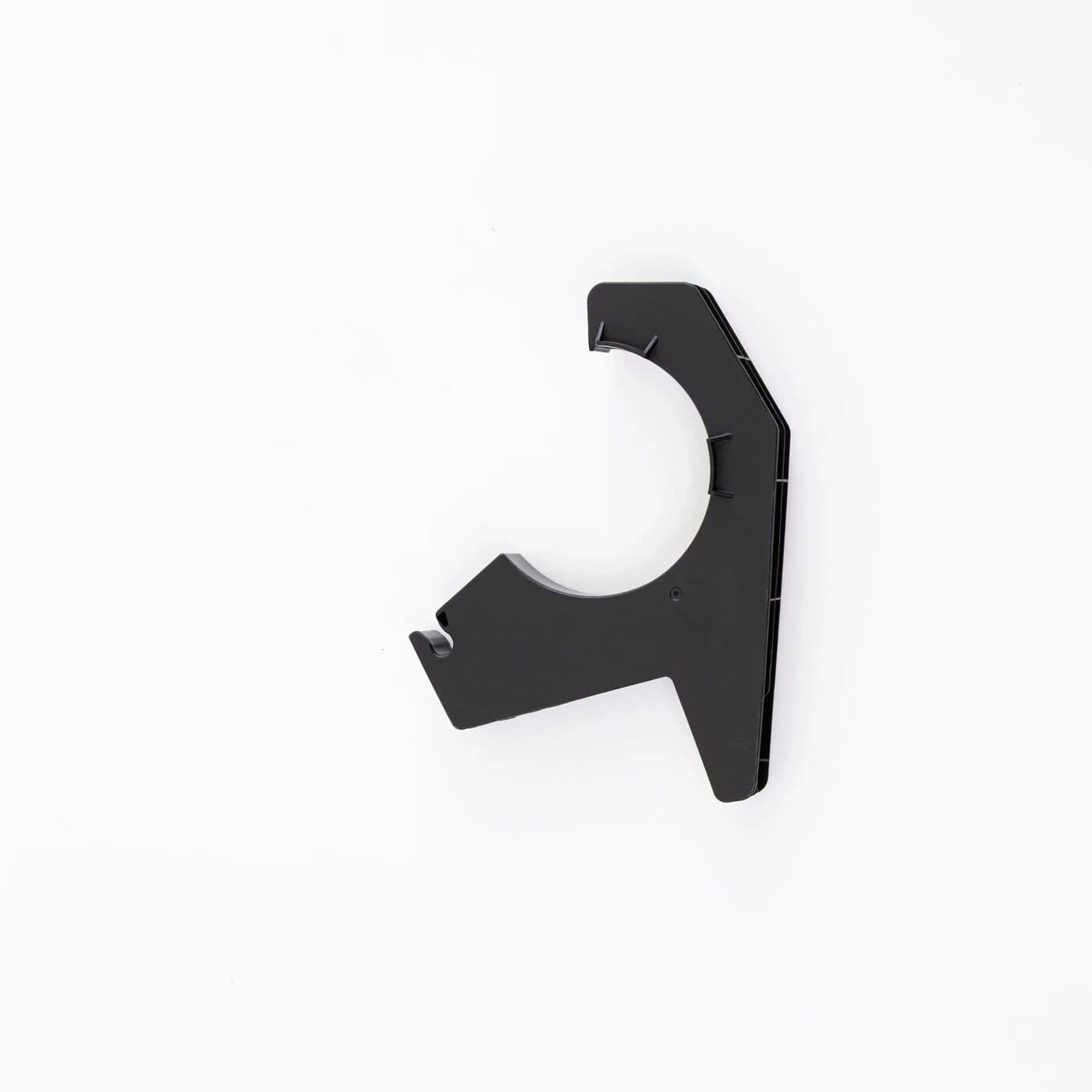

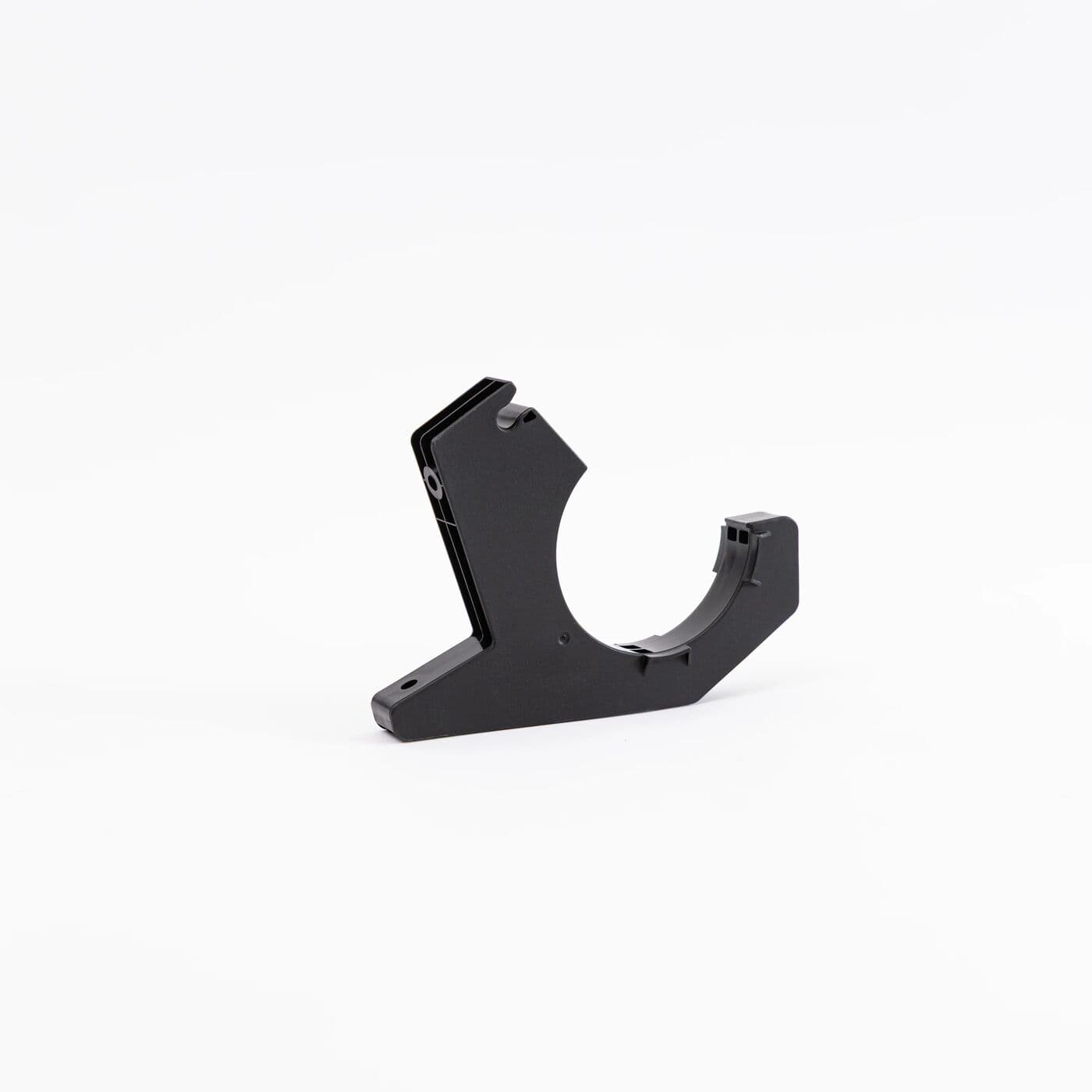

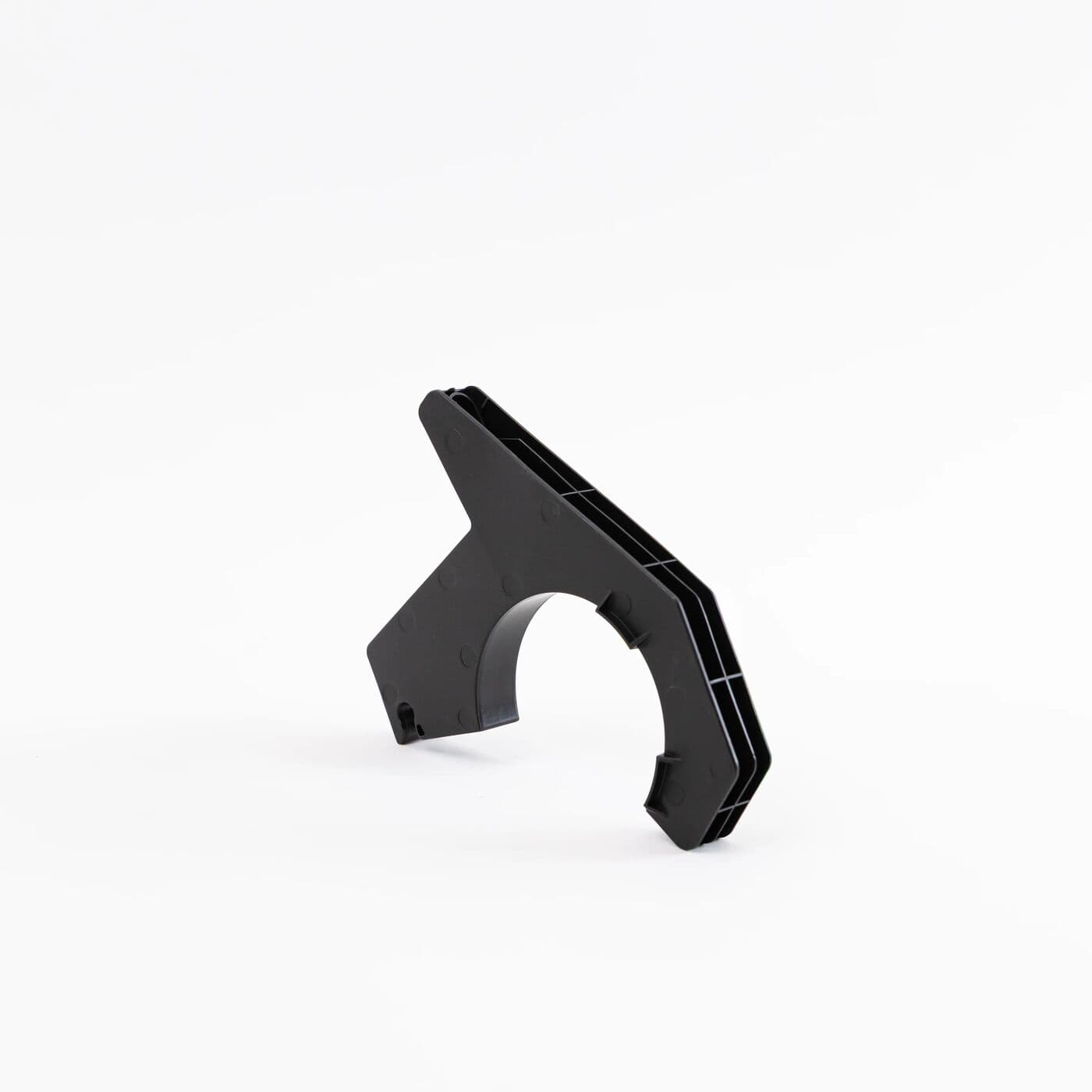

Shaped like an open C, this impeller pump bracket holds a pump in place in the spray tank assembly of the DJI Agras T100 and T70P.
| Part number | YC.JG.ZS006360 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 spray tank (sheet 2), callout 16; T70P spray tank (sheet 1), callouts 20 and 23 |
| Supplied as | One bracket |
DJI's specifications give both aircraft two impeller pumps, and both photo sheets show a pair of these brackets. The T100 sheet points callout 16 at one of the pair, with M40 screws at callout 17, while the T70P sheet numbers them 20 and 23, each after an M40 screw. Order one for each bracket that needs replacing.
Pump vibration and flight loads work on this mount constantly: look for cracks near the screw holes, holes worn oval, or a pump that can be rocked by hand. A loose pump pulls on its hose joints, so replace a damaged bracket and check the pump sits square once refitted. The M40 screws beside it are sold separately.
