DJI
20-pin Connector Plastic Cover (T100) YC.JG.ZS006858
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

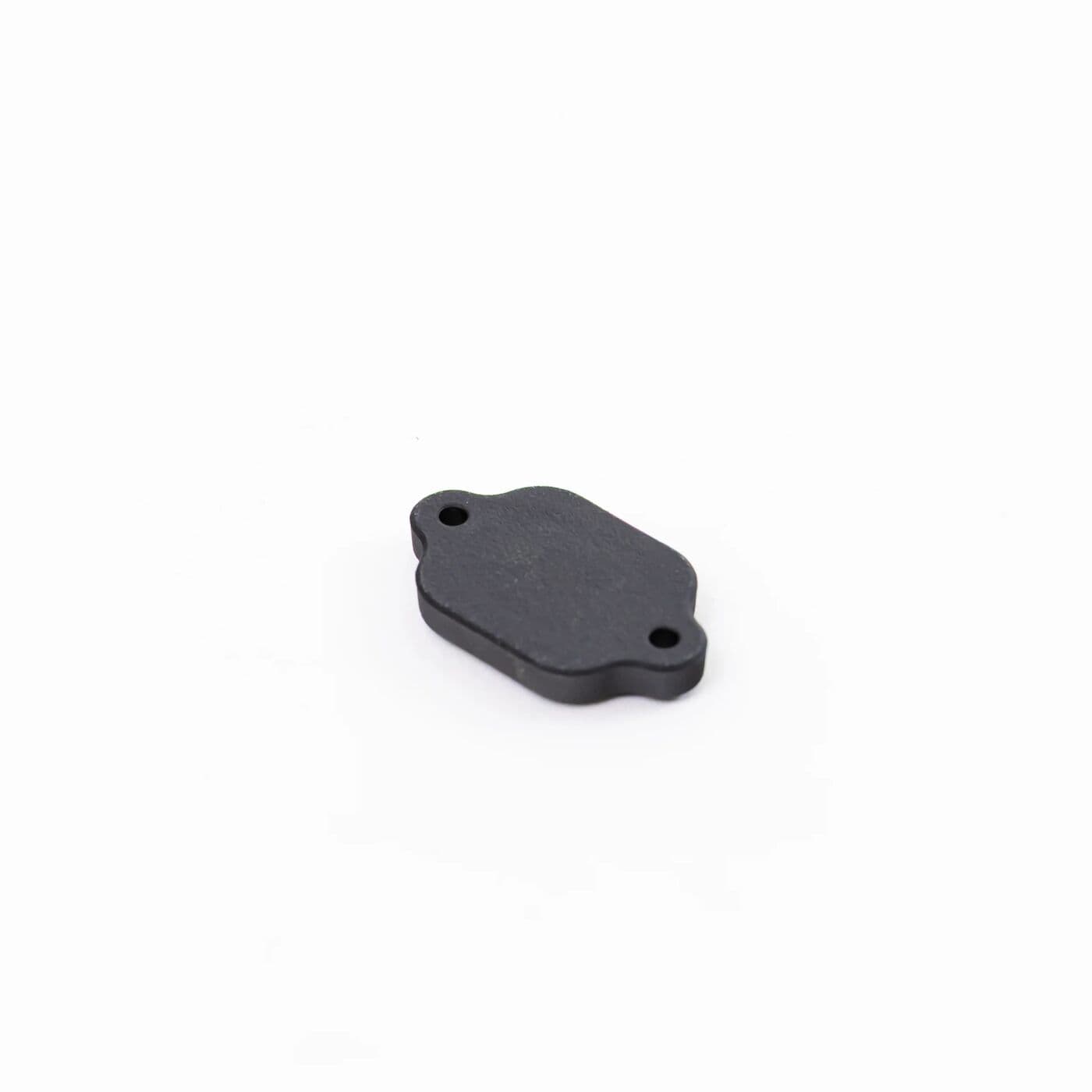

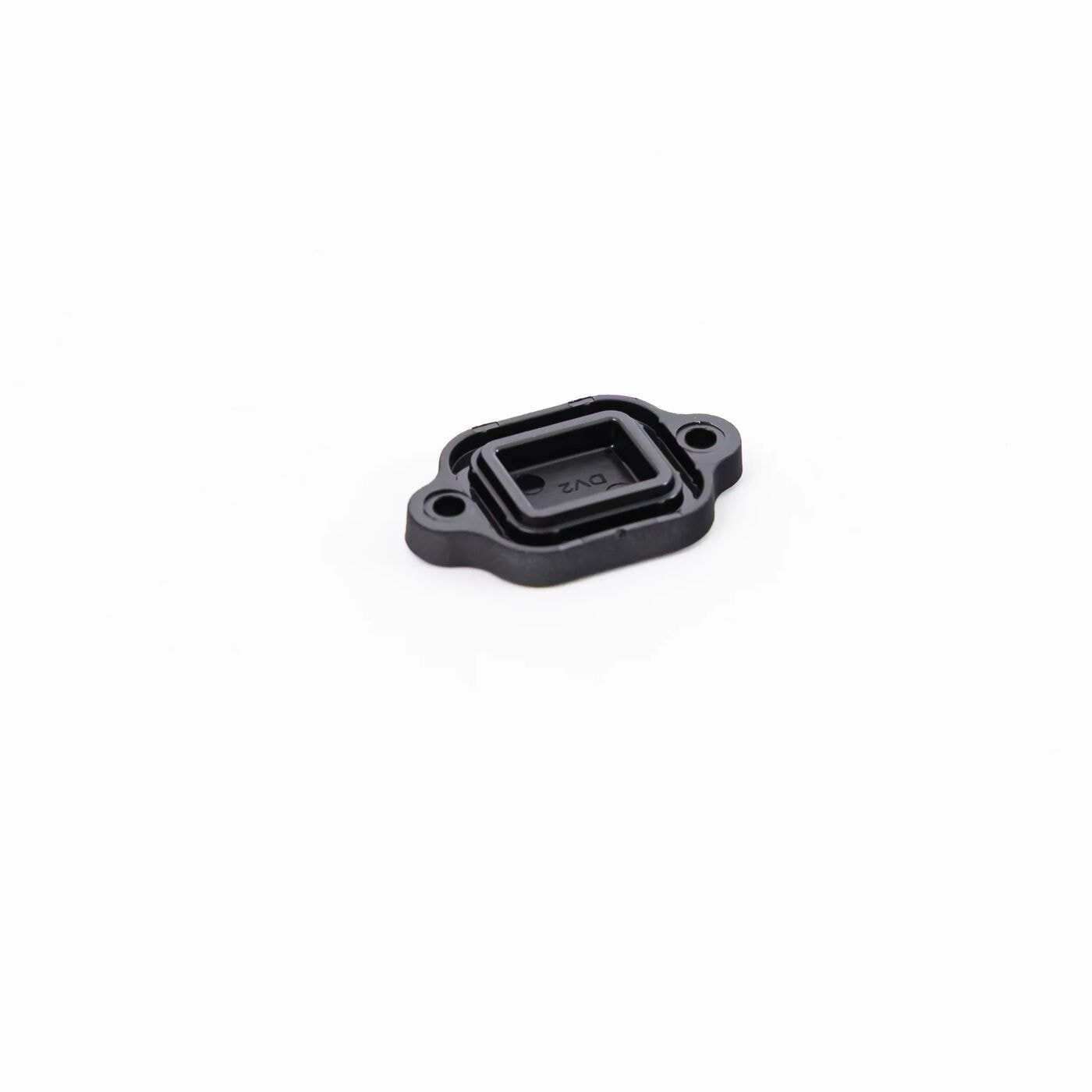

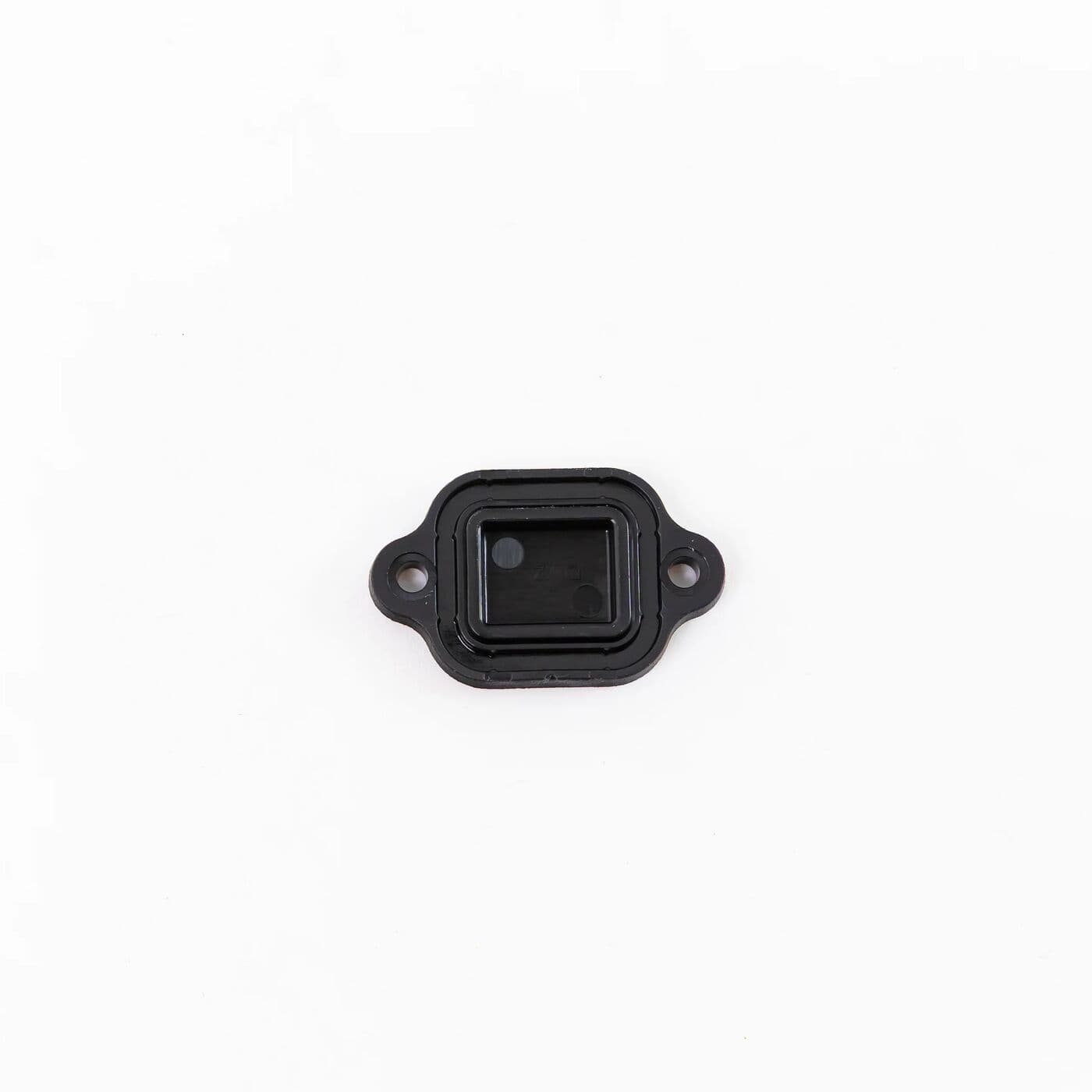

Of the two connector covers in the DJI Agras T100 spray tank assembly, this is the 20-pin one, pictured by DJI just below the payload control board. It helps protect the 20-pin connector from knocks, dirt and water.
| Part number | YC.JG.ZS006858 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 spray tank (sheet 2), callout 13 |
Its sealing ring (callout 15) and M25 screws (callout 14) are laid out beside it on the sheet. Look it over whenever the tank wiring is apart: a crack, a chipped edge or warping is reason enough to replace it, because a cover that no longer sits flat leaves a path for water around the pins. The 16-pin connector on the same tank uses a different cover (YC.JG.ZS006291), so order by code rather than by appearance.
Renew the 20-pin connector sealing ring whenever the cover is removed, and replace any M25 screw with a worn drive.
