DJI

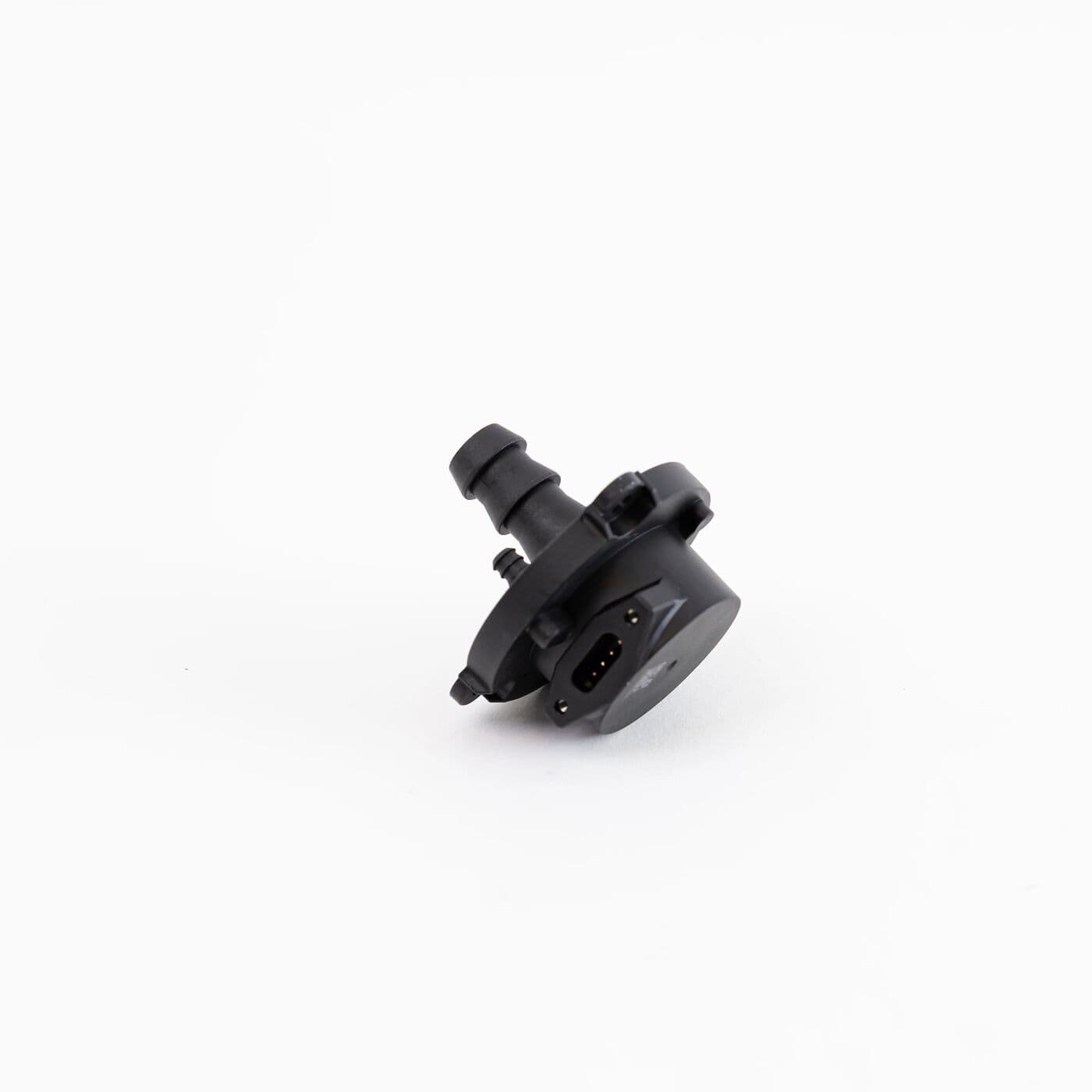

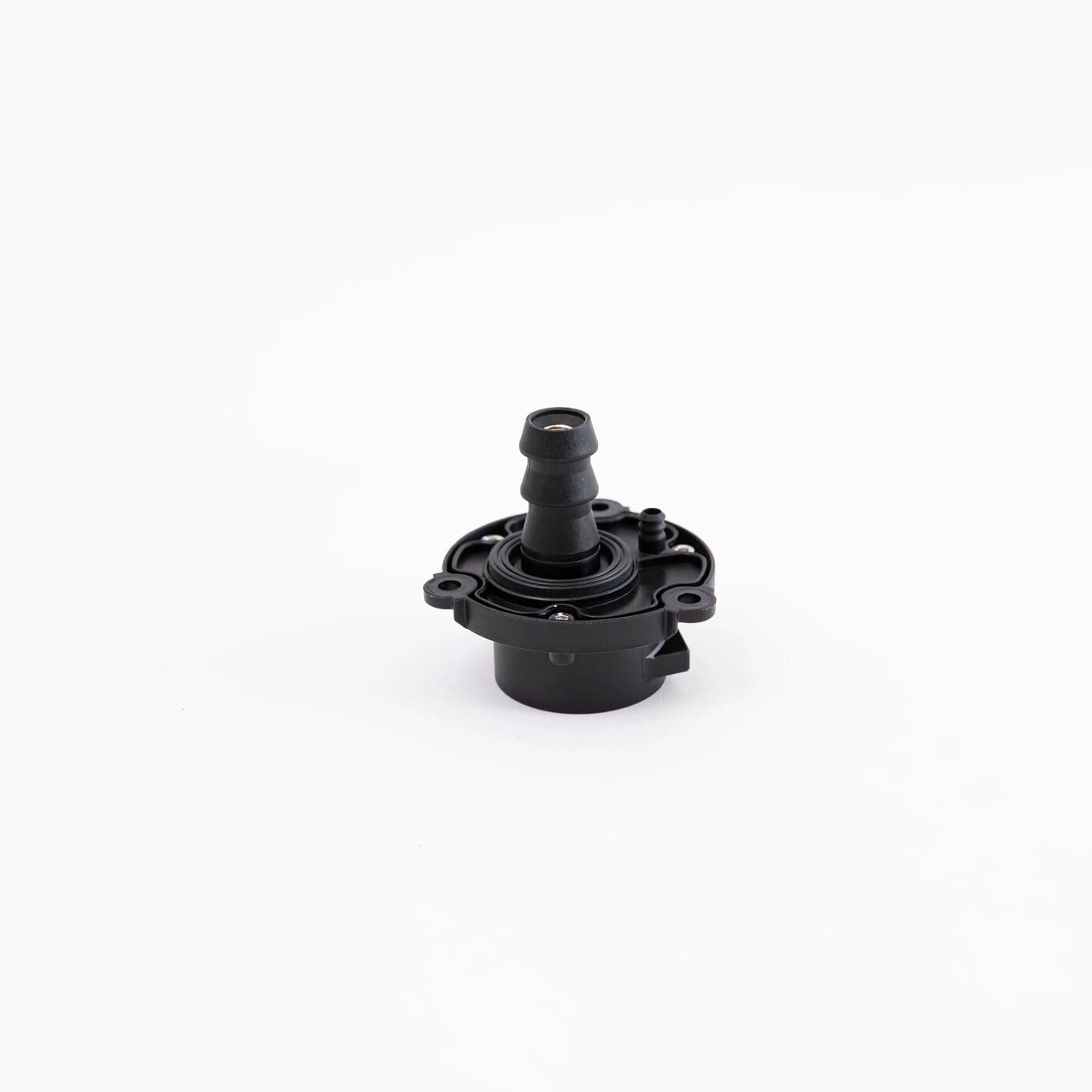

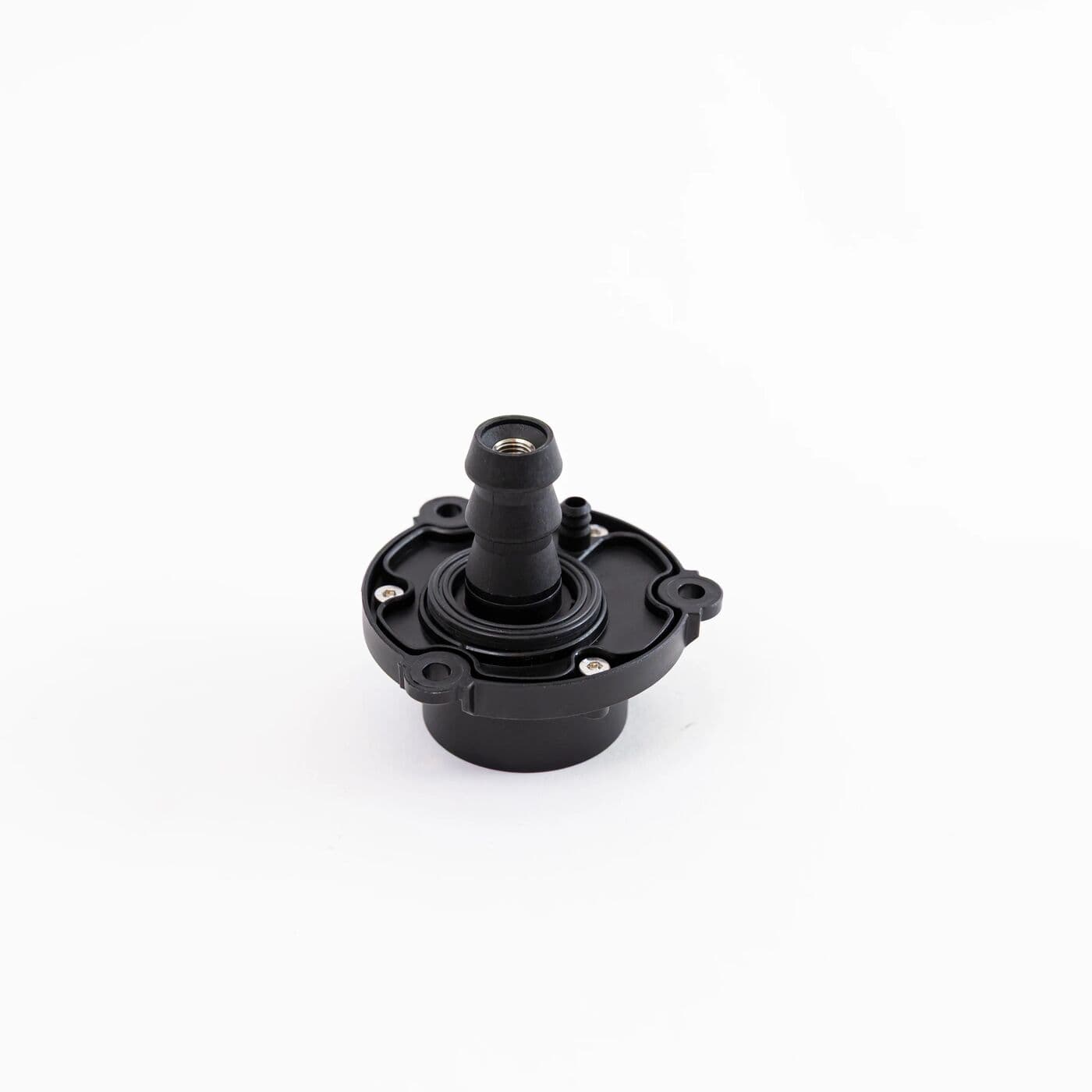

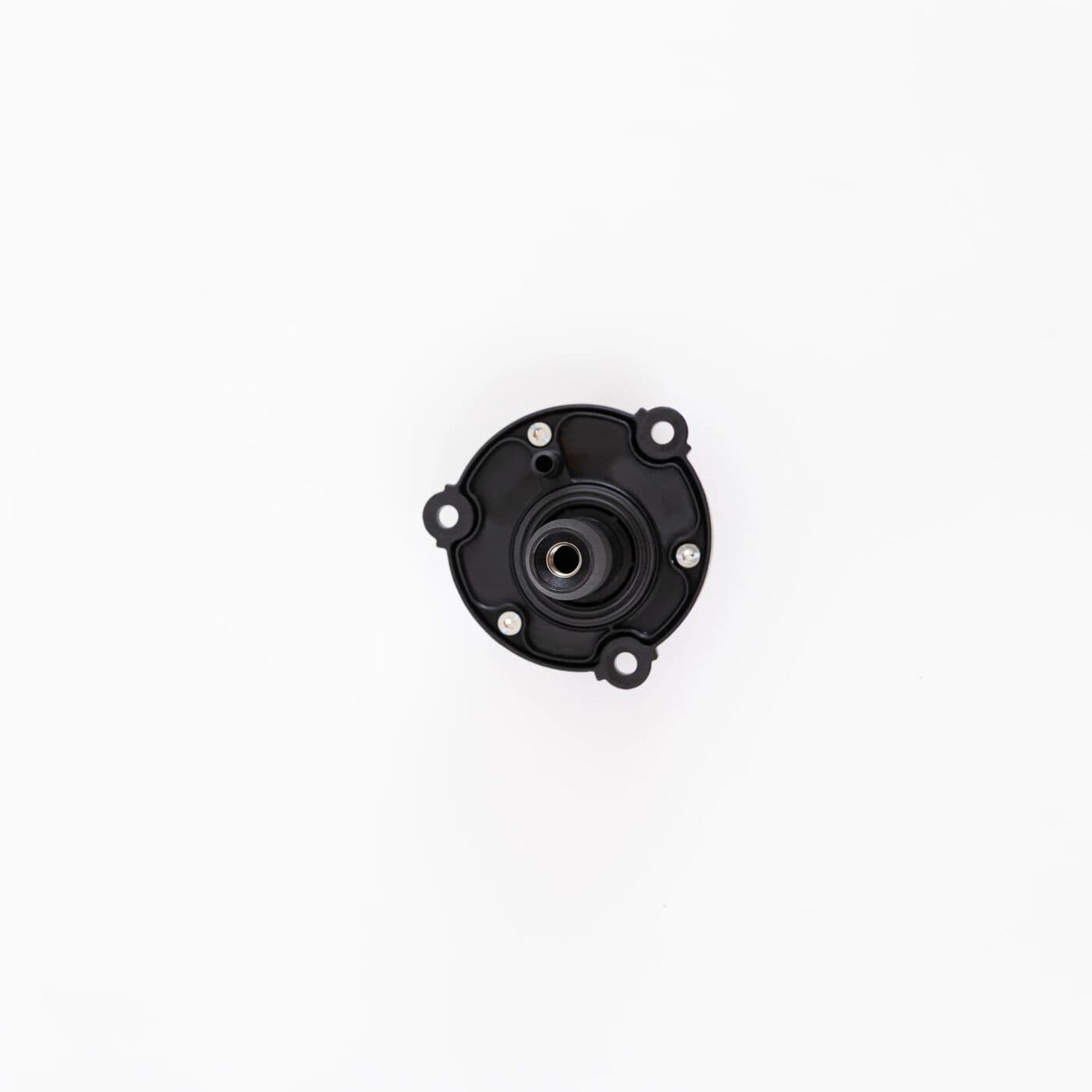

Liquid Level Gauge Module (T100/T70P) BC.AG.SS001122
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
The liquid level gauge module measures how much liquid is left in the spray tank on the DJI Agras T100 and T70P. It mounts on the liquid level gauge base, which is sold separately.
| Part number | BC.AG.SS001122 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 spray tank (sheet 2), callout 31; T70P spray tank (sheet 1), callout 7 |
Consider replacing it when the remaining-liquid figure in the app is missing, frozen or clearly wrong after the wiring has been checked, or when the module body is cracked. The signal cable is a separate part, and a damaged cable or corroded pins can look like a failed gauge. The T100 uses the liquid level gauge signal cable (callout 34), while the T70P uses YC.XC.XX001397 (callout 10).
Confirm the callout on your aircraft's diagram before ordering, and use a new base sealing ring if the base is disturbed.
