DJI Agras T100 Impeller Pump
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T100 assemblies (31)
- Tank (1) (1)
- Tank (2) (40)
- Impeller Pump (15)
- Flow Meter (14)
- Landing Gear (1) (10)
- Spray Lance (33)
- Landing Gear (2) (23)
- Cable Distribution Board (17)
- Aircraft Frame connector (16)
- Front Frame (1) (31)
- Front Frame (2) (31)
- Middle Frame & Rear Frame (1) (19)
- Large Aircraft Arm (10)
- M1M3 Small Aircraft Arm (29)
- M2M4 Small Aircraft Arm (29)
- Motor (8)
- Propeller (5)
- Spreading Spread Tank (12)
- Spreading Landing Gear (7)
- Spreading Landing Gear (2) (12)
- Spreading Weight Sensor (13)
- Spreading Frame (14)
- Spreading Spinner Disk (20)
- Spreading Auger (39)
- Lift System Winch (15)
- Lift System Frame Connector (10)
- Lift System Landing Gear (1) (12)
- Lift System Landing Gear (2) (6)
- Mist Kit Mist Spray Boom (23)
- Mist Kit External Spray Boom (16)
- Mist Kit Internal Spray Boom (17)

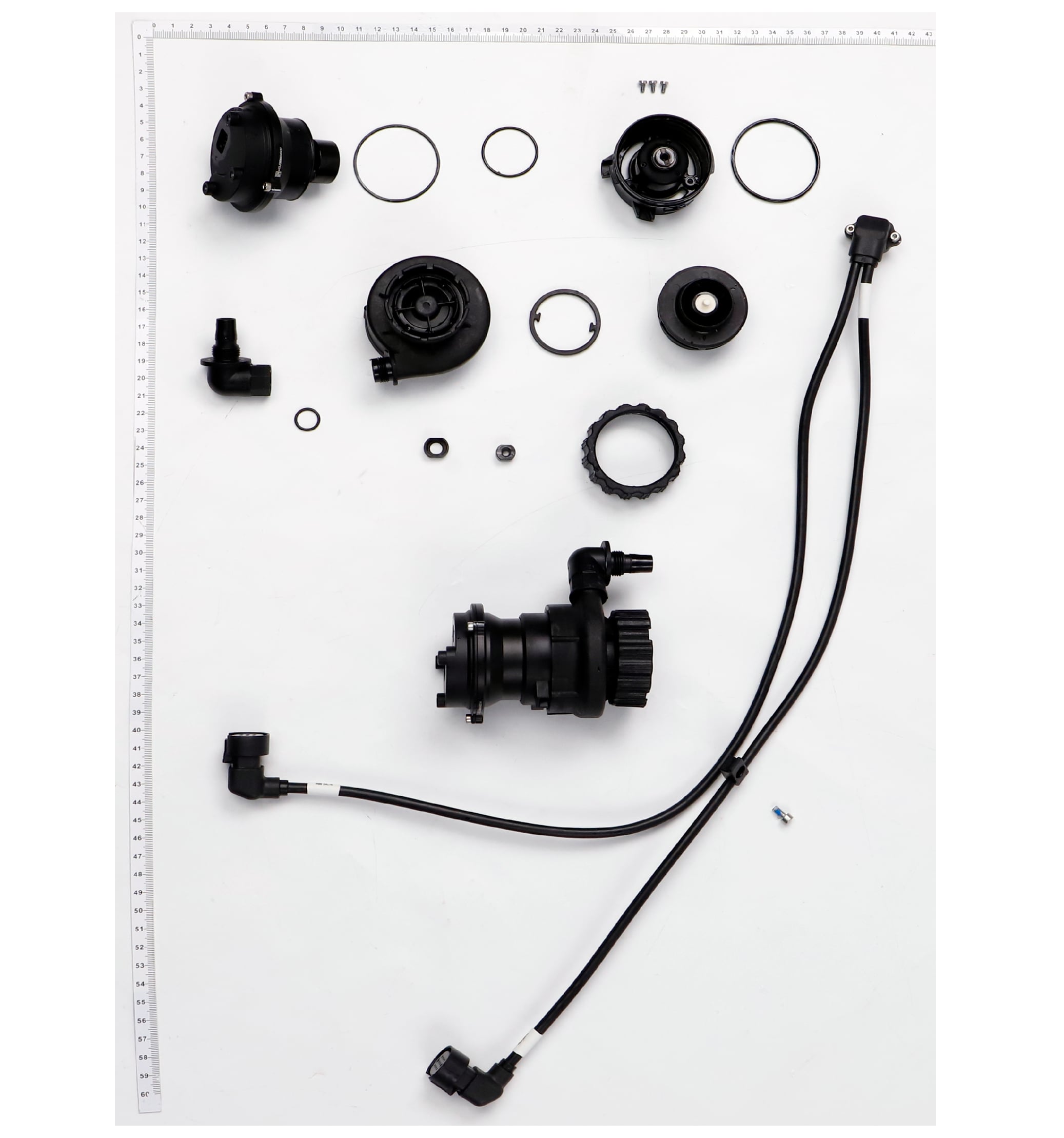

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Sealing Ring (OD=31.4 mm) YC.JG.MY001315 $3.15 | $3.15 | |
| 2 | Motor Sealing Ring (OD= 46.8 mm) YC.JG.MY001828 $10.60 | $10.60 | |
| 3 | Impeller Pump Motor BC.AG.SS001033 $453.00 | $453.00 | |
| 4 | Pump Shell YC.JG.ZS006166 $22.55 | $22.55 | |
| 5 | Impeller Pump Curving Connector YC.JG.ZS006175 $7.55 | $7.55 | |
| 6 | Curving Connector Sealing Ring YC.JG.MY001830 $9.00 | $9.00 | |
| 9 | Screw M40-HC080080-68-85 YC.WJ.L01234 $3.60 | $3.60 | |
| 10 | Water Outlet Rotation Cover YC.JG.ZS002233 $9.50 | $9.50 | |
| 11 | Sprinkler Adapter Cable YC.XC.XX001409 $66.00 | $66.00 | |
| 12 | Impeller Module BC.AG.SS001032 $68.00 | $68.00 | |
| 13 | Y-tee Part Sealing Pad YC.JG.MY001053 $6.00 | $6.00 | |
| 14 | Pump Sealing Ring YC.JG.MY001052 $11.95 | $11.95 | |
| 15 | Spacing Sleeve YC.JG.ZS006167 $22.55 | $22.55 | |
| 16 | Screw (M25-HC00500050-050020-5104-N) YC.ST.LL000717 $0.65 | $0.65 | |
| Screw M25-HC00400040-050020-0003-N YC.WJ.LL000138 $3.60 | $3.60 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
