DJI

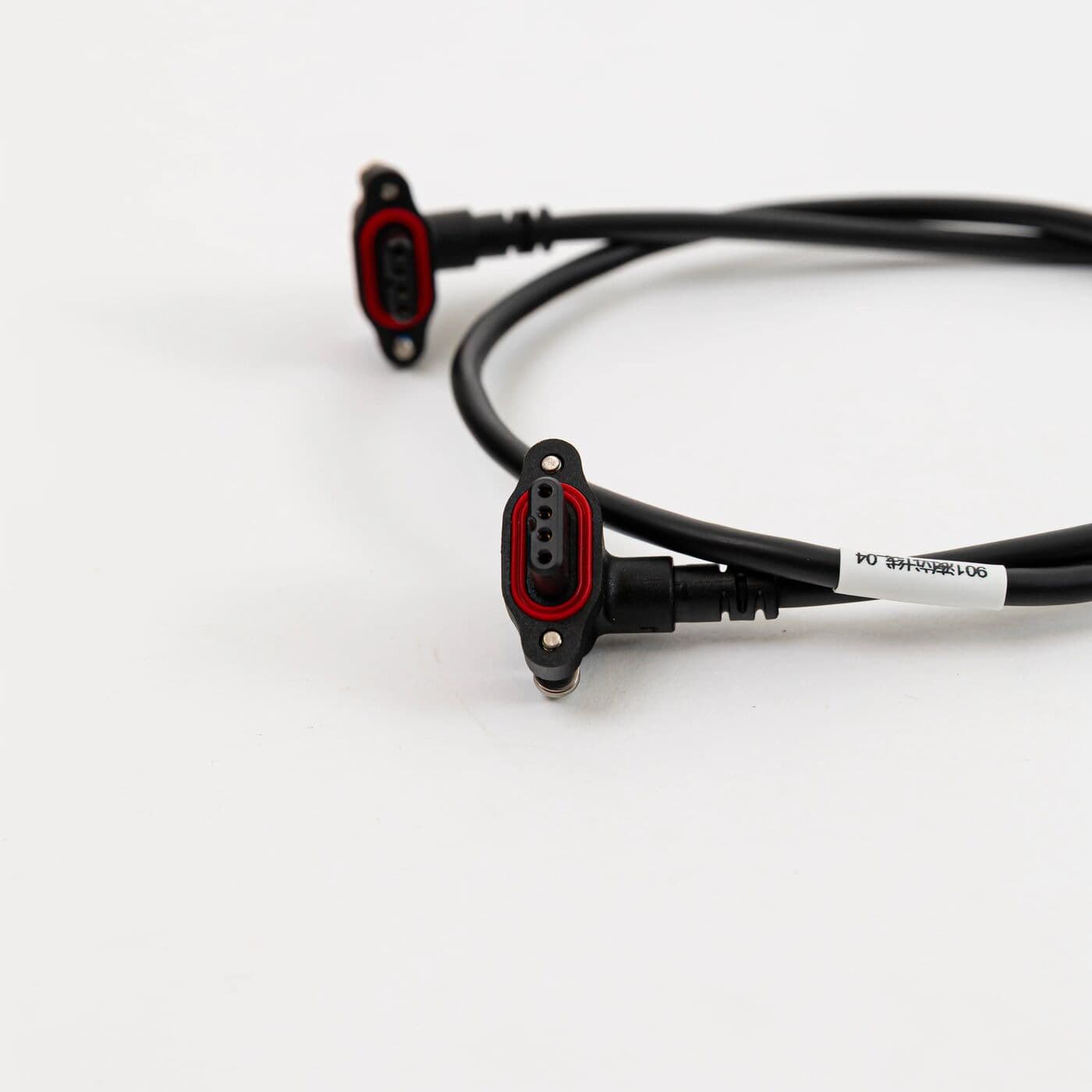

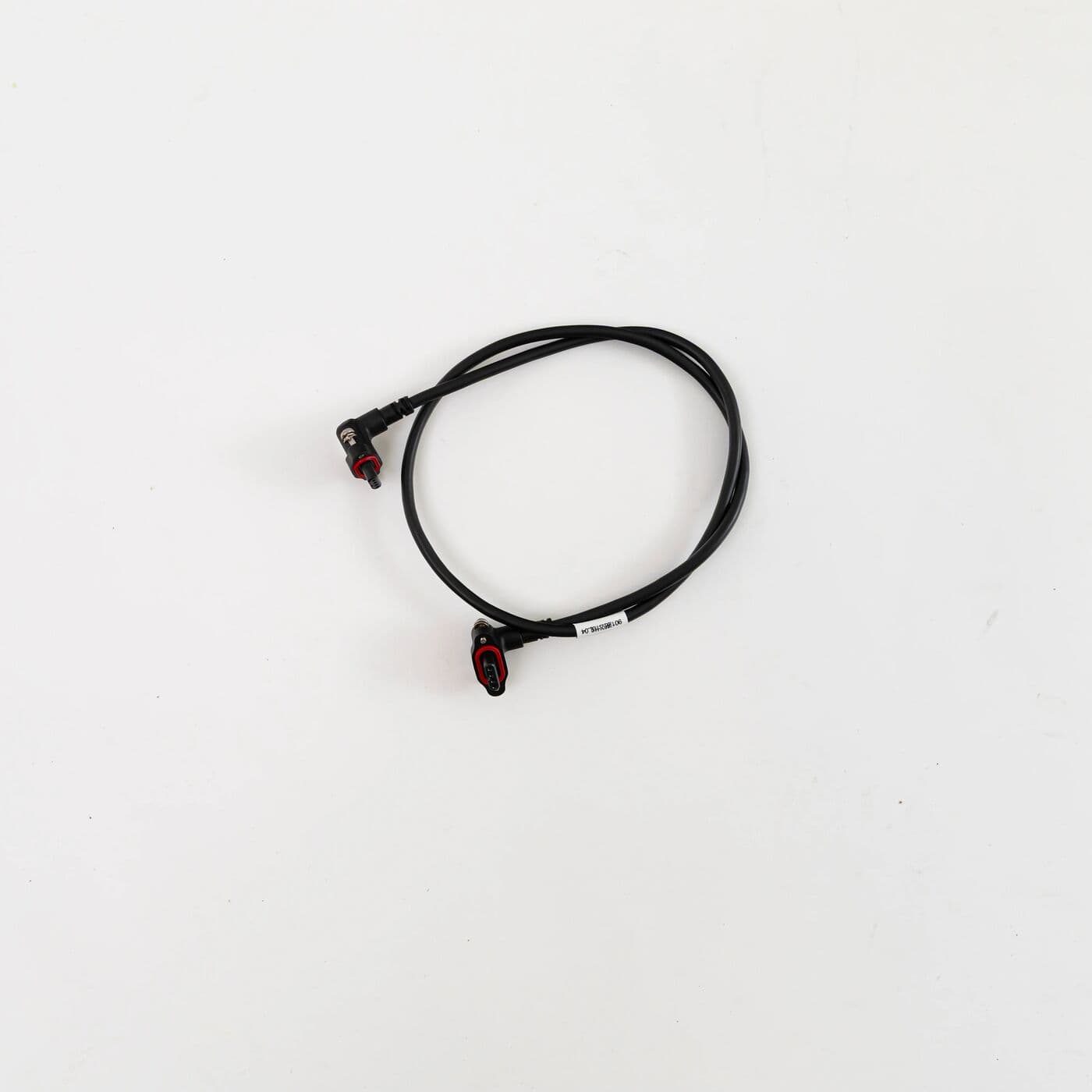

Liquid Level Gauge Signal Cable (T100) YC.XC.XX001398
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Remaining-liquid readings on the DJI Agras T100 depend on this signal cable, which carries the output of the liquid level gauge on the spray tank into the aircraft's wiring.
| Part number | YC.XC.XX001398 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 spray tank (sheet 2), callout 34 |
A cable fault tends to show up as a tank level reading that drops out, freezes or triggers an error. Look for chafed or crushed sections, kinks near the plugs and green or white corrosion on the pins, which chemical and wash water can cause over time.
Disconnect the flight battery before unplugging anything, check the old cable against callout 34 on the diagram, and push each plug fully home. If a new cable does not bring the reading back, move on to the liquid level gauge module itself. This code is listed for the T100 only; the T70P uses a different signal cable, YC.XC.XX001397 (callout 10 on its spray tank sheet 1).
