DJI

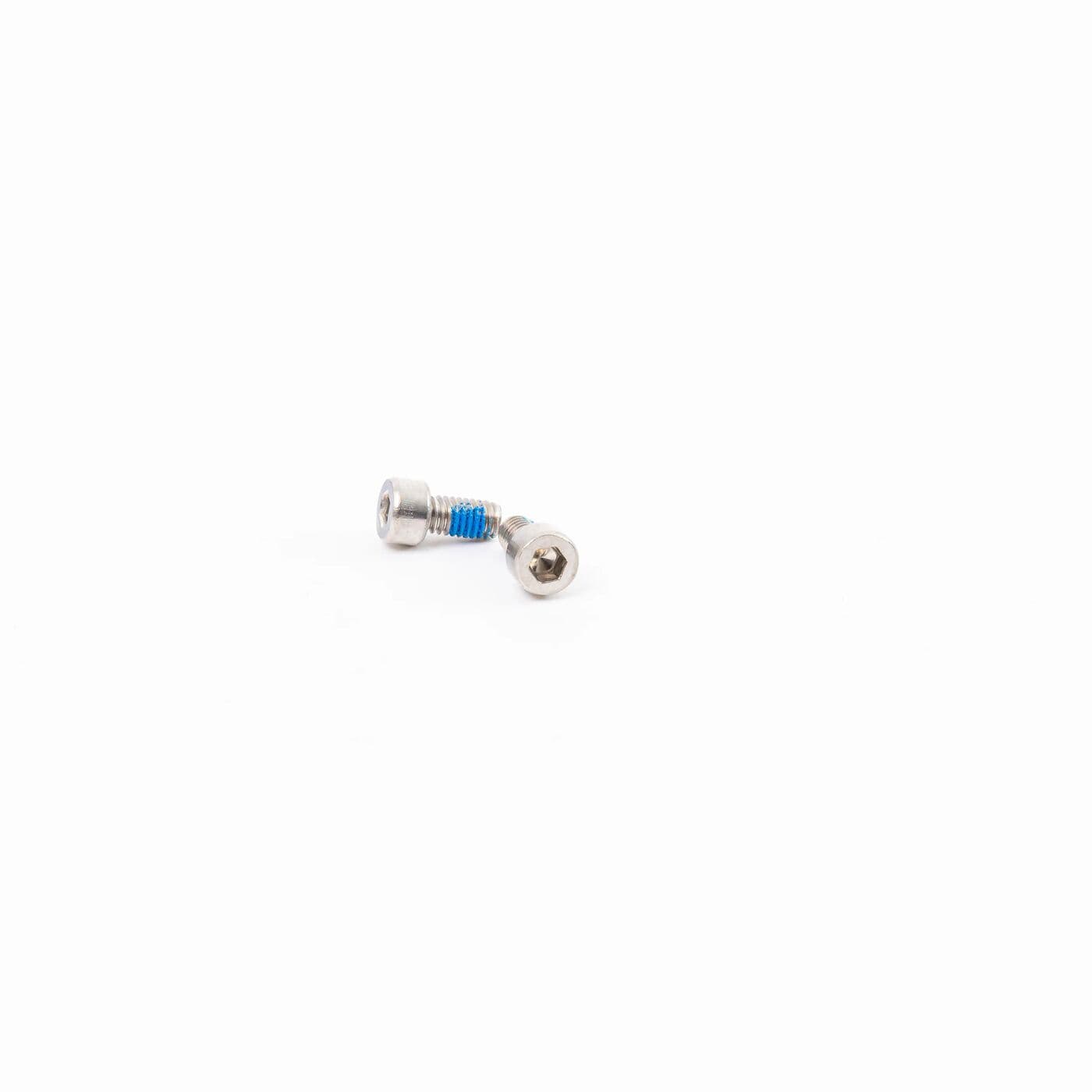

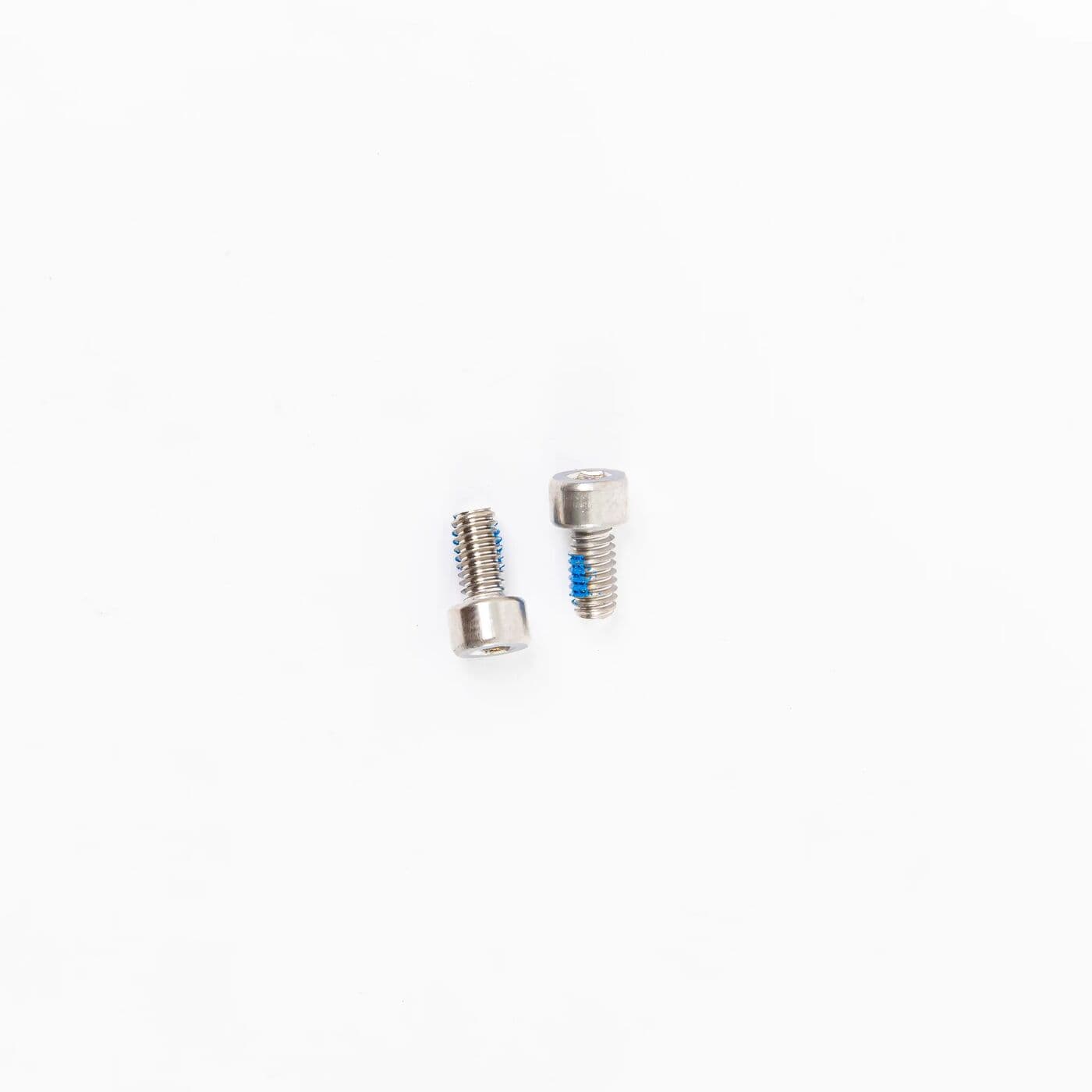

Screw M40-HC080080-68-85 (T100/T70P/T50/T25P) YC.WJ.L01234
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Four DJI Agras models share this screw, the T100, T70P, T50 and T25P. It appears on their spray tank, pump, flowmeter, spreading system and arm diagrams.
| Part number | YC.WJ.L01234 |
| Fits | DJI Agras T100, T70P, T50, T25P |
| Parts diagram | T100 spray tank (sheet 2), callouts 11, 17, 29, 33 and 37; T100 impeller pump, callout 9; T100 spread tank, callout 6; T100 spinner disc, callouts 4 and 18; T100 auger, callouts 10, 18, 23, 25 and 27; T70P spray tank (sheet 1), callouts 6, 14, 19 and 22; T70P flowmeter, callout 15; T70P spreading tank, callouts 4, 11, 13 and 18; T70P spinner disc, callouts 4 and 18; T70P auger, callouts 10, 18, 23, 25 and 27; T50 M1 arm, callout 1; T50 M3 arm, callout 44; T25P M3 arm, callout 27 |
Check the callout for your own model before ordering, as neighbouring screws on these sheets often look alike but carry different codes. Replace any with a rounded head, stripped thread or corrosion, and never reuse one that has been cross-threaded. A single callout can stand for more than one screw, so count the ones you are replacing.
