DJI Agras T100 Spreading Weight Sensor
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T100 assemblies (31)
- Tank (1) (1)
- Tank (2) (40)
- Impeller Pump (15)
- Flow Meter (14)
- Landing Gear (1) (10)
- Spray Lance (33)
- Landing Gear (2) (23)
- Cable Distribution Board (17)
- Aircraft Frame connector (16)
- Front Frame (1) (31)
- Front Frame (2) (31)
- Middle Frame & Rear Frame (1) (19)
- Large Aircraft Arm (10)
- M1M3 Small Aircraft Arm (29)
- M2M4 Small Aircraft Arm (29)
- Motor (8)
- Propeller (5)
- Spreading Spread Tank (12)
- Spreading Landing Gear (7)
- Spreading Landing Gear (2) (12)
- Spreading Weight Sensor (13)
- Spreading Frame (14)
- Spreading Spinner Disk (20)
- Spreading Auger (39)
- Lift System Winch (15)
- Lift System Frame Connector (10)
- Lift System Landing Gear (1) (12)
- Lift System Landing Gear (2) (6)
- Mist Kit Mist Spray Boom (23)
- Mist Kit External Spray Boom (16)
- Mist Kit Internal Spray Boom (17)

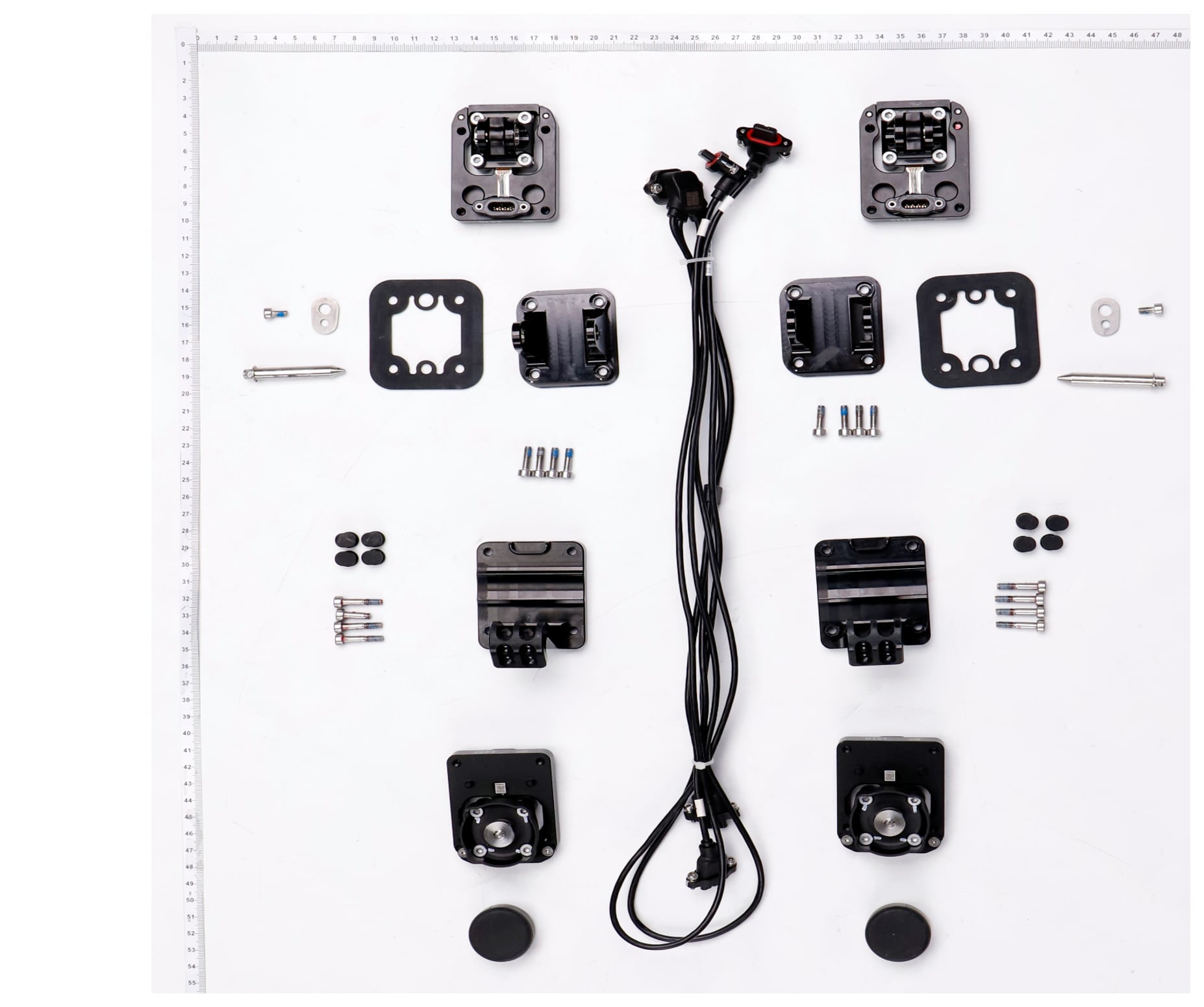

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Weight Sensor Signal Cable YC.XC.XX001402 $57.00 | $57.00 | |
| 2 | Front Weight Sensor Module BC.AG.SS001118 $130.00 | $130.00 | |
| 3 | Damping Rubber Pad YC.JG.MY001915.03 $2.00 | $2.00 | |
| 4 | Weight Sensor Pin Shaft Washer YC.JG.BJ003735 $2.00 | $2.00 | |
| 5 | Screw M40-HC00450039-076020-0003-Y YC.ST.LL000112 $2.00 | $2.00 | |
| 6 | Weight Sensor Pin Shaft YC.JG.QX004544 $6.00 | $6.00 | |
| 7 | Spread Tank Connector BC.AG.SS001120 $133.00 | $133.00 | |
| 8 | Screw M40-HC01400140-070039-0003-Y YC.ST.LL000013 $2.05 | $2.05 | |
| 9 | Landing Gear Hole Plug Rubber YC.JG.MY002073 $1.10 | $1.10 | |
| 10 | Buckle Hook YC.JG.QX004626 $31.60 | $31.60 | |
| 11 | Screw (M40-HC02000100-072040-5103-Y) YC.ST.LL000706 $1.00 | $1.00 | |
| 12 | Rear Weight Sensor Module BC.AG.SS001119 $137.00 | $137.00 | |
| 13 | Weight Sensor Rubber Cover YC.JG.MY001377 $9.00 | $9.00 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
