DJI

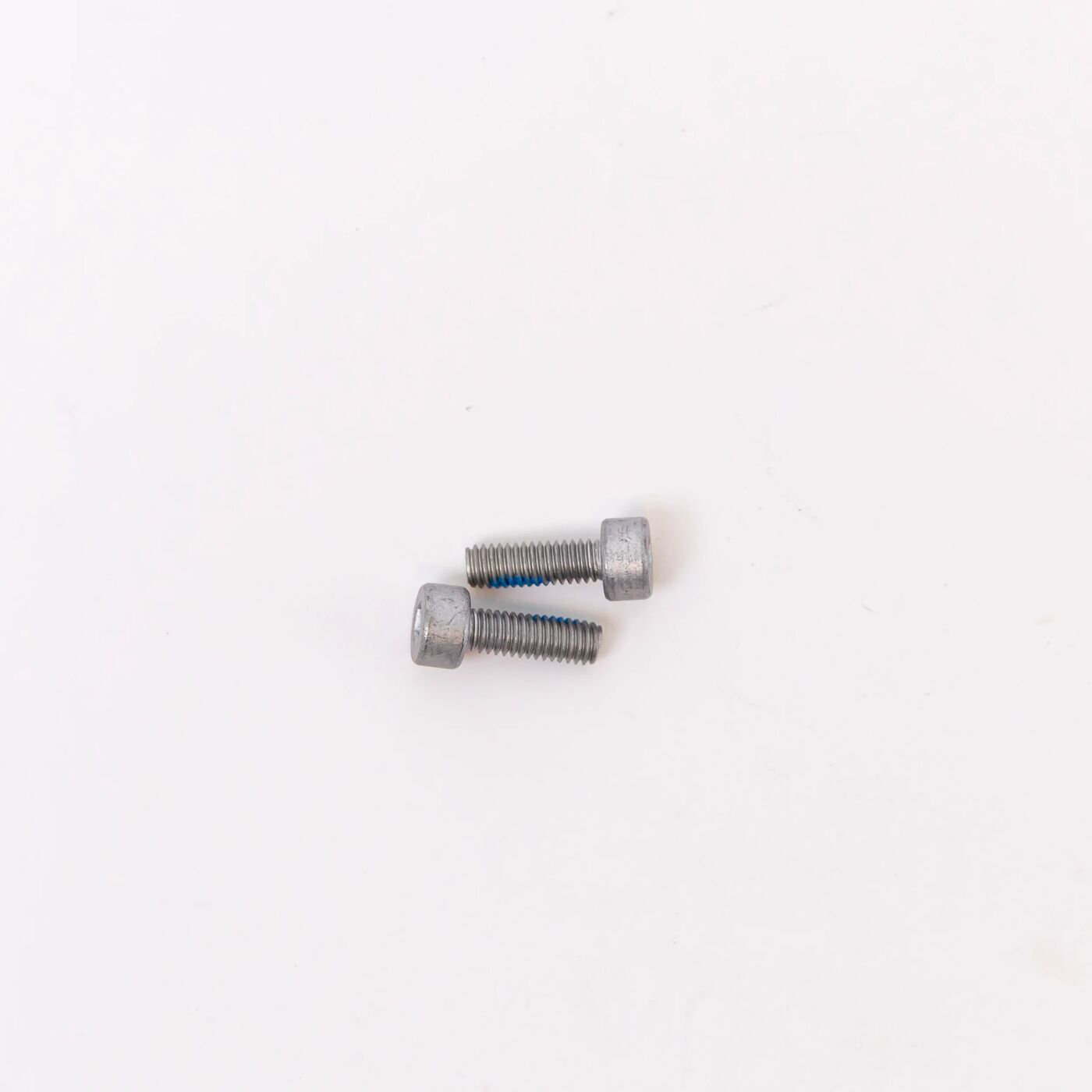

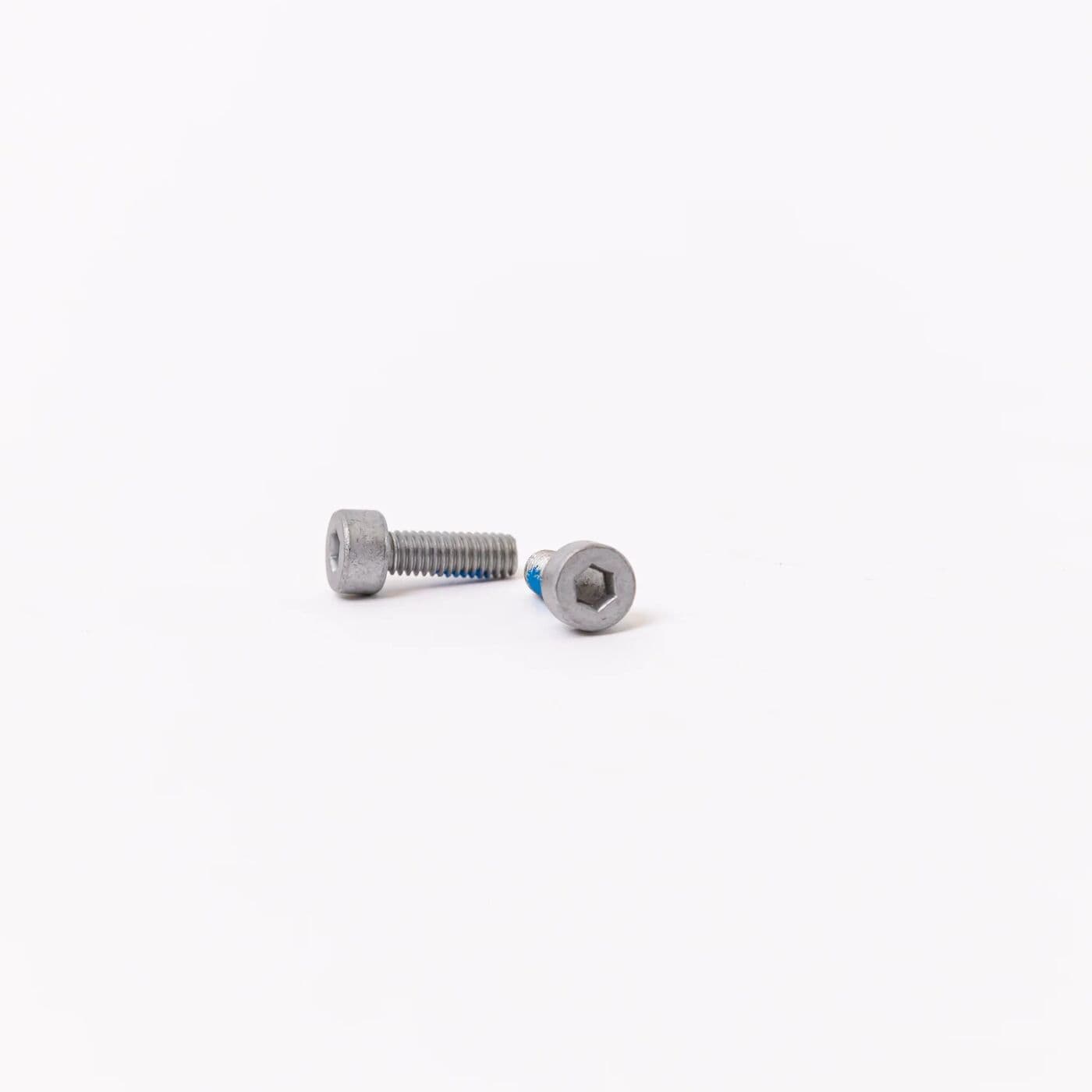

Screw - M40-HC01200120-072040-5103-Y (T100/T70P) YC.ST.LL000705
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Screw M40-HC01200120-072040-5103-Y is used in several places on DJI Agras T100 and T70P spreaders, holding parts in the spinner disk and auger assemblies of both aircraft and on the T70P spreading tank.
| Part number | YC.ST.LL000705 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 spreader spinner disk, callouts 8, 15 and 20; T100 spreading auger, callouts 3 and 39; T70P spreading tank, callout 24; T70P spreader spinner disk, callouts 8, 15 and 20; T70P spreading auger, callout 3 |
Other screw codes share these sheets, including YC.WJ.L01234 and YC.ST.LL000698, so match the full code rather than judging by eye. Because the code turns up at several positions on some of these sheets, count the screws at the positions you are working on before ordering.
Swap out any screw with a rounded drive, a damaged thread or heavy corrosion. Fertiliser dust packs into the head, so pick it clean before fitting the tool, and tighten firmly without forcing: a stripped thread in the part it screws into is a bigger repair than the screw.
