DJI

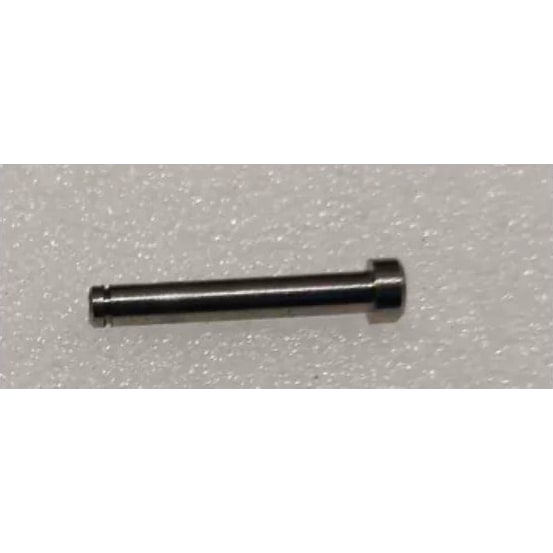

Medium Pin - 22.2 mm (T100/T70P/T25P) YC.JG.QX003649
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
DJI lists this 22.2 mm medium pin twice on each spreader parts diagram for the DJI Agras T100, T70P and T25P, because it is used in two places in the quick-release latches that hold the auger motor end.
| Part number | YC.JG.QX003649 |
| Fits | DJI Agras T100, T70P, T25P |
| Parts diagram | T100 spreading auger, callouts 29 and 38; T70P spreading auger, callouts 29 and 38; T25P spreader (sheet 1), callouts 19 and 22 |
Both positions take the same part. DJI shows a latch either side of the auger motor end, and the T100 and T70P parts photo shows two matching latch sets, so inspect every position on both sides whenever the latches are apart.
Look for a bend, a groove worn where it passes through the latch parts, or play in the joint once assembled. Refit any circlips that came off, then work the latch by hand before the next flight. The short pin and long pin from the same linkage are listed separately.
