DJI

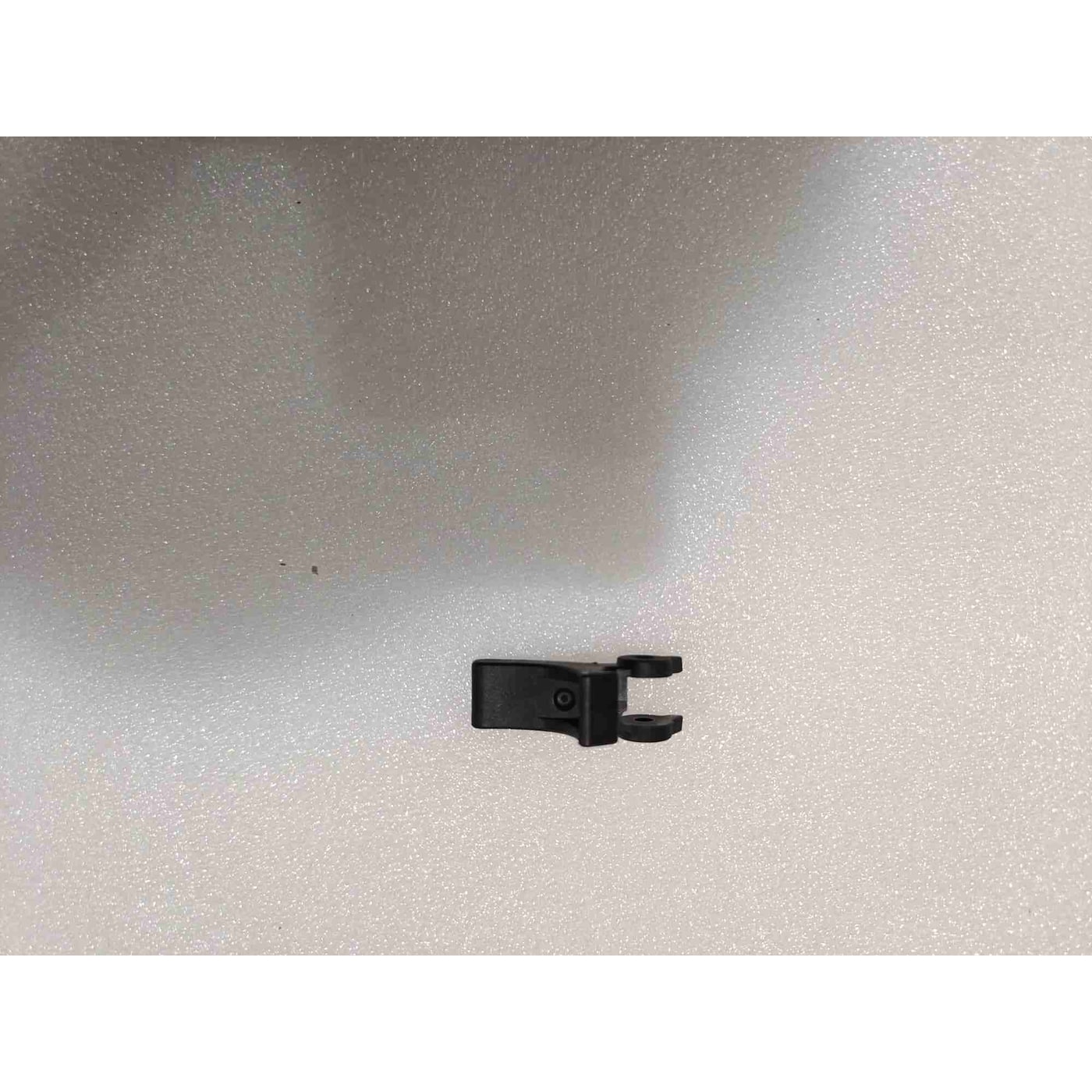

Lever 2 (T100/T70P/T25P) YC.JG.ZS004556
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Lever 2 belongs to the quick-release latches that hold the auger motor end on DJI Agras T100, T70P and T25P spreaders. Each latch has two separately coded levers, and every spreader parts diagram that lists this one numbers it straight after the torsion spring.
| Part number | YC.JG.ZS004556 |
| Fits | DJI Agras T100, T70P, T25P |
| Parts diagram | T100 spreading auger, callout 37; T70P spreading auger, callout 37; T25P spreader (sheet 1), callout 42 |
DJI's product information shows a latch either side of the auger motor end, both opened whenever the auger is changed, and the T100 and T70P parts photo shows two matching latch sets. A knock or a hard drop can crack a lever, and repeated opening and closing wears the holes its pins pass through. A split body, elongated holes or a latch that will not stay firmly shut all point to a new lever.
The T25P sheet lists an E-type circlip (callout 43) between Lever 2 and Lever 1, so keep track of it during the job. On the T100 and T70P sheets the medium pin is numbered straight after this lever and is worth checking too. Lever 1 has its own part number.
