DJI
Lever 1 (T100/T70P/T25P) YC.JG.ZS004555
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

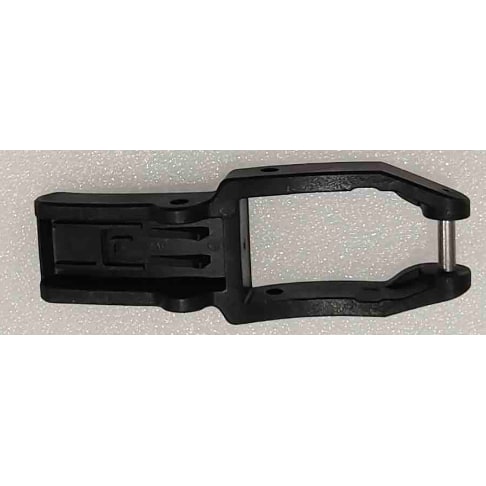

Lever 1 belongs to the quick-release latches that hold the auger motor end on the spreader of the DJI Agras T100, T70P and T25P. DJI's guides show one latch either side, both opened to draw out the motor end and auger when changing augers. It is one of two separately coded levers drawn with each latch's clamp, rod, pins and torsion spring.
| Part number | YC.JG.ZS004555 |
| Fits | DJI Agras T100, T70P, T25P |
| Parts diagram | T100 spreading auger, callout 34; T70P spreading auger, callout 34; T25P spreader (sheet 1), callout 44 |
On the T100 and T70P sheets it is numbered just before the long pin (callout 35), while on the T25P sheet it comes just ahead of the spread tank lock button (callout 45). Replace it if the body is cracked, the pin holes have worn oval, or the latch feels slack once closed.
Lever 1 and Lever 2 carry different part numbers, so confirm the callout on your aircraft's diagram before ordering. With the latch apart, roll the long pin on a flat surface to check it is straight, and put every circlip back.
