DJI
Long Pin - 29.4 mm (T100/T70P/T25P) YC.JG.QX003648
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

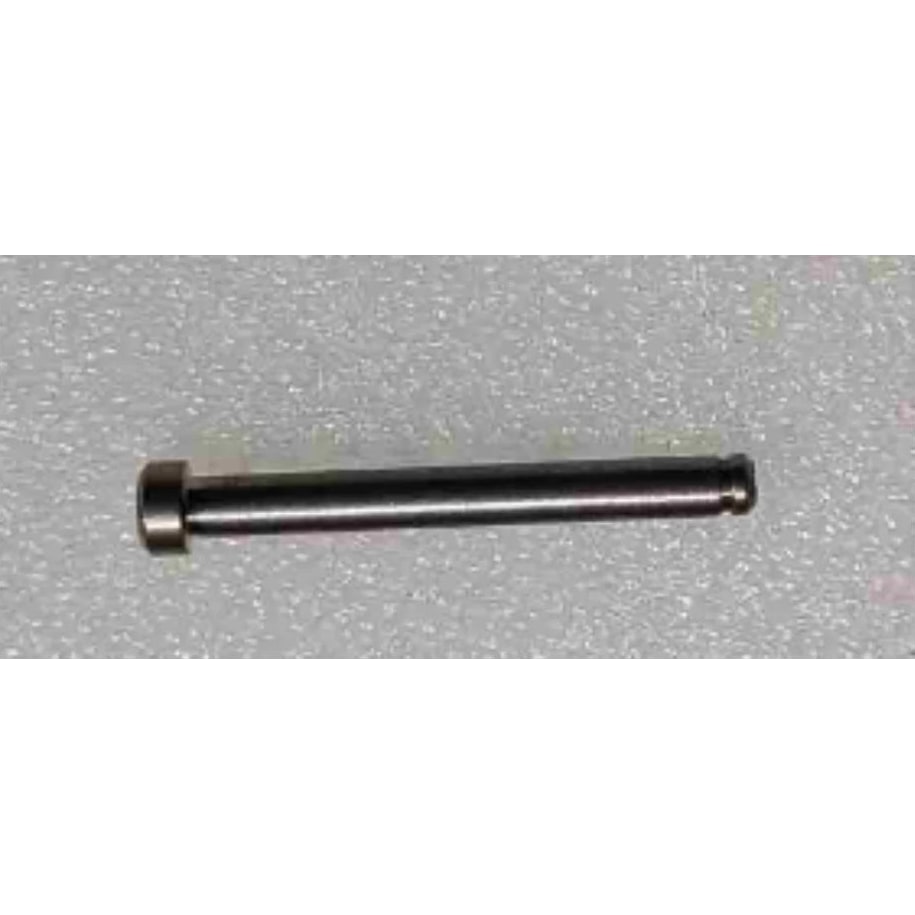

At 29.4 mm, this is the longest pin in the quick-release latches that hold the auger motor end on DJI Agras T100, T70P and T25P spreaders. DJI also lists a 22.2 mm medium pin and a 17.6 mm short pin for the same linkage.
| Part number | YC.JG.QX003648 |
| Fits | DJI Agras T100, T70P, T25P |
| Parts diagram | T100 spreading auger, callout 35; T70P spreading auger, callout 35; T25P spreader (sheet 1), callout 20 |
Pins like this act as pivots for the latch parts, and each opening and closing puts load through them. A pin that is bent, scored or worn to a waist makes the latch stiff or sloppy, and a missing circlip can let it walk out. On the T100 and T70P sheets it is numbered between Lever 1 and the torsion spring.
DJI shows a latch either side of the auger motor end, so check the pin on both sides. Measure the old pin before ordering, as the three lengths are easy to mix up. The medium pin and short pin are sold separately.
