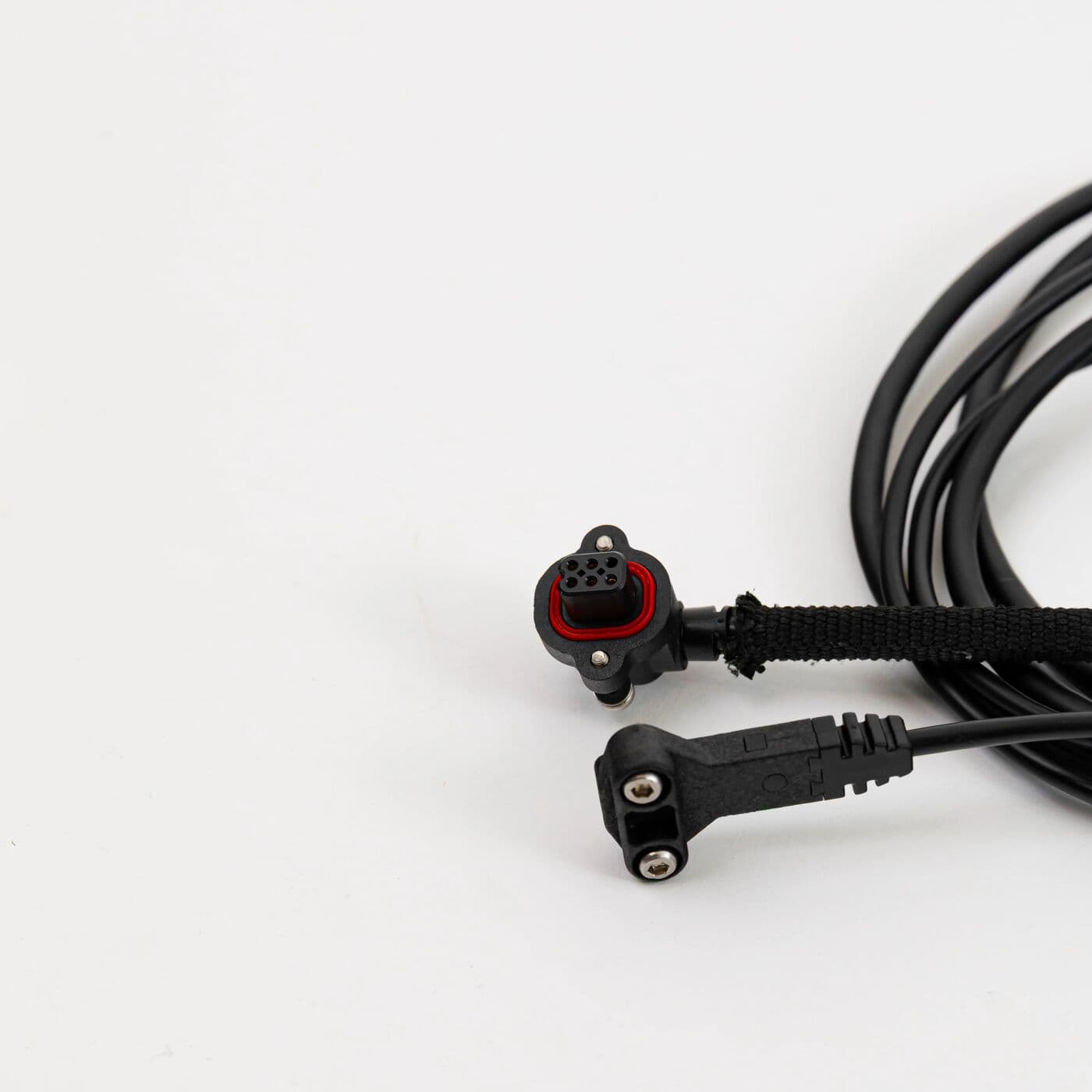

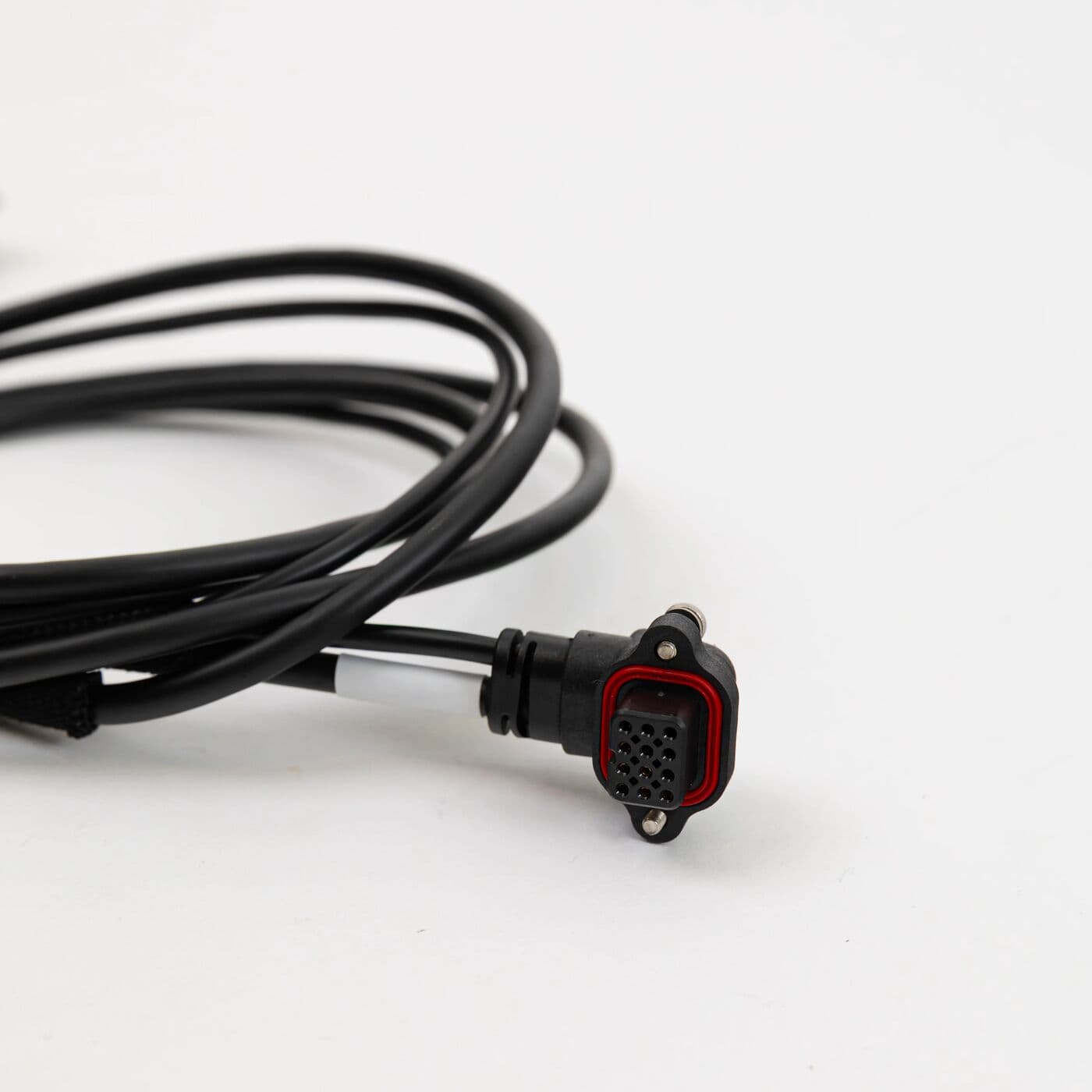

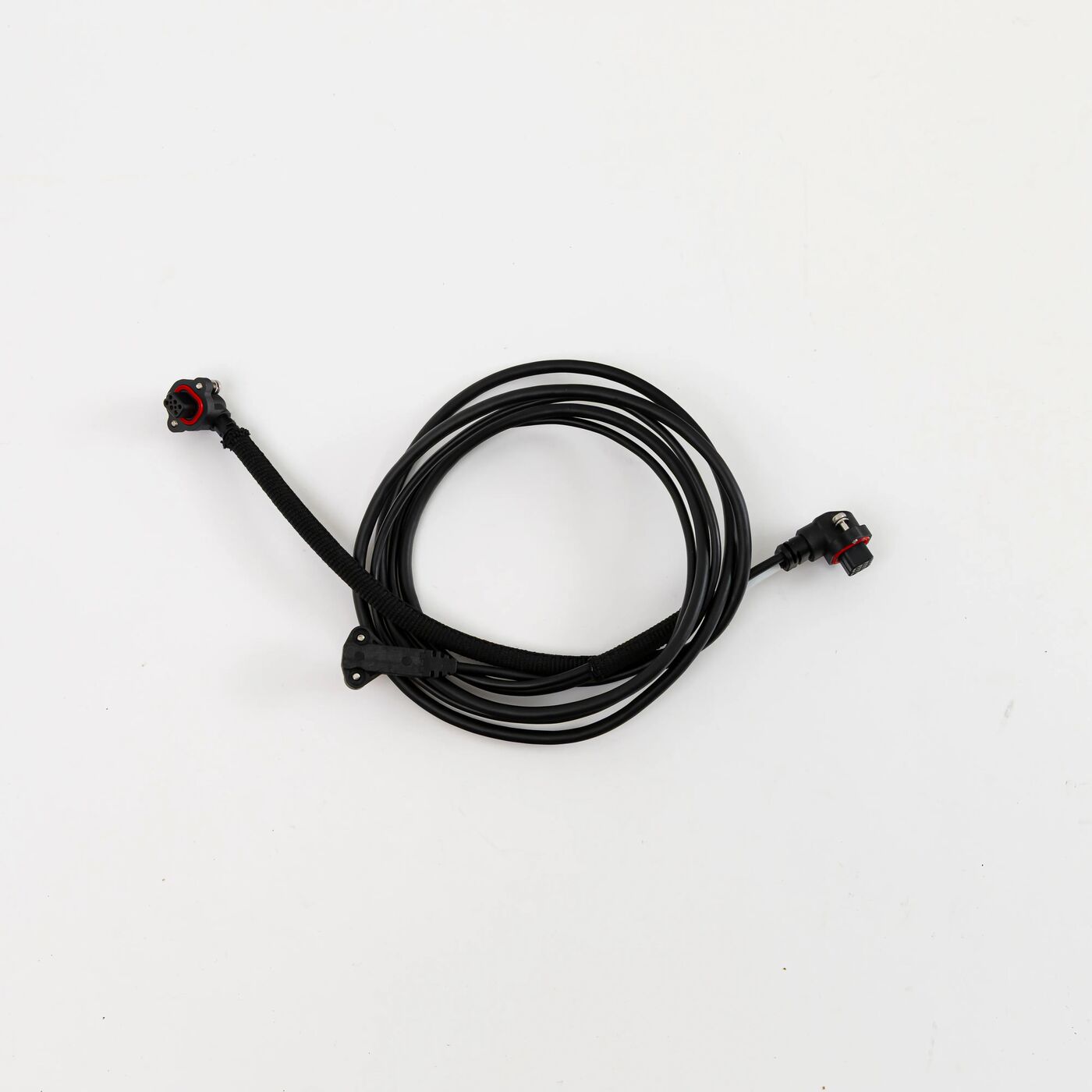

Aircraft Arm Signal Cable - Rear (T100) YC.XC.XX001469

This is the rear version of the arm signal cable for the DJI Agras T100, for the two rear arms, M3 and M4. It is callout 19 on both small arm diagrams, in the same assembly as the ESC module and the propulsion cabling.

• Front and rear cables are separate parts that share callout 19. DJI's T100 manual puts arms M1 and M2 at the front and M3 and M4 at the rear, so each small arm type takes the front cable (YC.XC.XX001468) at one position and this one at the other. Check the code on the cable you are replacing.
• Replace it if the sheath is split or crushed, a connector is cracked, or pins are bent or corroded.
• Clean any chemical residue out of the mating sockets before plugging in, and route the new cable the way the old one ran so it is not trapped or stretched when the arm is folded.

If you cannot tell front from rear on your arm, photograph the old signal cable, note the arm position, and send both through our contact page; we will confirm the code before you order.
