DJI

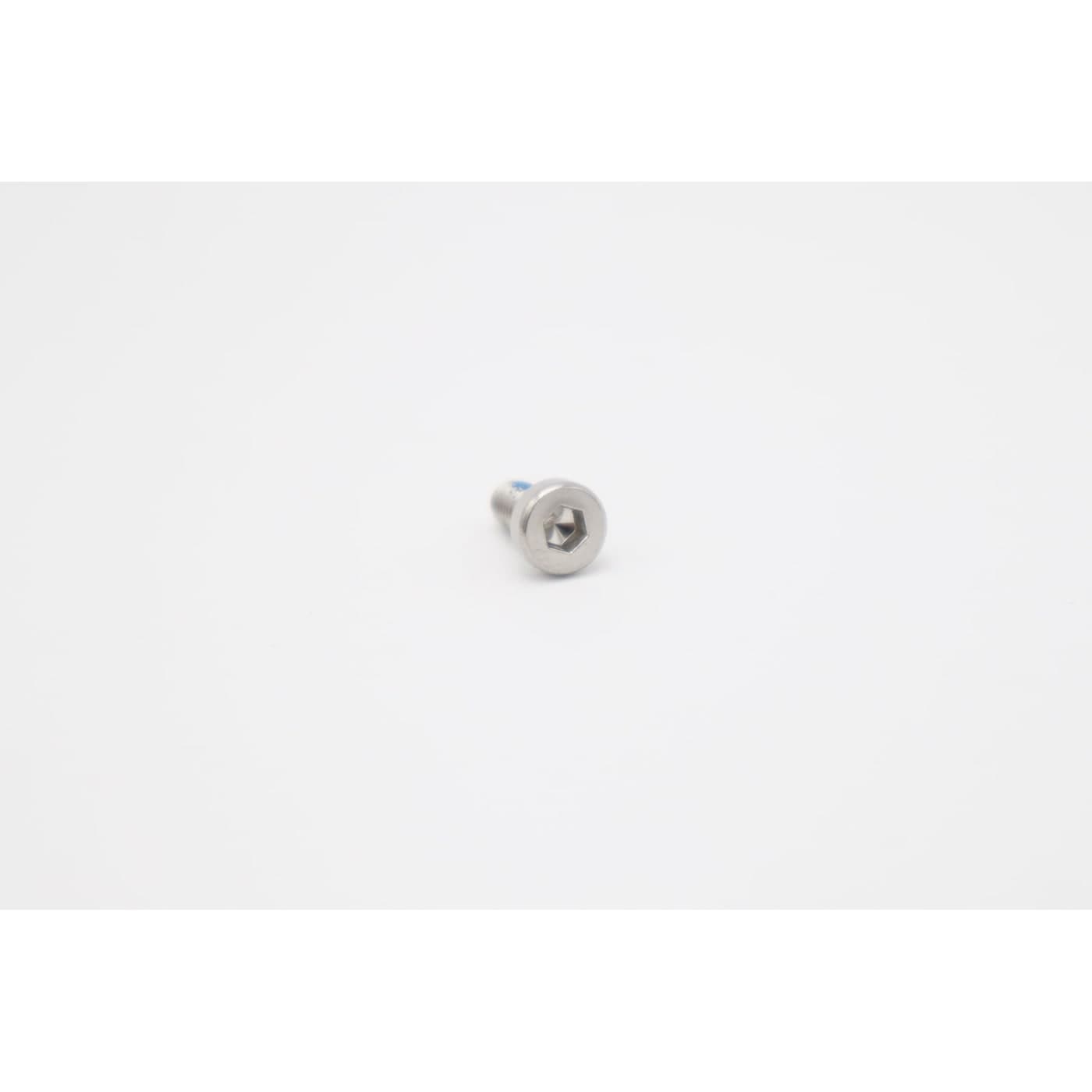

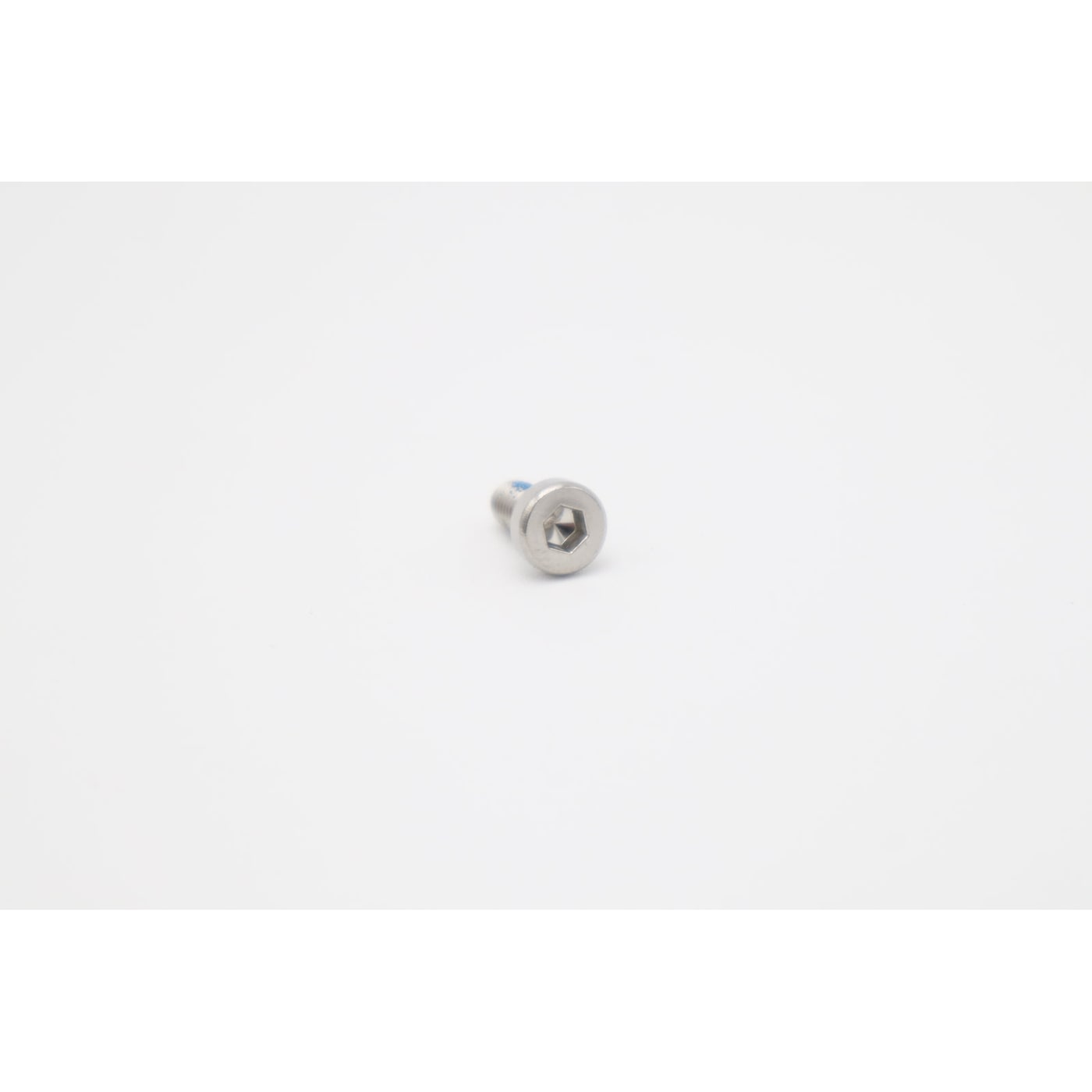

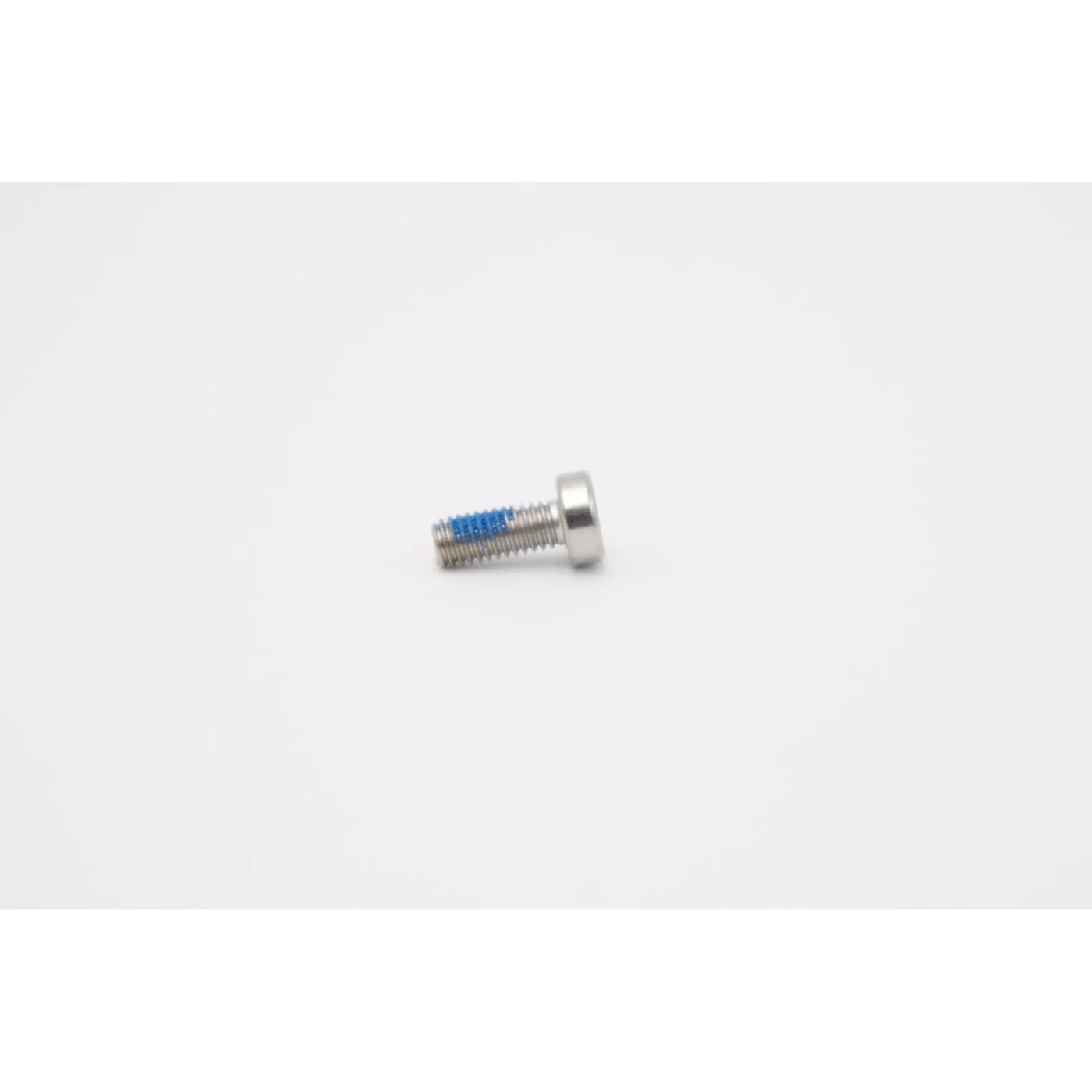

Screw M40-HC01000100-072028-5103-N_01 (T100/T70P/T50/T25P) YC.WJ.LL000232
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
This M40 screw is used on four DJI Agras aircraft: T100, T70P, T50 and T25P sheets call for it in frames, arms, spray lances and mist kit booms.
| Part number | YC.WJ.LL000232 |
| Fits | DJI Agras T100, T70P, T50, T25P |
| Parts diagram | T100 spray lance, callouts 9 and 19; T100 frame connector, callout 11; T100 M1/M3 and M2/M4 small arms, callouts 8 and 27; T100 spreading frame, callout 13; T100 lift system frame connector, callout 7; T100 mist kit spray boom, callouts 15, 20 and 21; T100 mist kit external boom, callout 16; T100 mist kit internal boom, callout 17; T70P spray lance, callouts 16 and 18; T70P M3 arm, callouts 39 and 50; T70P misting spray lance, callouts 12 and 14; T50 front frame, callouts 14, 15 and 27; T50 middle frame, callouts 2 and 30; T50 rear frame, callouts 5 and 8; T25P middle frame, callout 11; T25P rear frame, callout 6; T25P M3 arm, callout 7 |
Many sheets number it more than once, so count the screws your job needs first. Other M40 screws carry different codes; match YC.WJ.LL000232 exactly and discard any with a rounded drive or damaged thread.
