DJI

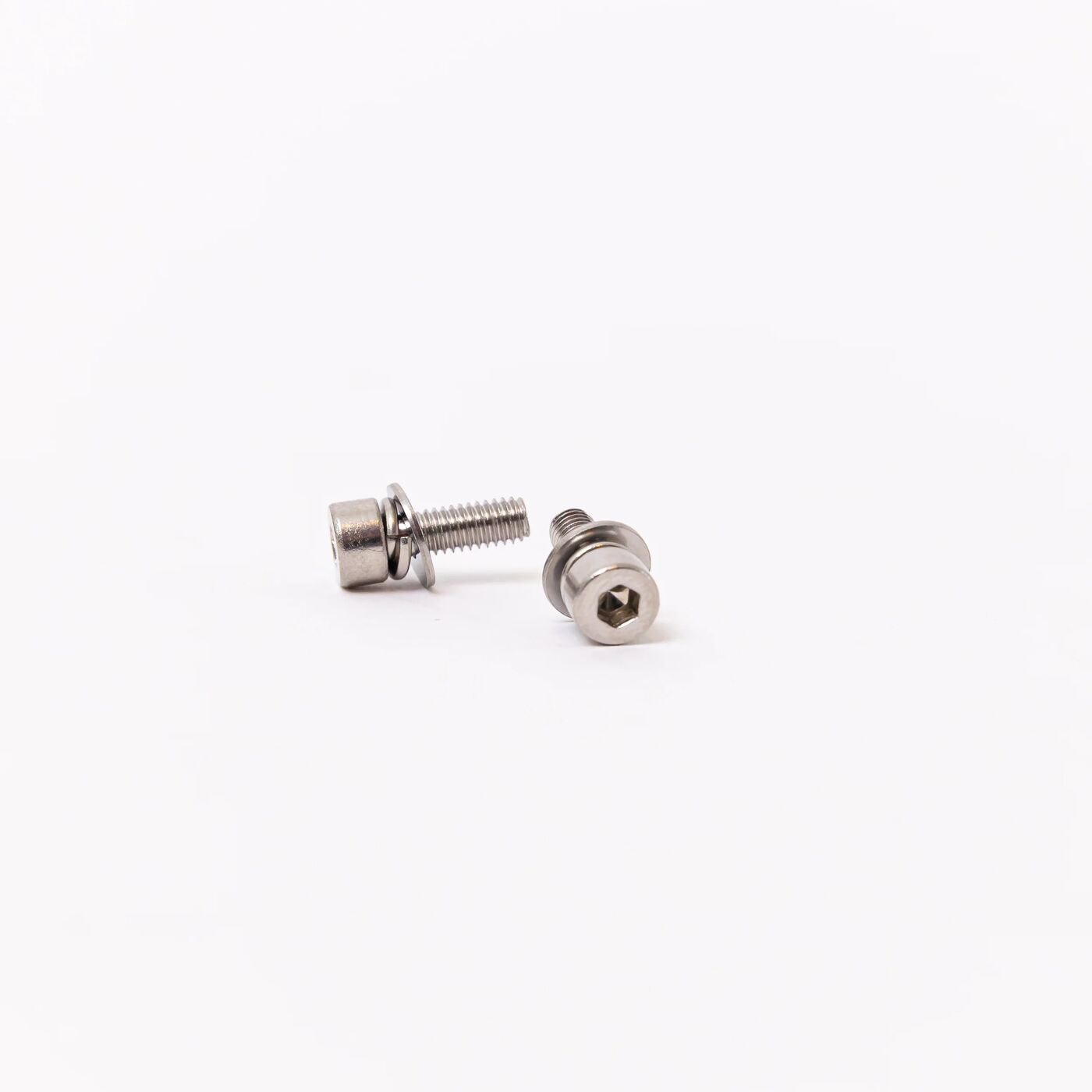

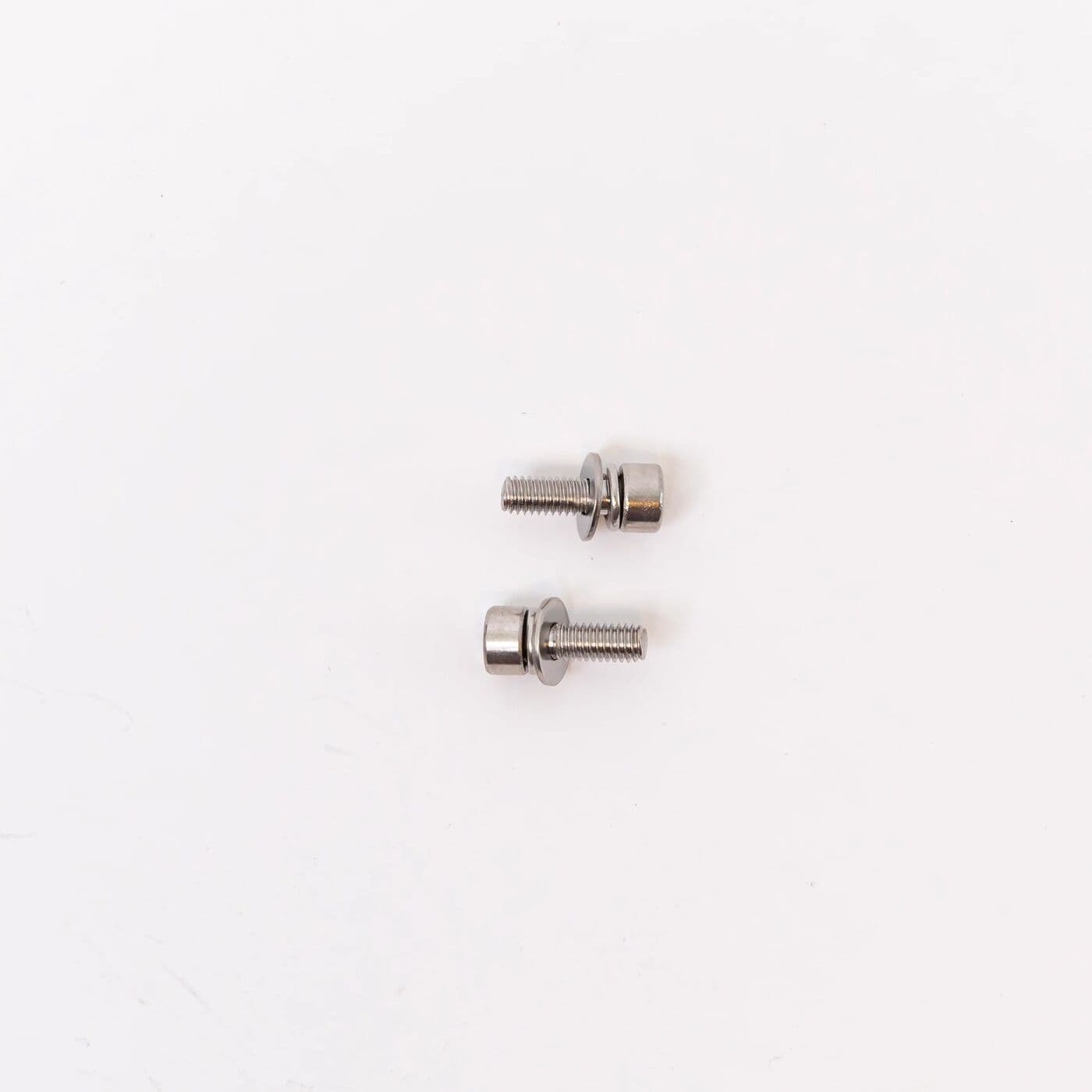

Screw M40-HCW01150115-070040-5103-N (T100/T70P) YC.ST.LL000667
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Shared by the DJI Agras T100 and T70P, screw YC.ST.LL000667 is used in several spots: the T100's small arms plus the front frame and arm assemblies of the T70P.
| Part number | YC.ST.LL000667 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 M1/M3 and M2/M4 small arms, callouts 22 and 25; T70P front frame (sheet 2), callouts 6 and 14; T70P arm (sheet 3), callouts 8 and 23 |
On the T100 arm, callout 22 sits between the ESC three-phase waterproof cover (20) and its rubber seal (23); on the T70P front frame, callouts 6 and 14 sit at either end of the power distribution board module (13). Several screws on these sheets look alike, so sort them by position as they come out, and fit new ones wherever a head is chewed or a thread is damaged.
