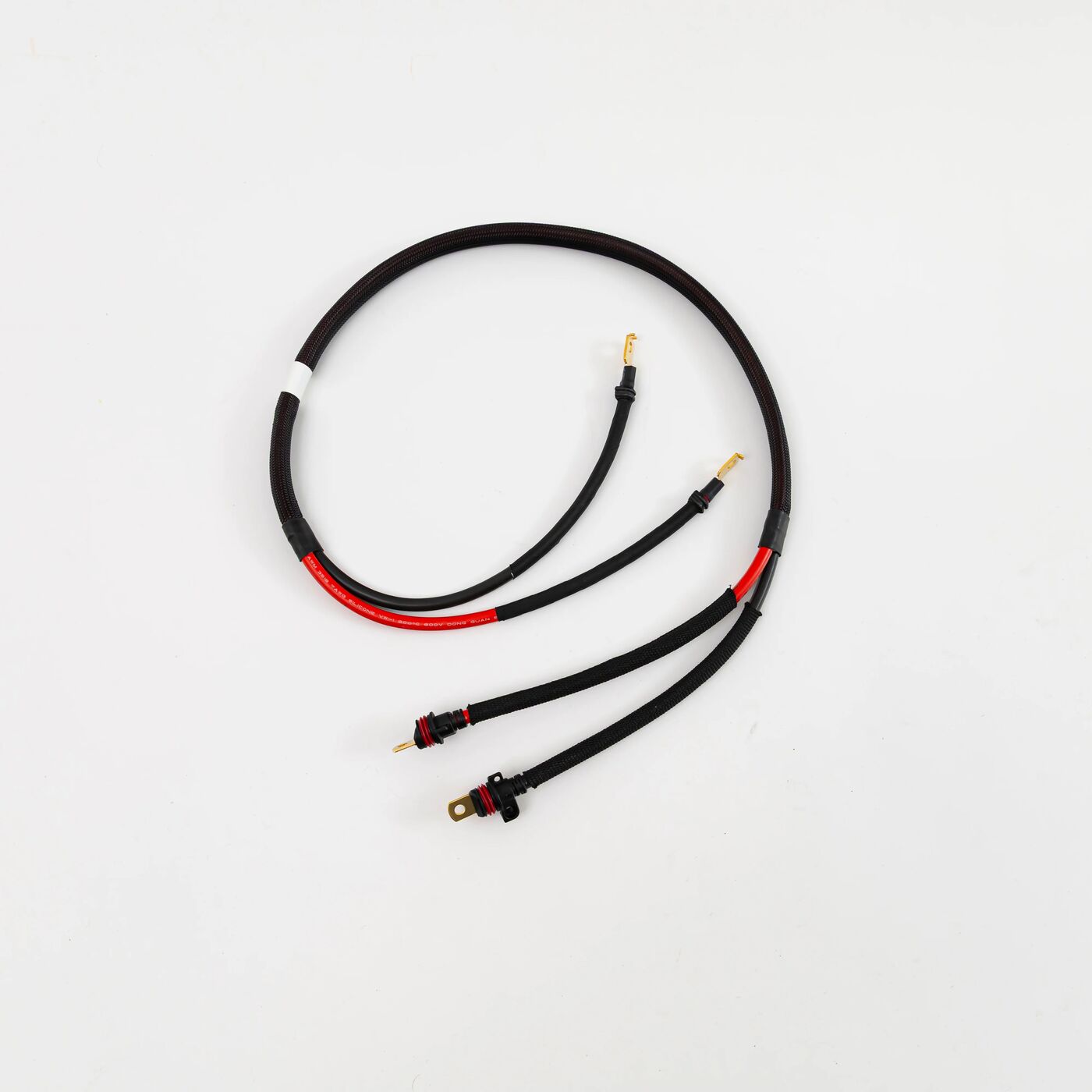

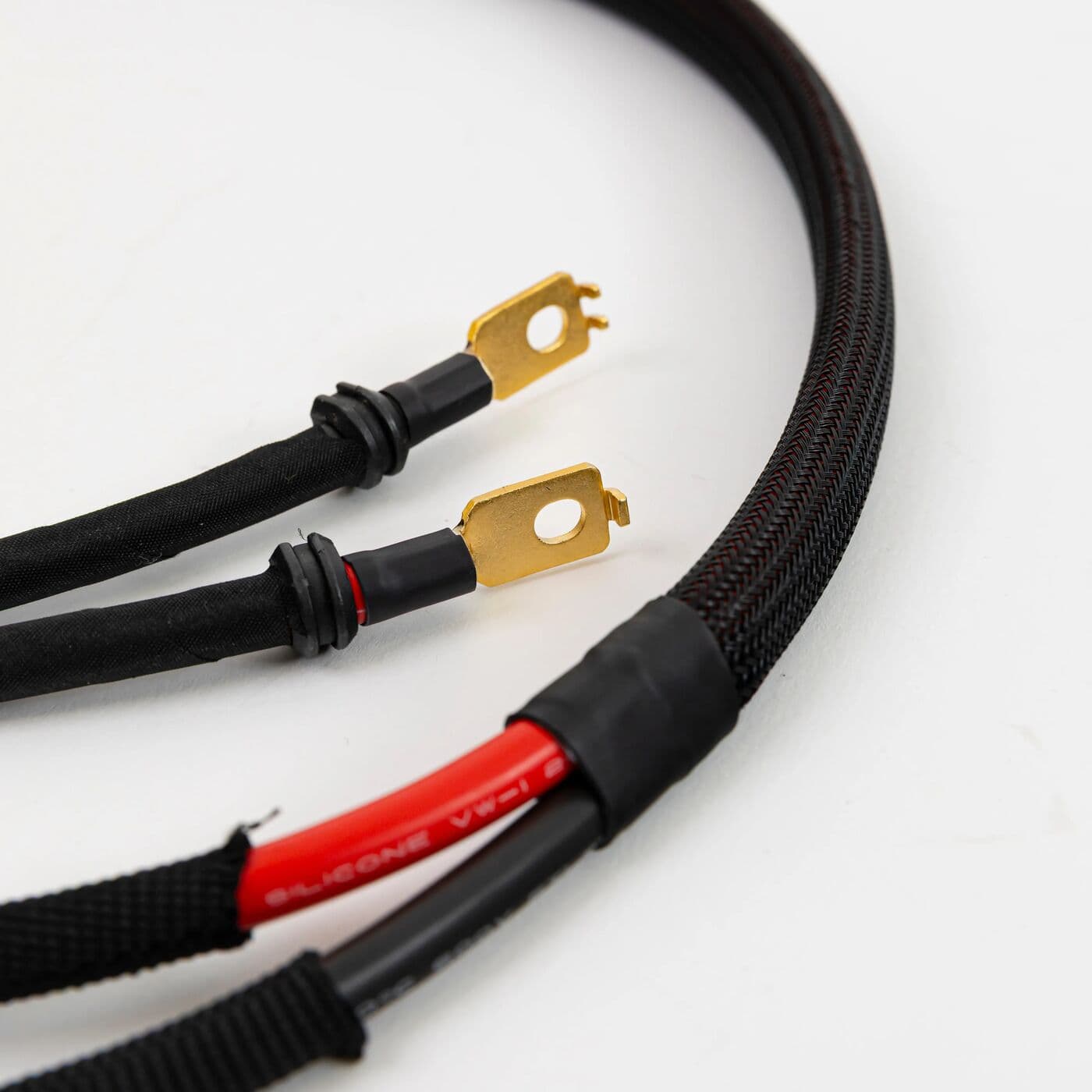

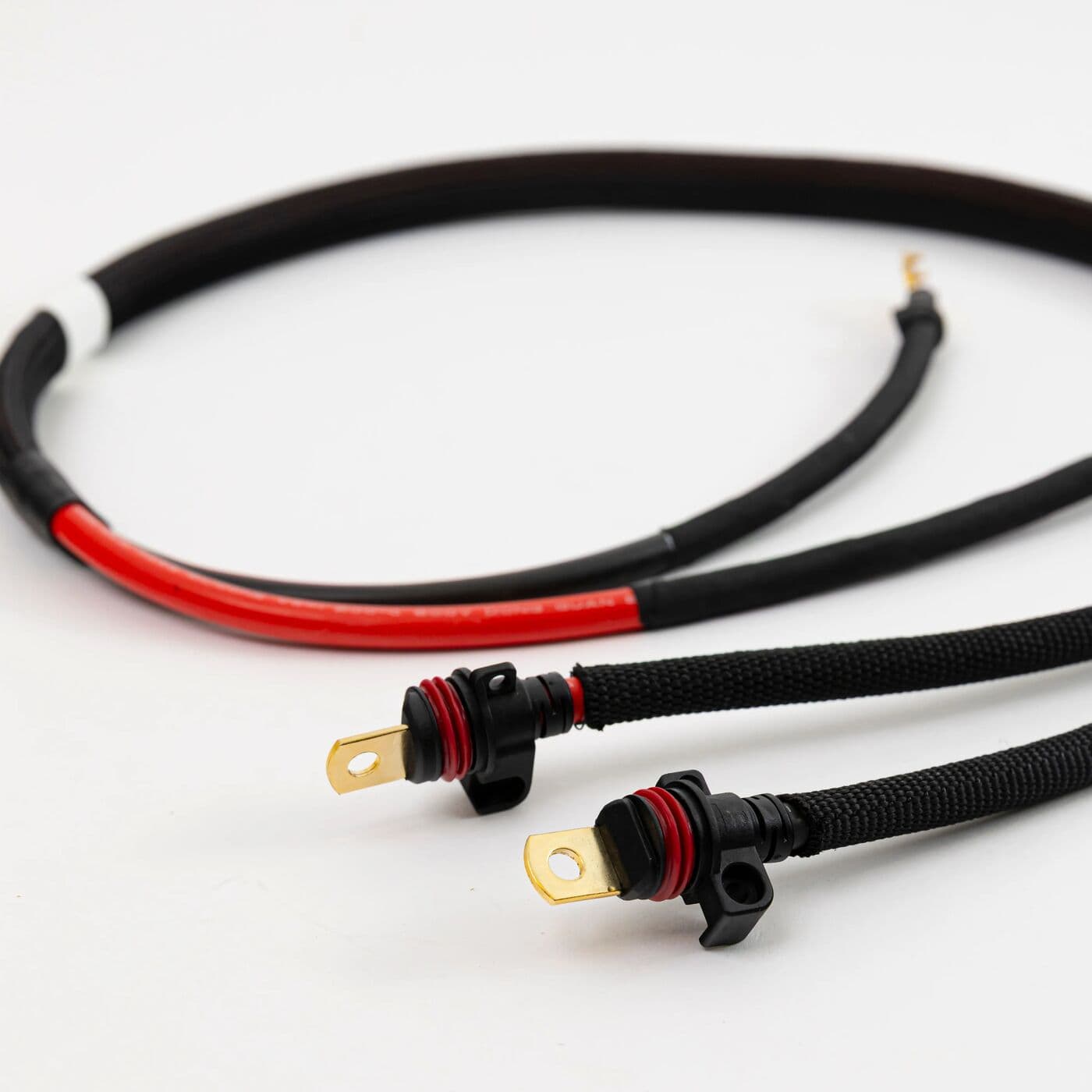

Aircraft Arm Propulsion Cable - Front (T100) YC.XC.DD000812
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
On the DJI Agras T100, this front arm propulsion cable is the braided power harness shown at callout 21 on both small arm diagrams (M1/M3 and M2/M4), separate from the thinner arm signal cable.
| Part number | YC.XC.DD000812 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 M1/M3 and M2/M4 small arms, callout 21 |
Front and rear propulsion cables carry different codes, so order by YC.XC.DD000812 rather than going by appearance. This one is for the front arms, M1 and M2; the rear cable, YC.XC.DD000813, is a separate part for M3 and M4.
Replace the cable if the sheath is chafed or cut, if connector pins are bent, burnt or discoloured, or if a motor fault on that arm comes and goes as the cable is moved. With the battery out, follow the original route, refit clips and ties as they were, and replace the motor cable clamp if it is cracked.
Not sure whether your arm takes the front or rear propulsion cable? Send us a photo of the old one using the details on our contact page, say which arm it came from, and we can check it before you order.
