DJI
ESC Module (T100) BC.AG.SS001189
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

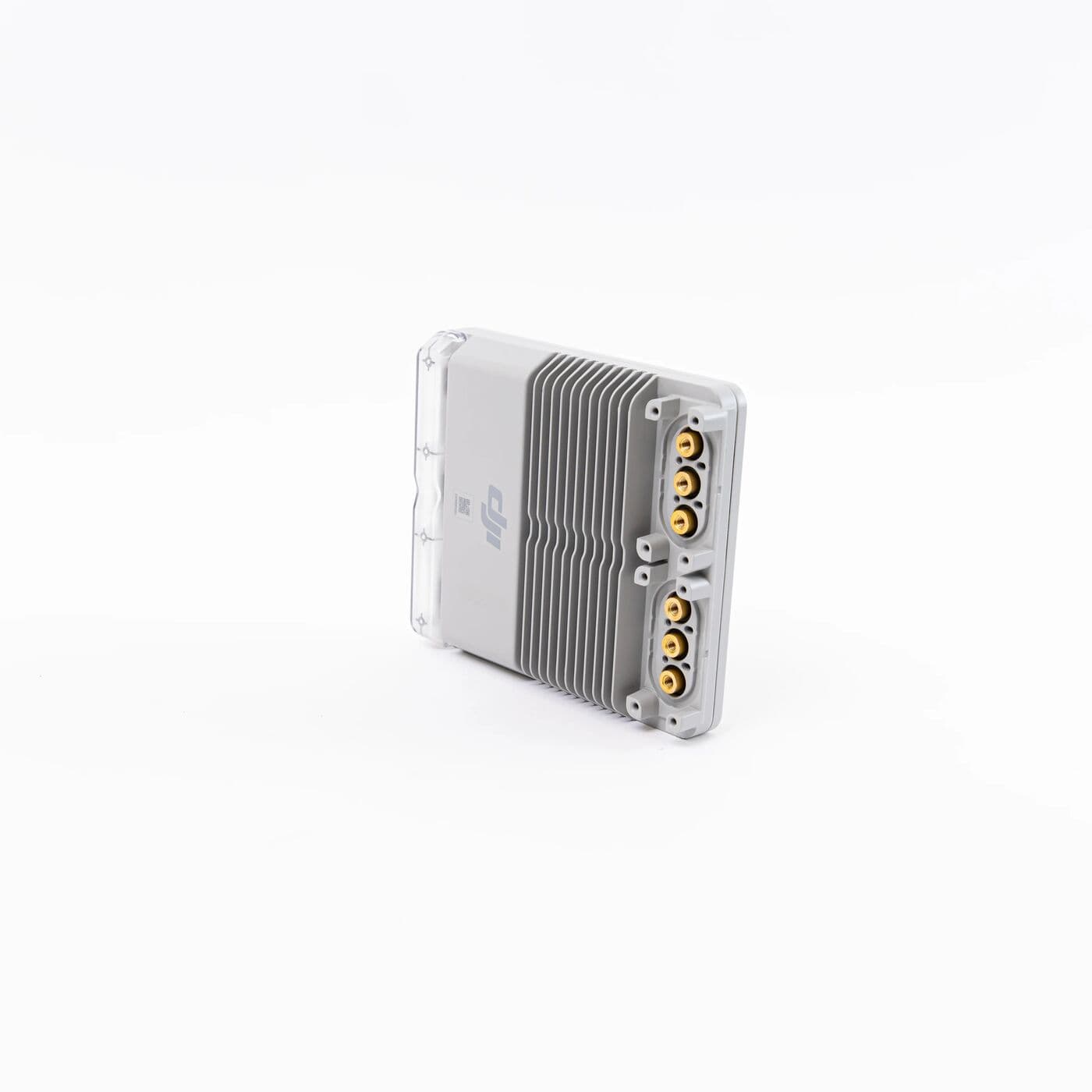

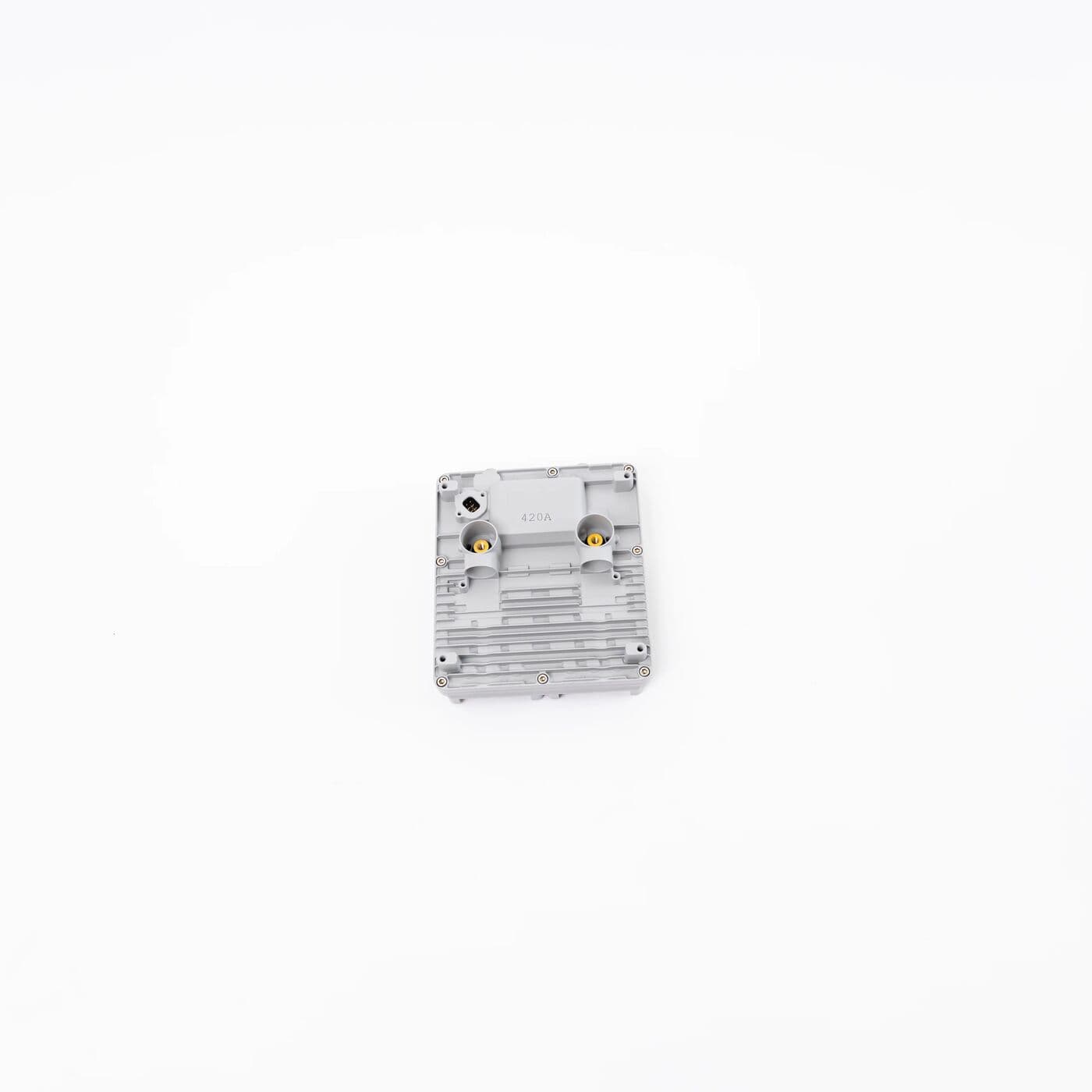

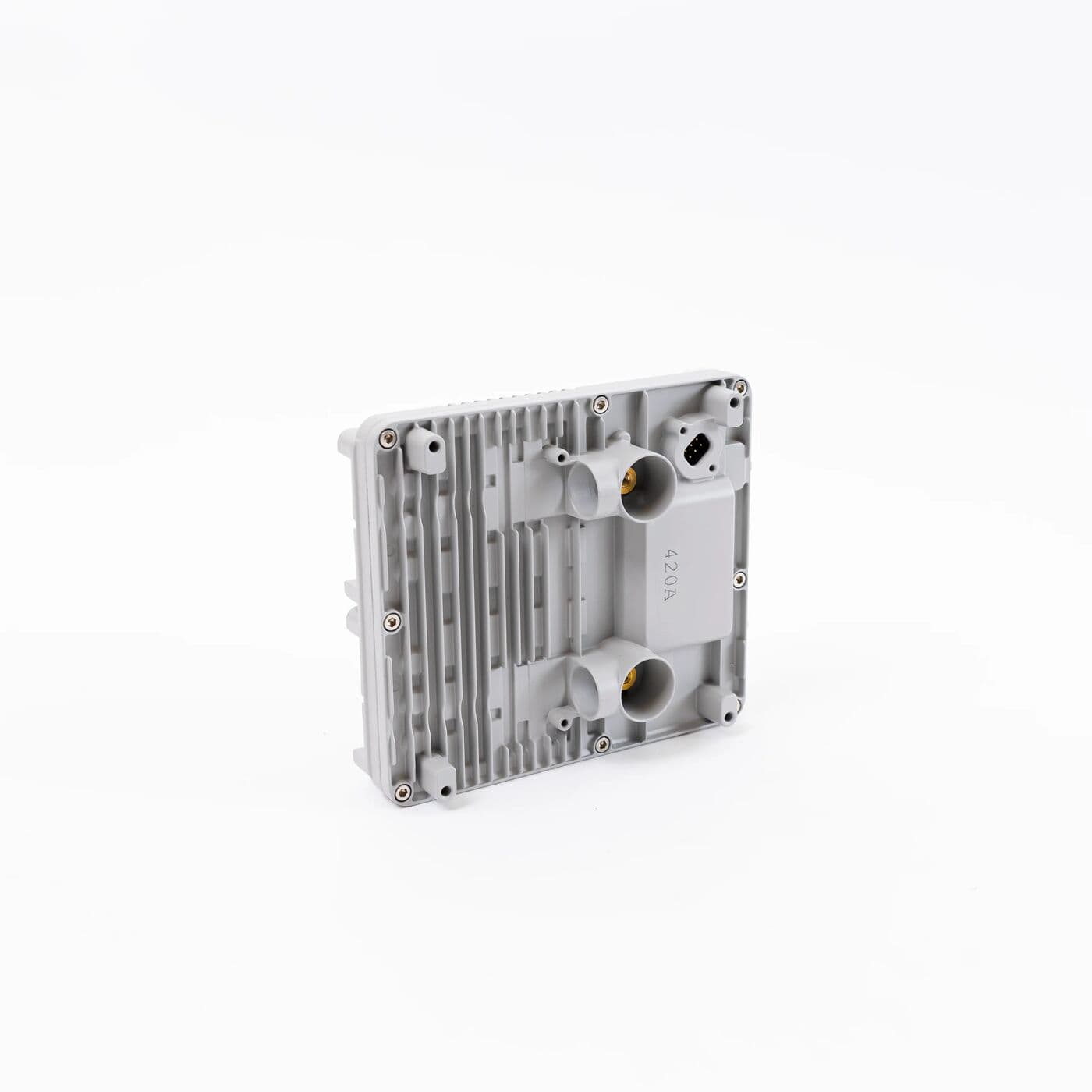

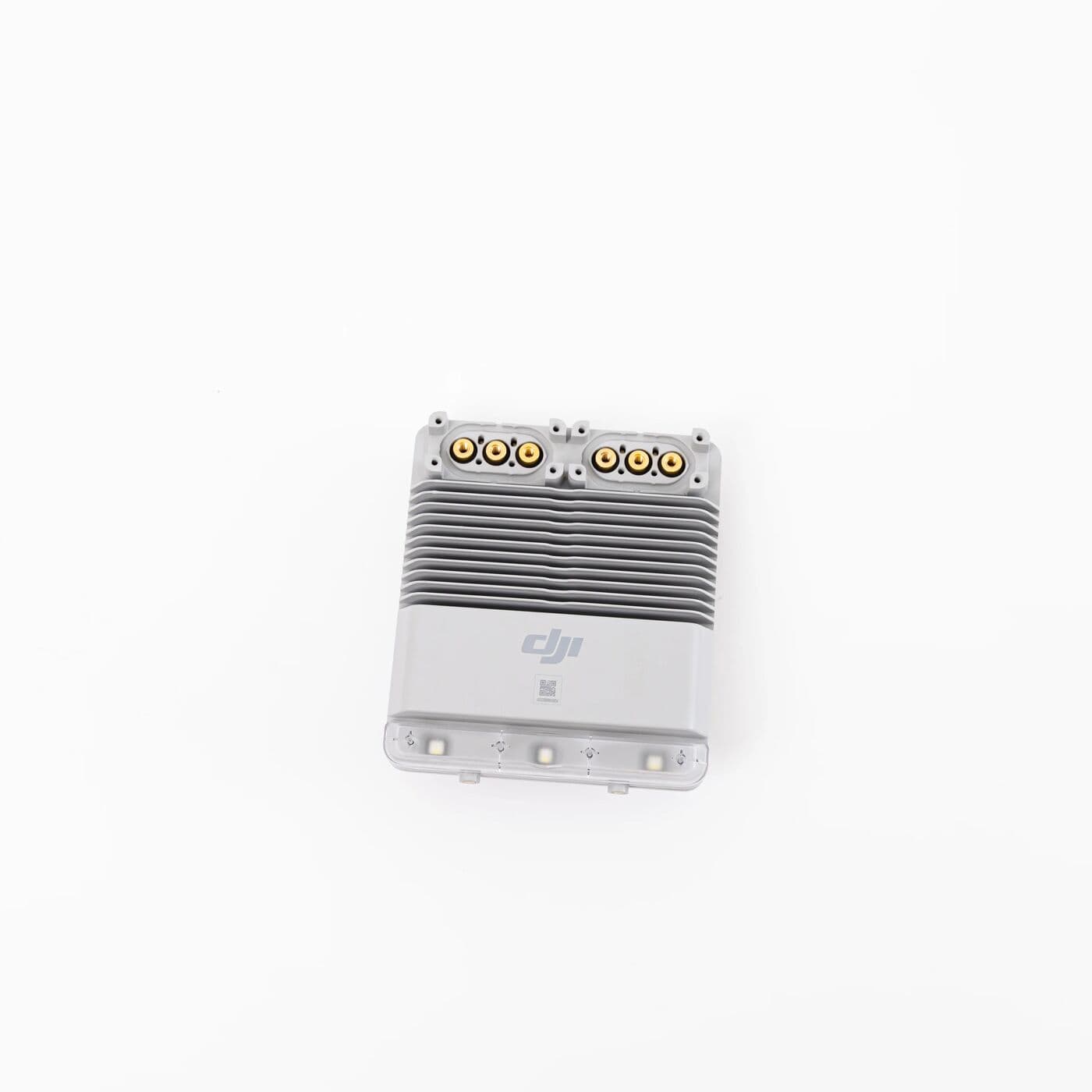

An electronic speed controller from the arm assembly of the DJI Agras T100, shown at callout 1 on the M1/M3 and M2/M4 small arm diagrams. It converts battery power into the three-phase current that brushless propulsion motors run on.
| Part number | BC.AG.SS001189 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 M1/M3 and M2/M4 small arms, callout 1 |
The ESC takes speed commands from the flight controller and sets motor speed to match. A failing module can show as an ESC or motor error on one arm position, a motor that will not start, or a failed self-check. Water getting past a damaged seal is one way ESCs are lost on spray aircraft.
Rule out the signal and propulsion cables and their connectors before replacing the module. While it is out, fit new three-phase cover rubber seals and check the seal plugs and the ESC base fixing piece, then confirm the app shows no ESC warnings before going back to work.
