DJI
Aircraft Arm Buckle Module (T100) BC.AG.SS001099
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

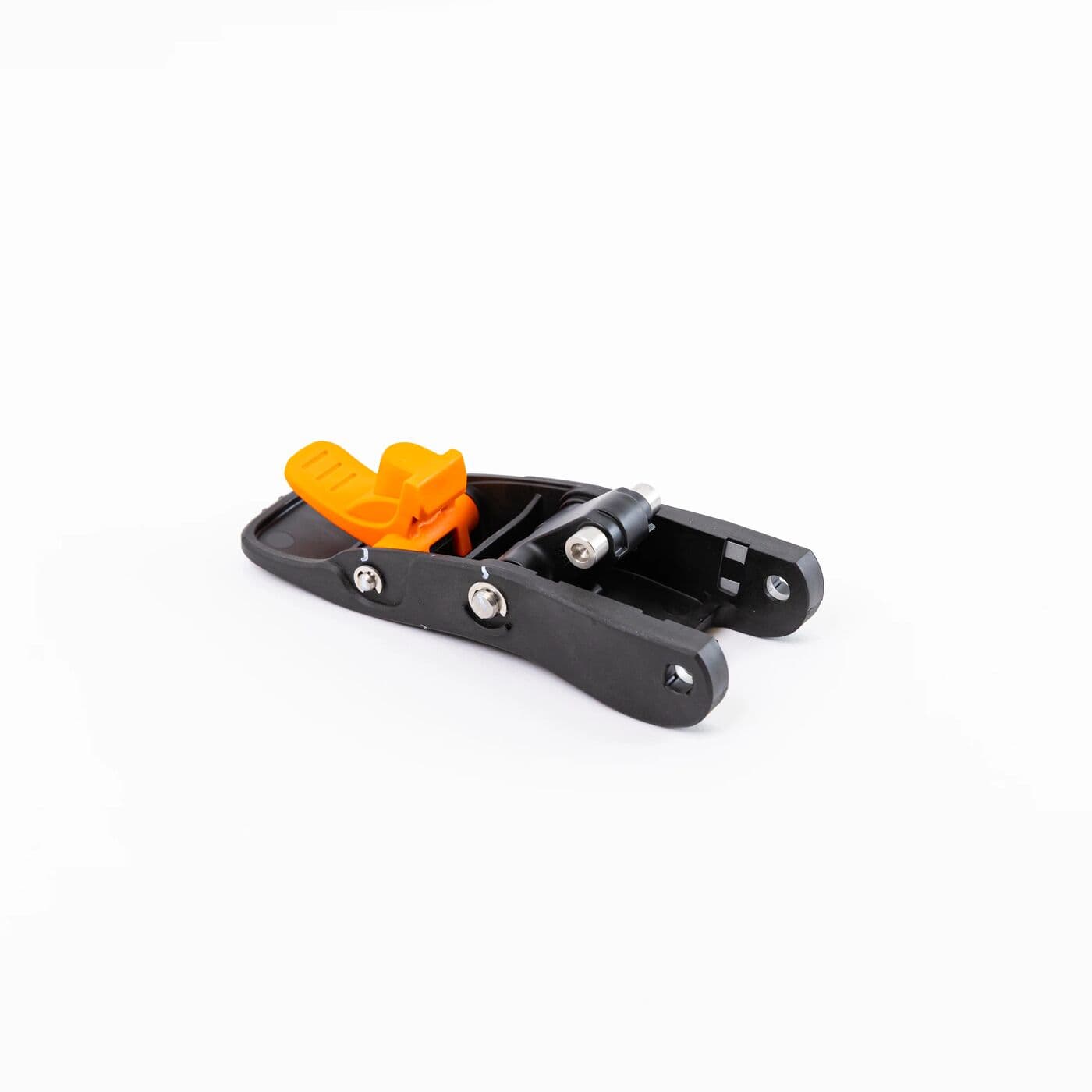

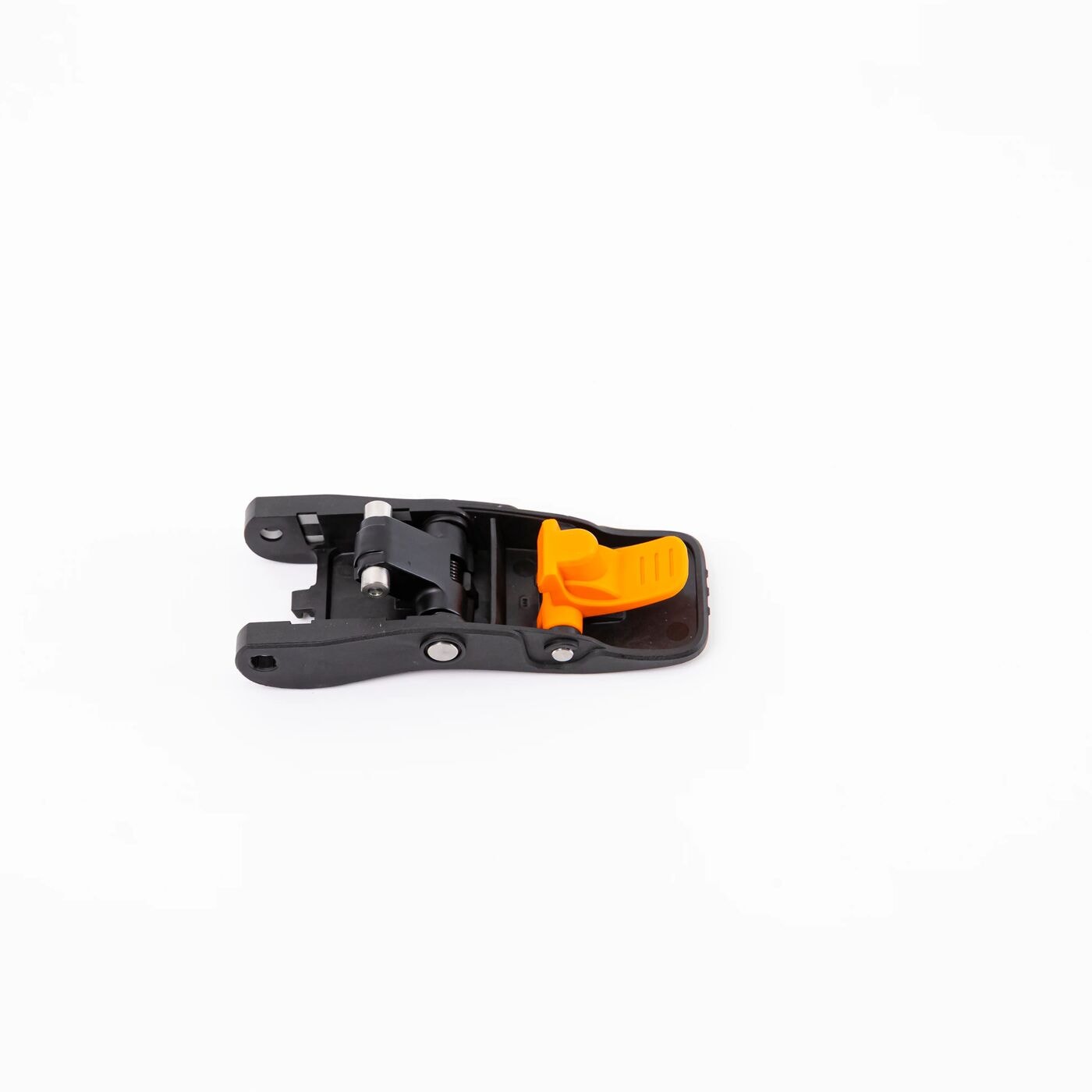

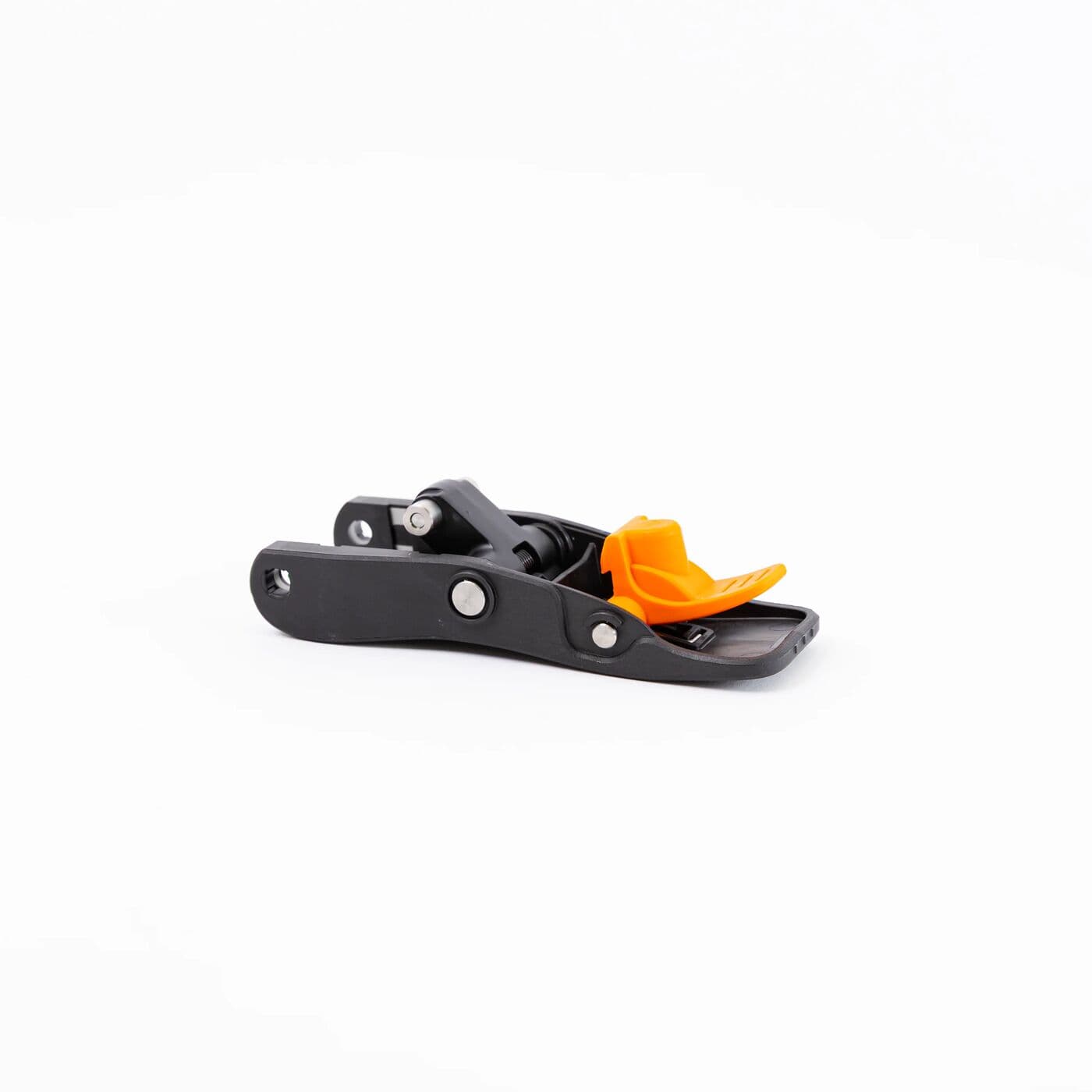

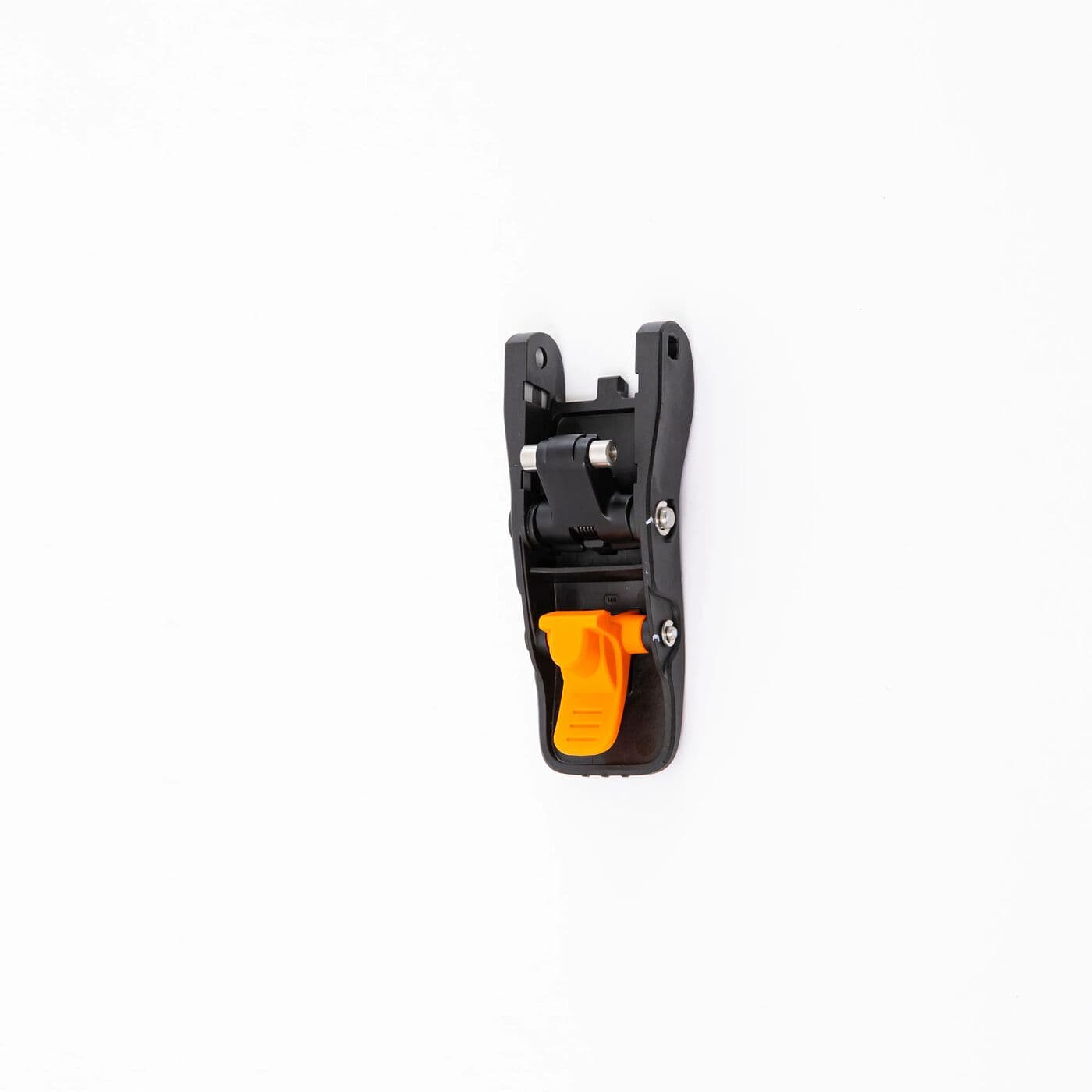

The aircraft arm buckle module is the latch that locks a DJI Agras T100 folding arm in its flight position. Some dealers list it as the arm trigger assembly.
| Part number | BC.AG.SS001099 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 M1/M3 and M2/M4 small arms, callout 10 |
Check it if an arm will not latch, closes with a soft or vague action, or shows any movement at the fold once locked. Knocks, rough handling at the fold and dried chemical or dirt in the mechanism can all wear or crack the latch.
On the diagram it is shown with a nut (callout 11), a torsion spring (callout 12) and a pin shaft (callout 13). Inspect those while the buckle is apart, and confirm the new assembly locks firmly before the aircraft flies. The buckle nut, buckle torsion spring and 57.1 mm pin shaft are each sold separately.
