DJI

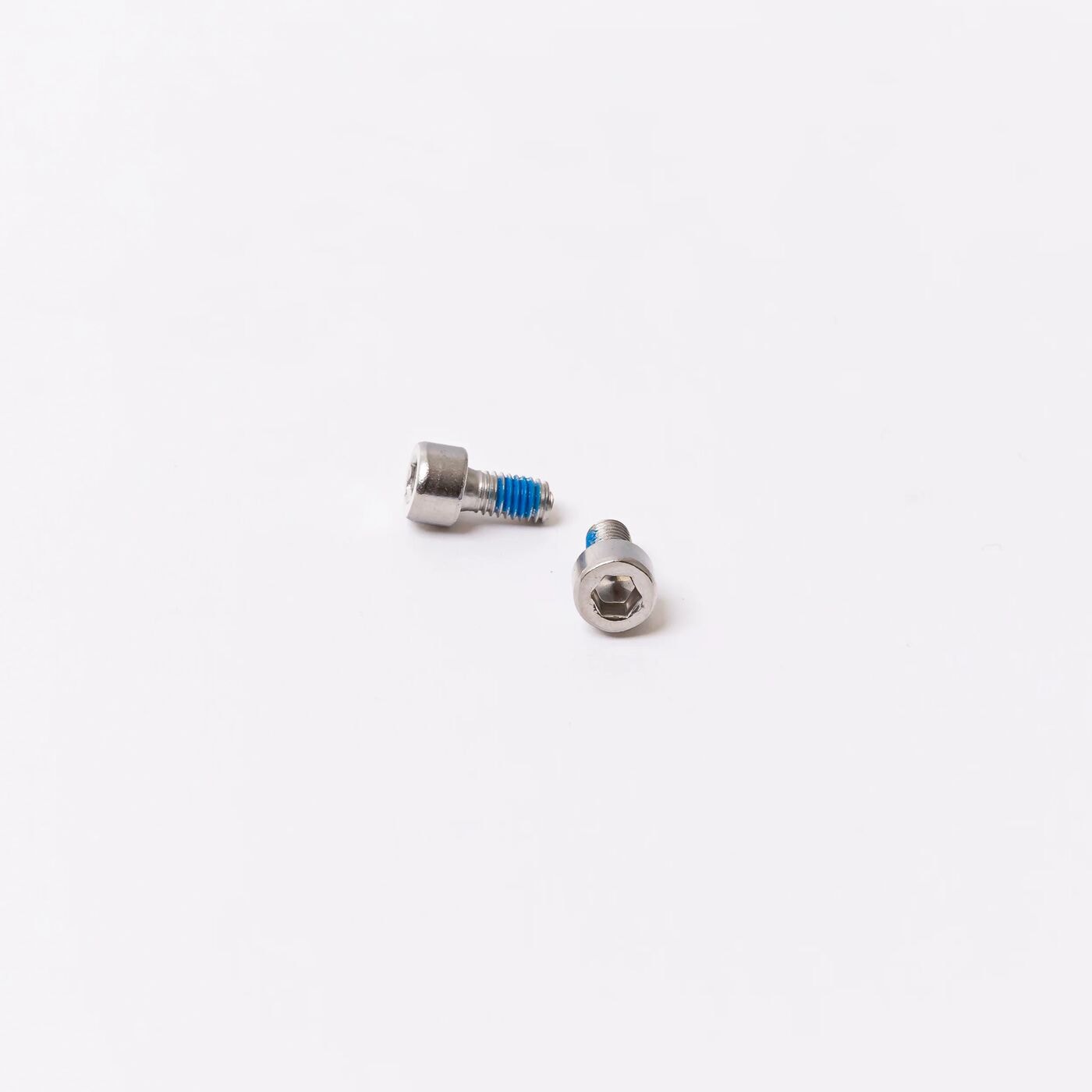

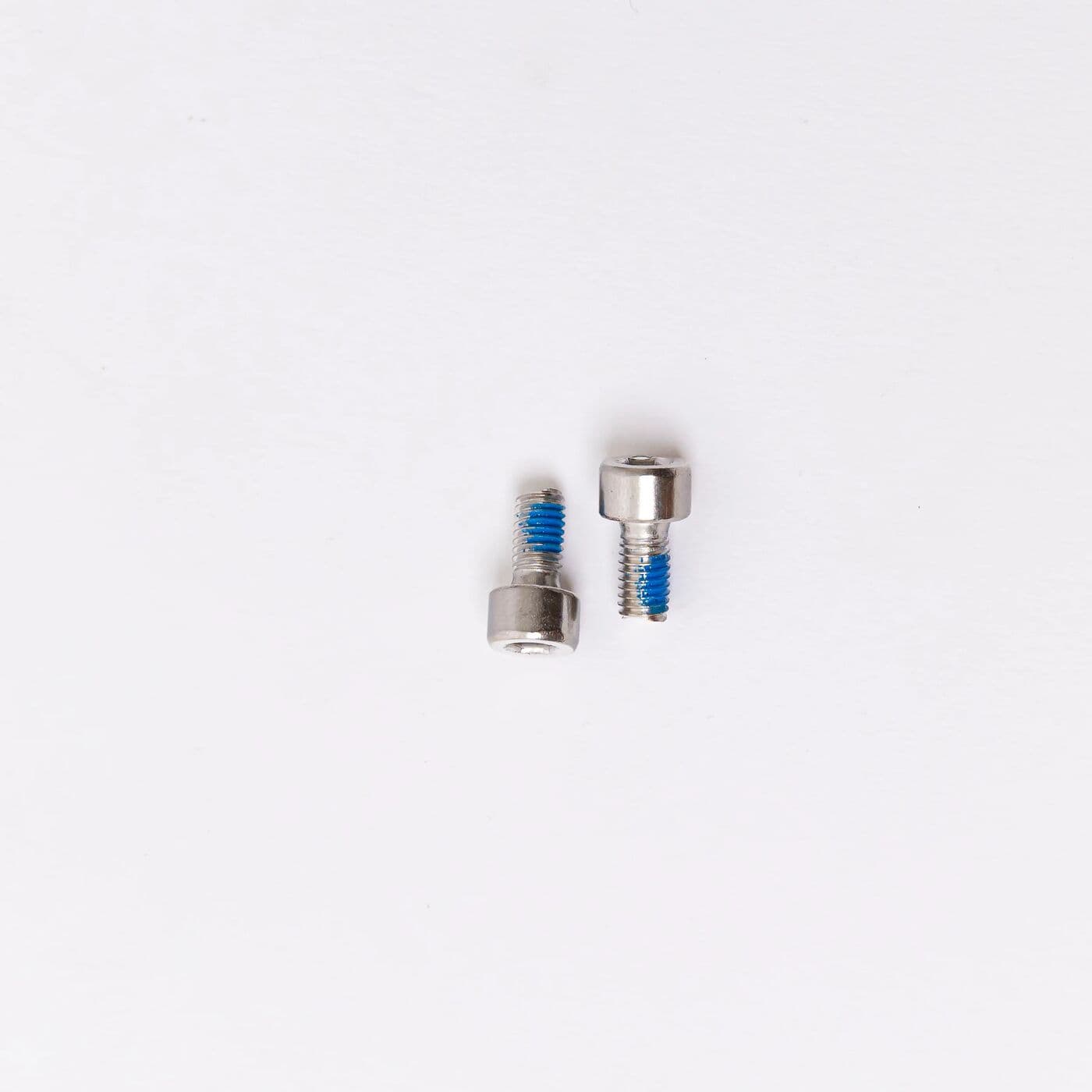

Screw - M50-HC01000082-087052-5103-Y (T100) YC.ST.LL000771
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Callout 15 on the T100 M1/M3 and M2/M4 small-arm diagrams, this screw is drawn directly beneath the aircraft arm limit block, close to the arm buckle hardware of the DJI Agras T100.
| Part number | YC.ST.LL000771 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 M1/M3 and M2/M4 small arms, callout 15 |
On the parts list it comes straight after the aircraft arm limit block (14), which in turn follows the buckle module, torsion spring and 57.1 mm pin shaft. A screw here that has backed out or has a damaged head should be swapped for a new one rather than simply nipped up again. While it is out, check the limit block for cracks and the screw hole for a stripped thread, then make sure the arm still folds and locks cleanly once everything is back together.
