DJI
ESC Three-Phase Waterproof Cover (T100) YC.JG.ZS006620
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

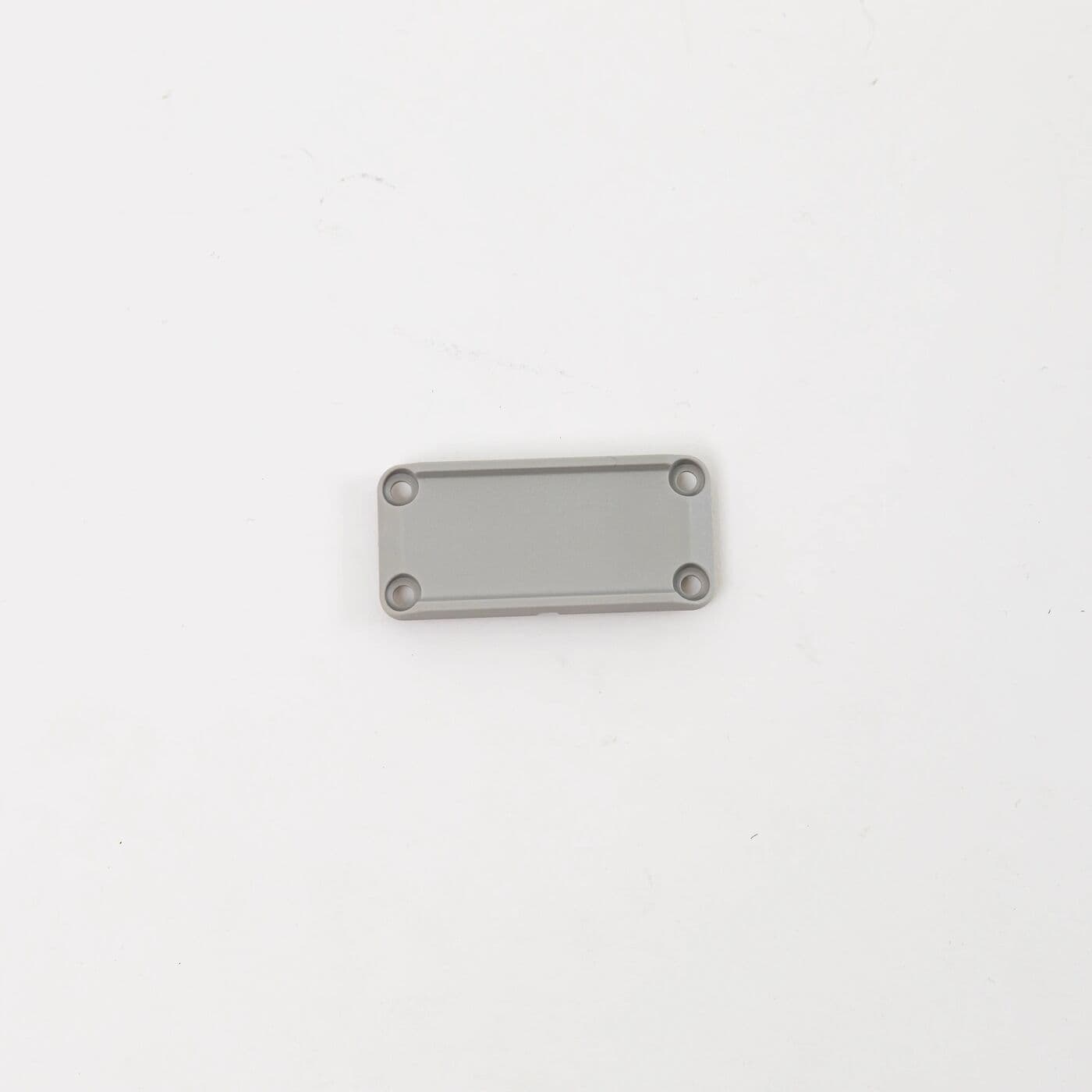

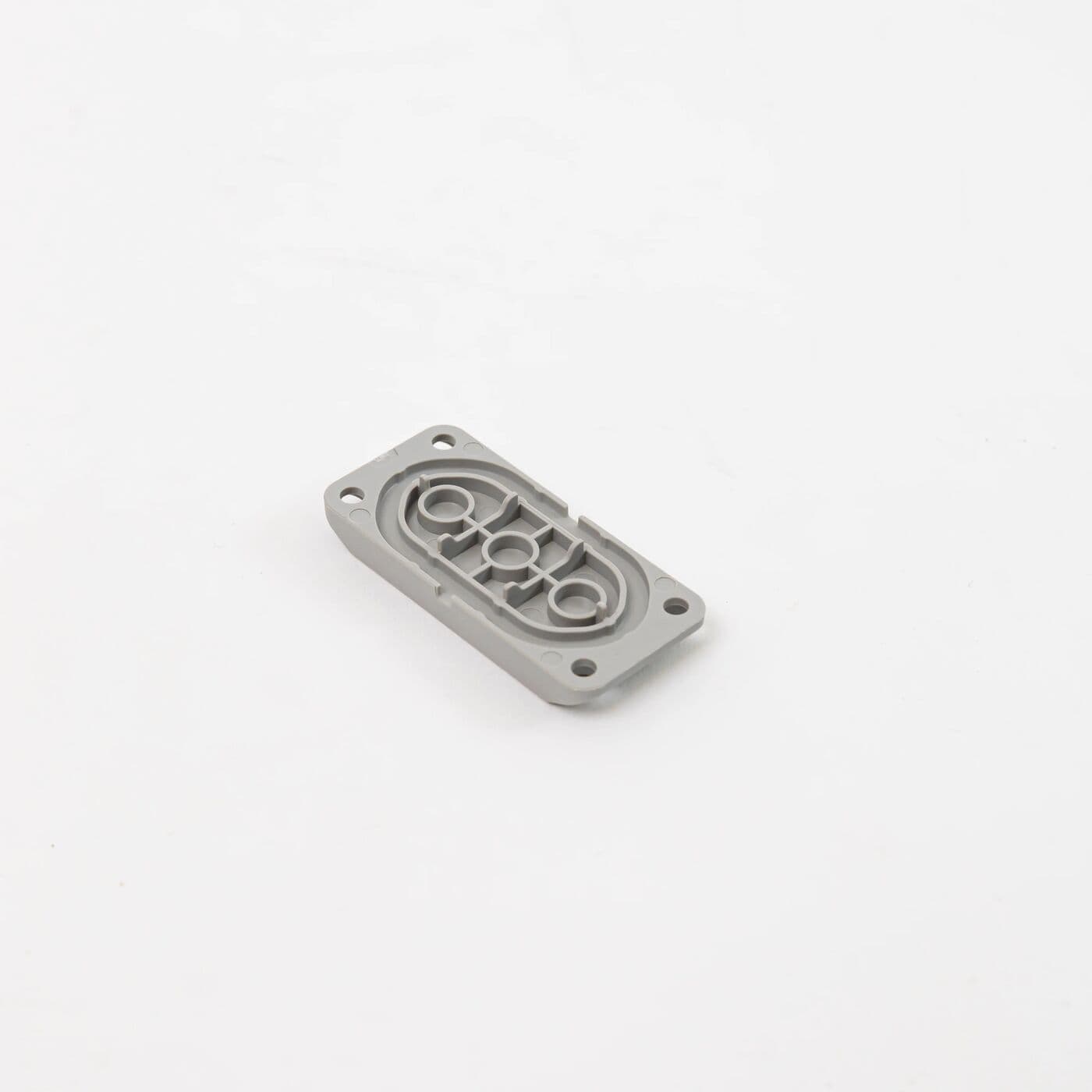

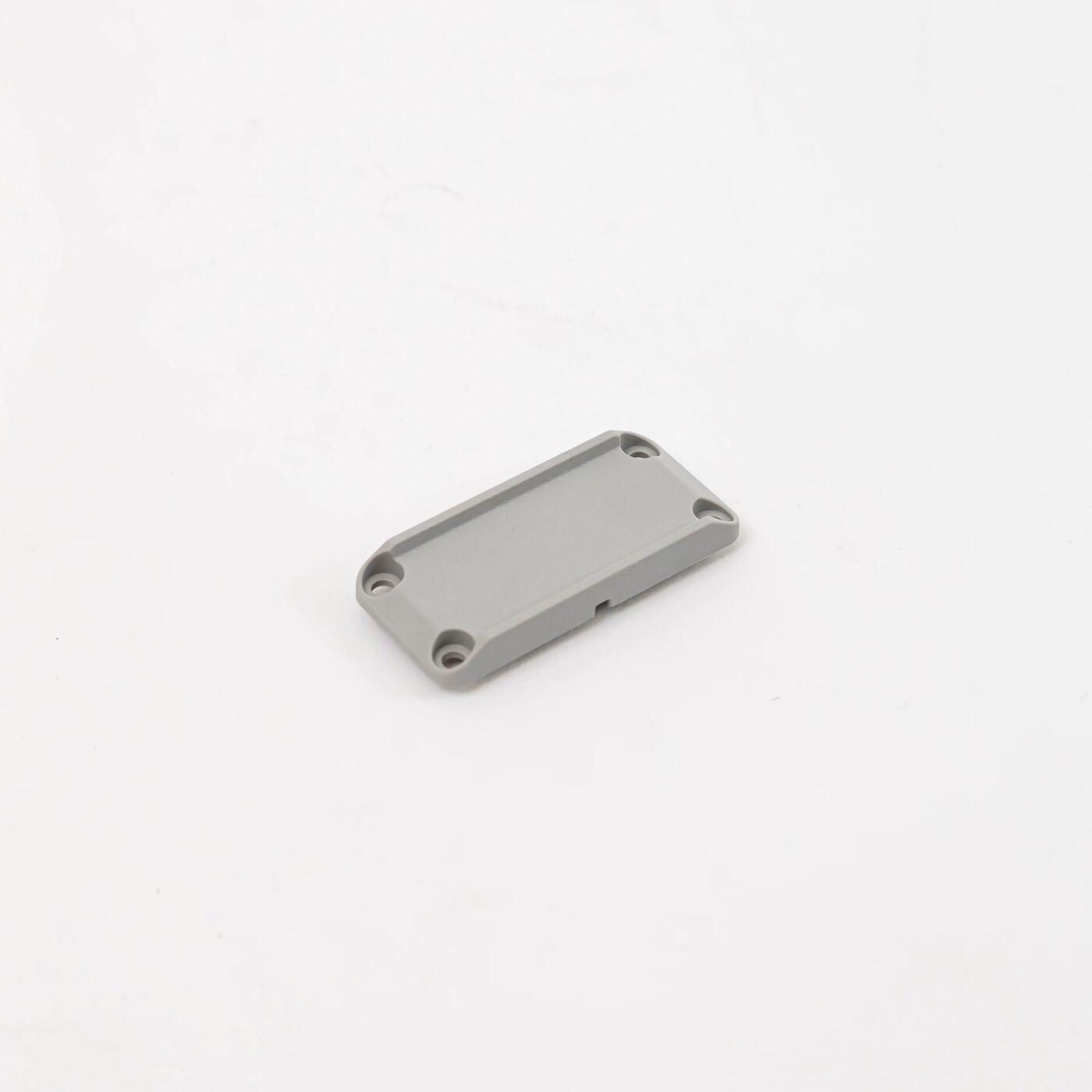

Keeping water away from the motor wiring, this cover seals the three-phase connection on the ESC in a DJI Agras T100 arm. It is callout 20 on the M1/M3 and M2/M4 small arm diagrams and works with its own rubber seal.
| Part number | YC.JG.ZS006620 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 M1/M3 and M2/M4 small arms, callout 20 |
Spray drift, rain and wash-down water will find any gap here, and moisture on the phase terminals can lead to corrosion and ESC faults. Replace the cover if it is cracked, distorted or no longer sits flat on its mating face.
Each time the cover is removed, inspect the three-phase cover rubber seal (callout 23) and replace it if it is flattened, nicked, hardened or out of shape. Wipe the mating face clean and seat the cover evenly so the seal is compressed all the way round, as DJI warns that the T100's water resistance can drop when a waterproof cover is not properly secured. Check the ESC module for any sign of moisture while it is open.
