DJI

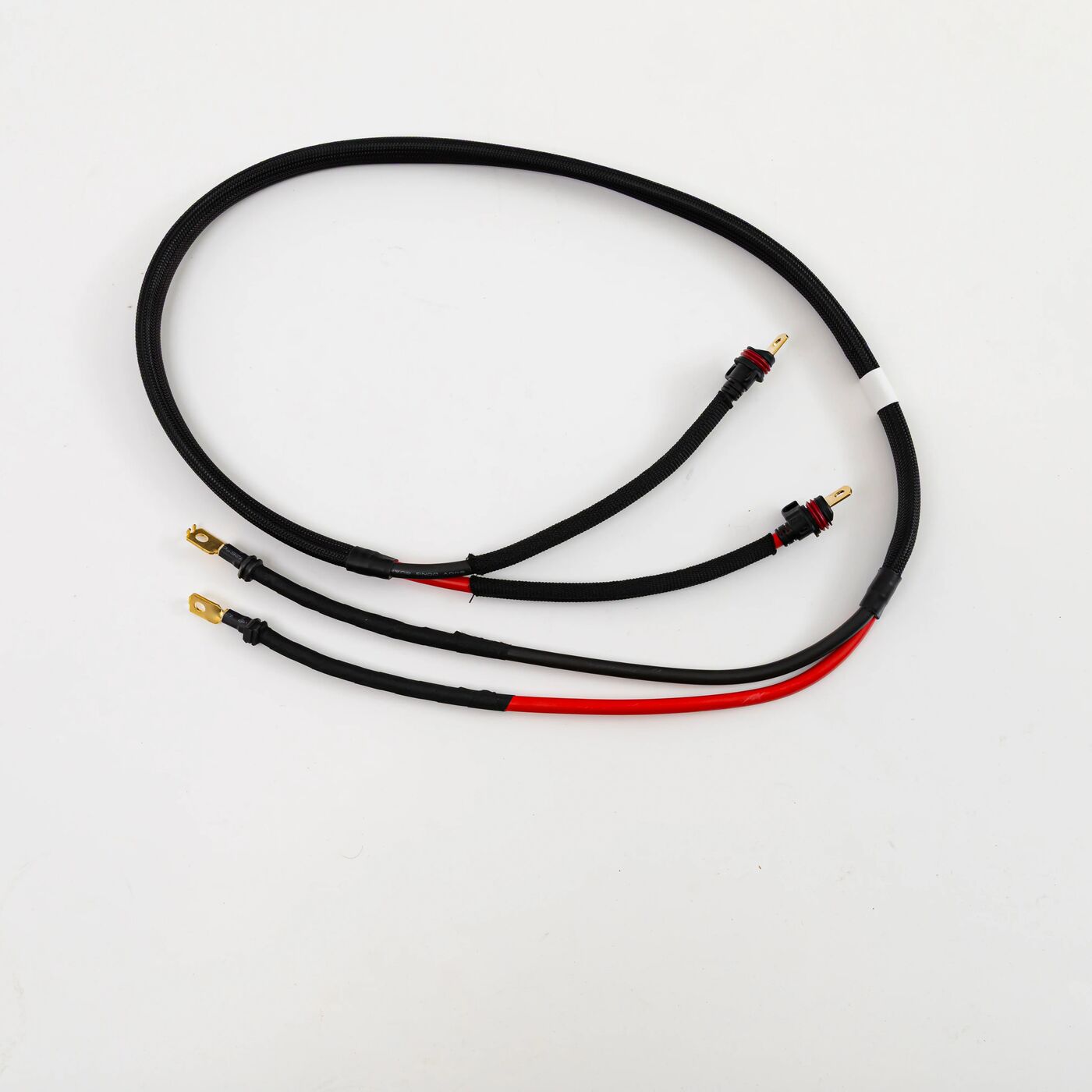

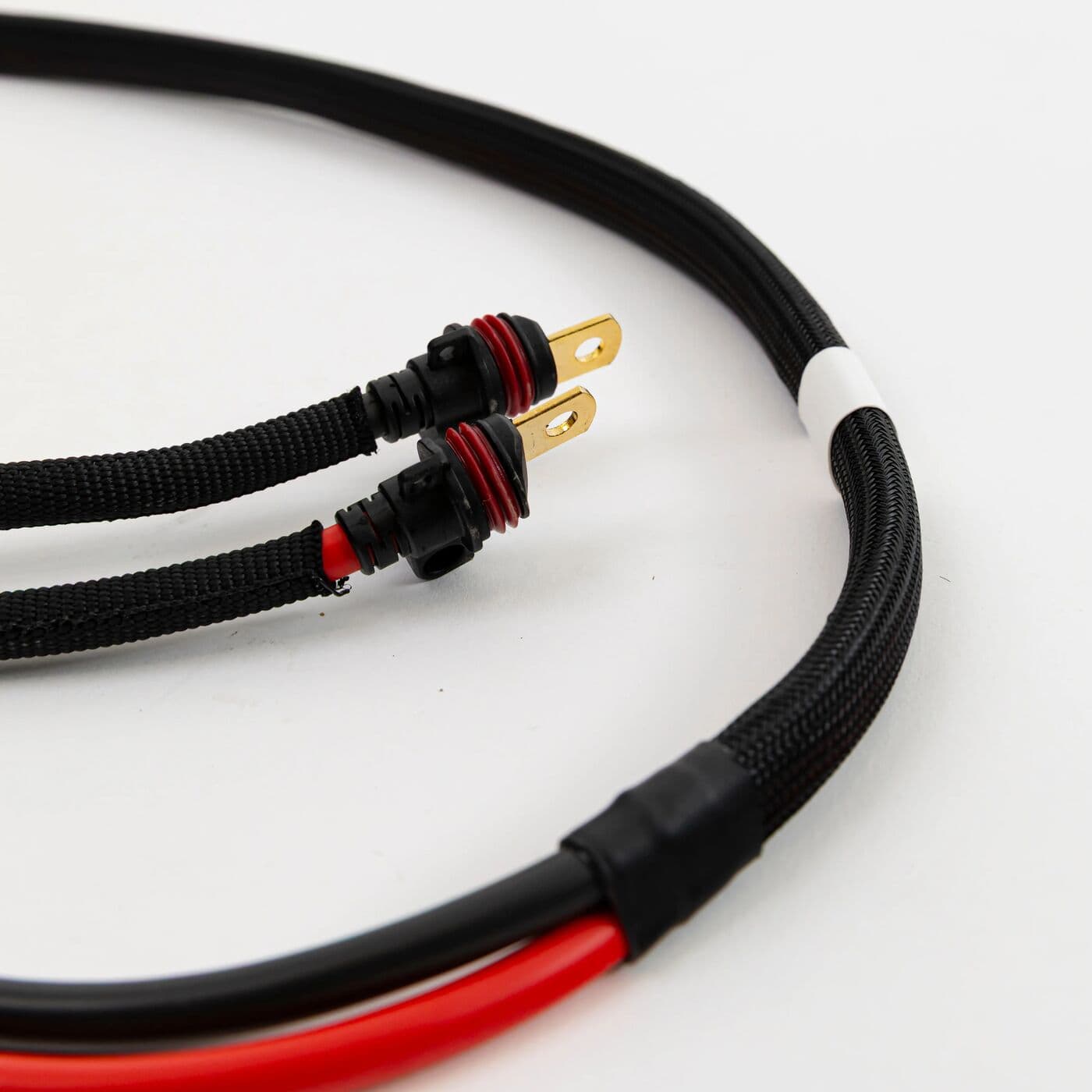

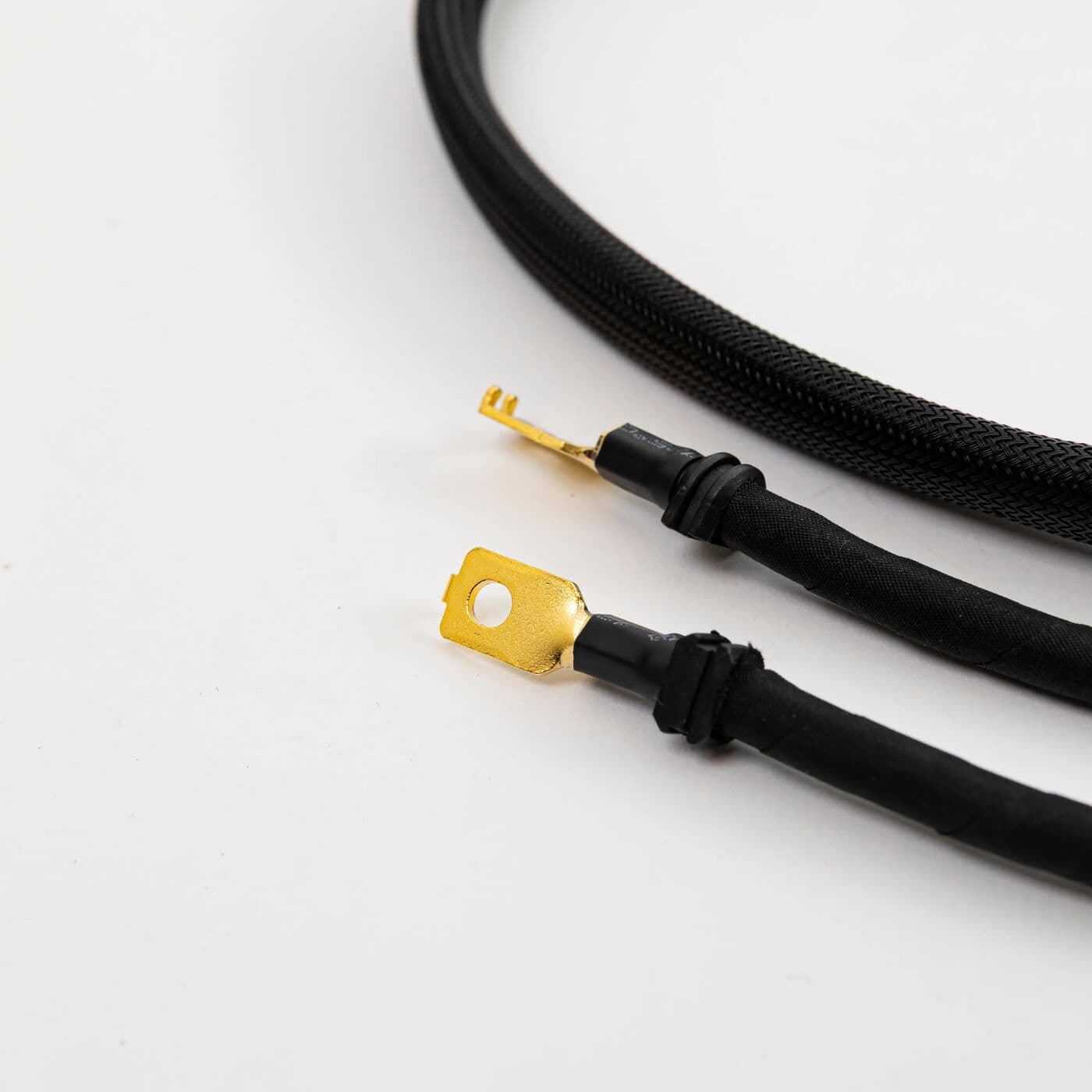

Aircraft Arm Propulsion Cable - Rear (T100) YC.XC.DD000813
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
For the rear arms of the DJI Agras T100, M3 and M4, this is the rear version of the aircraft arm propulsion cable, the power harness at callout 21 on both small arm diagrams.
| Part number | YC.XC.DD000813 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 M1/M3 and M2/M4 small arms, callout 21 |
The drawing shows the front cable at that callout, so identify this one by its code rather than by the picture; the front cable, YC.XC.DD000812, is for the front arms, M1 and M2.
Look for a pinched or rubbed-through sheath wherever the cable passes a clamp, an edge or a moving part, and for loose, corroded or heat-marked pins at each plug. While the cable is off, also look over the ESC module in the same arm assembly. Afterwards, power up and confirm the app shows no propulsion faults for that arm before the next job.
Front and rear propulsion cables look alike once they are out, so if in doubt, send a photo of the old cable and the arm it came off through our contact page and we will match it for you.
