DJI
Buckle Torsion Spring (T100) YC.JG.TT000278
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

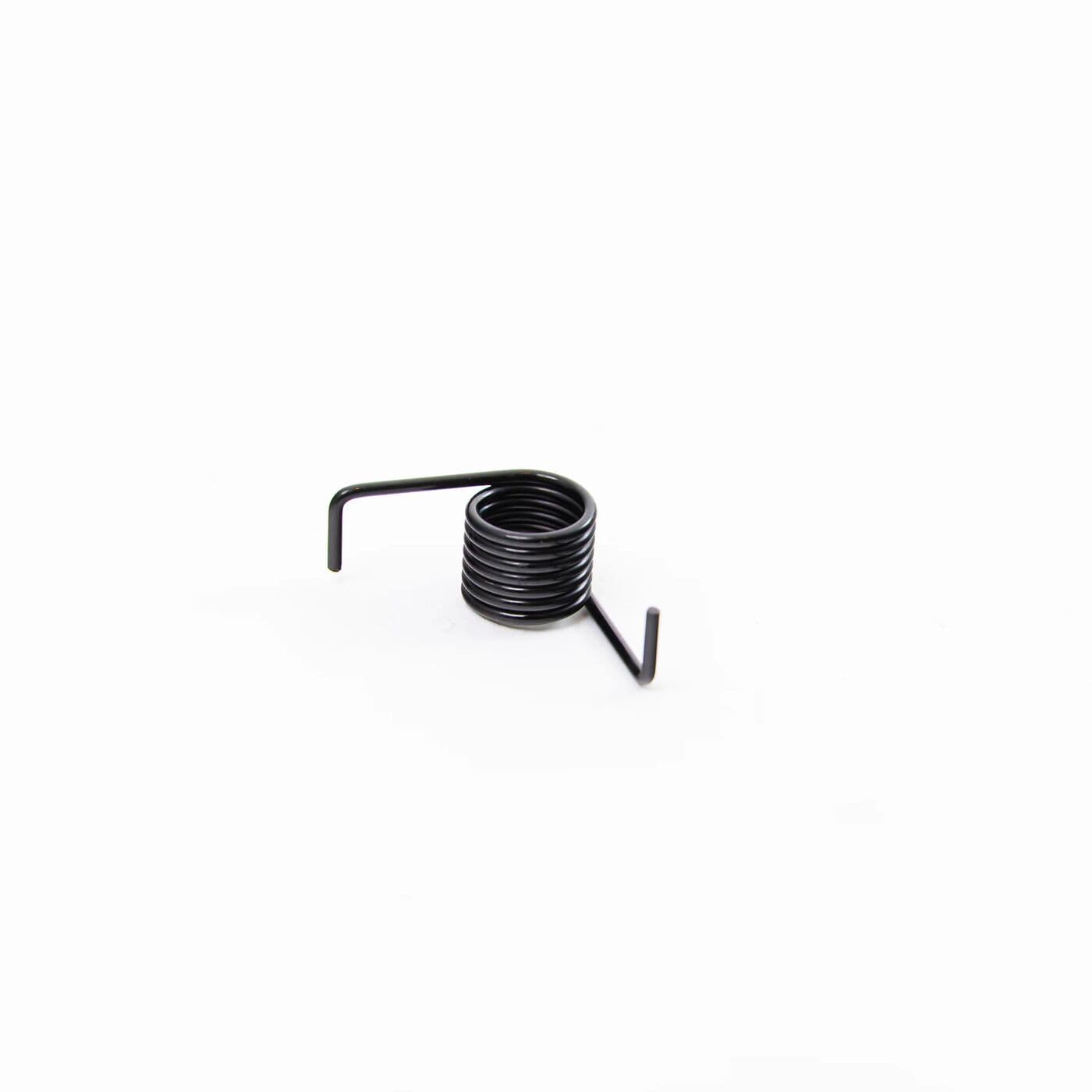

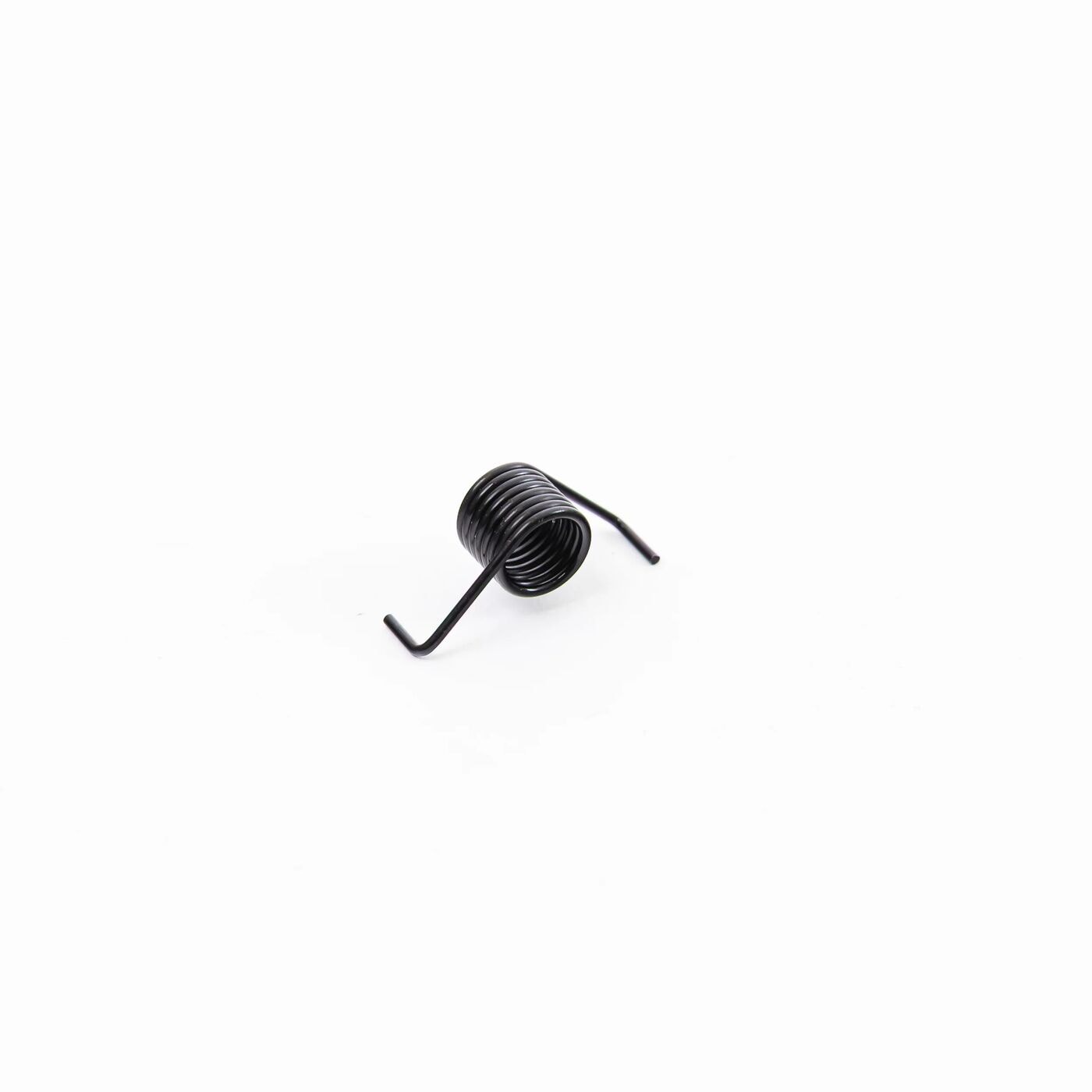

A small torsion spring for the arm buckle on the DJI Agras T100, callout 12 on the M1/M3 and M2/M4 small arm diagrams. It keeps tension on the buckle, helping the arm latch return to its locked position.
| Part number | YC.JG.TT000278 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 M1/M3 and M2/M4 small arms, callout 12 |
A weak, rusted or broken spring usually shows up as a latch that stays open, feels loose, or has to be pushed shut by hand. Because the spring is small and easily dropped, it is worth having a spare before stripping a buckle in the paddock.
Note which way the old spring's legs sit before removing it and fit the new one the same way, then work the latch through its full travel to confirm it snaps closed. Look over the aircraft arm buckle module at the same time for cracks or wear.
