DJI

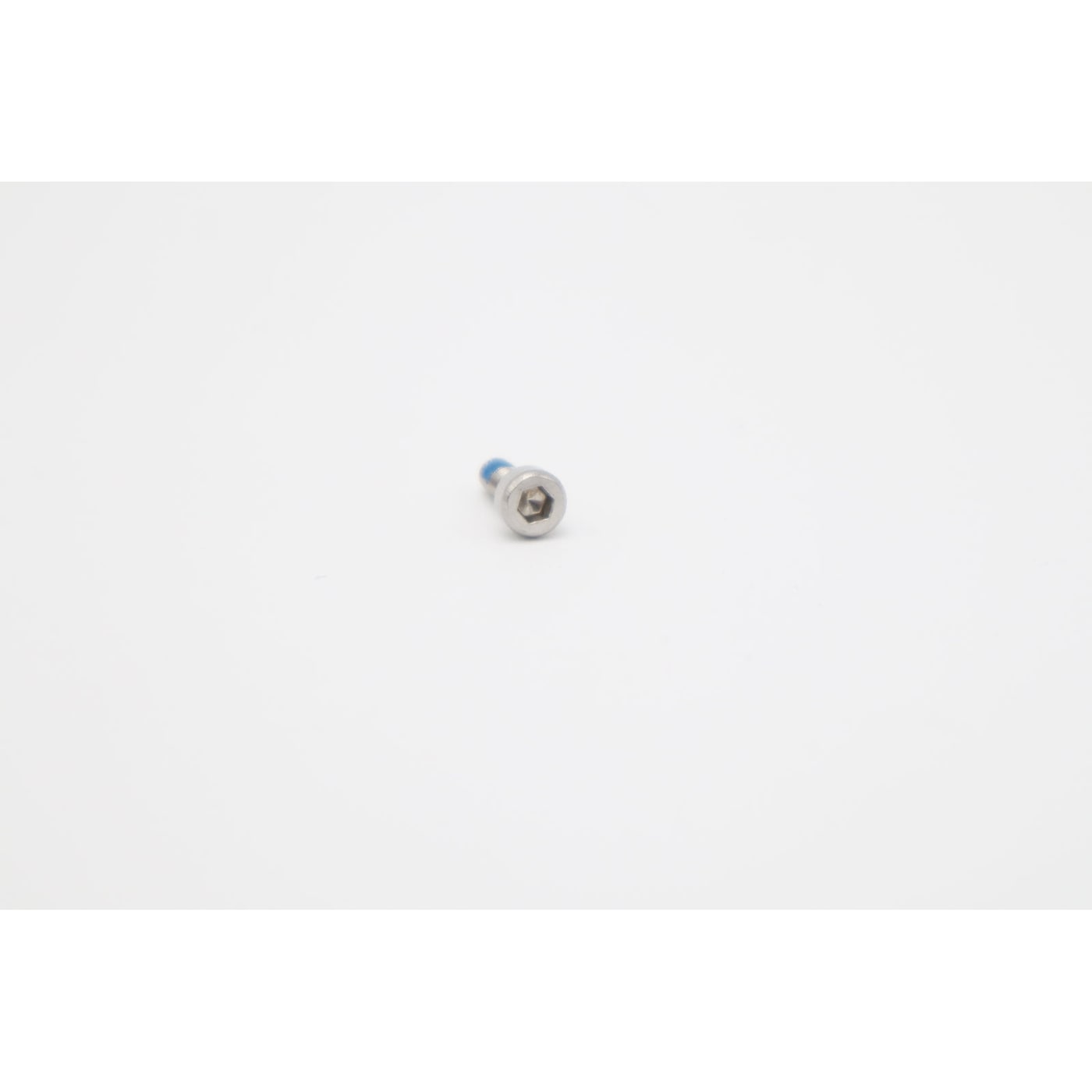

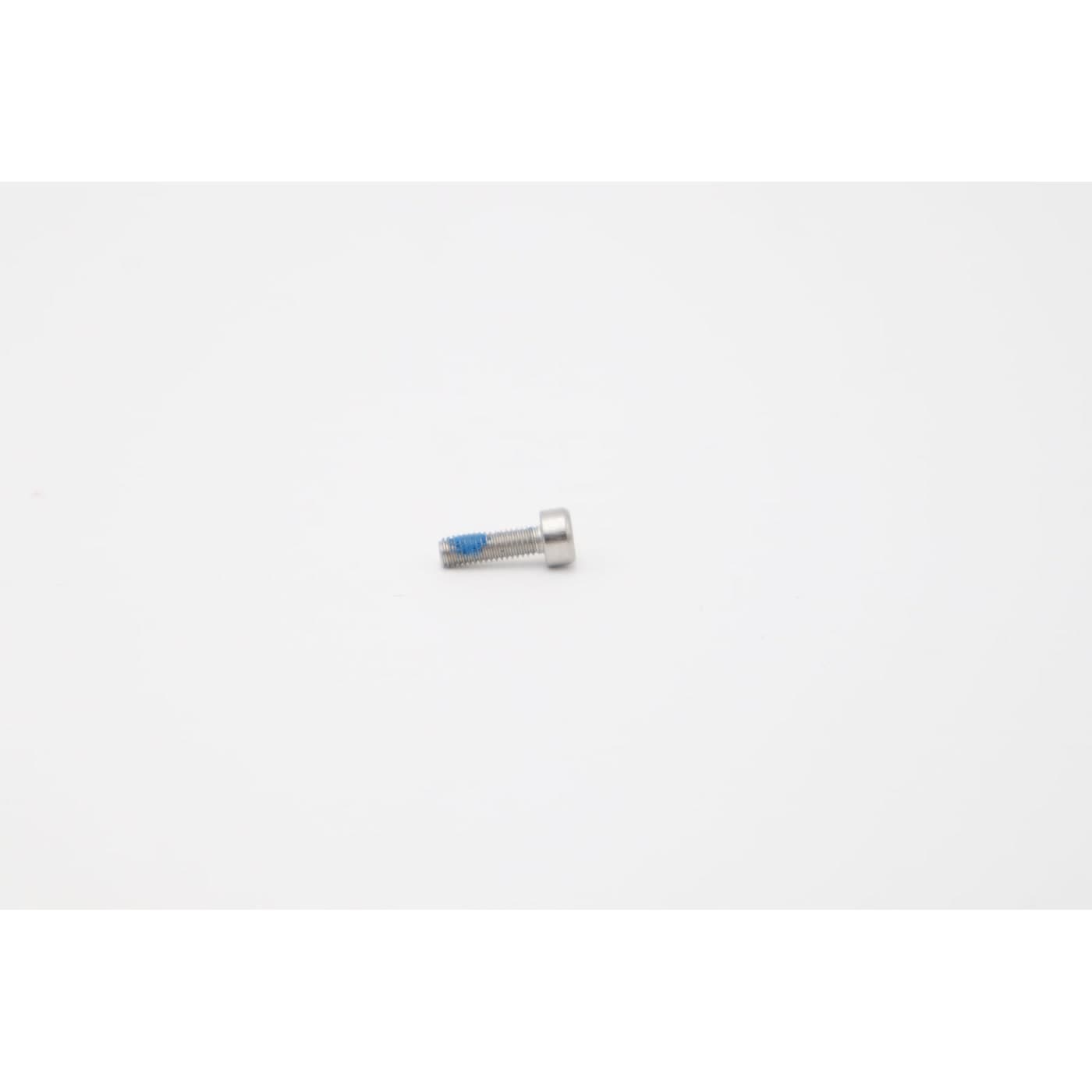

Screw M30-HC100100-55-85 (T100/T70P/T50/T25P) YC.WJ.L00871
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Screw M30-HC100100-55-85 is used across four DJI Agras aircraft (T100, T70P, T50, T25P) and appears on 18 of their parts diagrams.
| Part number | YC.WJ.L00871 |
| Fits | DJI Agras T100, T70P, T50, T25P |
| Parts diagram | T100 landing gear (sheet 2), callouts 16, 18 and 22; T100 front frame (sheet 2), callouts 8 and 14; T100 M1/M3 and M2/M4 small arms, callouts 18 and 24; T100 spread tank, callout 5; T100 spreading landing gear (sheet 2), callout 9; T100 spinner disc, callout 10; T100 lift-system landing gear (sheet 1), callouts 9 and 11; T70P front frame (sheet 1), callout 9; T70P middle frame, callouts 17 and 31; T70P M3 arm, callouts 17, 24, 37, 46 and 49; T70P landing gear, callouts 17 and 39; T70P spinner disc, callout 10; T50 landing gear, callout 5; T50 M1 arm, callout 21; T50 M3 arm, callouts 21 and 24; T25P landing gear, callout 9; T25P spreader (sheet 1), callout 8 |
Match the code before ordering: the T50 and T25P rear frame diagrams list a same-named screw under YC.ST.LL000336, and YC.WJ.L00870 is named much alike. Renew any with a rounded head or damaged thread.
