DJI

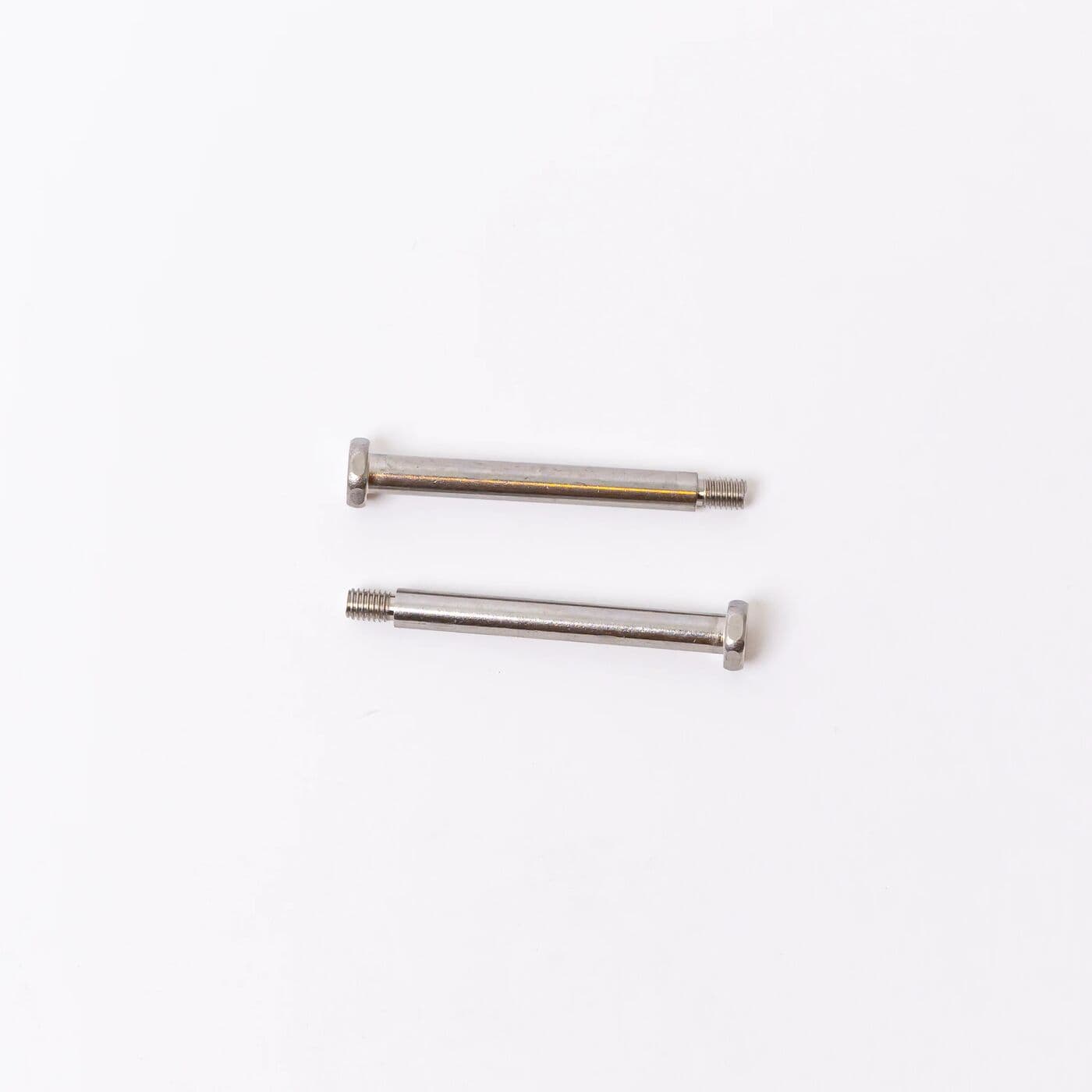

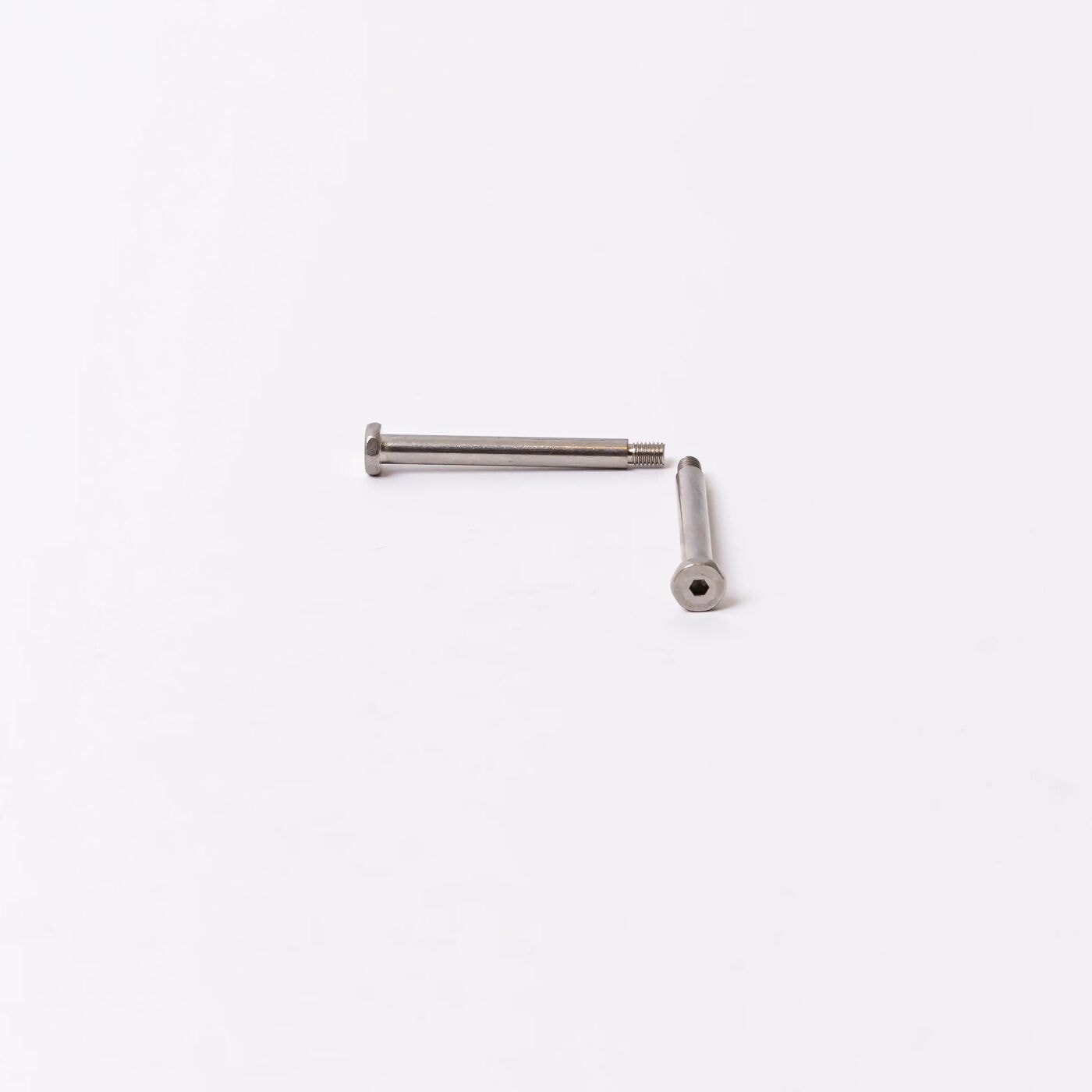

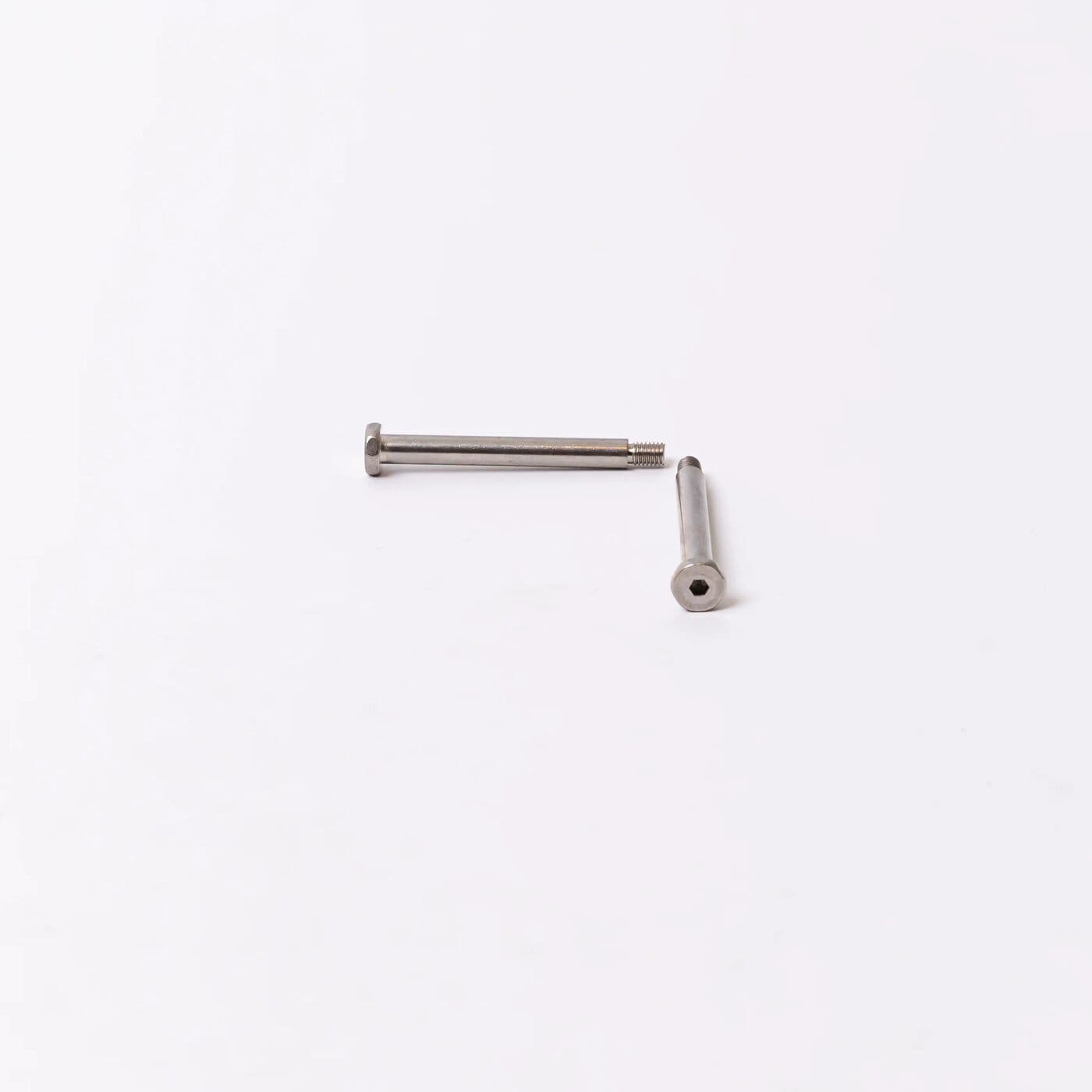

Pin Shaft - 57.1 mm (T100) YC.JG.LD000124
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
All four small arms of the DJI Agras T100 (M1/M3 and M2/M4) use this 57.1 mm pin shaft in their arm buckle hardware, where DJI lists it with the buckle torsion spring and a nut.
| Part number | YC.JG.LD000124 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 M1/M3 and M2/M4 small arms, callout 13 |
DJI's list numbers it between the buckle torsion spring (callout 12) and the aircraft arm limit block (14), with the aircraft arm buckle module at 10 and a nut at 11. Check the shaft for a bend, grooves or wear marks, and the buckle for play or a slow spring-back when it is worked. The T100 also uses a 29.7 mm pin shaft in its middle frame, so confirm the length and part code before ordering.
If the buckle itself is damaged, the complete arm buckle (trigger) assembly is sold as its own part.
