DJI

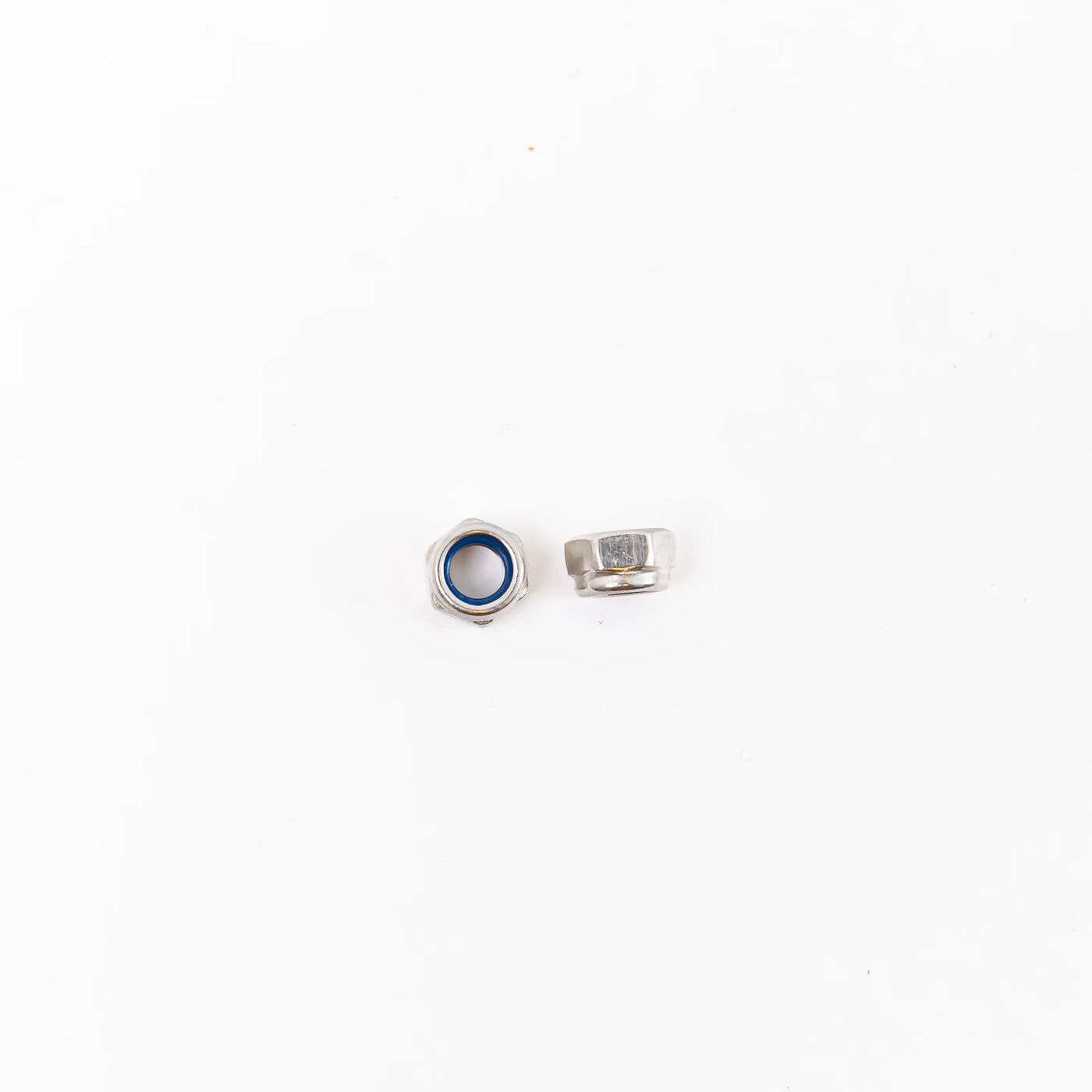

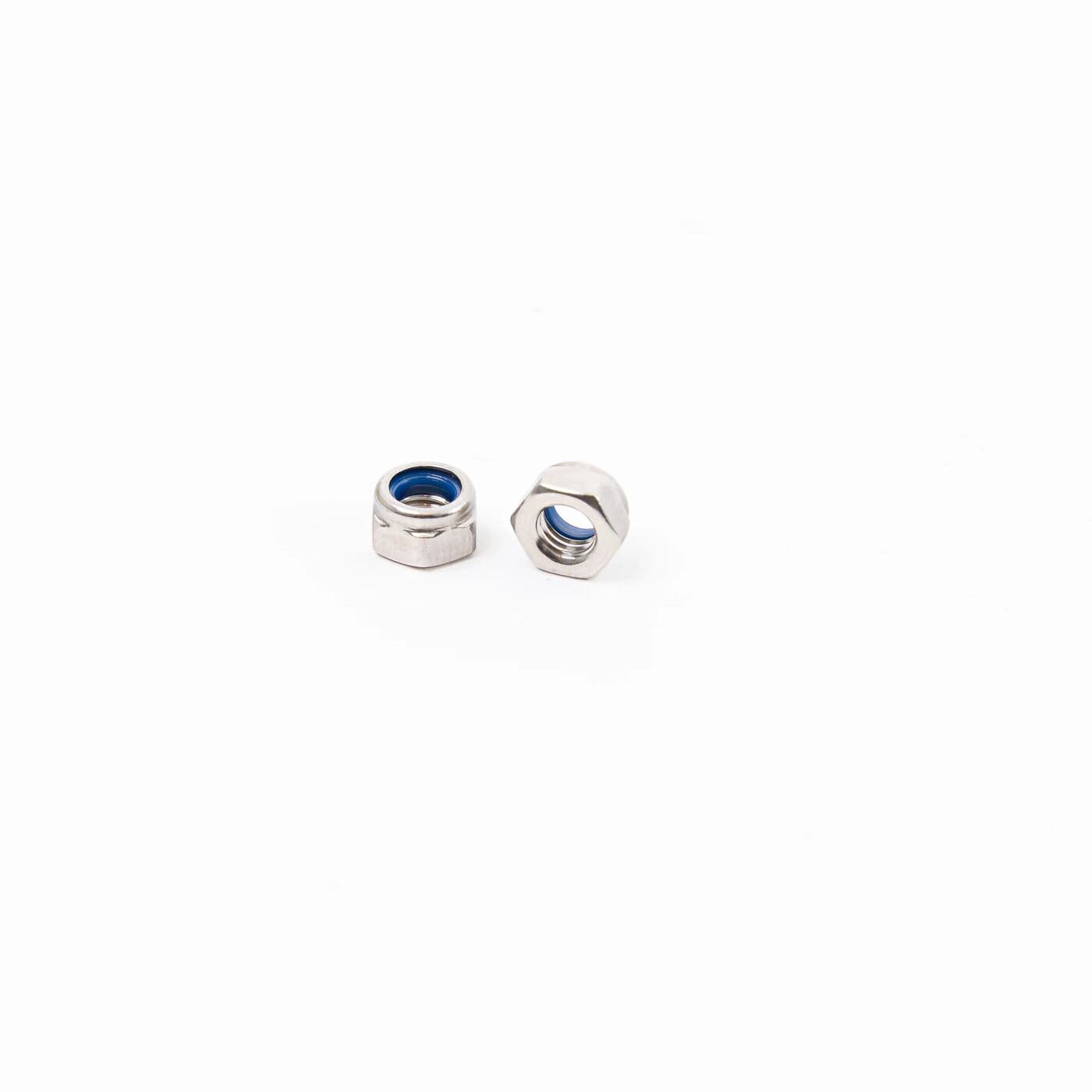

Nut - M50-HN078050-5103 (T100) YC.ST.LM000026
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
DJI fastener M50-HN078050-5103 is the nut pictured with the arm buckle hardware of a DJI Agras T100 and listed at callout 11 on the M1/M3 and M2/M4 small arm diagrams. It sits alongside the buckle module, torsion spring and pin shaft.
| Part number | YC.ST.LM000026 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 M1/M3 and M2/M4 small arms, callout 11 |
Order it when the original has been lost during a strip-down, has a damaged or corroded thread, or will no longer tighten properly. Fertiliser and chemical residue can corrode small fasteners, so inspect the buckle hardware whenever an arm is apart.
Match the code on the diagram rather than using a similar-looking nut from the parts bin, and check the latch locks firmly after reassembly. If the buckle itself is worn, the aircraft arm buckle module (callout 10), buckle torsion spring (callout 12) and 57.1 mm pin shaft (callout 13) are sold separately.
