DJI

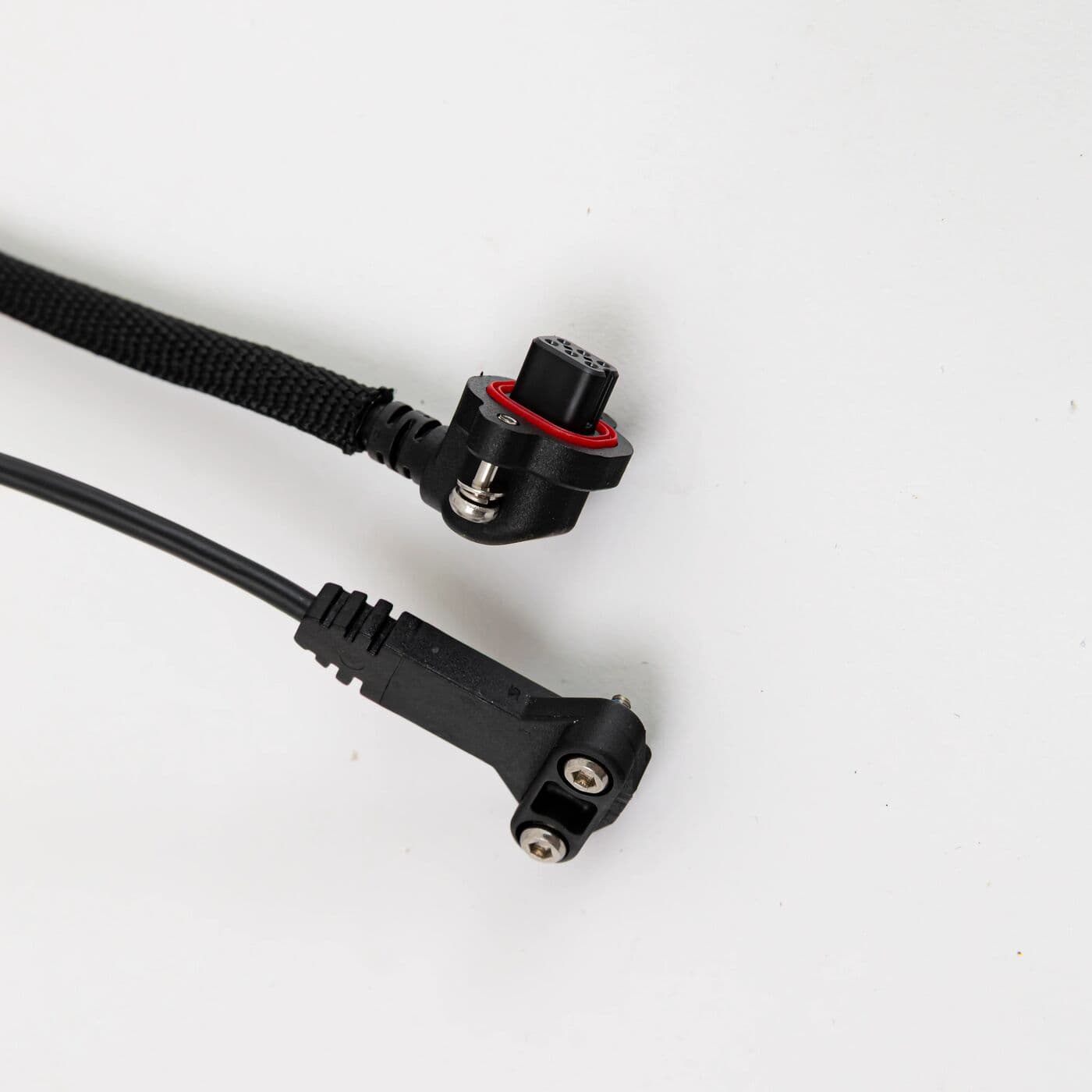

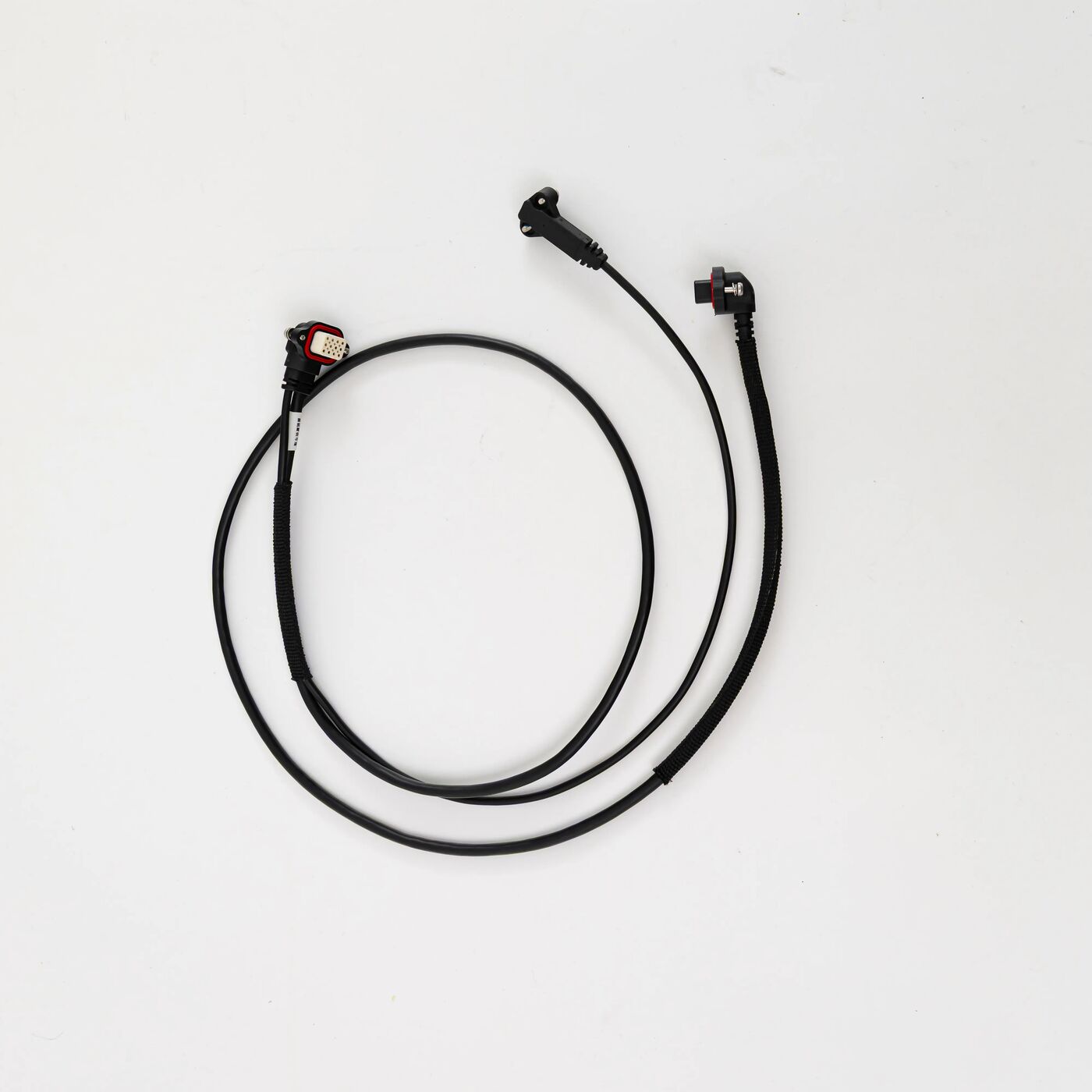

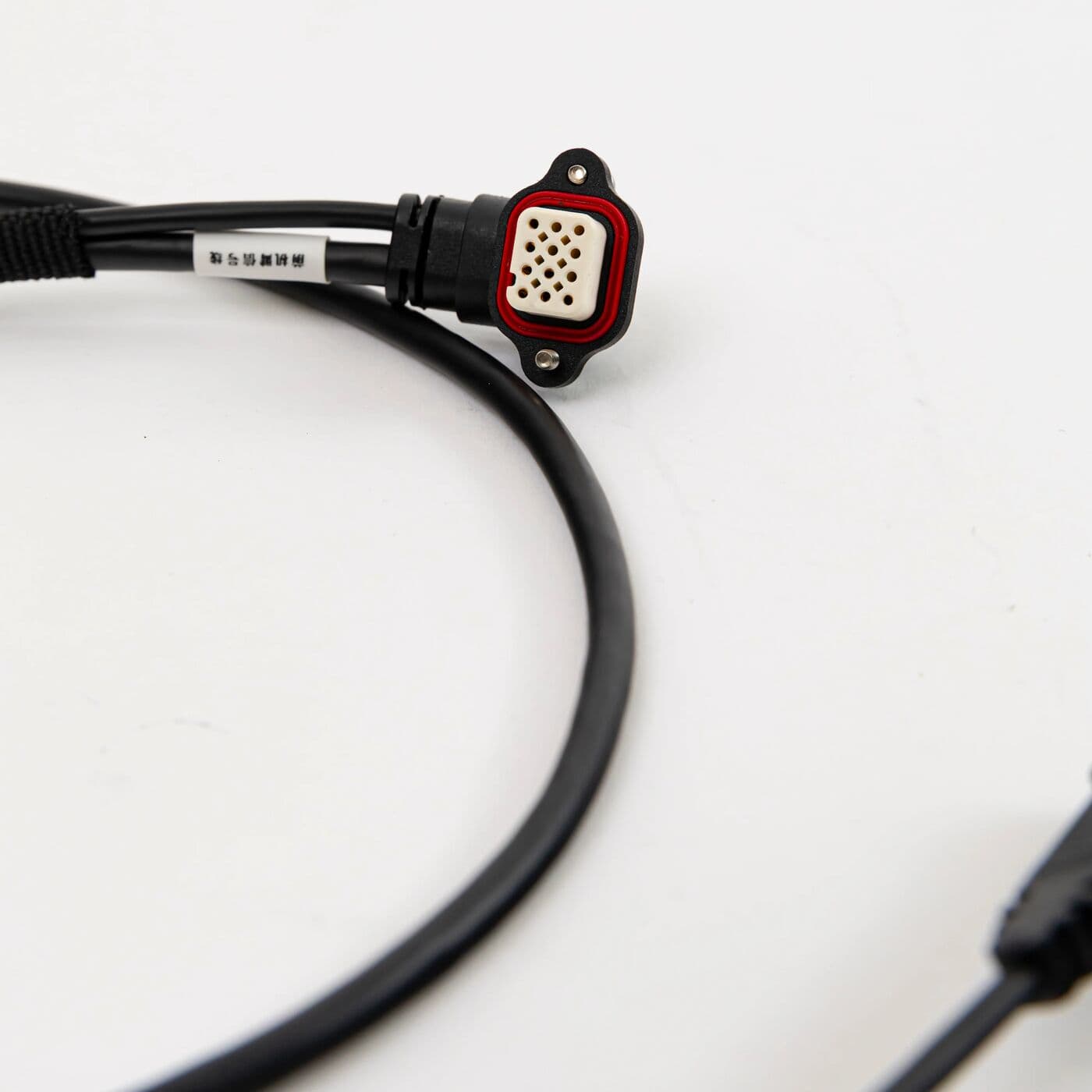

Aircraft Arm Signal Cable - Front (T100) YC.XC.XX001468
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
The front arm signal cable for the DJI Agras T100 appears at callout 19 on both small arm diagrams (M1/M3 and M2/M4), where it is shown in the same arm assembly as the ESC module and the front propulsion cable.
| Part number | YC.XC.XX001468 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 M1/M3 and M2/M4 small arms, callout 19 |
A cable that has been pinched, chafed or kinked can cause warnings or faults on that arm, sometimes only now and then. Before fitting a new one, look for bent pins and corrosion in the connectors at both ends, particularly on aircraft that get washed down often.
EE Group lists this cable and the rear signal cable (YC.XC.XX001469) at the same callout, as 19 and 19-2. DJI's T100 manual treats arms M1 and M2 as the front of the aircraft and M3 and M4 as the rear, but go by the code on the old cable when ordering. Follow the original routing so nothing is trapped when the arm folds, and if a warning remains after the swap, check the ESC module and its connections next.
