DJI Agras T25P Spreader 1
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T25P assemblies (18)
- Front Frame (1) (11)
- Front Frame (2) (38)
- Middle Frame (34)
- Rear Frame (23)
- Cable Distribution Board (13)
- Propeller (6)
- Cables (13)
- Landing Gear (25)
- Tank (1) (1)
- Tank (2) (29)
- Impeller Pump (15)
- Flow Meter (14)
- M3 Aircraft Arm (38)
- Spray Lance (19)
- Aerial Electronics Module (9)
- Spreader 1 (55)
- Spreader 2 (7)
- Spread Tank (2)

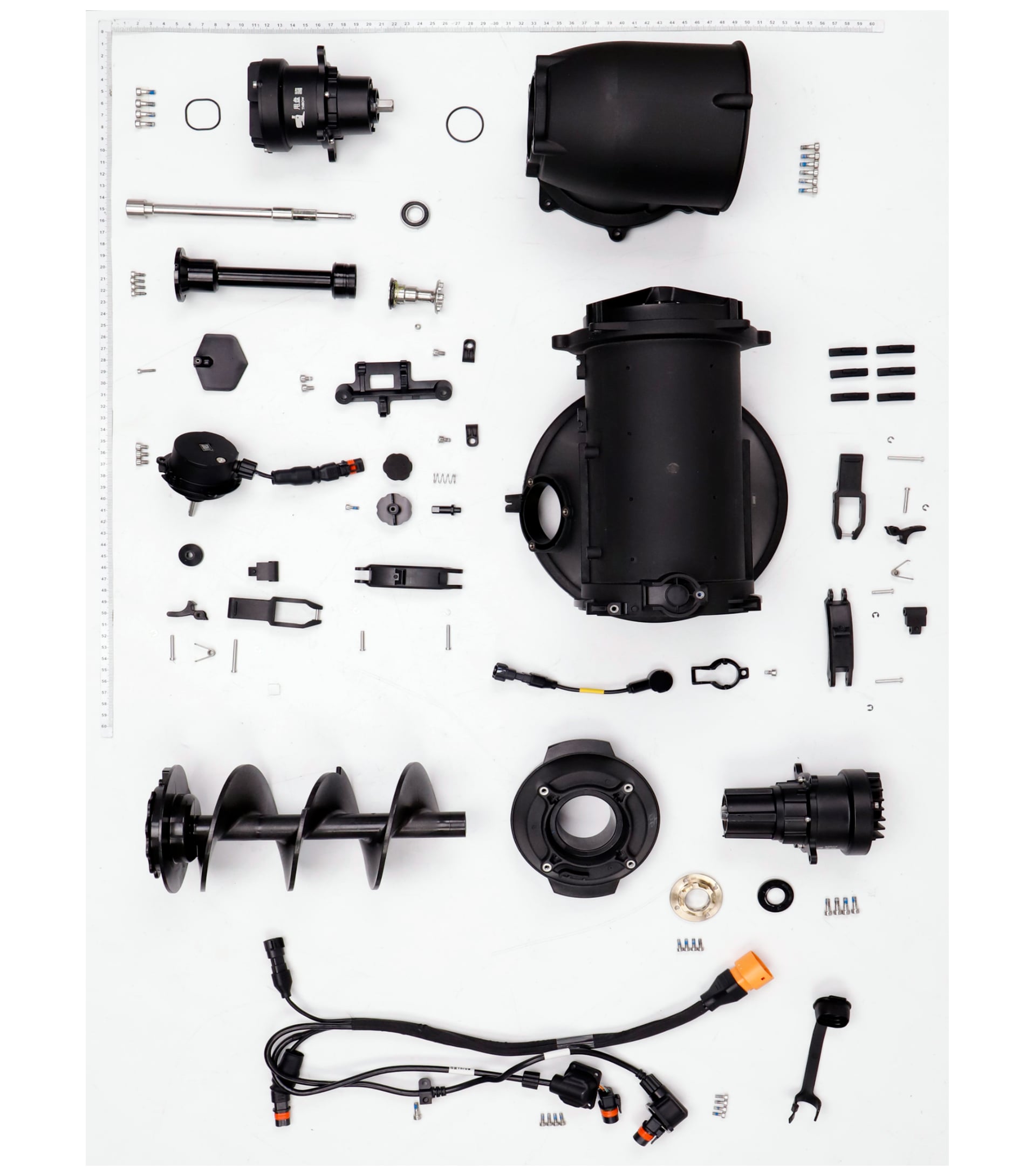

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Spinner Disk Shaft Sealing Ring YC.JG.MY001343 $3.41 | $3.41 | |
| 2 | Spinner Disk Motor BC.AG.SS000913 $439.92 | $439.92 | |
| 3 | Screw (M40-HC01050056-070039-5103-Y) YC.ST.LL000327 $2.50 | $2.50 | |
| 4 | Motor Sealing Ring YC.JG.MY001342 $2.53 | $2.53 | |
| 5 | One-Way Valve Core Sealing Ring YC.JG.MY001329 $0.90 | $0.90 | |
| 6 | Spinner Disk Shaft YC.JG.QX003603 $55.70 | $55.70 | |
| 7 | Shaft Sleeve Module BC.AG.SS000916 $121.80 | $121.80 | |
| 8 | Screw M30-HC100100-55-85 YC.WJ.L00871 $2.05 | $2.05 | |
| 9 | Screw YC.ST.LL000469.01 YC.ST.LL000469 $0.65 | $0.65 | |
| 10 | Sensing Part YC.JG.ZS004580 $7.00 | $7.00 | |
| 11 | Screw M25-HC01200120-045025-5103-Y YC.WJ.L00006 $1.25 | $1.25 | |
| 12 | Screw M40-HC060060-55-85 YC.WJ.L00876 $2.05 | $2.05 | |
| 13 | Composite Cable Clip YC.JG.ZS005201 $2.65 | $2.65 | |
| 14 | Screw M40-HC060060-55-85 YC.WJ.L00876 $2.05 | $2.05 | |
| 15 | Material Detection Motor BC.AG.SS000914 $392.00 | $392.00 | |
| 16 | Screw M30-HC080080-55-85 YC.WJ.L00868 $3.05 | $3.05 | |
| 17 | Fixing Knob YC.SJ.WS001064 $12.50 | $12.50 | |
| 18 | Reduction Gearbox Motor Dustproof Cover YC.JG.MY000387 $6.60 | $6.60 | |
| 19 | Medium Pin (22.2 mm) YC.JG.QX003649 $4.30 | $4.30 | |
| 20 | Long Pin (29.4 mm) YC.JG.QX003648 $4.00 | $4.00 | |
| 21 | Short Pin (17.6 mm) YC.JG.QX003650 $4.30 | $4.30 | |
| 22 | Medium Pin (22.2 mm) YC.JG.QX003649 $4.30 | $4.30 | |
| 23 | Auger Sensor BC.AG.SS000917 $50.33 | $50.33 | |
| 24 | Large Auger BC.AG.SS000918 $149.00 | $149.00 | |
| 25 | Auger Motor Base YC.JG.ZS004554 $41.98 | $41.98 | |
| 26 | Swipe Bearing YC.ST.CG000012 $34.00 | $34.00 | |
| 26.5 | 4-pin Cable Sleeve YC.JG.MY001491 $0.90 | $0.90 | |
| 27 | Screw (M40-HC01050056-070039-5103-Y) YC.ST.LL000327 $2.50 | $2.50 | |
| 28 | Screw M30-HC080080-55-85 YC.WJ.L00868 $3.05 | $3.05 | |
| 29 | Screw M30-HC080080-55-85 YC.WJ.L00868 $3.05 | $3.05 | |
| 30 | Male Connector Rubber Stopper YC.JG.ZS005365 $3.15 | $3.15 | |
| 31 | Spreading Signal Cable YC.XC.XX001205 $101.35 | $101.35 | |
| 32 | Screw M30-HC080080-55-85 YC.WJ.L00868 $3.05 | $3.05 | |
| 33 | Screw (M40-HC01050056-070039-5103-Y) YC.ST.LL000327 $2.50 | $2.50 | |
| 35 | Auger Motor BC.AG.SS000915 $464.38 | $464.38 | |
| 36 | Motor Sealing Ring YC.JG.MY001342 $2.53 | $2.53 | |
| 37 | Screw M40-HC060060-55-85 YC.WJ.L00876 $2.05 | $2.05 | |
| 38 | Quick-Release Clamp YC.JG.ZS004696 $4.30 | $4.30 | |
| 39 | Quick-Release Rod YC.JG.ZS004557 $6.00 | $6.00 | |
| 40 | Liquid Level Gauge Bracket YC.JG.ZS002237 $0.95 | $0.95 | |
| 41 | Torsion Spring YC.JG.TT000204 $0.90 | $0.90 | |
| 42 | Lever 2 YC.JG.ZS004556 $2.60 | $2.60 | |
| 43 | E-Type Circlip (OD=6 mm) YC.JG.BJ002409 $2.50 | $2.50 | |
| 44 | Lever 1 YC.JG.ZS004555 $4.30 | $4.30 | |
| 45 | Spread Tank Lock Button YC.JG.QX003018 $23.60 | $23.60 | |
| 46 | Lock Button Spring YC.JG.TT000163 $1.25 | $1.25 | |
| 47 | Spray System_ Locking Device EVA Foam YC.BZ.XX000417 $2.15 | $2.15 | |
| 48 | Screw M40-HC060060-55-85 YC.WJ.L00876 $2.05 | $2.05 | |
| 49 | Silicone Rubber Pad YC.JG.MY001300 $0.90 | $0.90 | |
| 50 | Cable Clip YC.JG.ZS004913 $0.90 | $0.90 | |
| 51 | Auger External Shell YC.JG.ZS004551 $131.21 | $131.21 | |
| 52 | Spinner Disk Flange YC.JG.QX003604 $40.15 | $40.15 | |
| 53 | Bearing (OD=24 mm) YC.ST.CT000101 $6.05 | $6.05 | |
| 54 | Screw (M40-HC01050056-070039-5103-Y) YC.ST.LL000327 $2.50 | $2.50 | |
| 55 | Spinner Disk External Shell YC.JG.ZS004552 $46.95 | $46.95 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
