DJI Agras T25P M3 Aircraft Arm
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T25P assemblies (18)
- Front Frame (1) (11)
- Front Frame (2) (38)
- Middle Frame (34)
- Rear Frame (23)
- Cable Distribution Board (13)
- Propeller (6)
- Cables (13)
- Landing Gear (25)
- Tank (1) (1)
- Tank (2) (29)
- Impeller Pump (15)
- Flow Meter (14)
- M3 Aircraft Arm (38)
- Spray Lance (19)
- Aerial Electronics Module (9)
- Spreader 1 (55)
- Spreader 2 (7)
- Spread Tank (2)

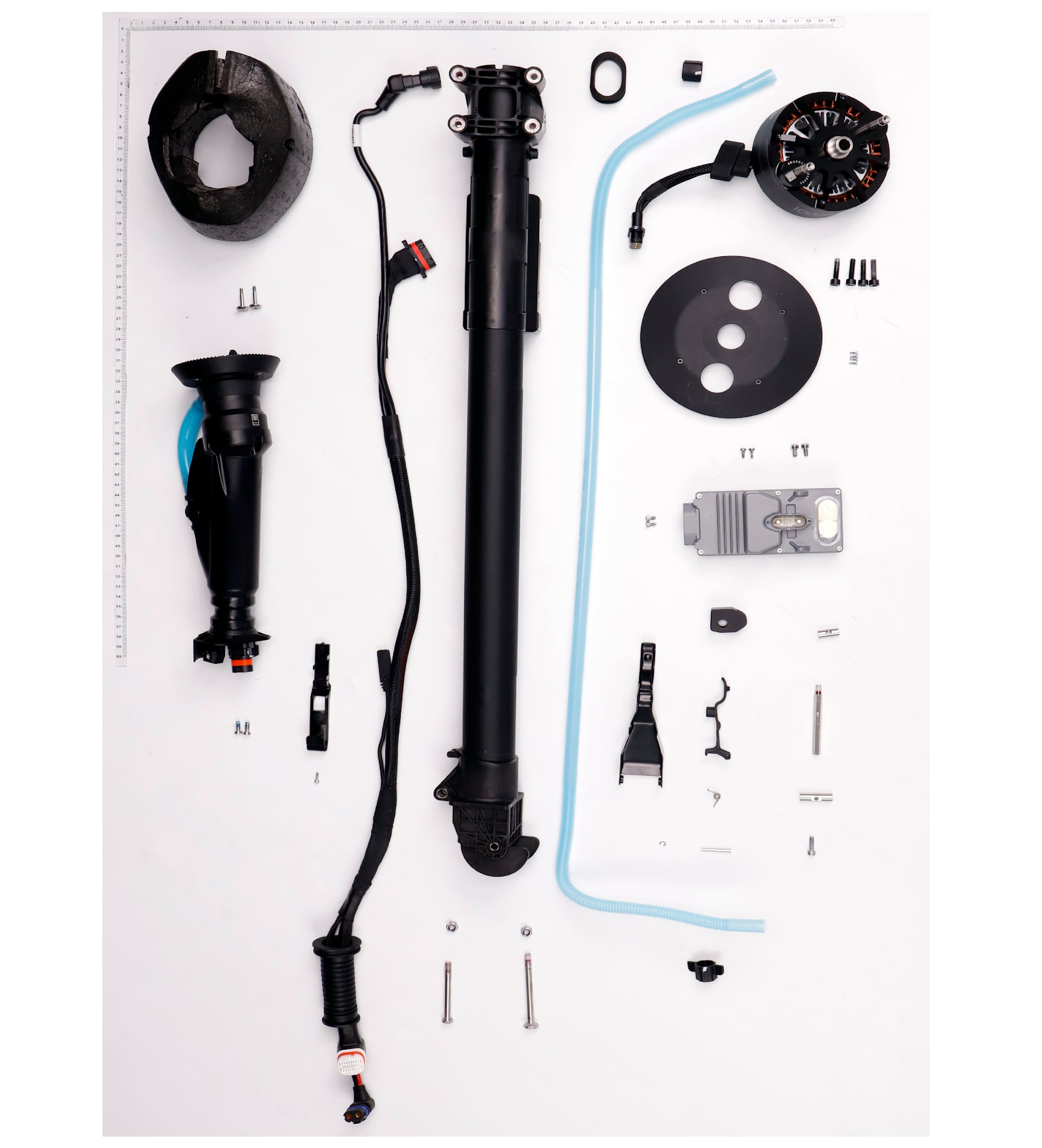

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | M3 Aircraft Arm (Rear Left) BC.AG.SS000867 $178.37 | $178.37 | |
| 2 | Motor Cover YC.JG.FP000039 $19.10 | $19.10 | |
| 3 | M3 & M4 Aircraft Arm ESC Composite Cable YC.XC.DD000678 $132.00 | $132.00 | |
| 4 | M30-HT01930060-110025-5103-Y YC.WJ.LL000213 $3.05 | $3.05 | |
| 6 | In-Position Detector Bracket YC.JG.ZS004019 $3.85 | $3.85 | |
| 7 | M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 $2.05 | $2.05 | |
| 8 | Screw T25-HC00800080-045025-4203-N YC.ST.LL000544 $0.59 | $0.59 | |
| 9 | Locking Piece Fixing Screw Bolt YC.JG.LD000041 $9.00 | $9.00 | |
| 10 | M60-HX100060-5103_01 YC.WJ.LM000044 $3.60 | $3.60 | |
| 11 | Aircraft Arm Fixing Screw Bolt YC.JG.LD000045 $1.65 | $1.65 | |
| 12 | Thumb Nut YC.JG.ZS003594 $6.00 | $6.00 | |
| 13 | M60-HX100060-5103_01 YC.WJ.LM000044 $3.60 | $3.60 | |
| 14 | E-Type Circlip (OD=6 mm) YC.JG.BJ002409 $2.50 | $2.50 | |
| 15 | M40-HC01400140-070039-4105-Y YC.ST.LL000148 $11.95 | $11.95 | |
| 16 | Buckle Rotation Shaft YC.JG.QX003014 $56.80 | $56.80 | |
| 17 | Locking Piece Aircraft Arm Shaft YC.JG.QX002089 $13.00 | $13.00 | |
| 18 | Buckle Torsion Spring YC.JG.TT000165 $2.50 | $2.50 | |
| 19 | Locking Piece Connection Rod YC.JG.QX003942 $6.05 | $6.05 | |
| 20 | Buckle Module BC.AG.SS000701 $2.50 | $2.50 | |
| 21 | Locking Piece Handle YC.JG.BJ003468 $35.00 | $35.00 | |
| 22 | Locking Piece_Handle Connecting Rod Shaft YC.JG.QX004662 $16.00 | $16.00 | |
| 23 | Locking Piece Handle Rubber Sleeve YC.JG.ZS006831 $3.00 | $3.00 | |
| 24 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 25 | ESC Module BC.AG.SS000869 $660.25 | $660.25 | |
| 26 | Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 $2.05 | $2.05 | |
| 27 | Screw M40-HC080080-68-85 YC.WJ.L01234 $3.60 | $3.60 | |
| 28 | Aircraft Arm Hose YC.JG.JS000045 $7.70 | $7.70 | |
| 29 | M20-TC00700060-033010-0004-Y YC.ST.LL000208 $0.95 | $0.95 | |
| 30 | Motor Upper Cover YC.JG.ZS005501 $15.47 | $15.47 | |
| 31 | Screw M50-HC02000200-087052-4203-Y YC.ST.LL000489 $8.00 | $8.00 | |
| 32 | Motor Sticker YC.BZ.TZ001048 $2.20 | $2.20 | |
| 33 | 10028 Propulsion Motor BC.AG.SS000706 $345.55 | $345.55 | |
| 34 | Hose Nut (M15) YC.JG.ZS003460 $2.50 | $2.50 | |
| 35 | Aircraft Arm Rubber YC.JG.MY001465 $15.58 | $15.58 | |
| M1 & M2 Aircraft Arm ESC Composite Cable YC.XC.DD000676 $91.00 | $91.00 | ||
| M1 Aircraft Arm (Front Right) BC.AG.SS000865 $179.57 | $179.57 | ||
| M2 Aircraft Arm (Front Left) BC.AG.SS000866 $179.57 | $179.57 | ||
| M4 Aircraft Arm (Rear Right) BC.AG.SS000868 $178.35 | $178.35 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
